SPECIFICATIONS
Part Number: 330130-085-00-00
Manufacturer: Bently Nevada
Product Type: 3300 XL 8 mm Extension Cable
Availability: In Stock
Country of Origin: USA
Product Family: 3300 XL, 3300XL, 3300-XL

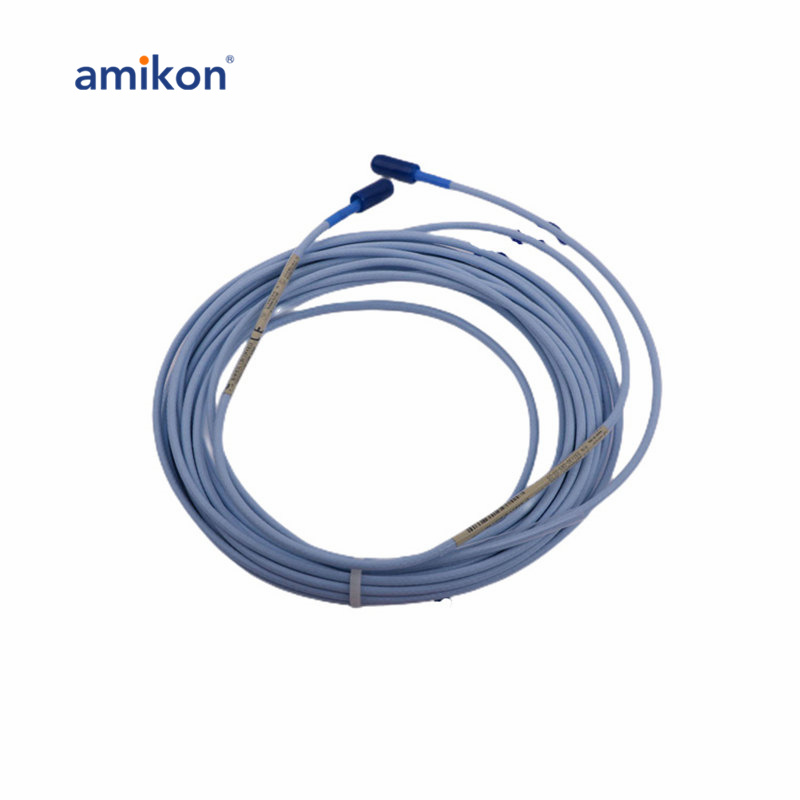

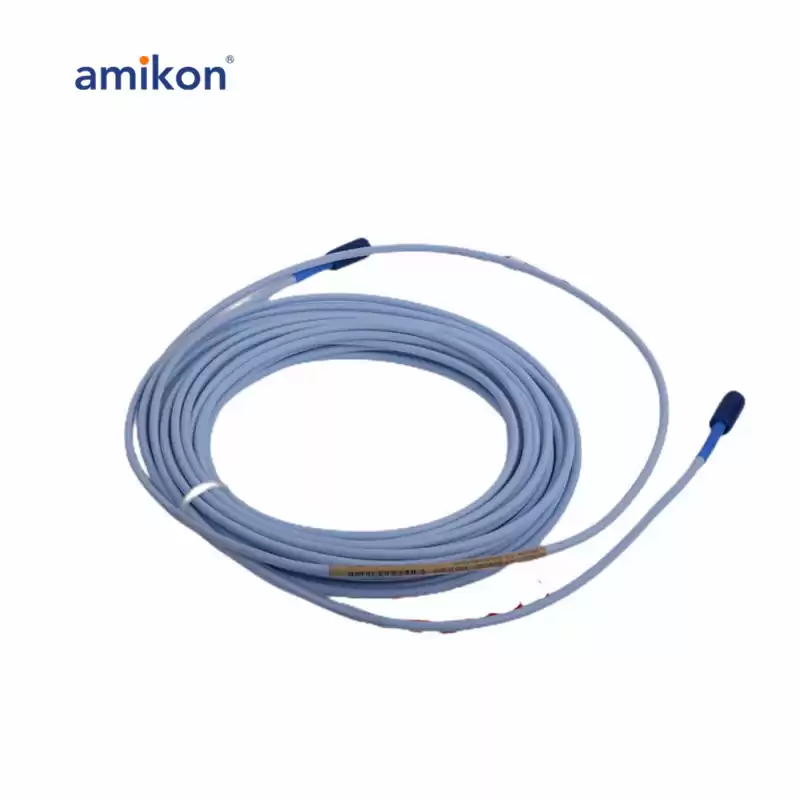

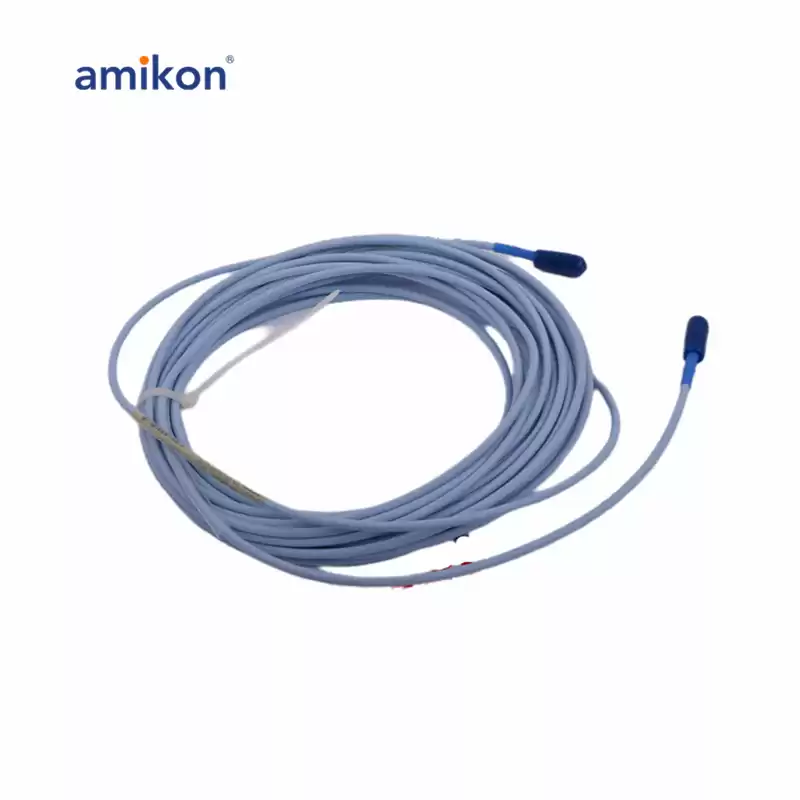

330130-085-00-00 is a 3300 XL Standard Extension Cable manufactured by Bently Nevada and used in proximity transducer system. Proximitor Sensors are standard calibrated to AISI 4140 steel from the factory. On-demand calibration to additional target materials is offered. Bently Nevada Applications can be consulted. Of evaluating this transducer system for tachometer or Overspeed measurements, take note of the considerations when employing eddy current proximity probes for Overspeed protection applications.
Functional Description
-The non-XL 3300 5 and 8 mm components can be physically and electronically interchanged with the 3300 XL 8 mm components.
-Although the 3300 XL Proximitor Sensor's packaging is different from that of its predecessor, it is still made to fit in the same 4-hole mounting pattern when coupled with the same mounting base's 4-hole mounting pattern and will conform to the same mounting space requirements (when minimum permissible cable bend radius is observed).
330130-085-00-00 Feature
-System performance is restricted to the non-XL 3300 5 and 8 mm Transducer System standards when XL and non-XL 3300 series 5 and 8 mm system components are combined.
-The 3300-series 5 mm probe (see Specifications and Ordering Information p/n 141605-01) has a smaller physical footprint than an 8 mm probe, but it cannot be used with reduced side view clearances or tip-to-tip spacing.
-When the use of an 8 mm probe is prohibited by physical—not electrical—constraints, this method is used. Use the 3300 NSvTM Proximity Transducer System when narrow side view probes are needed.
-A thicker encapsulation of the probe coil in the molded PPS plastic probe tip is offered by 8 mm probes. As a result, the probe becomes more robust.
-The probe body's increased diameter also offers a stronger, more durable casing. For the best robustness against physical abuse, Bently Nevada advises using 8 mm probes wherever it is practical.

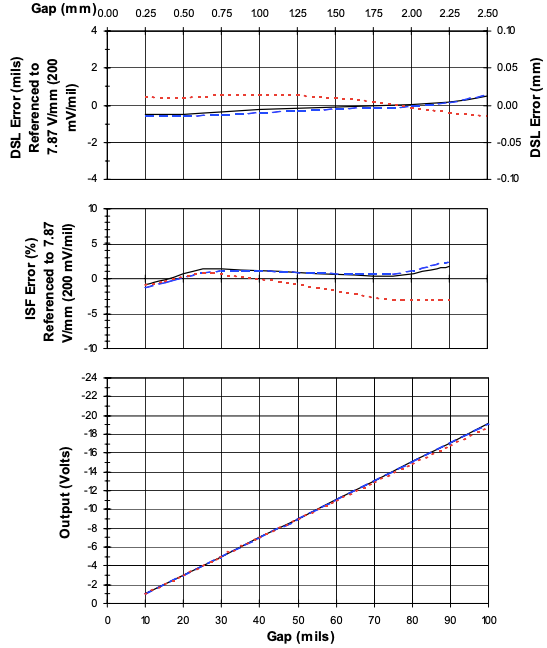

Figure 1: Typical 3300 XL 8 mm 5 m System over API 670 Testing Range

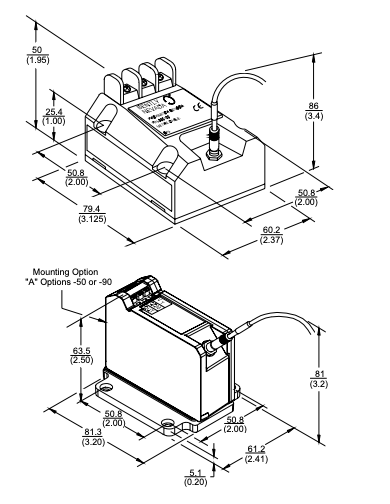

Figure 2: Physical mounting characteristics showing interchangeability of 3300 and 3300 XL Proximitor® Sensors when the 4-hole mounting option is used
Characteristics
-Cable length option : 040 = 4.0 metres (13.1 feet)
-Weight : 0.034 g/m x 8.5 = 0.289Kg
