Part Number: 330190-080-01-00

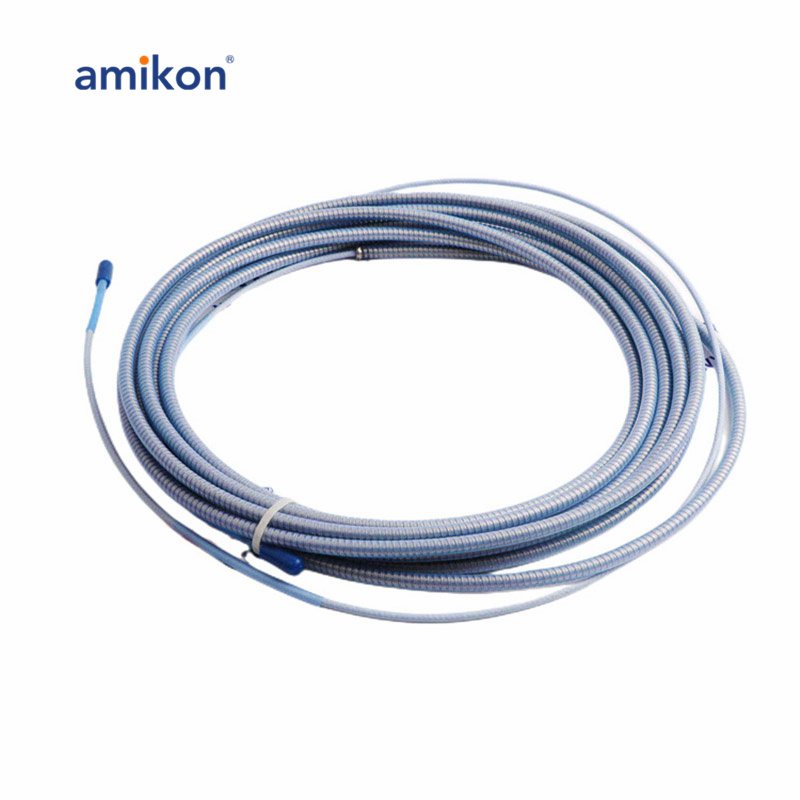

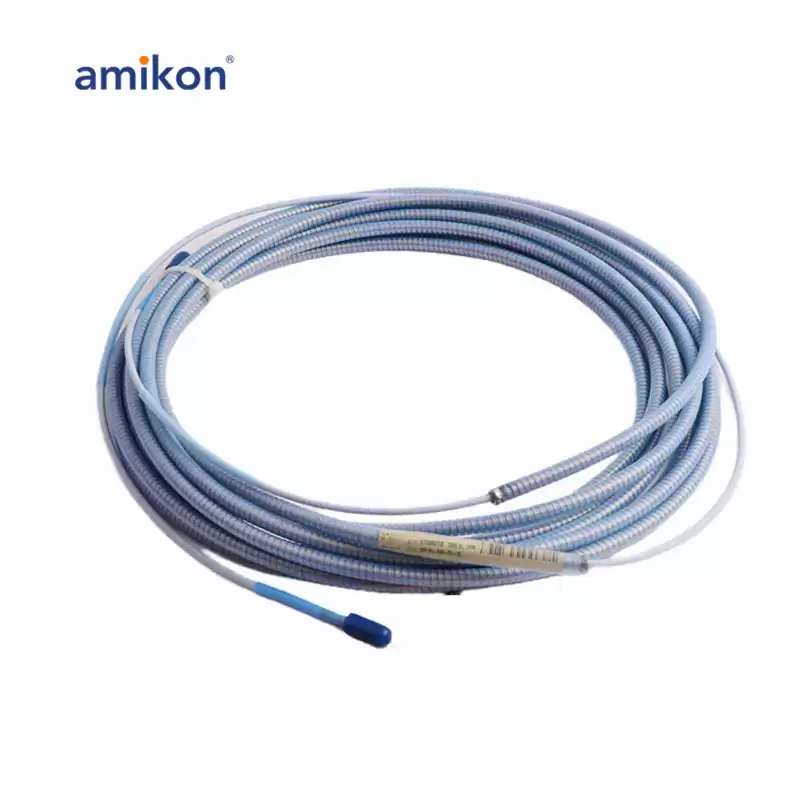

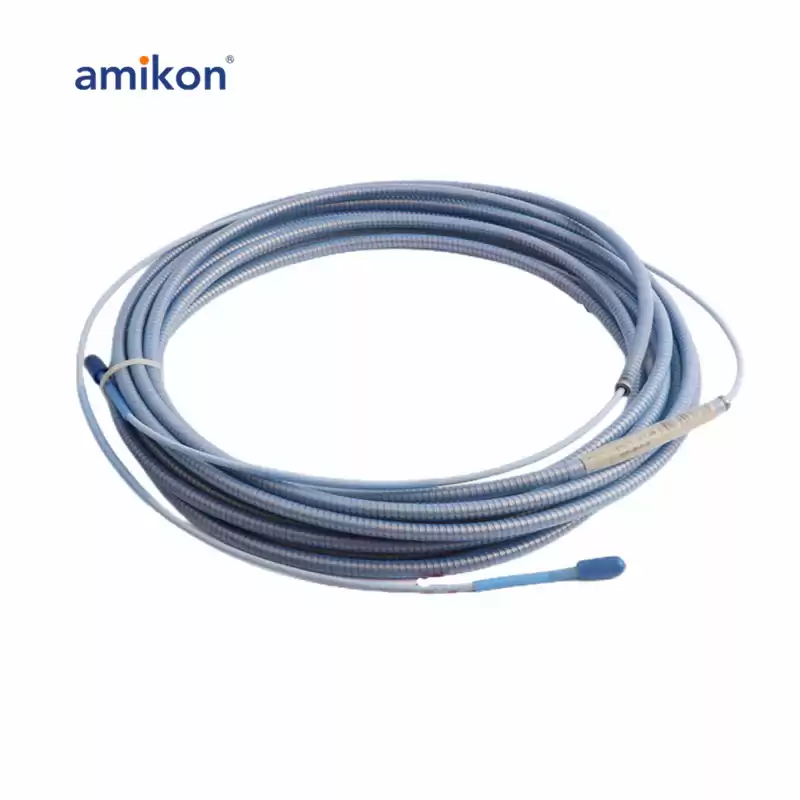

Model: 3300 XL Extended Temperature Range (ETR) Extension Cable
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
|
Model
|
330190
|
3300 XL Extended Temperature Range (ETR) Extension Cable
|
|
Cable Length Option
|
080
|
8.0 metres (26.2 feet)
|
|
Cable Option
|
01
|
Armored cable
|
|
Agency Approval Option
|
00
|
Not required
|
The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable, and
One 3300 XL Proximitor sensor.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It can measure both static (position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute (API) 670 Standard (4th Edition), including mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support full interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or calibrate individual components.
Each 3300 XL 8 mm transducer system component is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe for applications where an 8 mm probe is too large for the available mounting space.
