SPECIFICATIONS
Manufacturer : Bently Nevada
Product No. : 330500-02-02
Product type : Piezo-Velocity Sensor
Mounting thread adapter option : 02 = M8x1
Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Vibration sensor
Connecting cable are generally connected to Bentley four-channel vibration module 3500 /42M or Bentley vibrating four-channel monitors such as 1900/65A and 2300/20 vibration monitors
Weight : 0.142 Kg

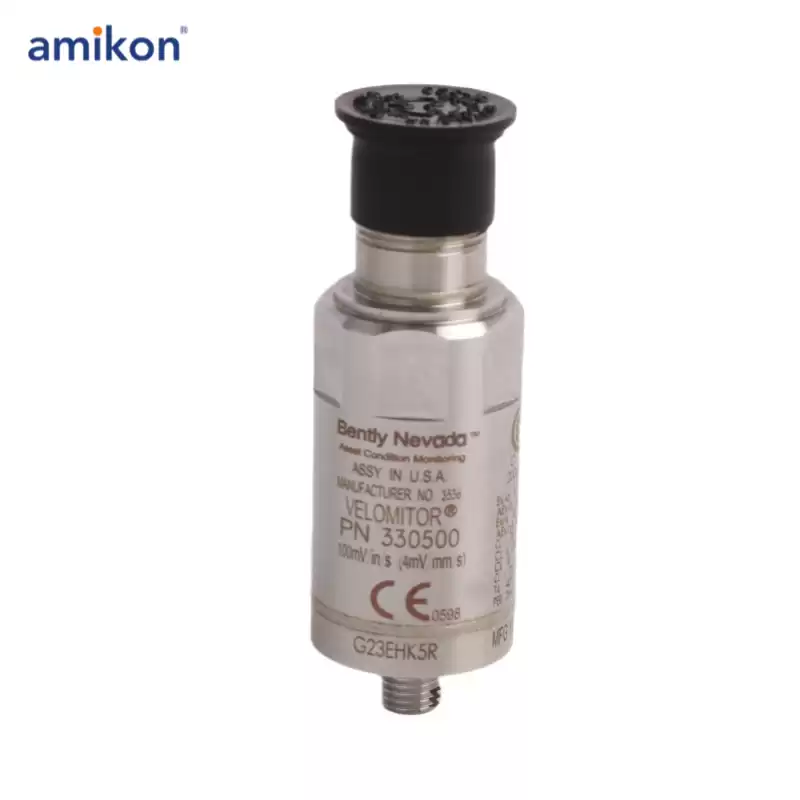

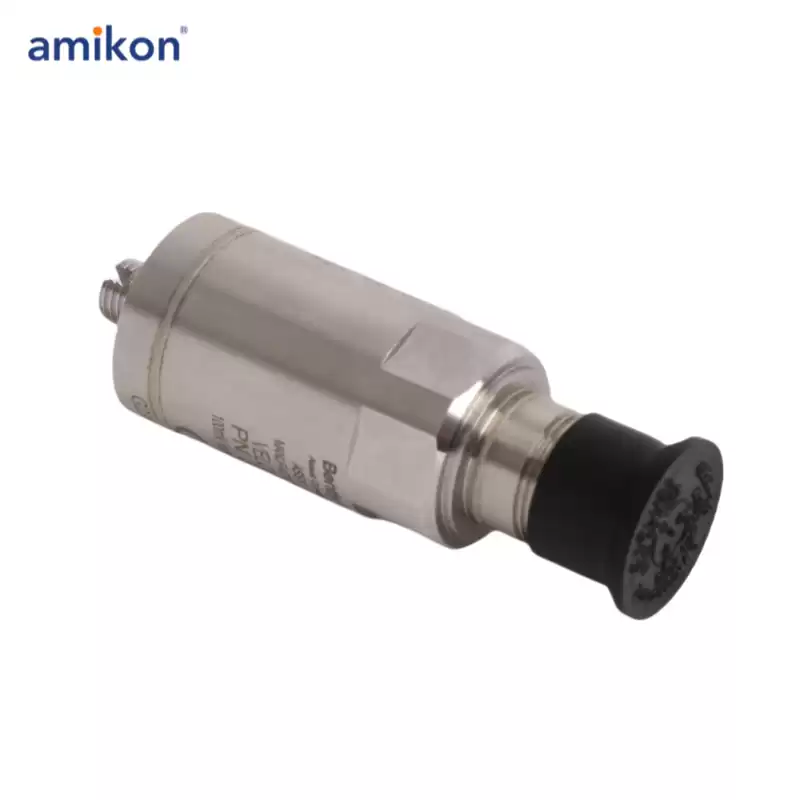

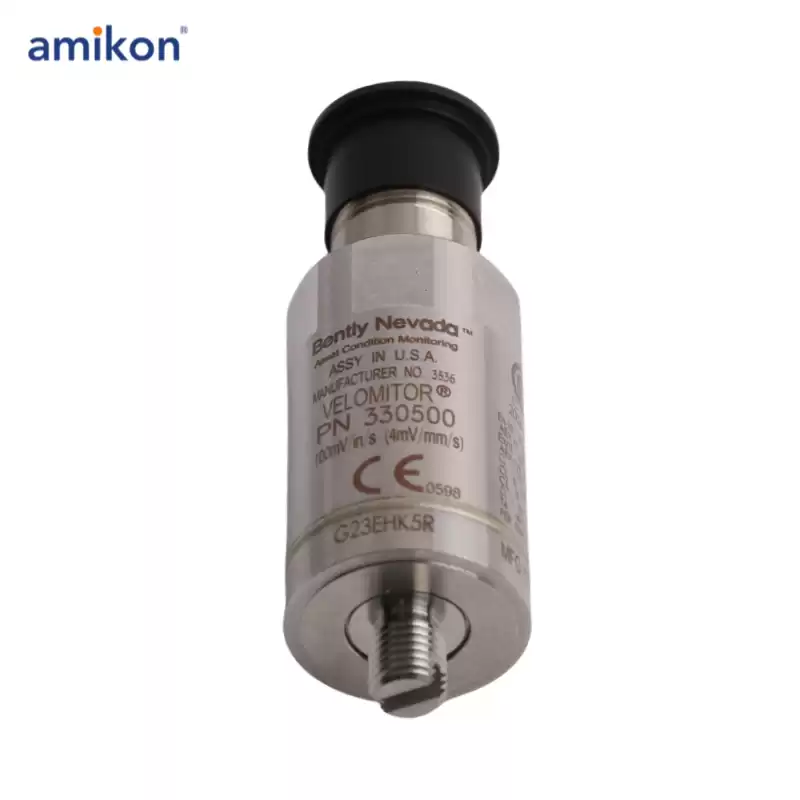

Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.
Most common machine malfunctions (unbalance, misalignment, etc.) occur on the rotor and originate as an increase (or at least a change) in rotor vibration. For any individual casing measurement to be effective for overall machine protection, the system must continually transmit a significant amount of rotor vibration to the machine casing, or mounting location of the
transducer.
In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration. Refer to the appropriate instruction manuals and Application Notes.
Upon request, Bently Nevada provides engineering services that can identify the appropriate machine housing measurements and installation assistance if needed.
