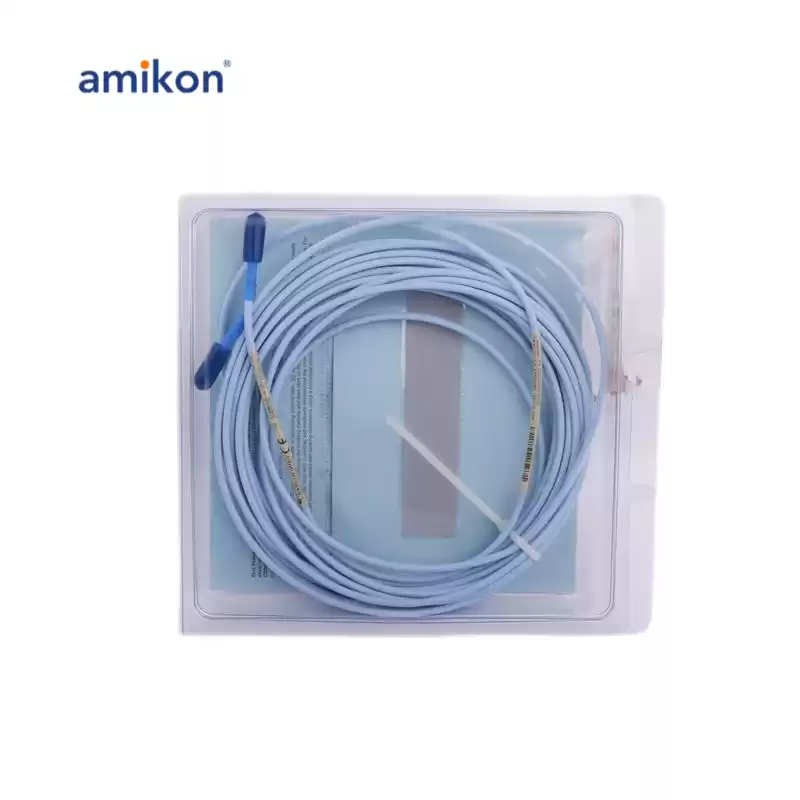

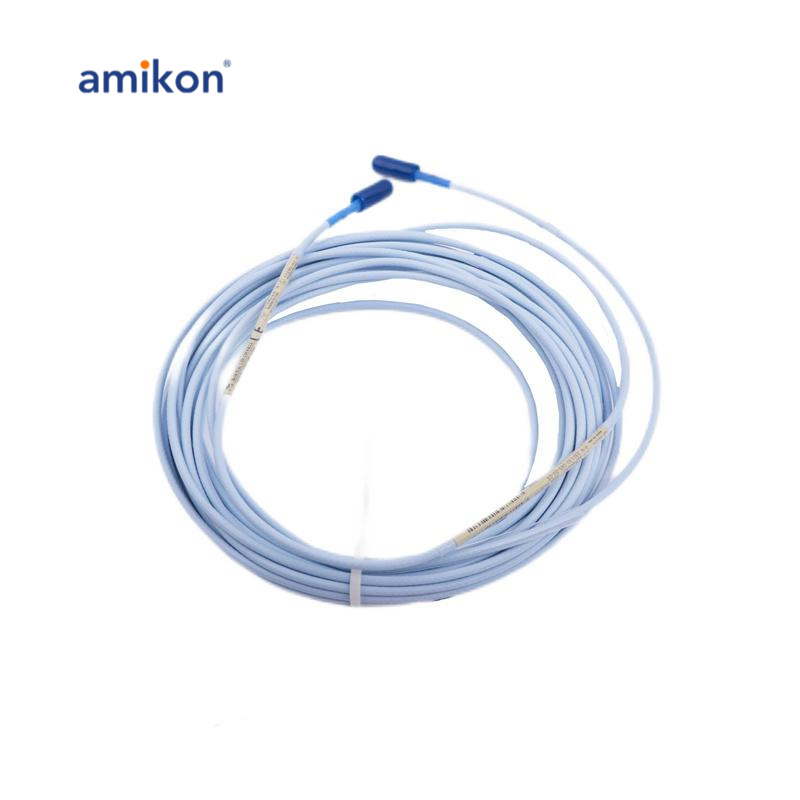

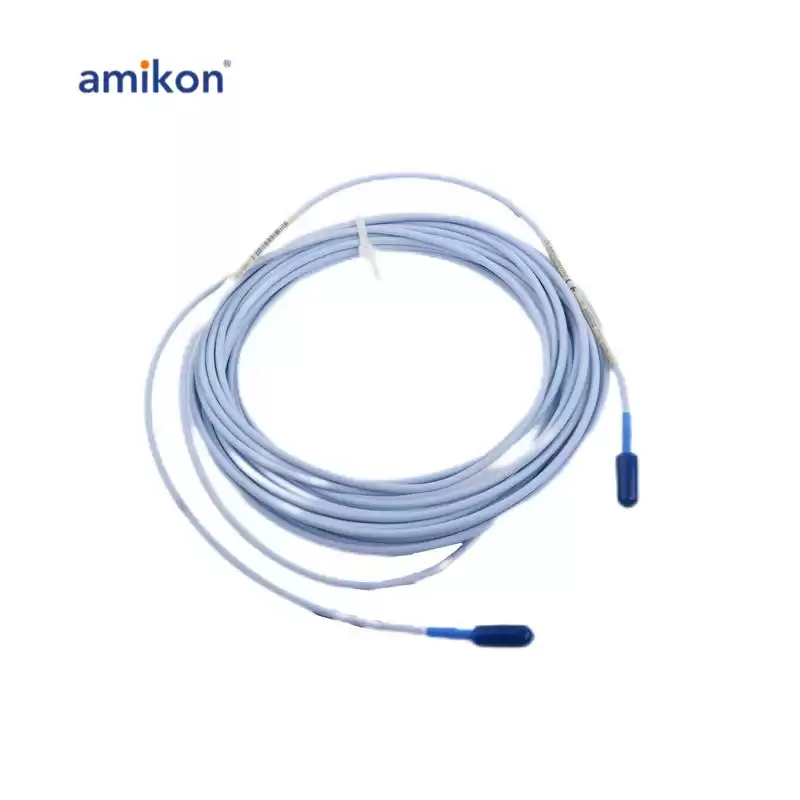

330701-00-20-40-02-00 Bently Nevada 3300 Xl 11mm Proximity Sensor

Brand new and original sealed//Same Day Shipment

  • Dimensions20.5cmx22.5cmx3.5cm
  • Weight0.35KG
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
Manufacturer : Bently Nevada
Product No. : 330701-00-20-40-02-00
Product type : 3300 XL 11 mm Proximity Probes
3300 XL 11 mm Probe, 1/2-20 UNF thread, without armor
Unthreaded Length Option : 00 = 0.0 in
Overall Case Length Option : 20 = 2.0 in
Total Length Option : 10 = 1.0 metre (3.3 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option : 00 = Not required
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 304 stainless steel (SST).
Probe Cable Specifications: 75 ? triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 1, 5 or 9 metres.
Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F)

The 3300 XL 11 mm Proximity Transducer System consists of:
-3300 XL 11 mm probe
-3300 XL 11 mm extension cable
-3300 XL 11 mm Proximitor Sensor
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
-Axial (thrust) position measurements
-Ramp differential expansion measurements on steam turbines
-Rod position or rod drop measurements on reciprocating compressors
-Tachometer and zero speed measurements
-Phase reference (Keyphasor) signals
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11
mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.
