Manufacturer
|
Bently Nevada
|
|
Product No.
|
330703-000-060-50-02-00
|
|
Product Type
|

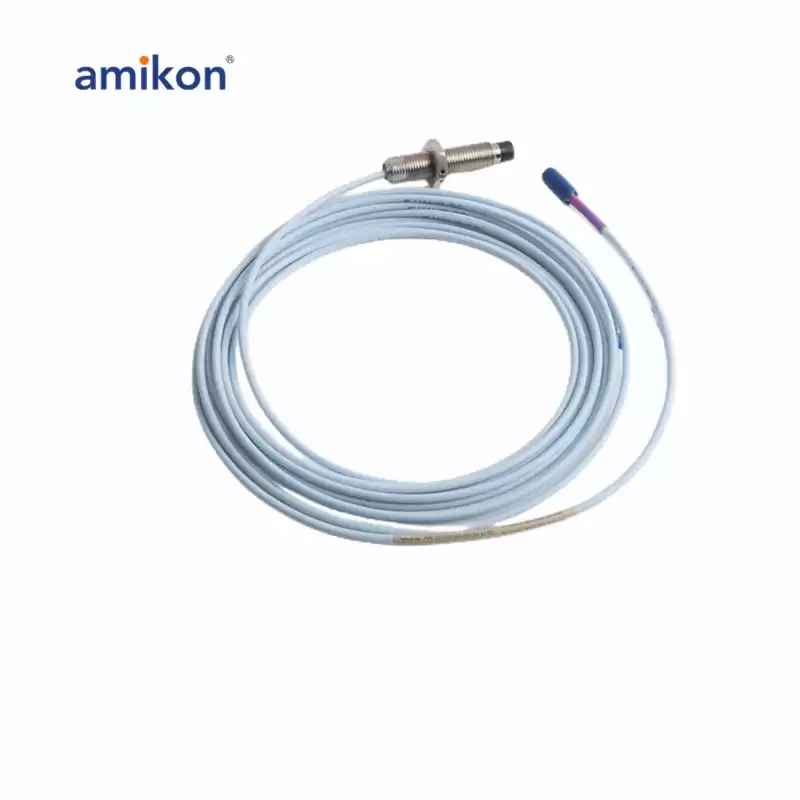

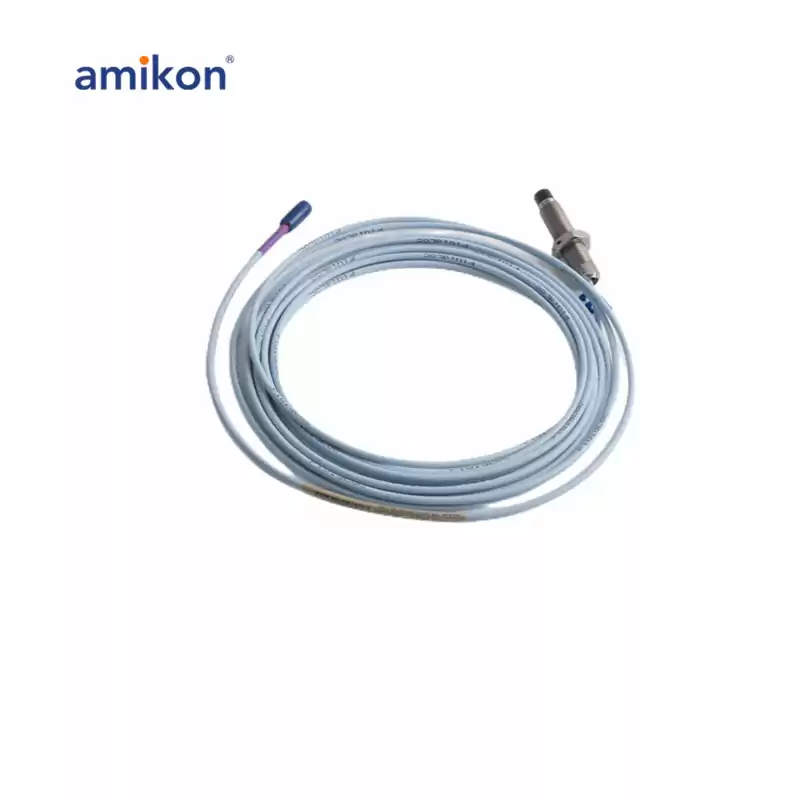

3300 XL 11 mm Proximity Probes
|
|
Unthreaded Length Option
|
000 = 00 mm
|
|
Overall Case Length Option
|
060 = 60 mm
|
|
Total Length Option
|
50 = 5.0 metres (16.4 feet)
|
|
Connector and Cable-Type Option
|
02 = Miniature coaxial ClickLoc connector, standard cable
|
|
Agency Approval Option
|
00 = Not required
|
|
Operating and Storage Temperature
|
-51°C to +177°C (-60°F to +351°F)
|
|
Probe Tip Material
|
Polyphenylene sulfide (PPS)
|
|
Probe Case Material
|
AISI 304 stainless steel (SST)
|
The 3300 XL NSv Proximitor Sensor is designed to achieve European CE mark approvals without the need for special mounting considerations. It features enhanced RFI immunity, preventing interference from nearby high-frequency radio signals that could affect the transducer system. The sensor is equipped with SpringLoc terminal strips, which require no special installation tools, making field wiring connections faster and more robust.
The 330703-000-060-50-02-00 Proximitor Sensor accepts one non-contacting 3300 RAM or 3300 NSv Proximity Probe and extension cable. The sensor supports a minimum distance of 30 mm (1.2 in) for standard X-Y probe configurations and 20 mm (0.8 in) when X-Y proximity probes are offset axially by 23 mm (0.9 in). The sensor provides a voltage output with less than 2 mV change per volt change in input, ensuring precise measurements.
