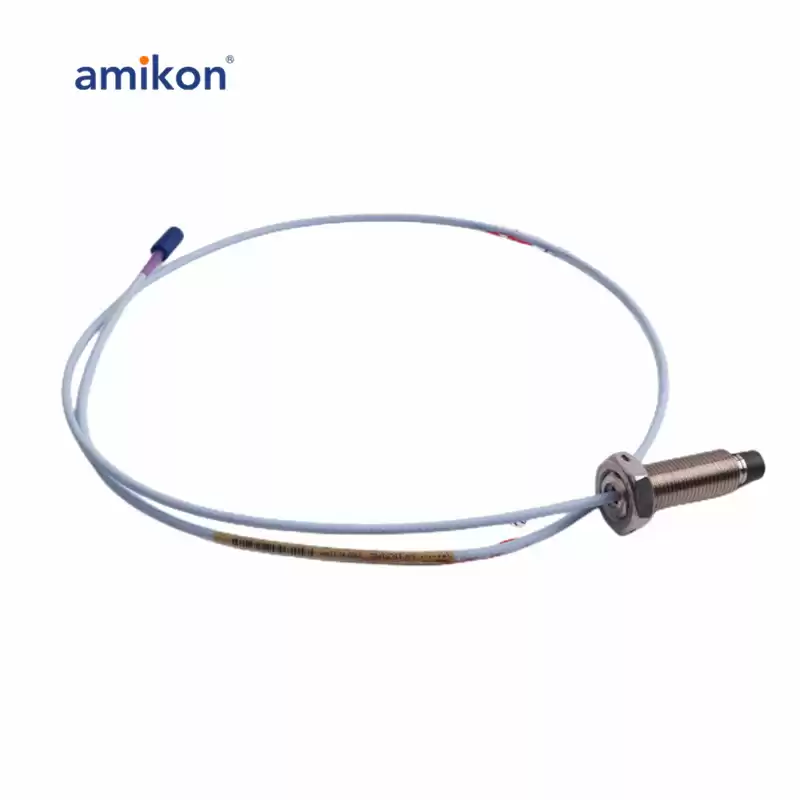

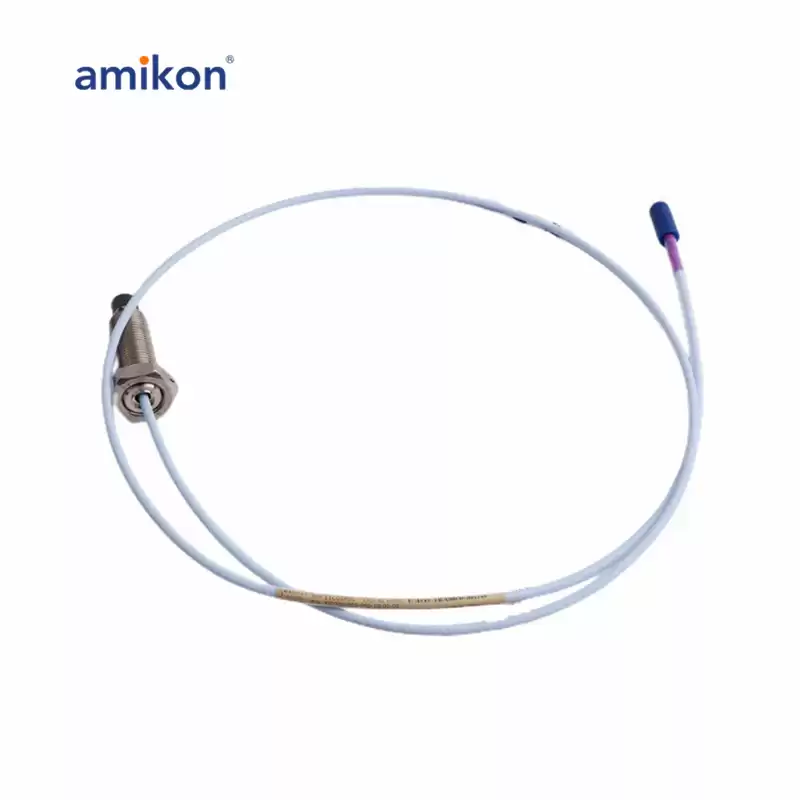

The specifications for the 330709-000-050-10-02-00, a Bently Nevada 3300 XL NSv Proximitor Sensor system, apply to the sensor, extension cable, and probe when operated between 0°C and +45°C (+32°F to +113°F). These specifications assume a -24 Vdc power supply, a 10 kΩ load, and a Bently Nevada-supplied AISI 4140 steel target with a diameter of 31 mm (1.2 in) or larger, and a probe gap of 1.0 mm (40 mils). The system's accuracy and interchangeability specifications are valid only when calibrated with a Bently Nevada AISI 4140 steel target. The sensor accepts one non-contacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable.
|
Manufacturer
|
Bently Nevada
|
|
Product No.
|
330709-000-050-10-02-00
|
|
Product Type
|
3300 XL 11 mm Proximity Probes
|
|
Unthreaded Length Option
|
000 = 0 mm
|
|
Overall Case Length Option
|
050 = 50 mm
|
|
Total Length Option
|
10 = 1.0 metre (3.3 feet)
|
|
Connector and Cable-Type Option
|
02 = Miniature coaxial ClickLoc connector, standard cable
|
|
Agency Approval Option
|
00 = Not required
|
