The 330730-040-00-00 system features a sensitivity of 7.87 V/mm (200 mV/mil) with an accuracy of +12.5%/-20%, including interchangeability error, measured in 0.25 mm (10 mil) increments over a 1.5 mm (60 mil) linear range. Its frequency response is 0 to 10 kHz, with a typical attenuation of +0, -3 dB, even with field wiring up to 305 meters (1000 feet). The system supports a minimum target diameter of 8.9 mm (0.35 in), with a recommended minimum diameter of 13 mm (0.5 in). To ensure reliable operation, connector protectors are recommended at the probe-to-extension cable and cable-to-Proximitor Sensor connections, as they prevent most liquids from entering the ClickLoc connectors and compromising the electrical signal.
Manufacturer : Bently Nevada
Product No. : 330730-040-00-00

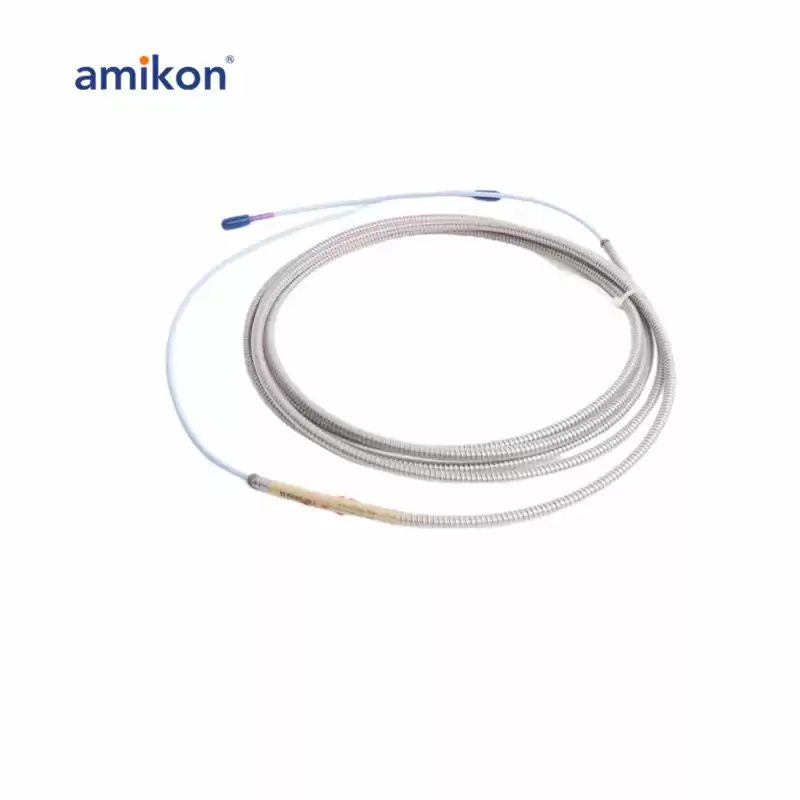

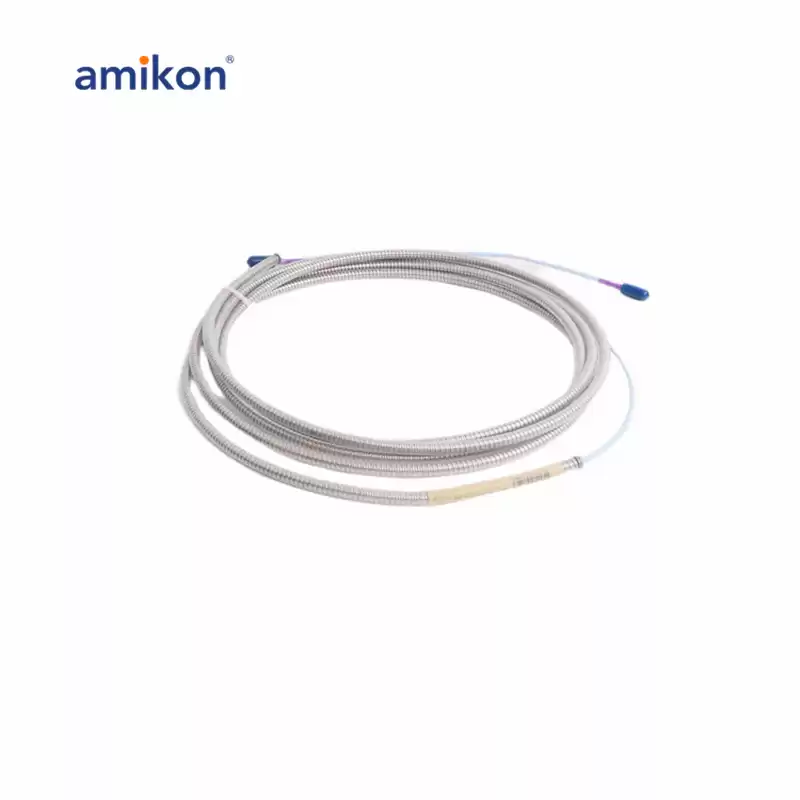

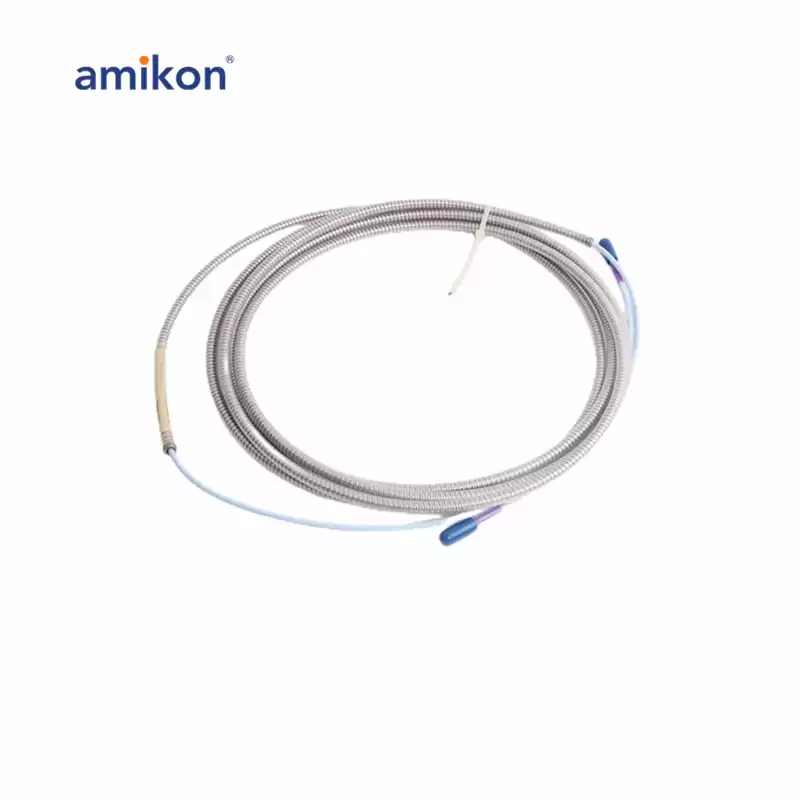

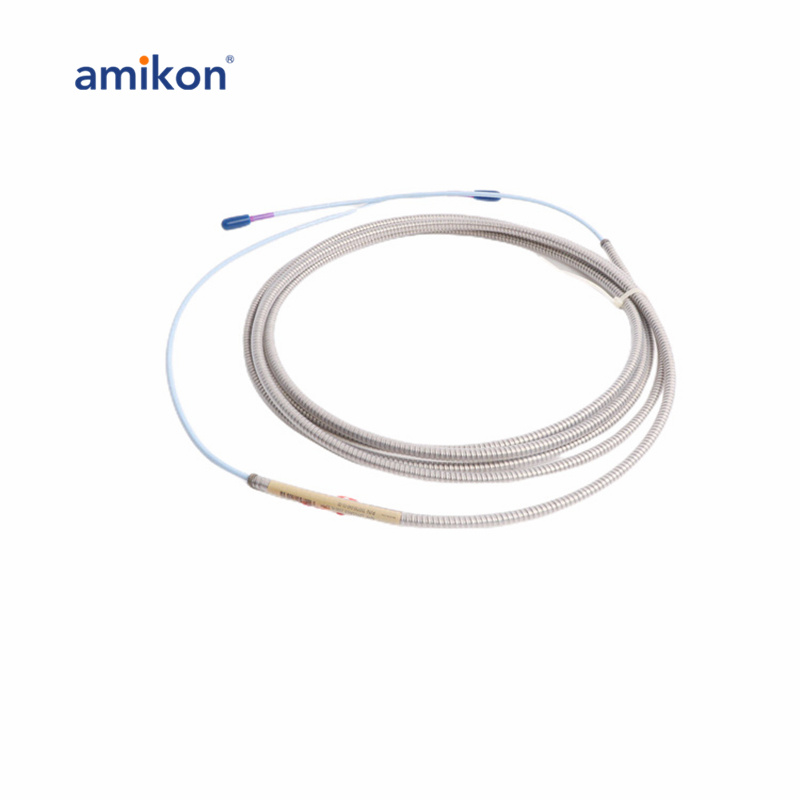

Product Type : 3300 XL 11 mm Extension Cable
Cable Length Option : 040 = 4.0 metres (13.1 feet)
Connector and Cable Option : 00 = Standard cable
Agency Approval Option : 00 = Not required
Recommended Minimum Target Size : 30.5 mm (1.2 in) diameter (flat target)
Weight : 0.14 Kg
