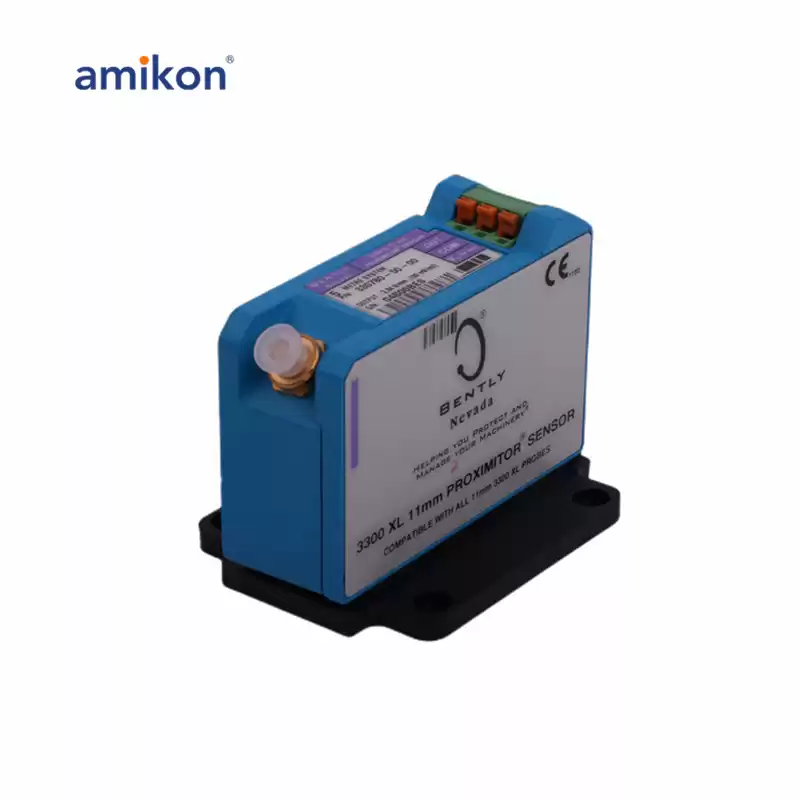

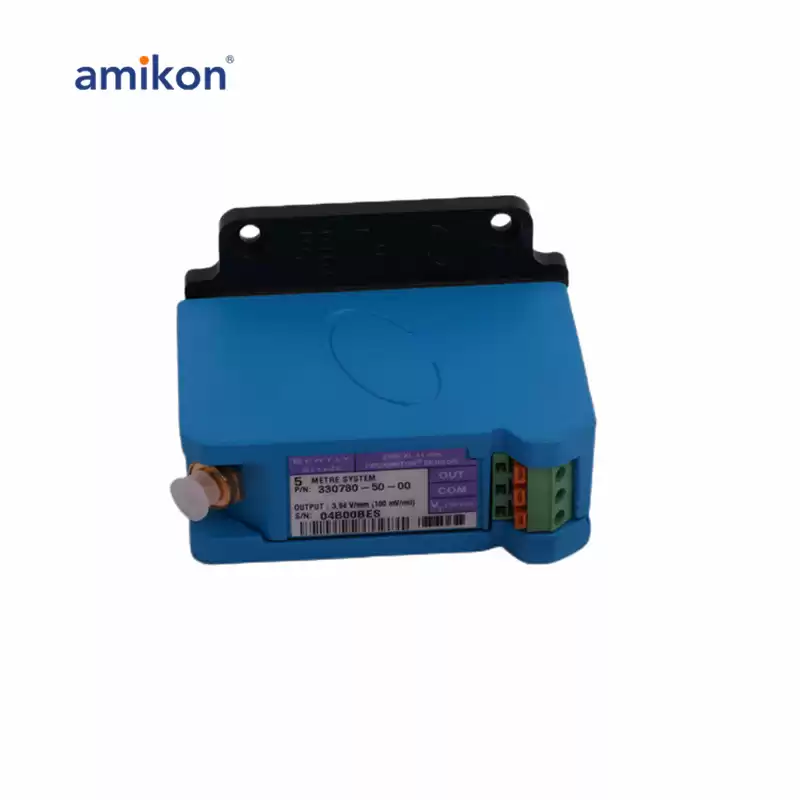

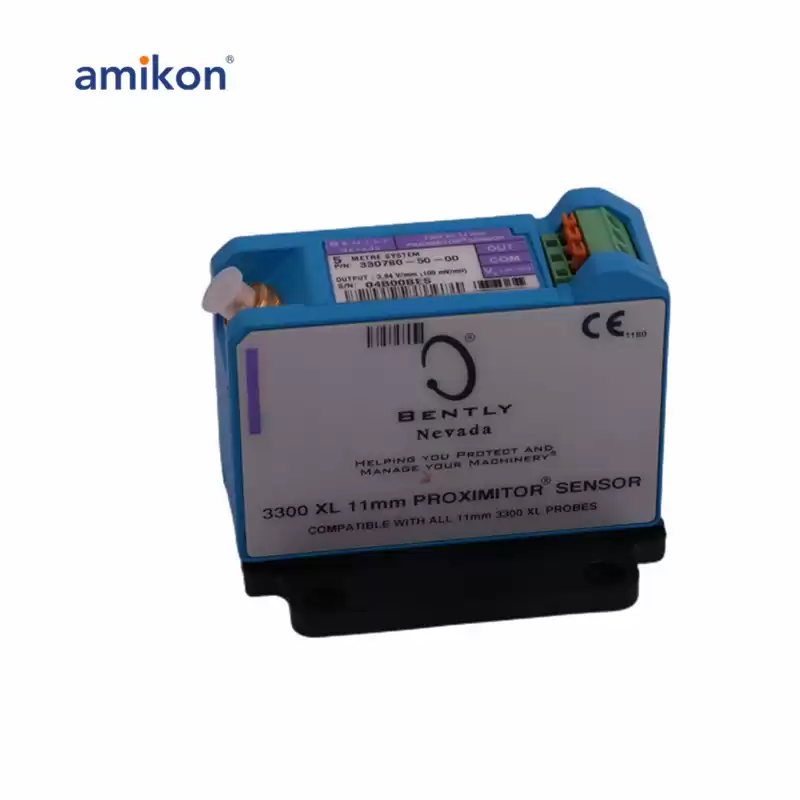

330780-50-00 Bently Nevada 3300 XL 11 mm Proximitor

Manufacturer : Bently Nevada
Product No. : 330780-50-00
Product type : 3300 XL 11 mm Proximitor Sensor
50 - Total length and mounting option : 5.0 metre (16.4 feet) system length, panel mount
00 - Agency approval option : Not required
Recommended Minimum Target Size : 30.5 mm (1.2 in) diameter (flat target)
Weight : 0.82 Kg

The 3300 XL 11 mm Proximity Transducer System consists of:
• 3300 XL 11 mm probe
• 3300 XL 11 mm extension cable
• 3300 XL 11 mm Proximitor® Sensor1
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
• Axial (thrust) position measurements
• Ramp differential expansion measurements on steam turbines
• Rod position or rod drop measurements on reciprocating compressors
• Tachometer and zero speed measurements
• Phase reference (Keyphasor®) signals
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification. Contact your local sales and service representative for assistance
