Part Number: 330850-90-CN
Model: I/P Signal Converter TEIP11-PS
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe offers enhanced chemical resistance compared to the 3300 RAM probe, making it suitable for use in various process compressor applications. Additionally, the side-view characteristics of the 3300 NSv probe are superior to those of the 3000-series 190 probe when the probe gap is maintained at the same distance from the target.
For optimal performance, the system requires a supply voltage range of -17.5 Vdc to -26 Vdc without barriers, with a maximum consumption of 12 mA. When barriers are used, the voltage should be in the range of -23 Vdc to -26 Vdc. It is important to note that operation at a more positive voltage than -23.5 Vdc may result in a reduced linear range. The system exhibits less than a 2 mV change in output voltage per volt change in input voltage, ensuring stable and precise measurements.
|
Model
|
330850
|

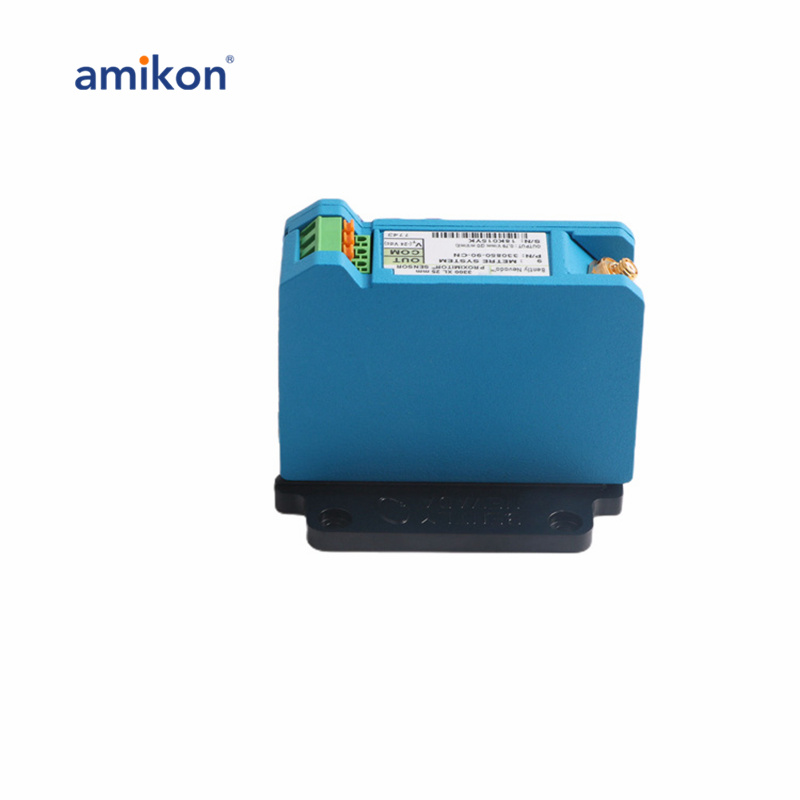

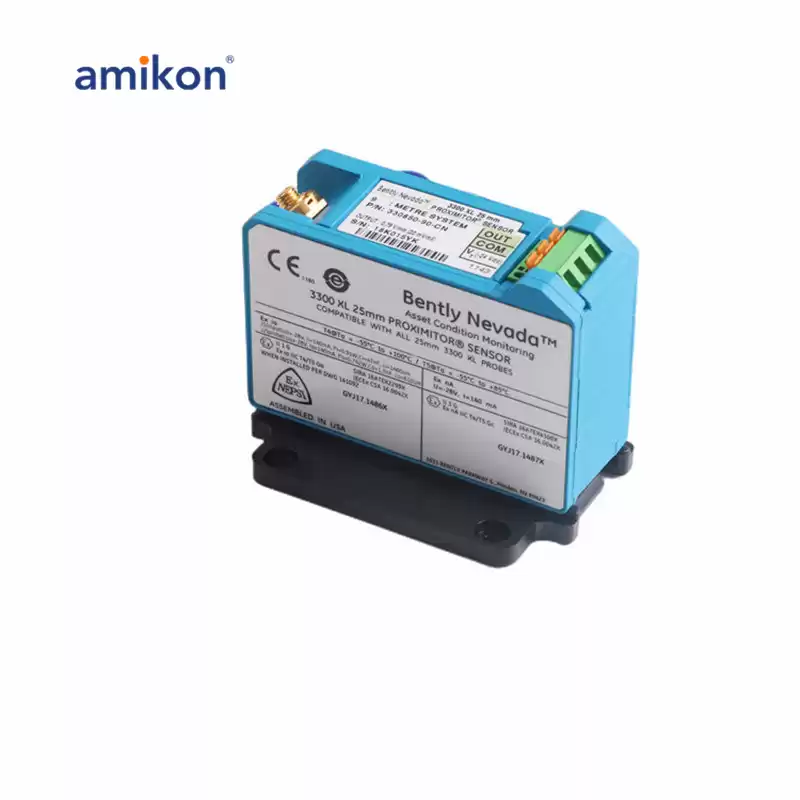

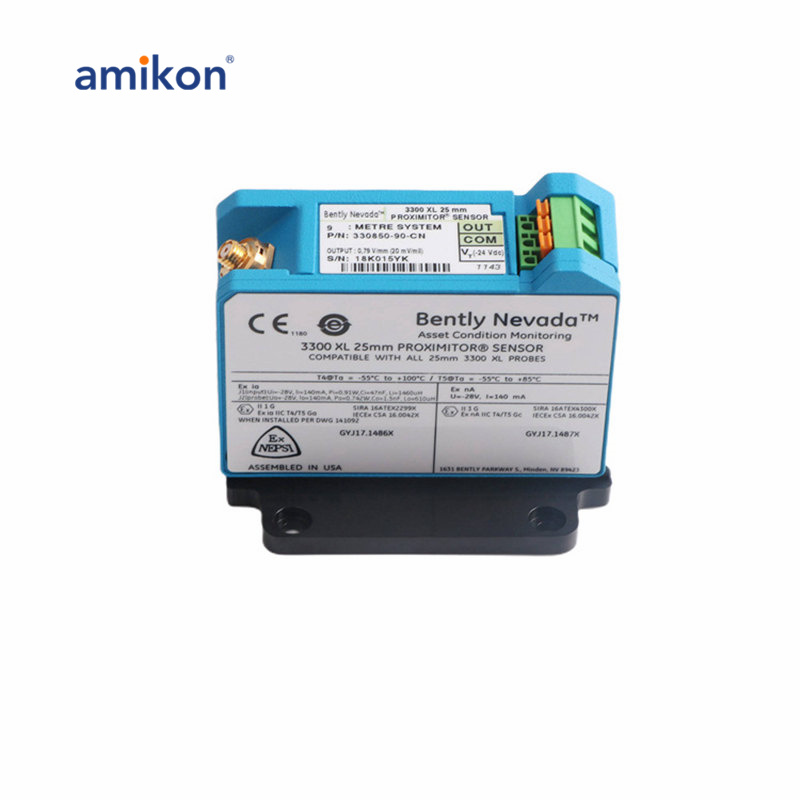

3300 XL 25 mm Proximitor Sensor
|
|
Total Length and Mounting Option
|
90
|
9.0 metres (29.5 feet) system length, panel mount
|
|
Agency Approval Option
|
CN
|
ATEX/IECEx and Chinese NEPSI hazardous area marking
|
