Part Number: 330901-00-32-05-02-05
Model: 3300 NSv Proximity Probes
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
|
Model
|
330901
|

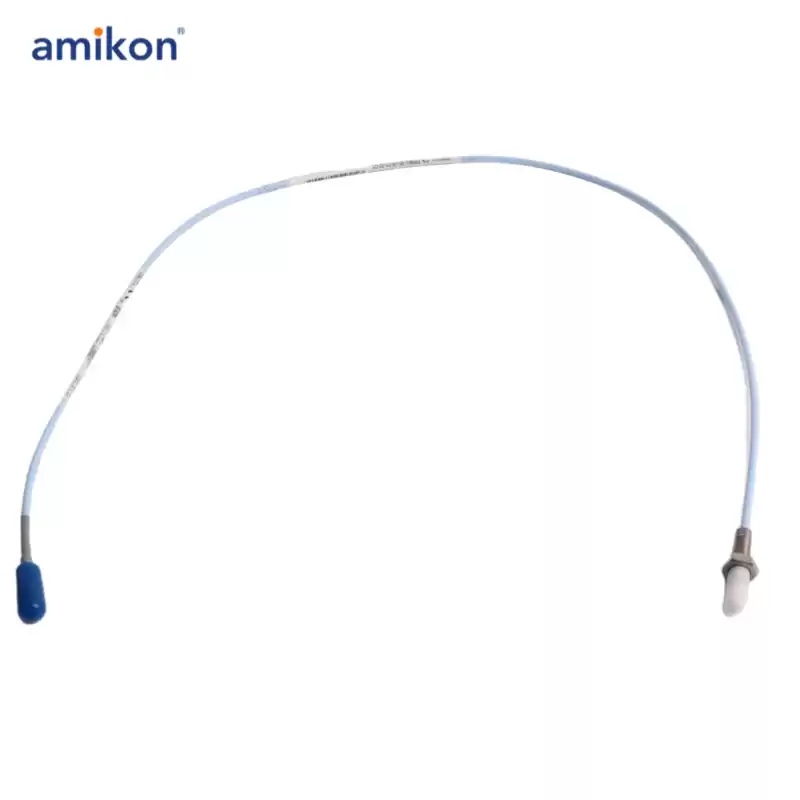

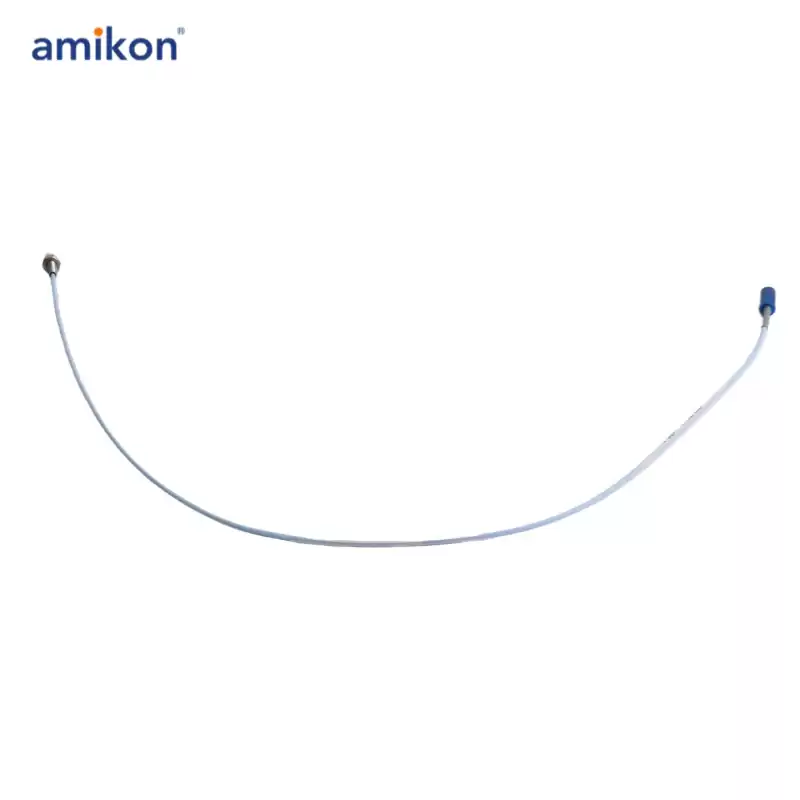

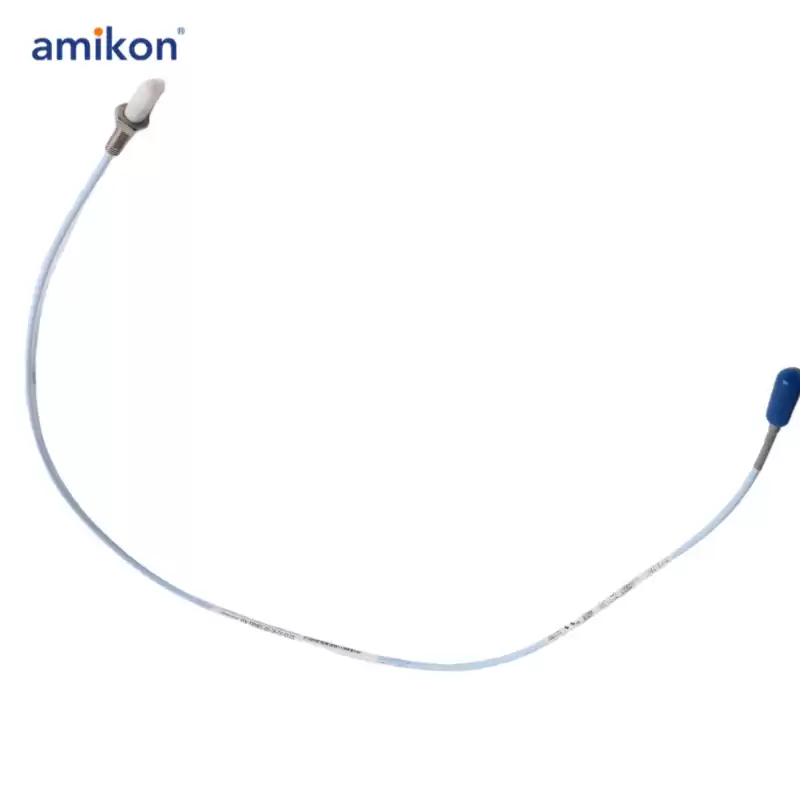

3300 NSv Probe, 1/4-28 UNF thread, without armor
|
|
Unthreaded Length Option
|
00
|
0.0 in
|
|
Overall Case Length Option
|
90
|
9.0 in
|
|
Total Length Option
|
05
|
0.5 metre (20 in)
|
|
Connector and Cable-Type Option
|
02
|
Miniature coaxial ClickLoc connector, standard cable
|
|
Agency Approval Option
|
00
|
Not required
|
The 3300 XL NSv Proximity Transducer System is designed for machines with tight installation constraints, such as centrifugal air compressors, refrigeration compressors, and process gas compressors. It consists of a 3300 NSv probe, a 3300 NSv extension cable, and a 3300 XL NSv Proximitor Sensor. Ideal for small targets like shafts smaller than 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in), it is commonly used for radial vibration and position measurements, axial (thrust) position measurements, tachometer and zero-speed measurements, and phase reference (Keyphasor) signals. The system replaces older models such as the 3300 RAM, 3000-series, and 7000-series 190 Transducer Systems, with a linear range of 1.5 mm (60 mils) and an Average Scale Factor of 7.87 V/mm (200 mV/mil), offering enhanced performance for compact applications.
