SPECIFICATIONS

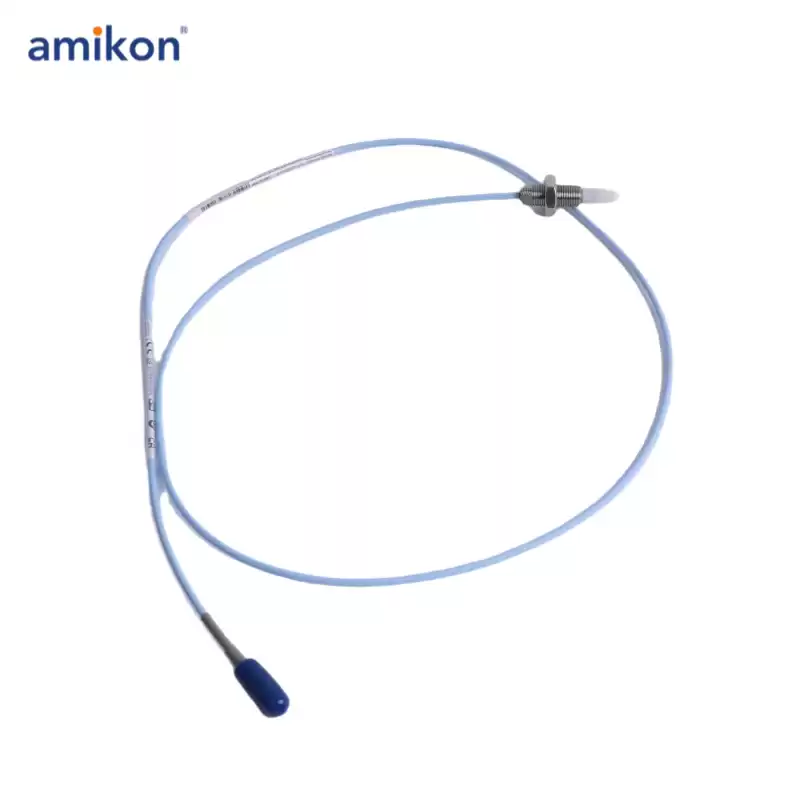

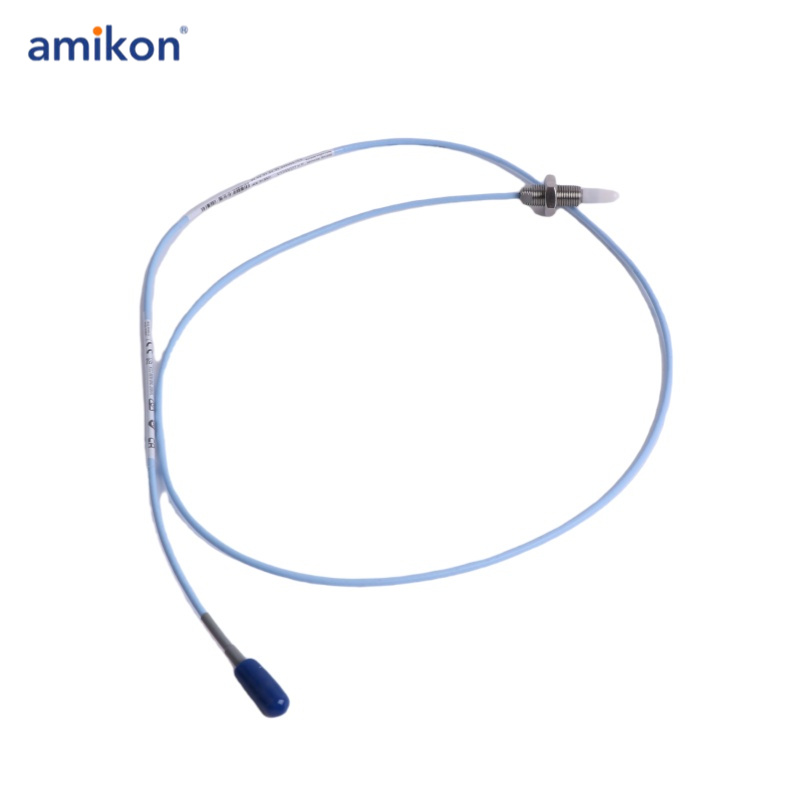

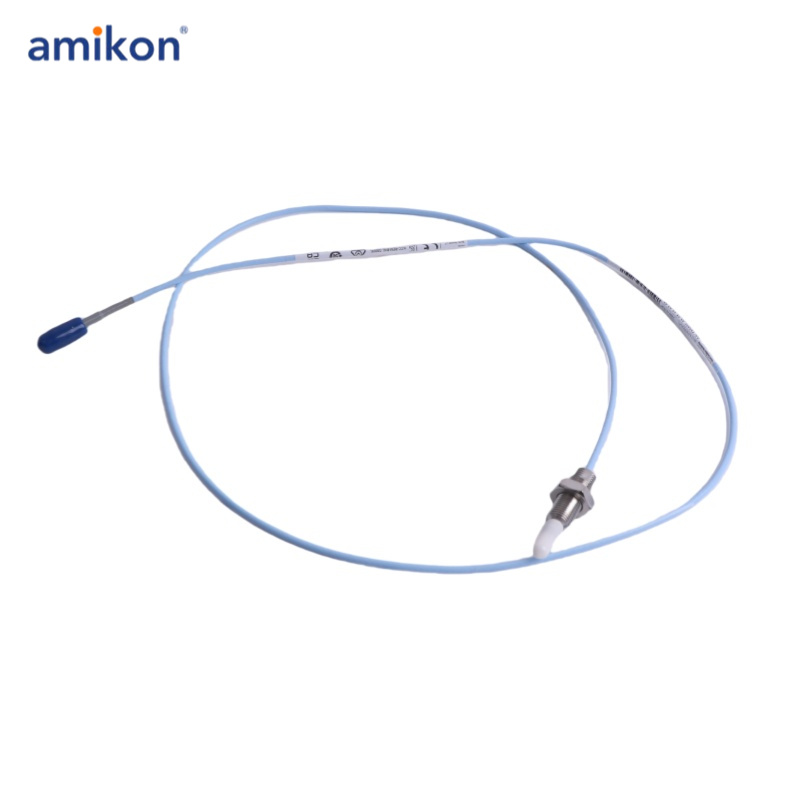

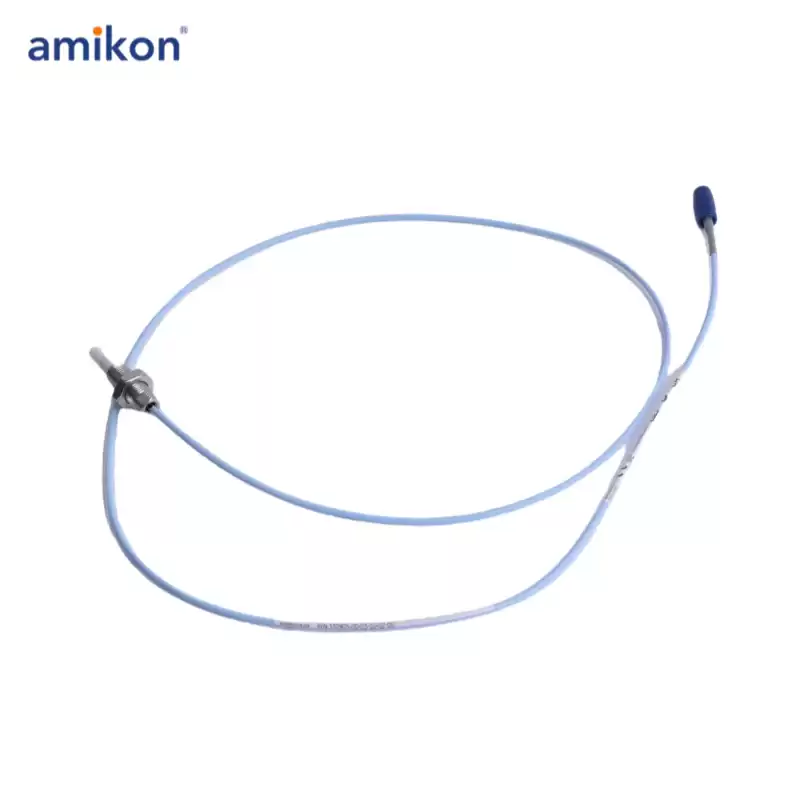

Part Number: 330905-02-10-05-02-00
Model: 3300 XL 8 mm Proximity Probes
Brand: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Unthreaded Length Option : 20 mm
Overall Case Length Option : 100 mm
Total Length Option : 0 5 - 0.5 metre (20 in)
Connector and Cable-Type Option : 0 2 - Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option : 0 0 - Not required
The 330905-02-10-05-02-00 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines
with tight installation requirements. The 330905-02-10-05-02-00 3300 XL NSv Proximity Transducer System consists of:
-a 3300 NSv probe
-a 3300 NSv extension cable
-a 3300 XL NSv Proximitor Sensor
The primary uses for the 330905-02-10-05-02-00 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
-Radial vibration and radial position measurements
-Axial (thrust) position measurements
-Tachometer and zero speed measurements
-Phase reference (Keyphasor signals)
