Part Number
|
330930-060-00-CN
|
|
Model
|

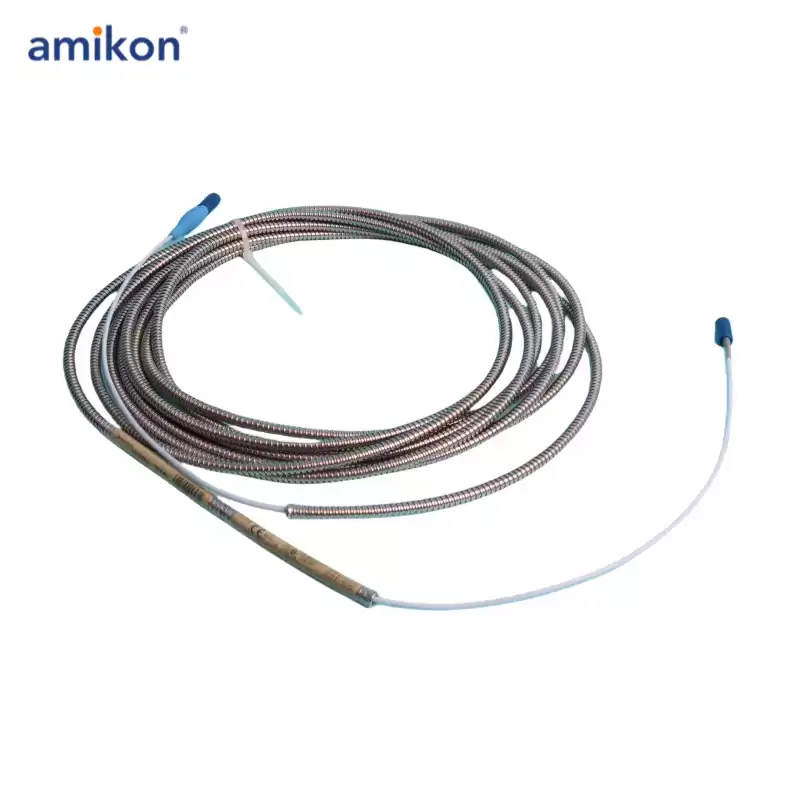

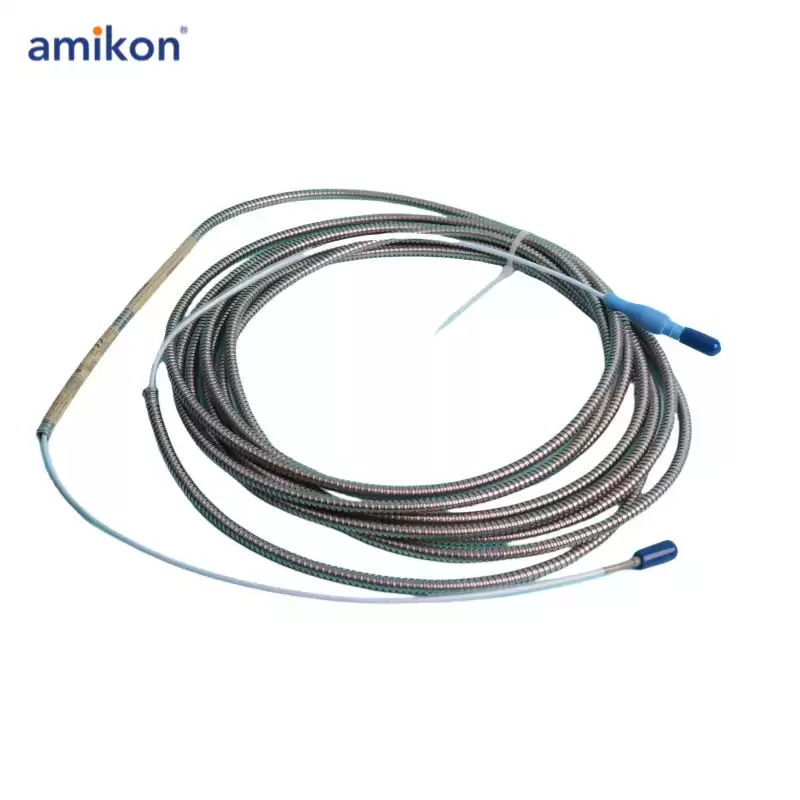

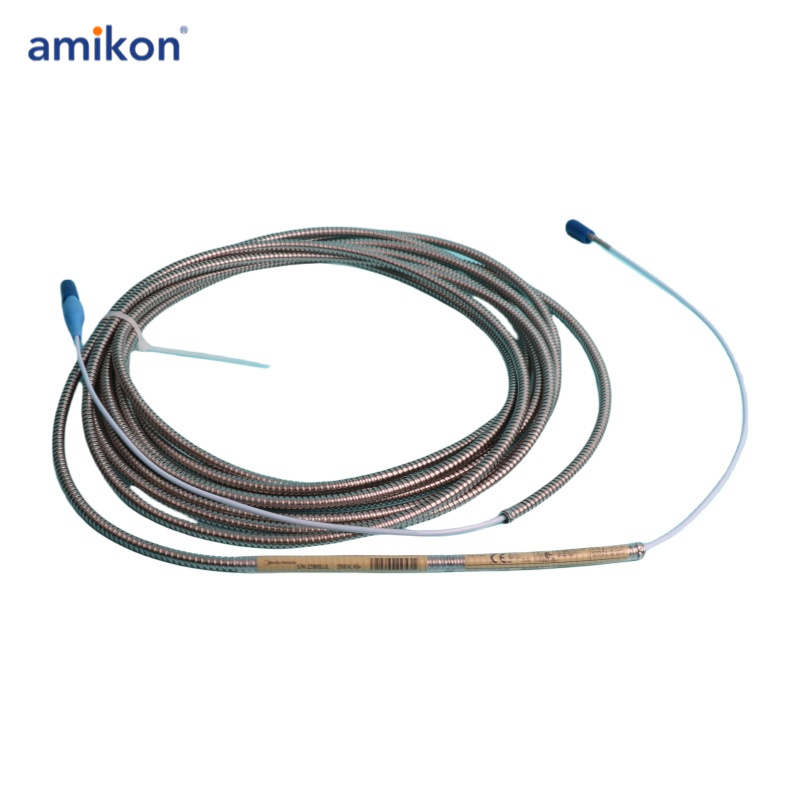

3300 XL Standard Extension Cable
|
|
Manufacturer
|
Bently Nevada
|
|
Condition
|
New & Original in Factory Packing
|
|
Factory Warranty
|
12 Months
|
|
Ordering Information
|
|
|
Model
|
330930 - 3300 XL Standard Extension Cable
|
|
Cable Length Option
|
060 - 6.0 metres (19.7 feet)
|
|
Connector Protector and Cable Option
|
00 - Standard cable
|
|
Agency Approval Option
|
CN - Not required
|
The 3300 XL NSv Proximity Sensor System* is designed for applications in centrifugal air compressors, refrigeration compressors, process gas compressors, and other machinery with strict installation requirements. The system includes:
A 3300 NSv Probe
A 3300 NSv Extension Cable
A 3300 XL NSv Proximitor Sensor
Key Applications:
The 3300 XL NSv Sensor System is ideal for use in limited installation spaces such as reverse, side view, or rear view conditions with standard Bently Nevada 3300 and 3300 XL 5mm and 8mm sensor systems. It is particularly suitable for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 inches) in diameter or axial position measurements on flat targets smaller than 15 mm (0.6 inches).
It is primarily used in fluid-film bearing machines for:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero-speed measurements
Phase reference (Keyphasor*) signals
System Compatibility:
The 3300 XL NSv Sensor System is designed to replace the 3300 RAM Sensor System and the 3000 series or 7000 series 190 sensor systems.
Upgrading from the 3300 RAM System to the 3300 XL NSv System can be done using existing probes, extension cables, and monitoring systems, along with the 3300 XL NSv Proximitor Sensor.
Upgrading from the 3000 series or 7000 series sensors to the 3300 XL NSv system requires replacing the probe, extension cable, and monitoring system.
