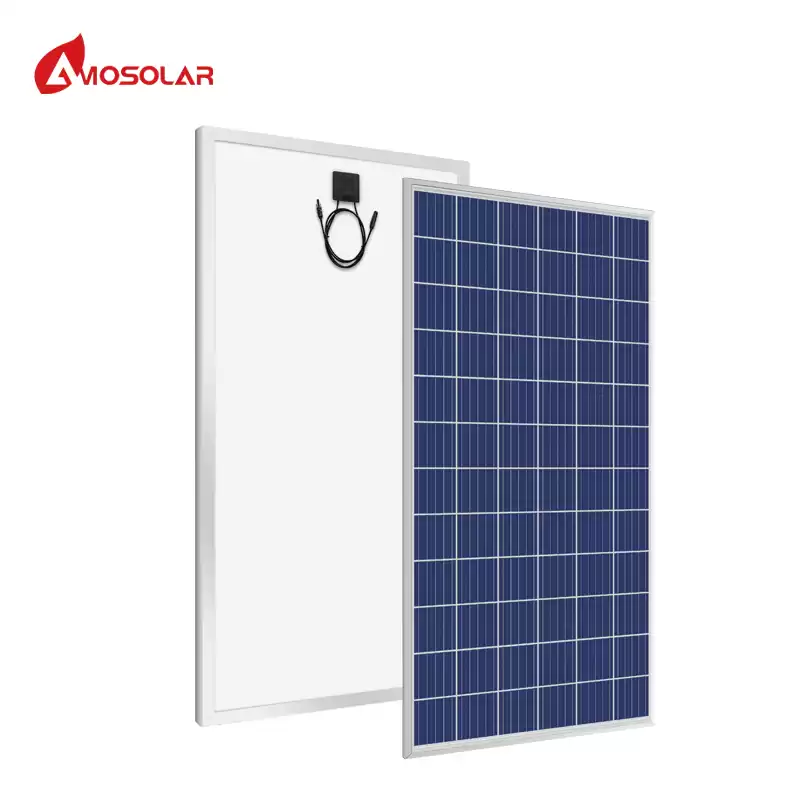

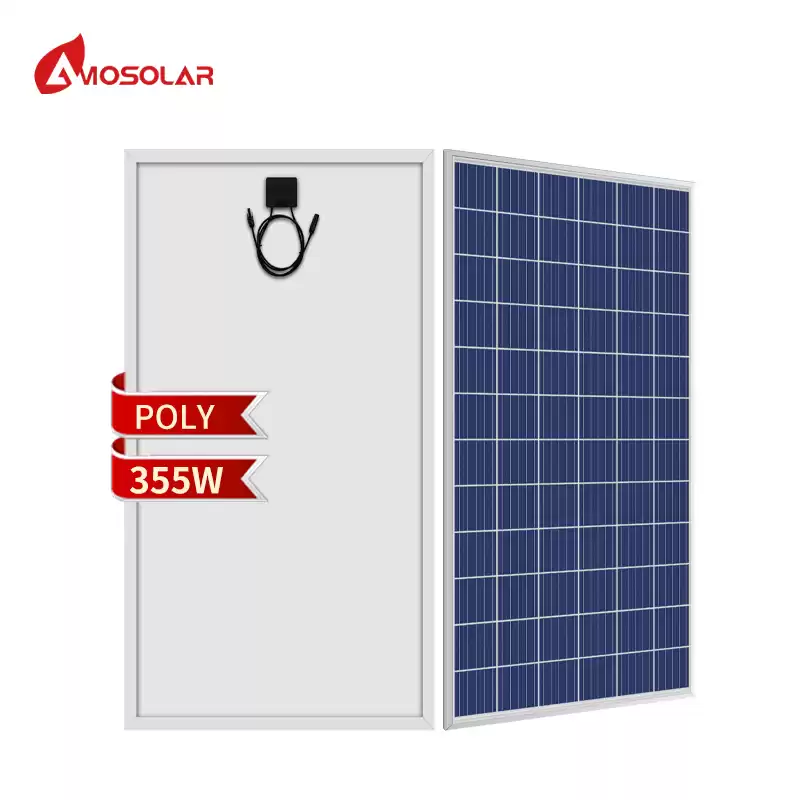

330W-355W Full Cell Polycrystalline PV Panel Chinese Manufactory : High efficiency solar panels. Compatible with more solar system solution.
Electrical Performance Parameters (STC Test)
Model
|
AS330P-72
|
AS335P-72
|
AS340P-72
|
AS345P-72
|
AS350P-72
|
AS355P-72
|
|
Rated Maximum Power at STC
|
330W
|
335W
|
340W
|
345W
|
350W
|
355W
|
|
Open Circuit Voltage (Voc)
|
46.20
|
46.23
|
46.62
|
46.86
|
47.43
|
47.62
|
|
Maximum Power Voltage (Vmp)
|
38.02
|
38.29
|
38.55
|
38.76
|
38.97
|
39.22
|
|
Short Circuit Current (Isc)
|
9.35
|
9.37
|
9.41
|
9.50
|
9.58
|
9.62
|
|
Maximum Power Current (Imp)
|
8.68
|
8.75
|
8.82
|
8.90
|
8.98
|
9.05
|
|
PV Module Efficiency (%)
|
17.01
|
17.26
|
17.52
|
17.78
|
18.04
|
18.30
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|

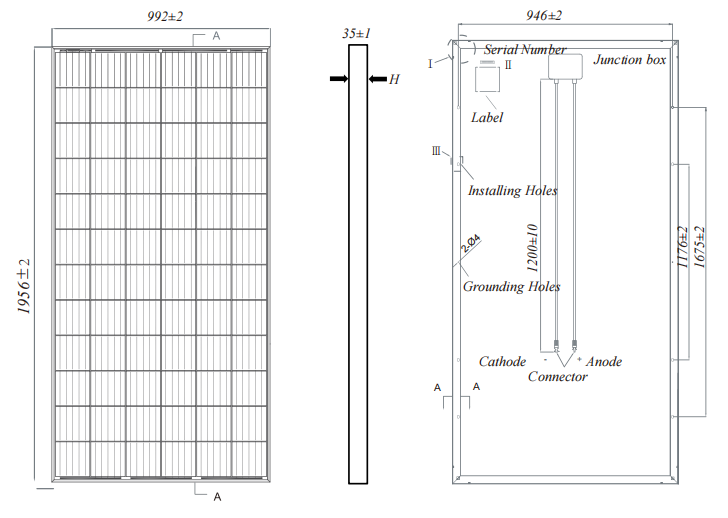

Mechanical Parameters
Layout : 72( 6 × 12 ）
Junction Box : Split junction box, IP67, 3 diodes
Weight: 20.5KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)
PV Size: 1956×992×35mm
Packaging: 31 pcs / pallet
804 pcs / 40HQ container
31 pcs / pallet
310 pcs / 20GQ container
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
