SPECIFICATIONS
Part Number: 330130-080-01-05
Manufacturer: Bently Nevada
Product Type: Armoured Extension Cable
Availability: In Stock
Country of Origin: United States (USA)
Product Family: 330850

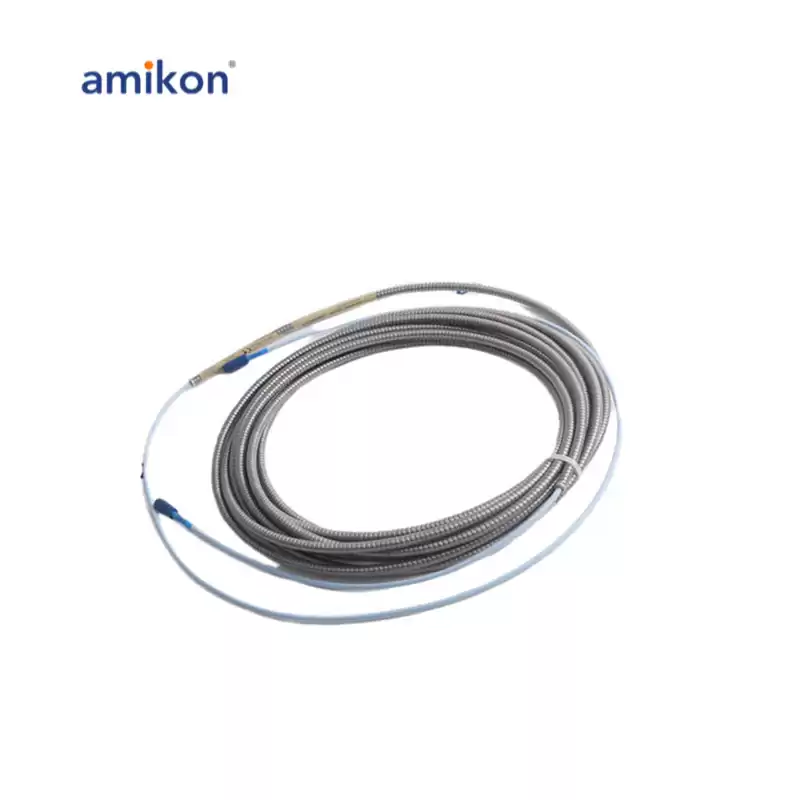

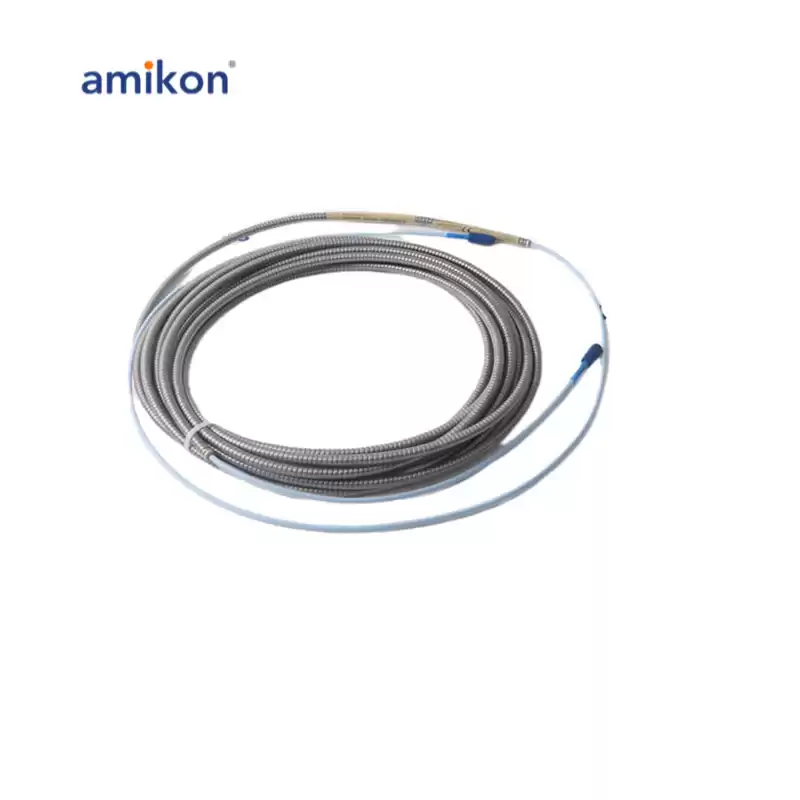

330130-080-01-05 is an Armoured Extension Cable manufactured by Bently Nevada and used in transducer systems. For use with the 3300 XL Transducer system, utilize the Bently Nevada 3300 XL Extension Cables. The electrical lengths of the three system components must be constant. The electrical length of the Proximitor must match the electrical lengths of the proximity probe and the extension cable.
Configurations
Cable length: 8.0 metres (26.2 feet)
Connector Protector and Cable Option: Armored cable
Agency Approval Option: CSA, ATEX, IECEx Approvals
330130-080-01-05 Characteristics
Standard Cable: -52°C to +177°C (-62°F to +350 °F)
Weight: 0.045 Kg
Operating and Storage Temperature: -35°C to +200°C (-31°F to +392°F)
Field Wiring
16 to 24 AWG for 0.2 to 1.5 mm2. Recommend using tinned field wire and 3-conductor shielded triad cable. The distance between the 3300 XL Proximitor Sensor and the monitor can be no longer than 305 meters (1,000 feet). When employing longer field wiring lengths, see the frequency response graphs in through Figure 13 (pages 27 and 28) for signal rolloff at high frequencies.
