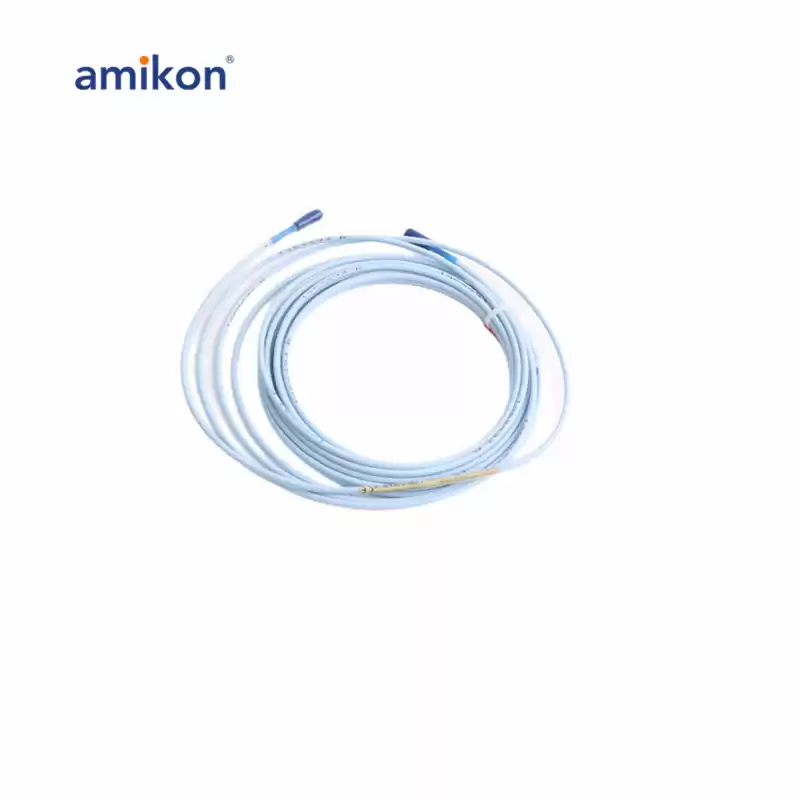

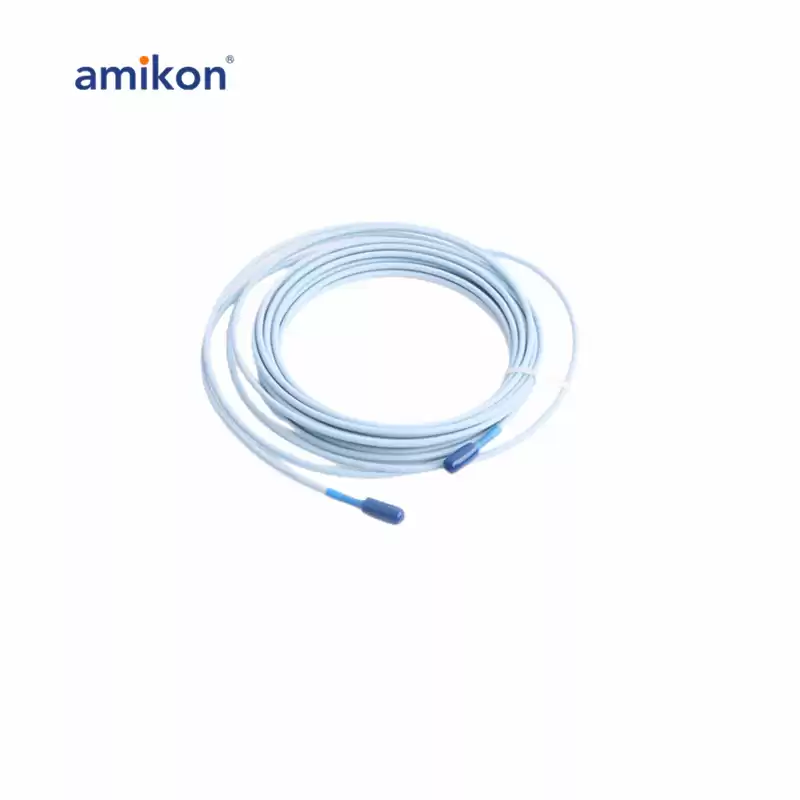

330XL 8MM Extension Cable 330130-075-00-00 Bently Nevada

Brand new and original sealed//Same Day Shipment

  • Warranty PeriodOne Year Warranty
  • Dimensions20.5x22x3cm
  • Weight0.32KG
  • Country of OriginUSA
  • Brand/ManufaturerBently Nevada
  • Payment Term100% Advance Payment T/T Bank Wire Transfer
Facebook Twitter Pinterest LinkedIn 分享
Manufacturer : Bently Nevada
Product No. :  330130-075-00-00
Product type : 3300 XL Extension Cable
Cable Length Option : 075 = 7.5 metres (24.6 feet
Connector Protector and Cable Option : 00 = Standard cableprotectors
Agency Approval Option : CN = Approvals country specific  (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Weight : 0.255 Kg

The 3300 XL NSv Proximitor Sensor, extension cable, and probe are designed to operate between 0°C and +45°C (+32°F to +113°F) with a -24 Vdc power supply, a 10 kΩ load, and a Bently Nevada-supplied AISI 4140 steel target that is 31 mm (1.2 in) in diameter or larger, with a probe gap of 1.0 mm (40 mils). The system's accuracy and interchangeability specifications are only applicable when using a Bently Nevada AISI 4140 steel target.

For added protection, connector protectors are recommended for the probe-to-extension cable connection. Bently Nevada’s patented CableLoc* design provides 220 N (50 lb) of pull strength, securely attaching the probe cable to the probe tip. Additionally, the patented TipLoc* molding method creates a robust bond between the probe tip and the probe body, ensuring long-term durability and reliability.
