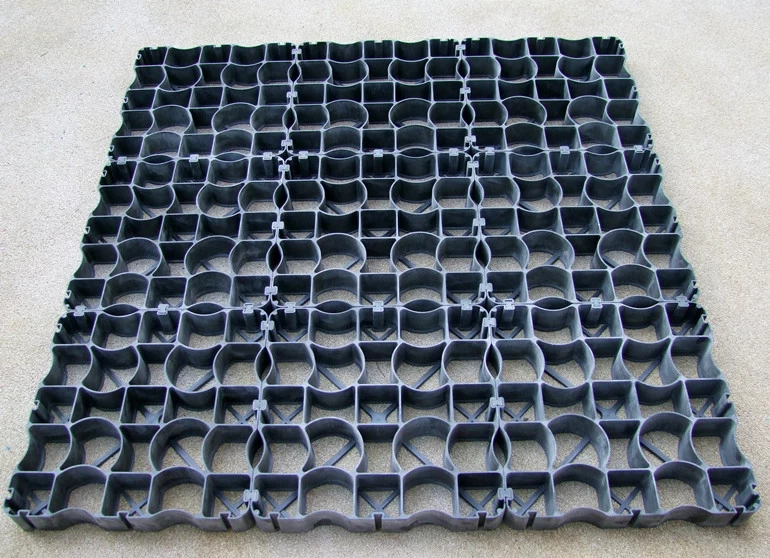

333x333x50MM MUD MANAGEMENT PLASTIC GRAVEL ANIMAL HOOF GRID
Plastic gravel animal hoof grid is incredibly tough and durable, it can withstand the most extreme climates from -40 to 120 degree, at the same time, it will withstand continual stomping and chopping by hard hooves. Except to mud control, Plastic paddock grid is ideal for many equestrian and livestock applications.
THE ULTIMATE IN PADDOCK AND EQUESTRIAN SPORTS AREA
ANIMAL HOOF GRID LY950 TECHNICAL DATA
| MATERIAL |
HDPE(100% Recycled High Density Polyethylene) |
| COLOR |
Black; Dark Green |
| SIZE |
336*336*50mm |
| CELL WALL THICKESS |
2mm |
| WEIGHT |
0.65kg/pc; 5.85kg/m2 |
| OPEN CELL PERCENTAGE |
92% top; 75% base |
| ANTI HCL |
According to GB4218-1984, 30% x 24h, no visible change |
| ANTI NAOH |
According to GB4218-1984, 30% x 24h, no visible change |
| THERMAL AGING |
According to GB/T 7141-1999, 70IC x24h, no visible change |
| UV RESISTANCE |
According to GB/T18830, UPE＞30T(UVA)AV＜5%, Qualified |
| TOXICITY |
Non Toxic |
| DURABILITY |
At least 10 years in neutral ground of 4＜pH＜9 |
| PACKING |
Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m2 in one go. |
| PACKING |
570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC |
ACCESSORIES
We supply a firm interlocking connected accessories and fix edging system that offers a guide to ensure continuous levels across surfaces as well as the ability to cut patterns and curves to surfaces.
PLASTIC GRAVEL ANIMAL HOOF GRID APPLICATION

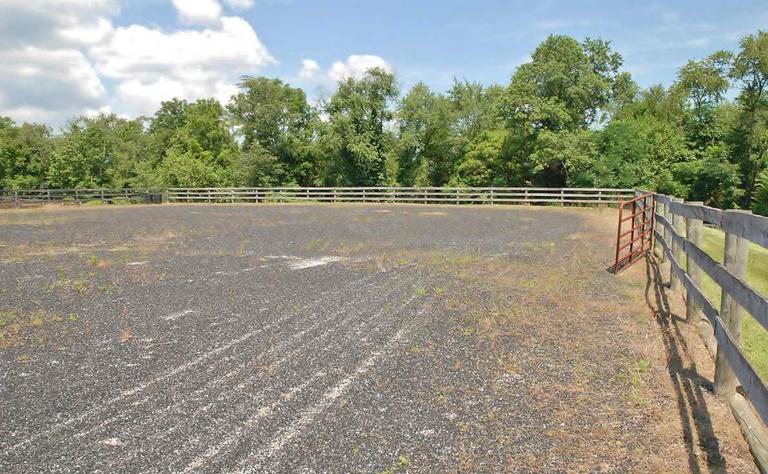

Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas.
FEATURE
Non-slip
Elastic and robust
Crack-proof
Weatherproof
Environmentally friendly, 100% recyclable
High load capacity
Ammonia resistant
Withstands frost and UV light
Does not rot
ADVANTAGES
No mud
Equal load on all joints
The tread layer remains separate from the substructure
Minimal maintenance
High degree of elasticity
Load capacity of up to 250tons/m2
Outstanding drainage
More than 200 elastic elements per m2
Quick and easy to install
Environmentally friendly
Minimal hoof impact marks
Patented safety locking system
Permanent drainage
Robust surface with good grip
All-weather areas, the ideal surface all year round
Open stables keep free from mud and puddles.
