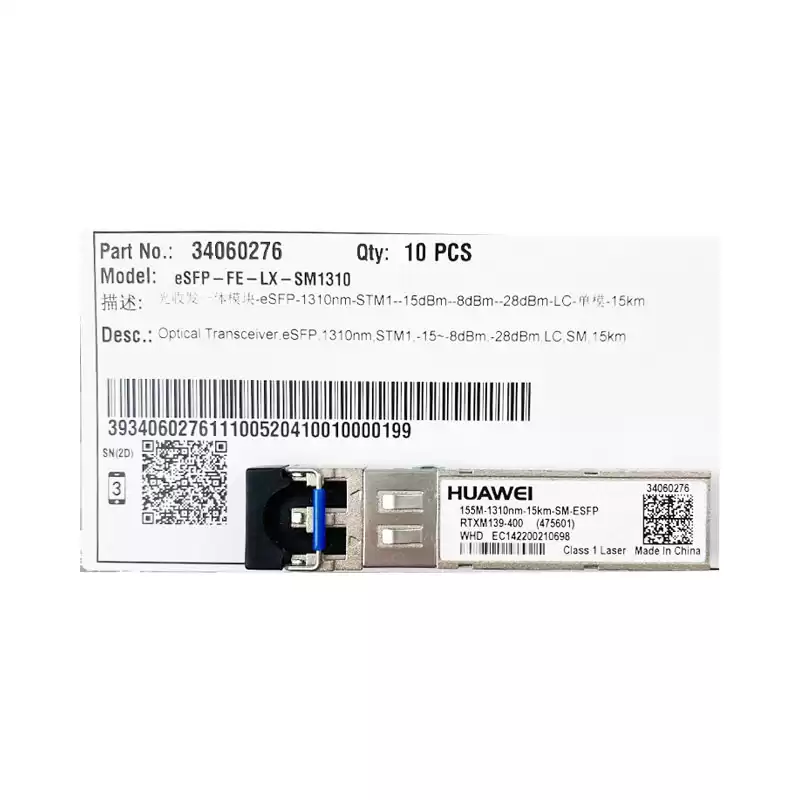

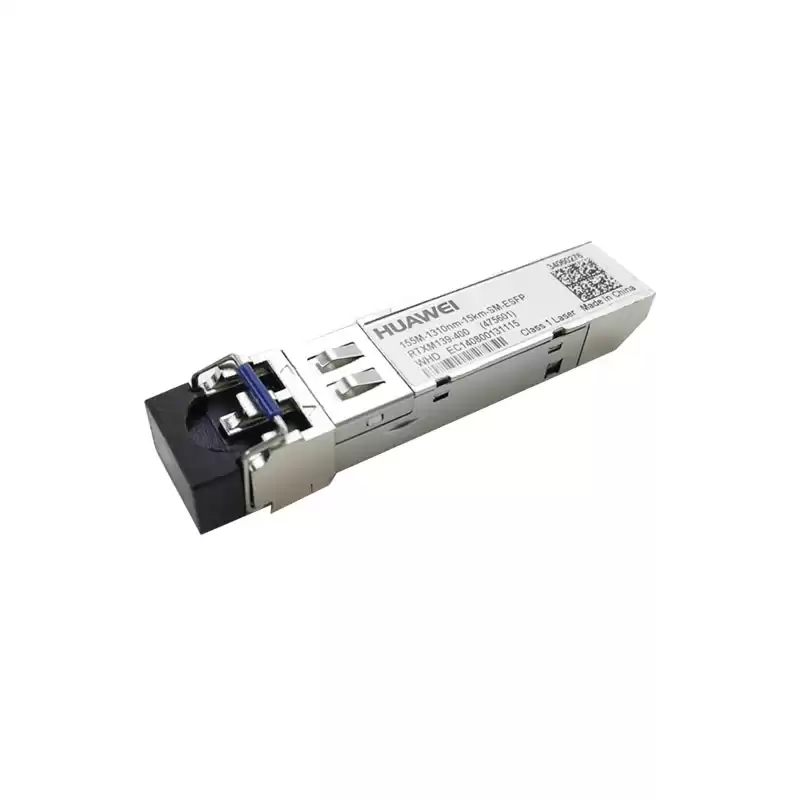

34060276 HUAWEI Optical Transceiver, eSFP 1310nm, STM1, LC,SM,15km
Product Description
|
Item
|
SFP-FE-SX-MM1310
|
eSFP-FE-LX-SM1310
|
|
Transceiver form factor
|
SFP
|
eSFP
|
|
Transmission speed
|
Fast Ethernet
|
100 Mbit/s
|
|
Center wavelength (nm)
|
1310
|
1310
|
|
Standard compliance
|
100base-FX
|
100base-LX
|
|
Connector type
|
LC
|
LC
|
|
Applicable cable and maximum
transmission distance
|
Multimode fiber (50 μm or 62.5 μm diameter): 2 km
|
Single-mode fiber: 15 km
|
|
Transmit power (dBm)
|
-19.0 to -14.0
|
-15.0 to -8.0
|
|
Maximum receiver sensitivity (dBm)
|
-30.0
|
-31.0
|
|
Overload power (dBm)
|
-14.0
|
-8.0
|
|
Extinction ratio (dB)
|
10
|
8.2
|
|
Operating temperature
|
0°C to 70°C (32°F to 158°F)
|
0°C to 70°C (32°F to 158°F)
|
|
Net Dimension(D x W x H mm)
|
145 x 80 x 35
|
110 x 75 x 40
|
Product Details
Our Advantages
We have Huawei 34060276 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei 34060276, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei 34060276 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
