34LPM 40PSI DC RV Electric self-priming diaphragm pump With Pressure Tank Pump Accumulator Kit
12v rv water pump with tank
Whaleflo 12V caravan pump FL series is ideal water transfer incaravan,RV,marine, garden,camping,boat, outdoor and with self-priming ability.FL series pump has four diaphragm pump. Pump pressure vary from 35-40PSI, Flow from 12.5-34LPM.
Available in 12, 24V, 115and 230Vlots models to service for RV conversion and commercial coach markers etc
FDA material pump and accumalator tank with 5L or 8L for dinking water service.
Self-priming up to 6FT(1.8M)
Pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
Connects directly to 15mm Quick Connect pipework. Suitable to connect to 1/2 " flexible hose
Pump working duty: working intermittent
Tank details:
Easy maintenance : inlet strainer with clear lid for inspection prevents debris from entering the pump
5 or 8 ltr Accumulator tank with high capacity and size
Easy installation : pre-mounted kit 4 screws and conect plumbing
Mouled base drop in and fit one piece kit
Whaleflo caravan pump performance
High flow, self-priming, Dry run with damage , Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Whaleflo Pump Application
caravan,RV,marine, garden,camping,boat, outdoor
Technical Data
|
Model
|
Voltage(DC/AC)
|
Flow rate(LPM/GPM)
|
Pressure(PSI/Bar)
|
Amps
|
Check Valve
|
Packing Size(MM)
|
N.W./G.W.(KGS)
|
|
FL-35X
|
12V DC
|
25.0/6.6
|
35/2.4
|
7.8
|
EPDM
|
510*510*400
|
11.68/13.68
|
|
FL-34X
|
24V DC
|
25.0/6.6
|
35/2.4
|
4.0
|
EPDM
|
510*510*400
|
11.68/13.68
|
|
FL-33X
|
115V AC
|
25.0/6.6
|
35/2.4
|
1.0
|
EPDM
|
510*510*400
|
12.0/14.30
|
|
FL-32X
|
230V AC
|
25.0/6.6
|
35/2.4
|
0.8
|
EPDM
|
510*510*400
|
12.0/14.30
|
|
FL-40X
|
12V DC
|
34.0/9.0
|
40/2.8
|
12
|
EPDM
|
510*510*400
|
11.68/13.68
|
|
FL-44X
|
24V DC
|
34.0/9.0
|
40/2.8
|
5.0
|
EPDM
|
510*510*400
|
11.68/13.68
|
|
FL-41X
|
115V AC
|
34.0/9.0
|
40/2.8
|
1.0
|
EPDM
|
510*510*400
|
12.0/14.30
|
|
FL-43X
|
230V AC
|
34.0/9.0
|
40/2.8
|
0.8
|
EPDM
|
510*510*400
|
12.0/14.30
|
Pump Drawing

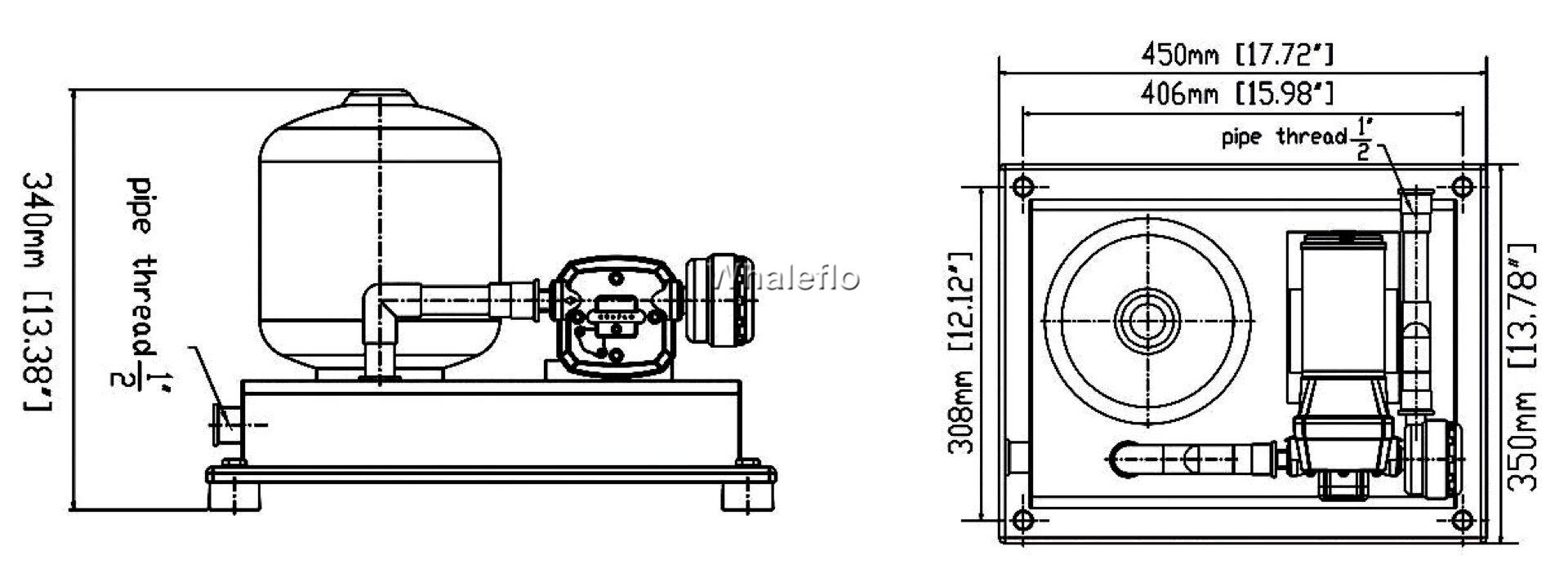

5L tank single pressure pump

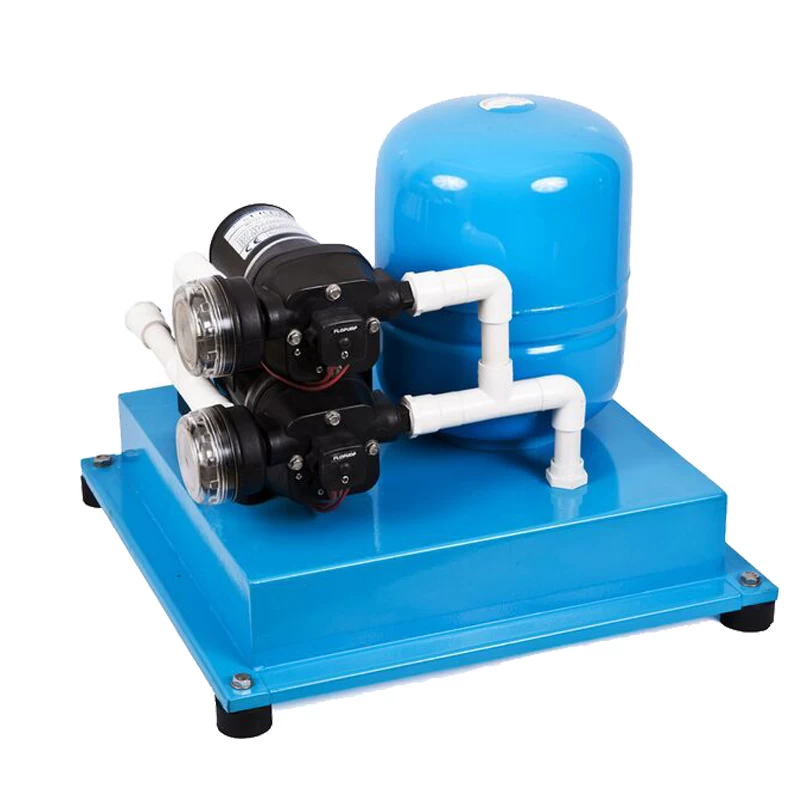

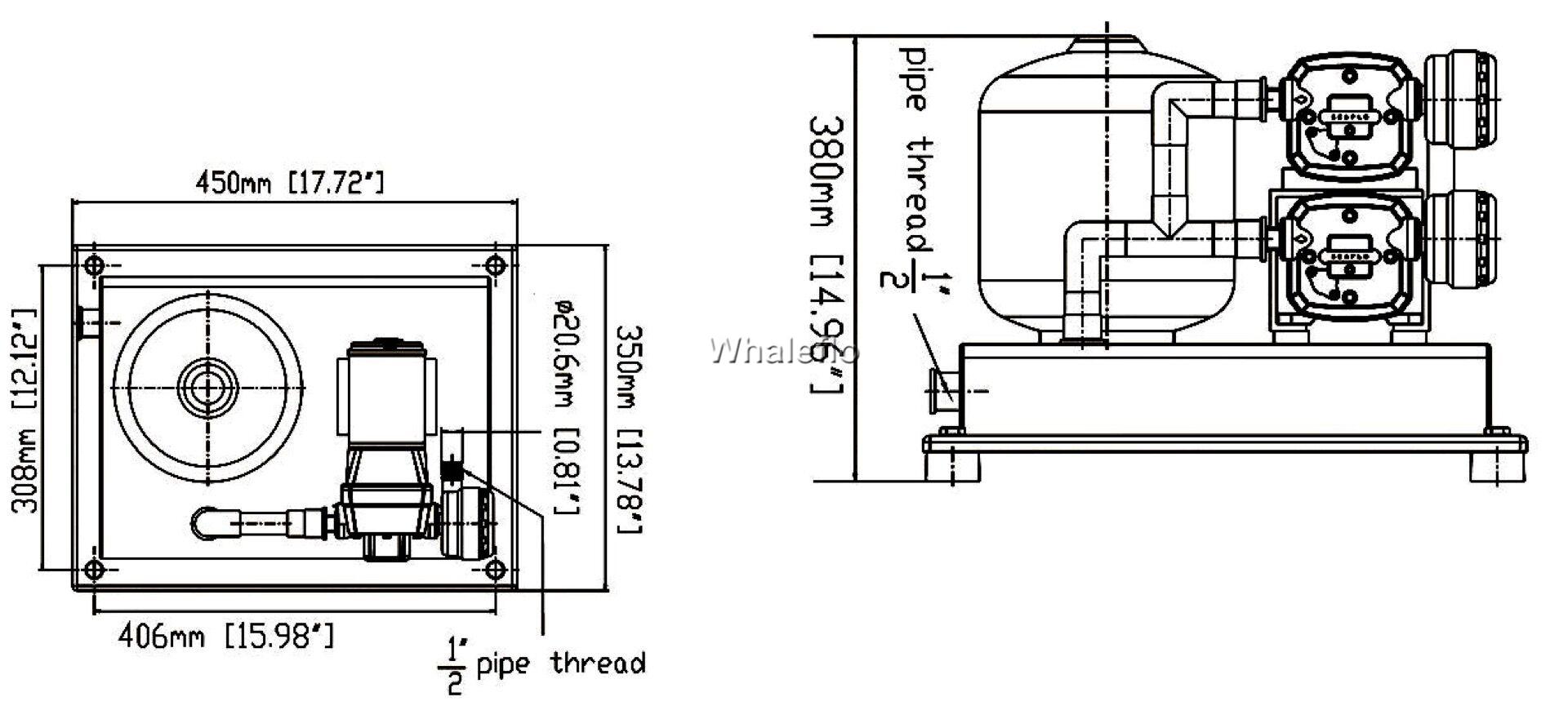

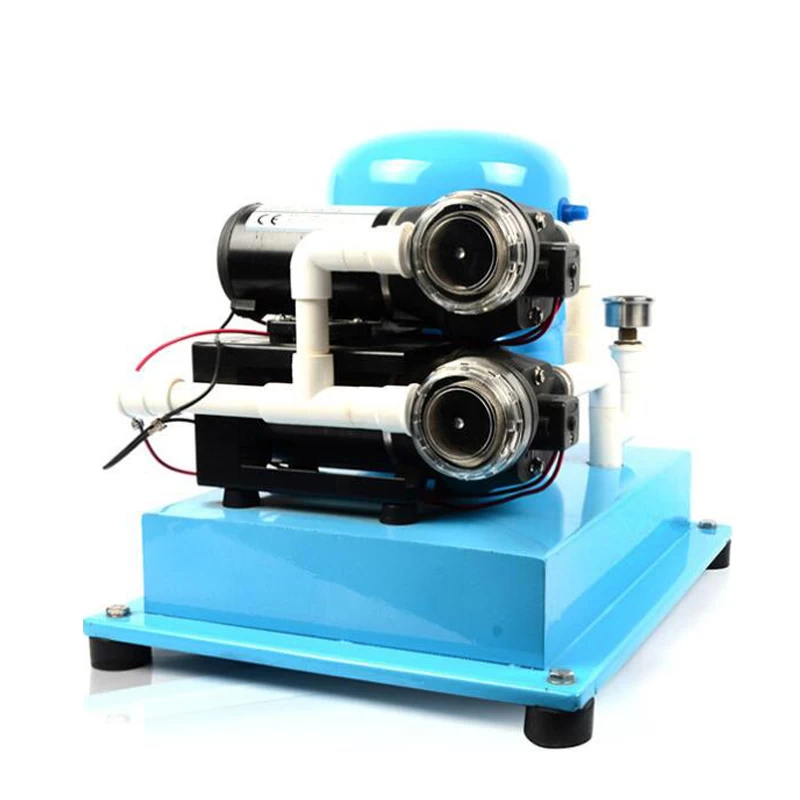

8L tank with double pressure pump
