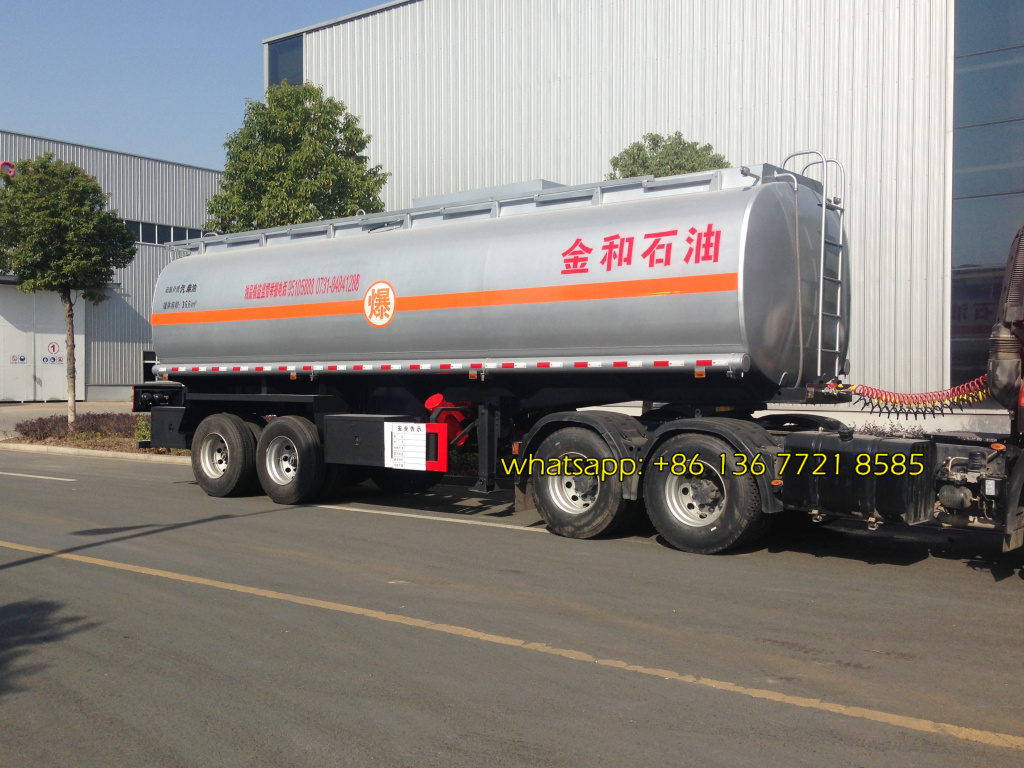

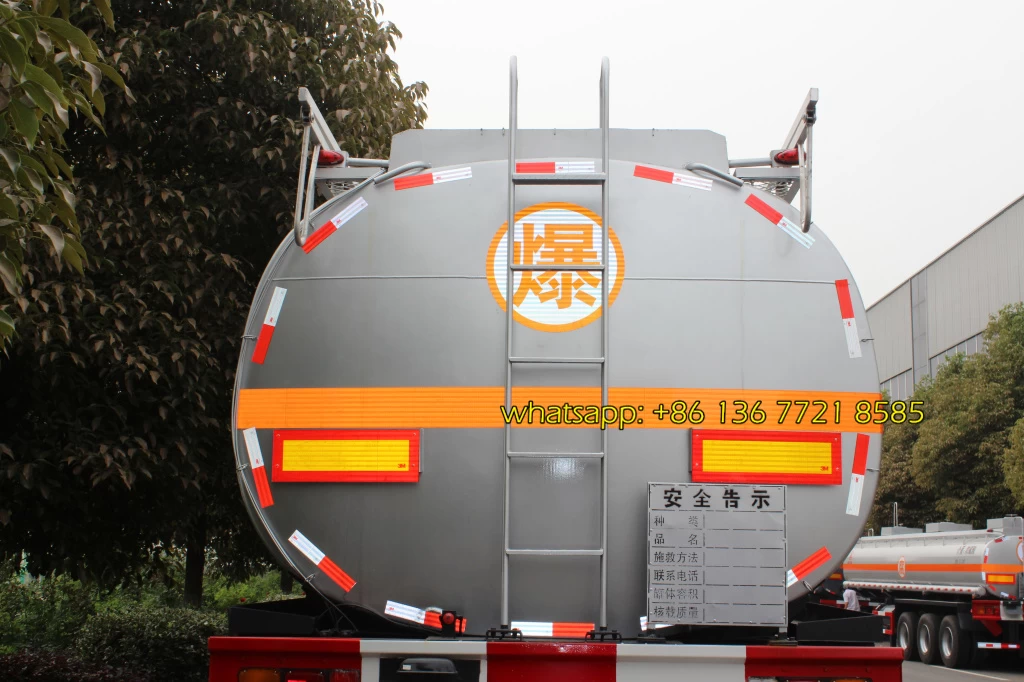

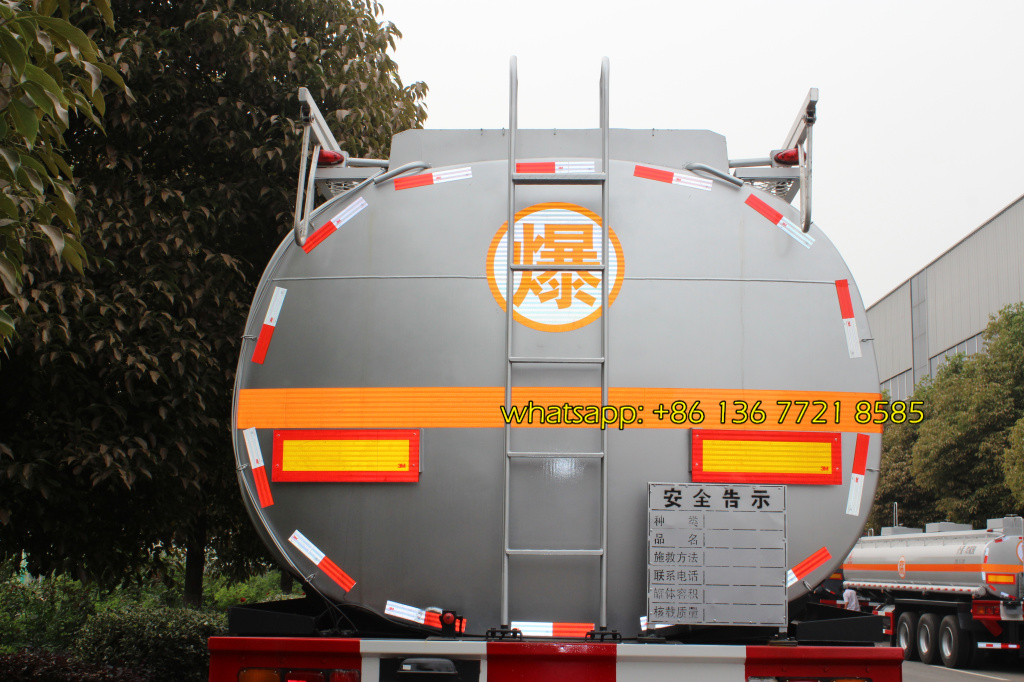

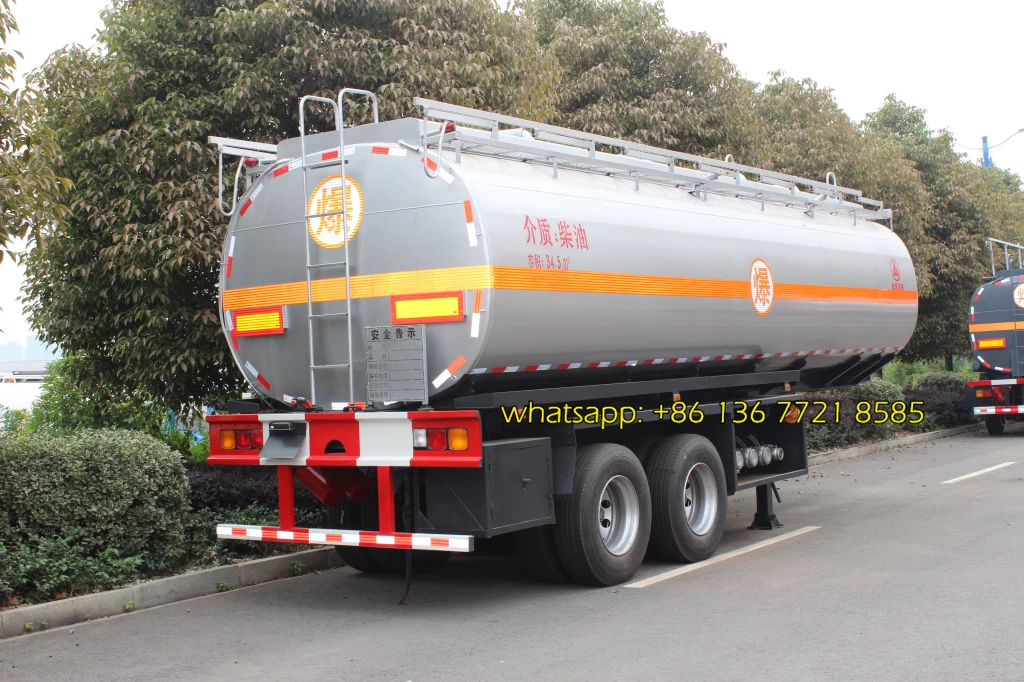

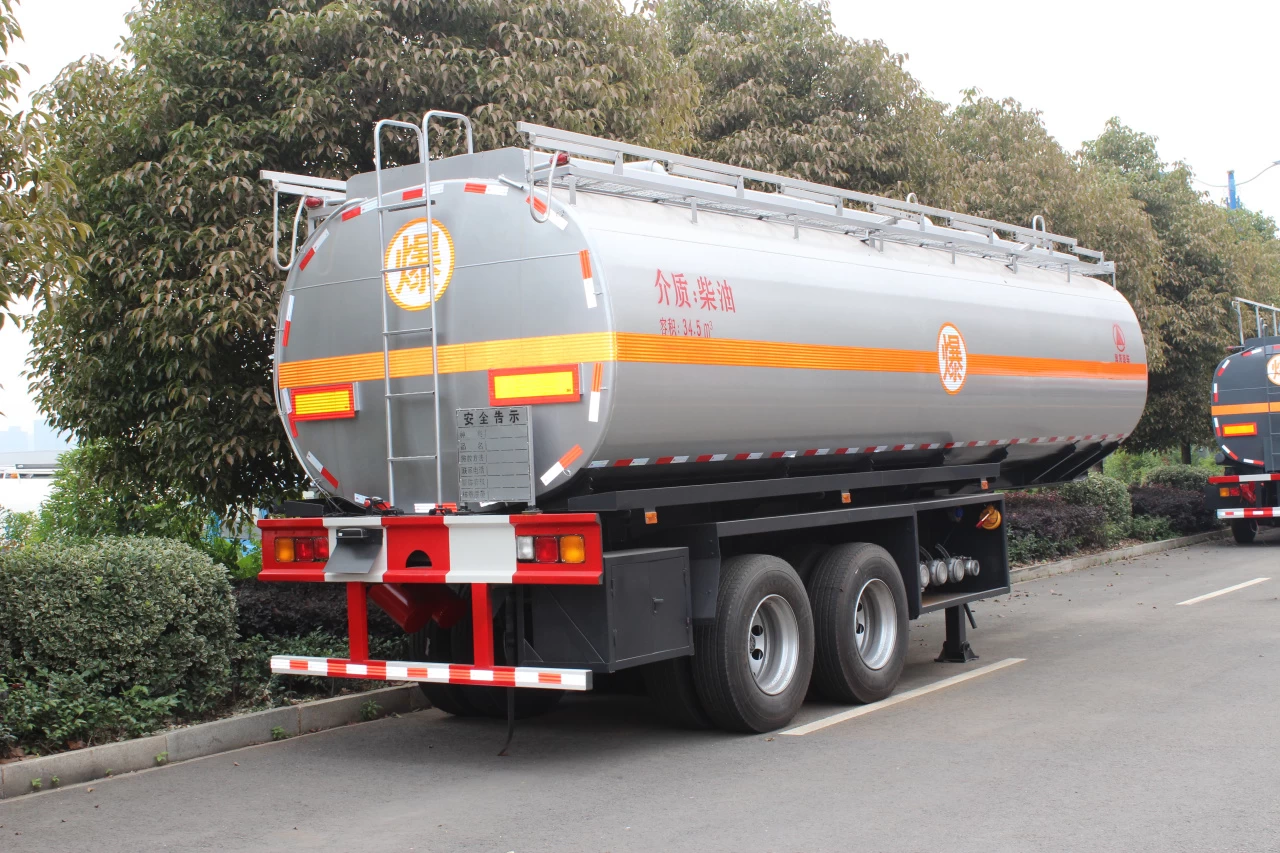

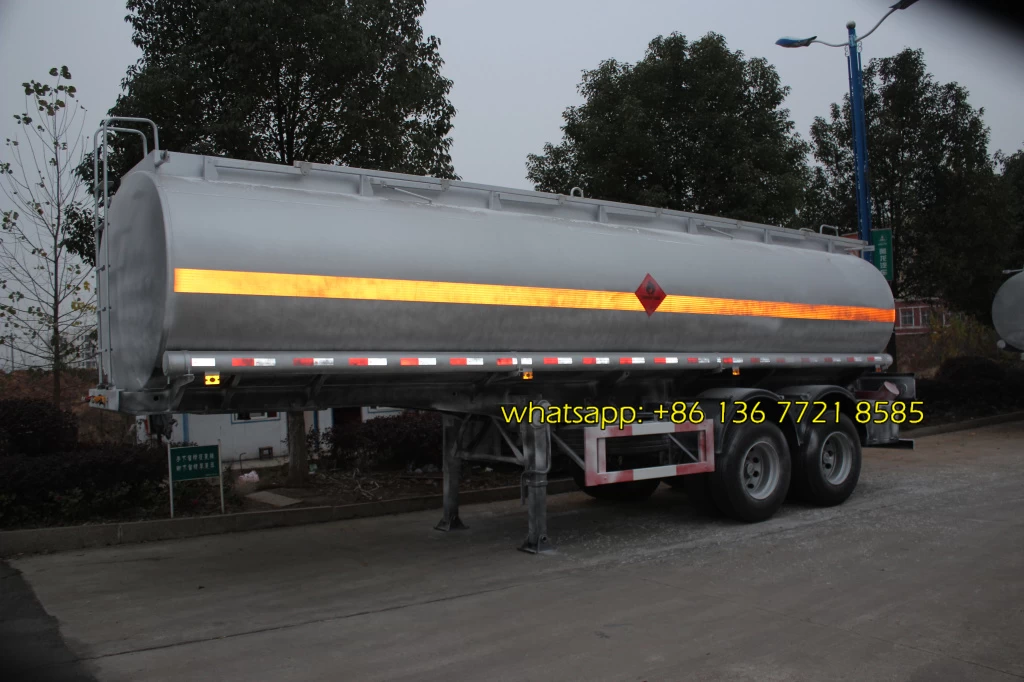

35,000 Litre Fuel Tank Trailer
PT9340GRY liquid tanker semi trailer is available with the tank volume of 36m3. Its wheelbase is 6550+1310. Normally, this liquid semi trailer is made of carbon steel Q235 materials. It also can be made of stainless steel or aluminum alloy.
FUWA double axle and JOST 90mm or 50mm towing pin are installed to this semi tank trailer. Bottom valve, bottom loading system, and others can be added by request. The liquid tanker semi trailer is suitable for all kinds of chemical liquids, for instance, oil products, ethyl alcohol, etc.

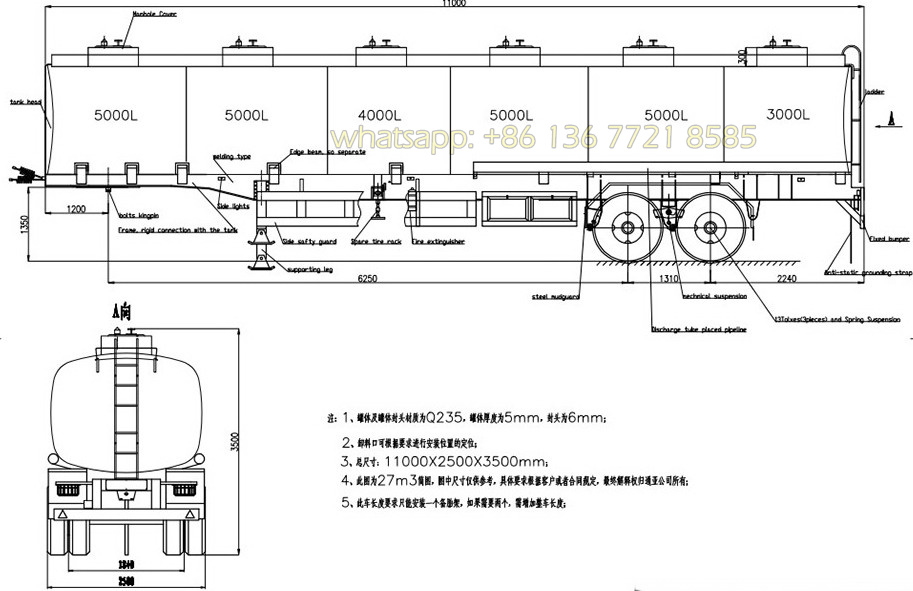

Basic drawing of 35,000L Fuel Tank Trailer
Parameters
Parameters
|
Overall Dimensions
|
Total length (mm)
|
10600
|
Mass Parameters
|
Max. Total Mass (Kg)
|
34450
|
|
Total width (mm)
|
2500
|
|
Total height (mm)
|
3700
|
Rated Load (Kg)
|
25500
|
|
Wheel base (mm)
|
6550+1310
|
|
Tread (mm)
|
1840
|
Kerb mass (Kg)
|
8950
|
|
Ground Clearance of Towering pin base plate
(mm)
|
1250
|
|
Through-put Capacity
|
Front turning diameter (mm)
|
1600
|
Rear overhang (mm)
|
1140
|
|
Clearance radius (mm)
|
2400
|
Departure angle (º)
|
28.5
|
|
Min. turning diameter (m)
|
22
|
Min. ground clearance (mm)
|
360
|
|
Main Configuration
|
Item
|
Standard configuration
|
Optional configuration
|
|

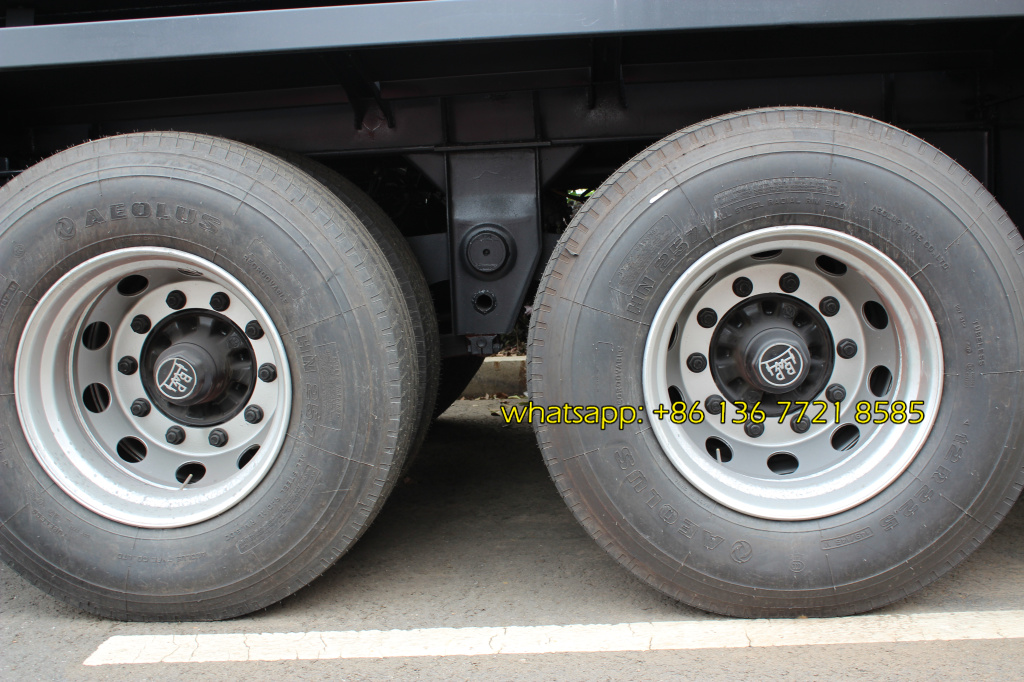

Axle
|
13T Fuwa, 2 sets
|
Fuwa 16T
|
|
Towing pin
|
JOST 90#
|
50#
|
|
Support leg
|
FUWA linkage leg
|
JOST
|
|
Suspension
|
Baohua double suspension
|
Yonglitai single point suspension
|
|
Leaf spring
|
7pcs
|
10 pieces, 4 pieces
|
|

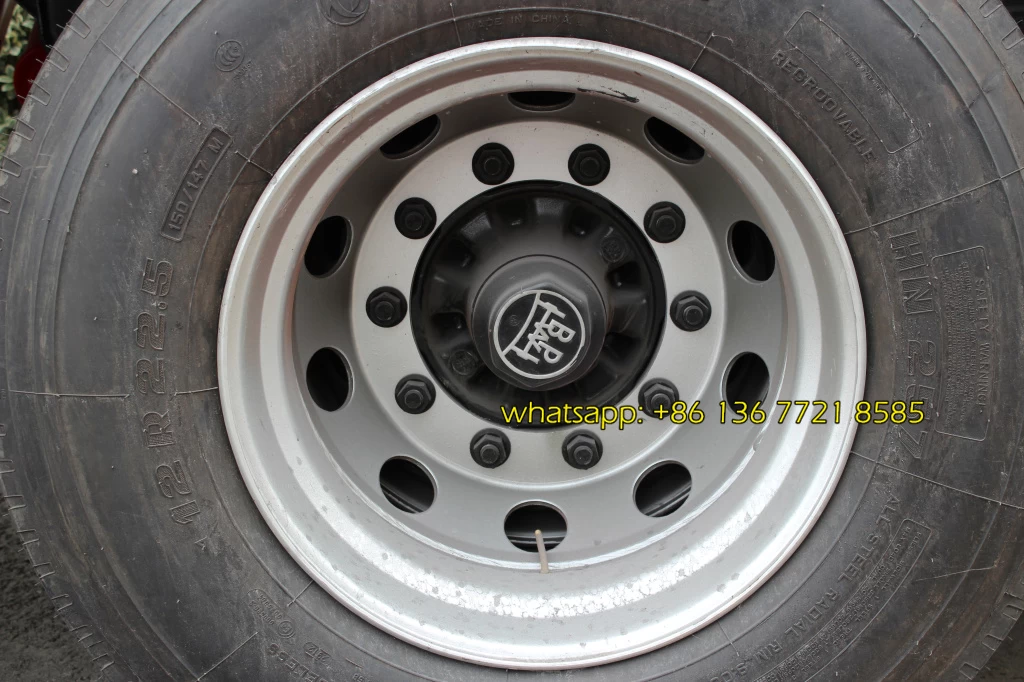

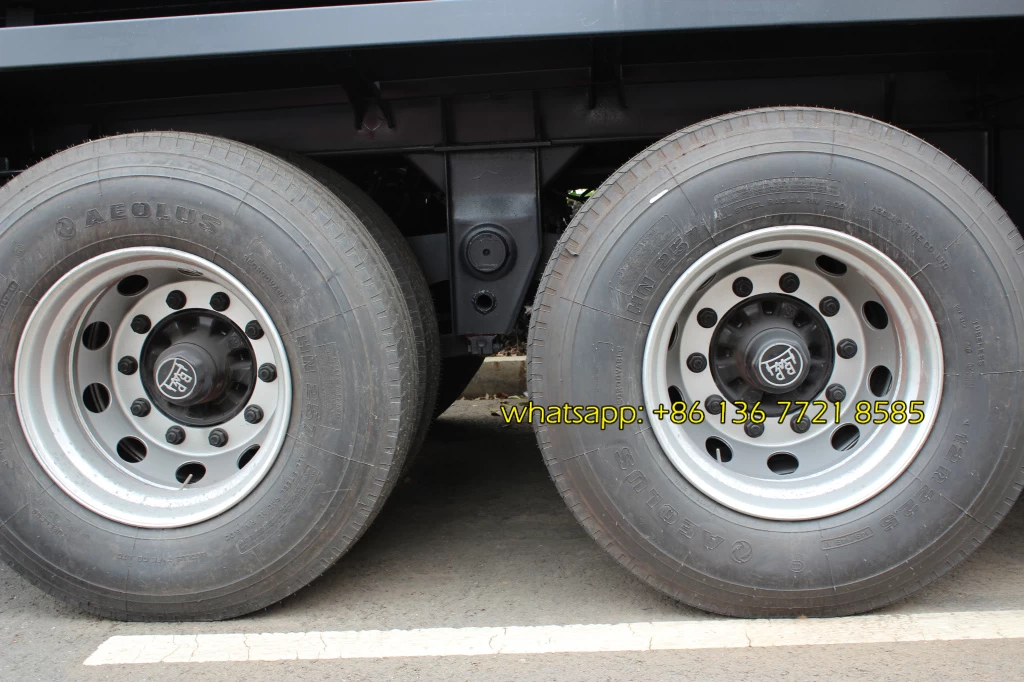

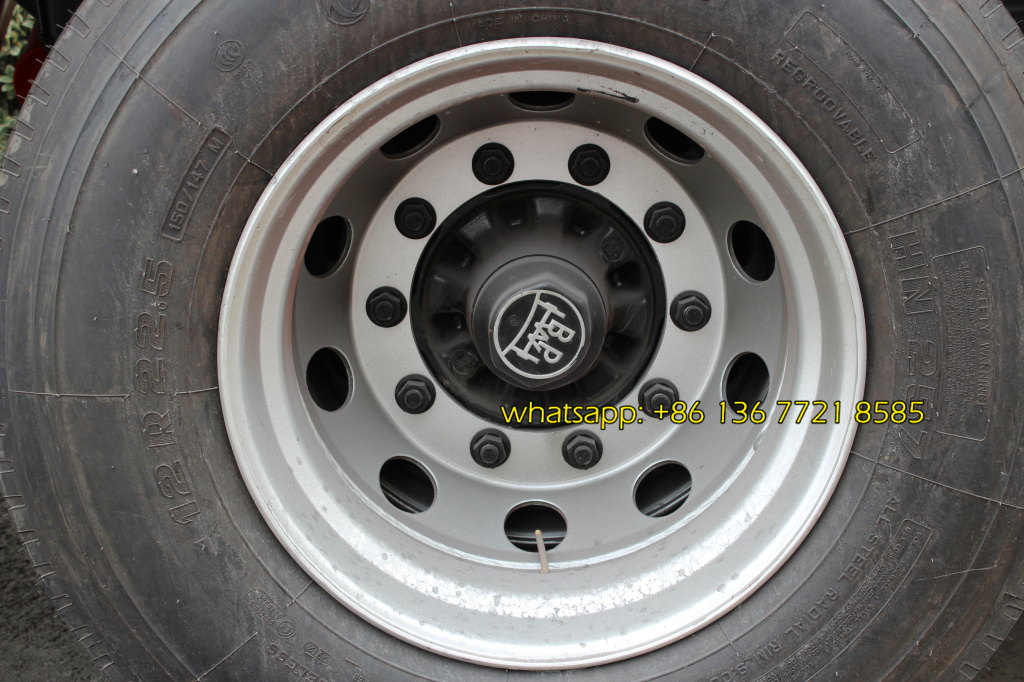

Rim
|
Steel rim: 22.5 × 9.00
|
|
|
Tyre
|
Double-coin 12R22.5 vacuum tyre, 8+1 pcs
|
11.00R20
|
|
Braking system
|
Double circuit pneumatic brake system, service brake, parking brake,
emergency brake (connected with tractor vehicle)
|
|
|
Electric system
|
24V, minus earth
|
|
|
ABS
|
Guangzhou Kemi
|
Xi'an zhengchang,hande
|
|
Special Configuration
|
Item
|
Standard configuration
|
Optional configuration
|
|
Volume (m3)
|
36
|
|
|
Size (mm)
|
10150×2485×1800
|
|
|
Tank materials
|
Carbon steel Q235
|
Stainless steel 304
|
|

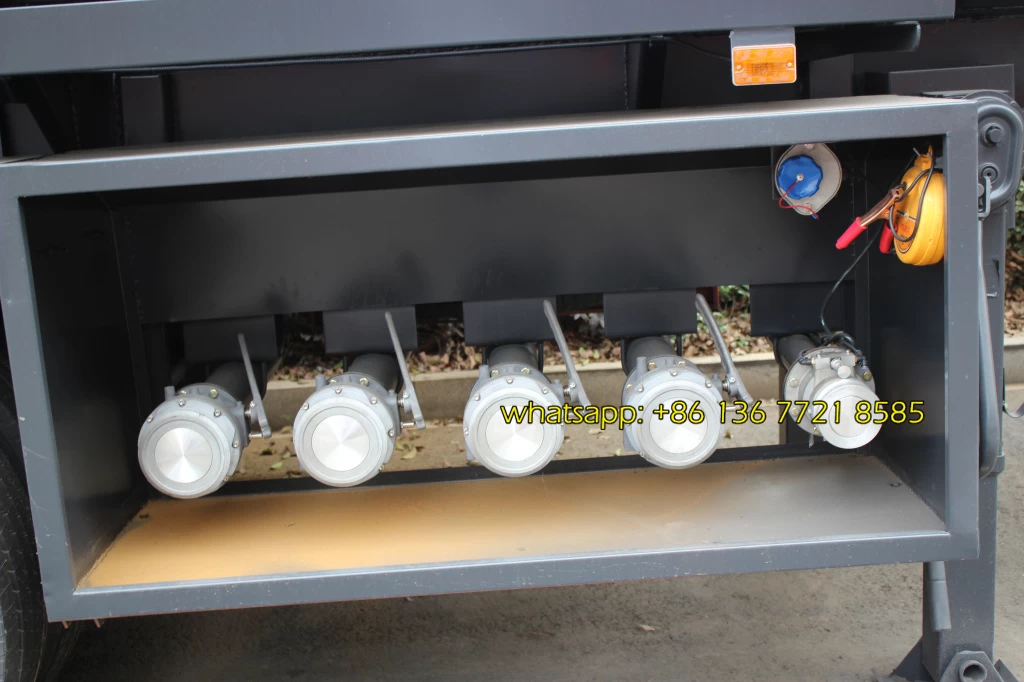

Discharge ball valve
|
Aluminum alloy DN80
|
Stainless steel DN80, DN100
|
|
Bottom valve
|
None
|
Stainless steel or aluminum alloy DN100
|
|

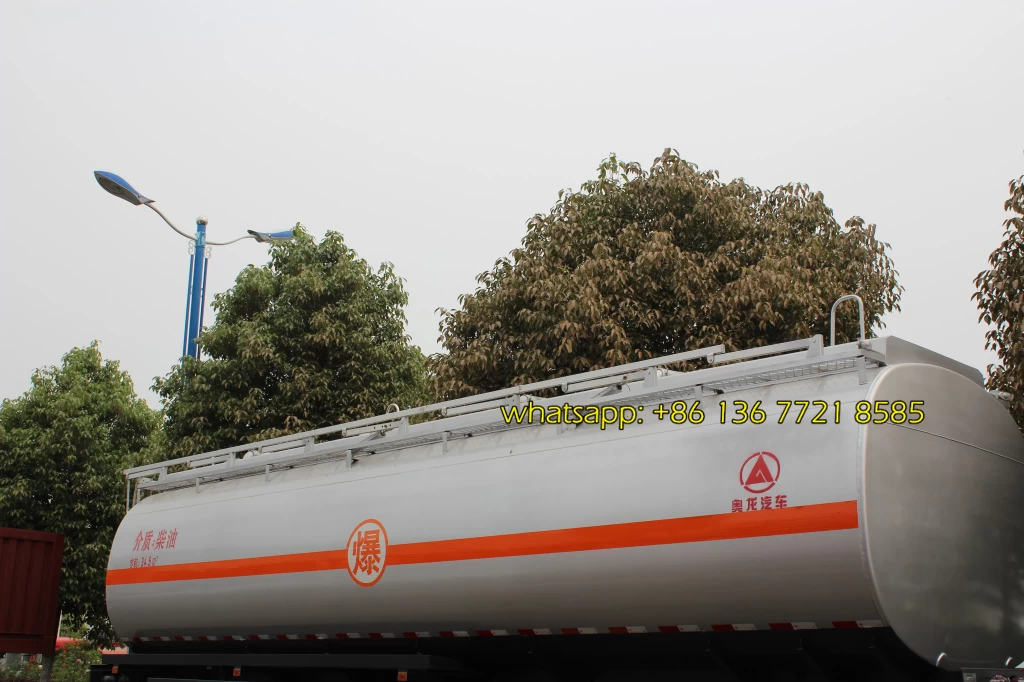

Tank cover
|
Amount: 2pcs, Material: carbon steel, Diameter: φ 500
|
Stainless steel or aluminum alloy
|
|
Discharge hose
|
Amount: 2 sets; Length: 4m; The hose diameter is same as that of ball
valve.
|
|

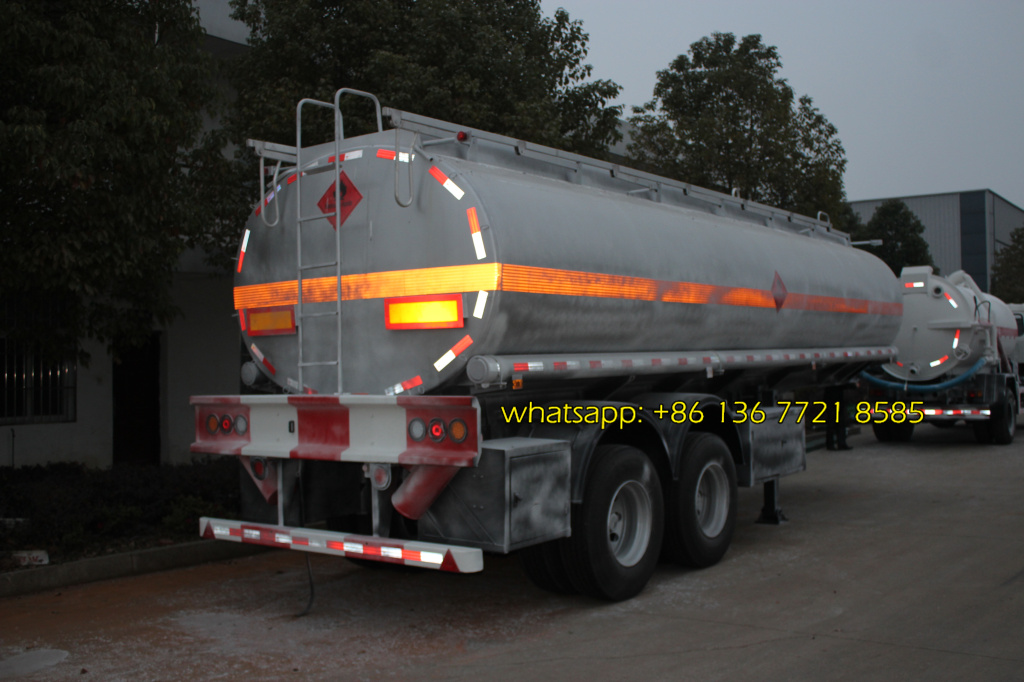

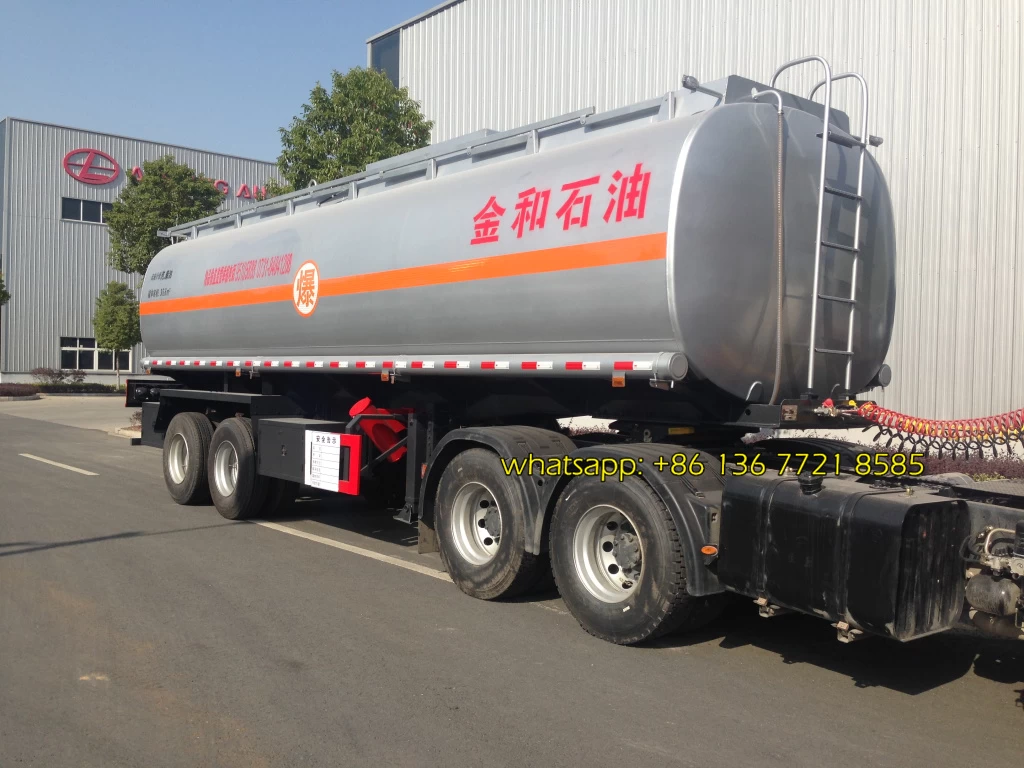

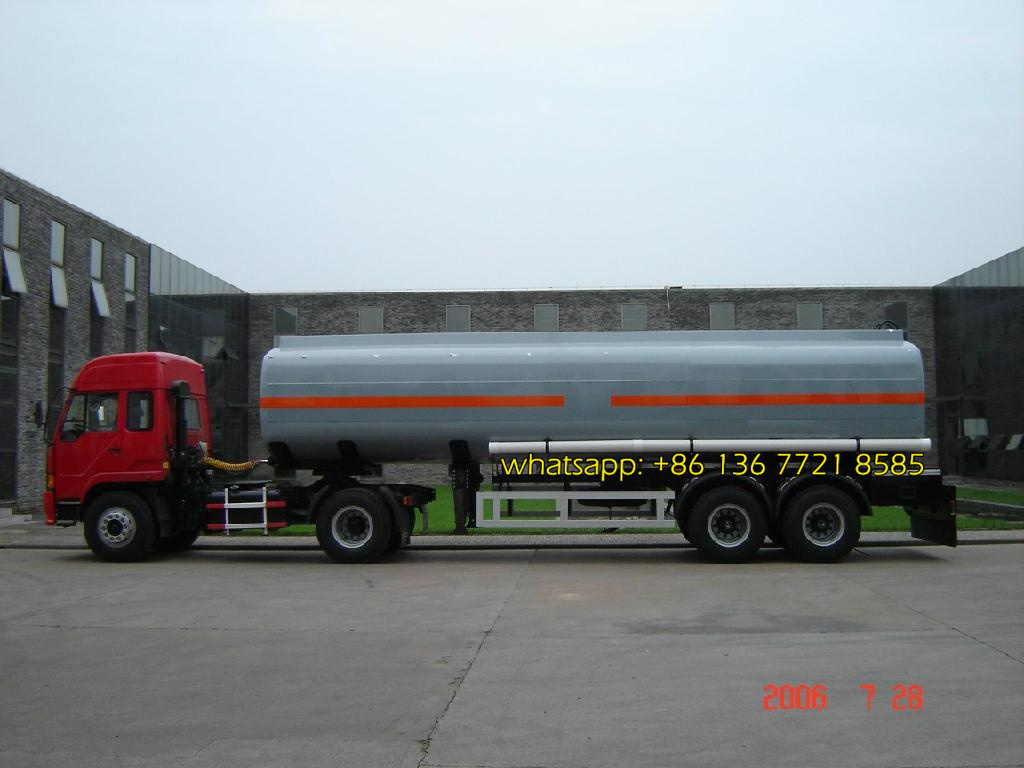

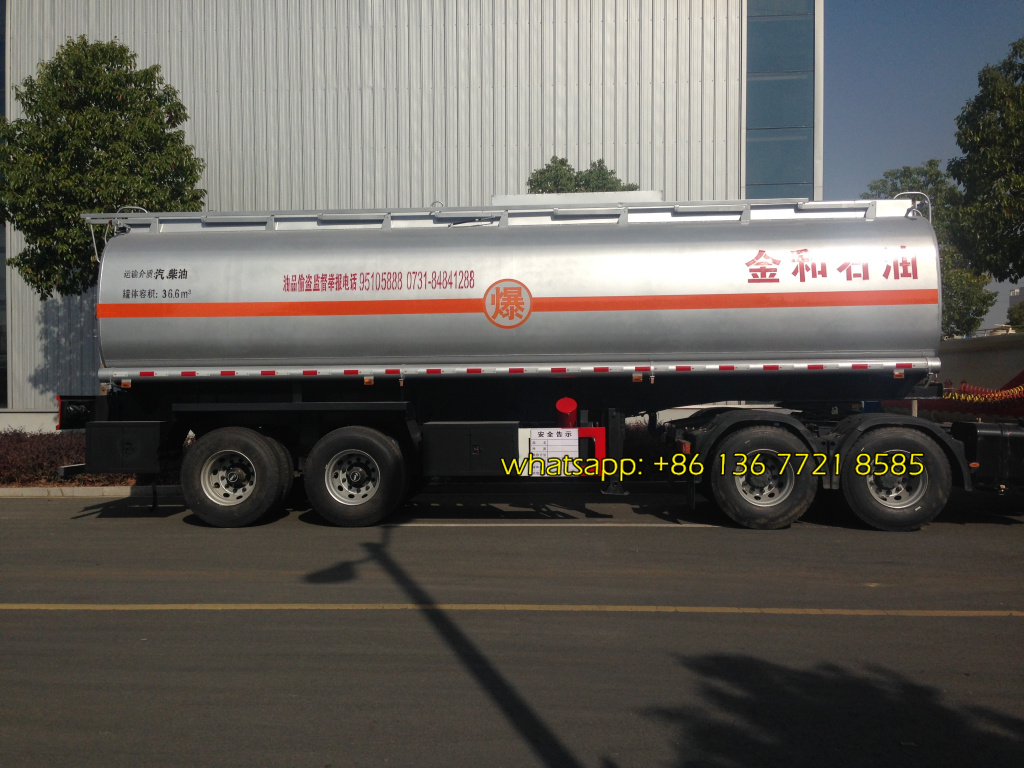

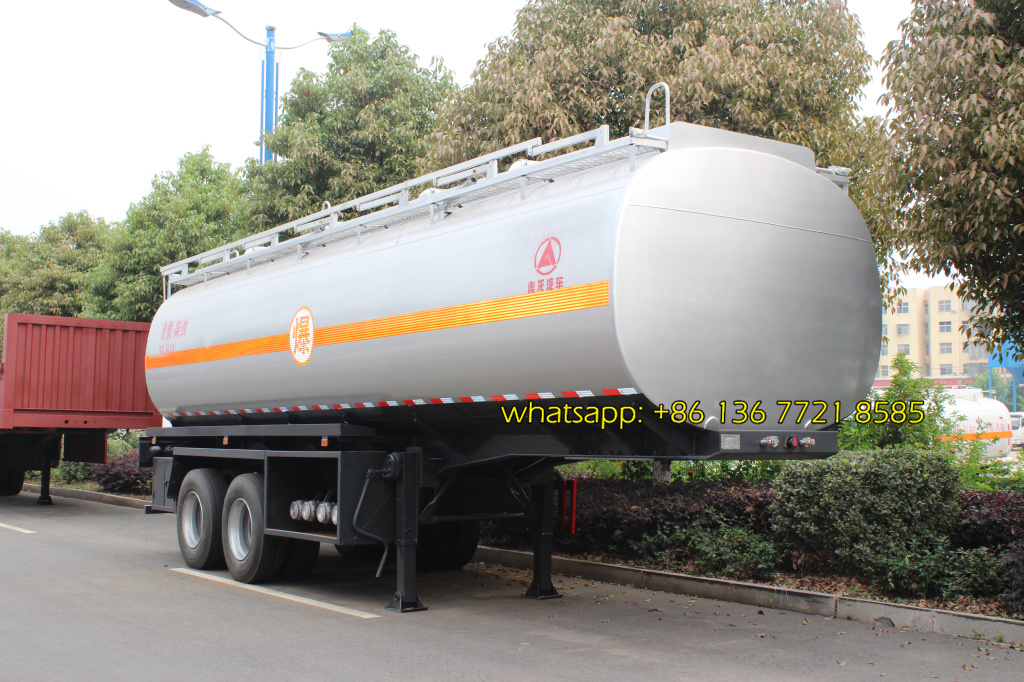

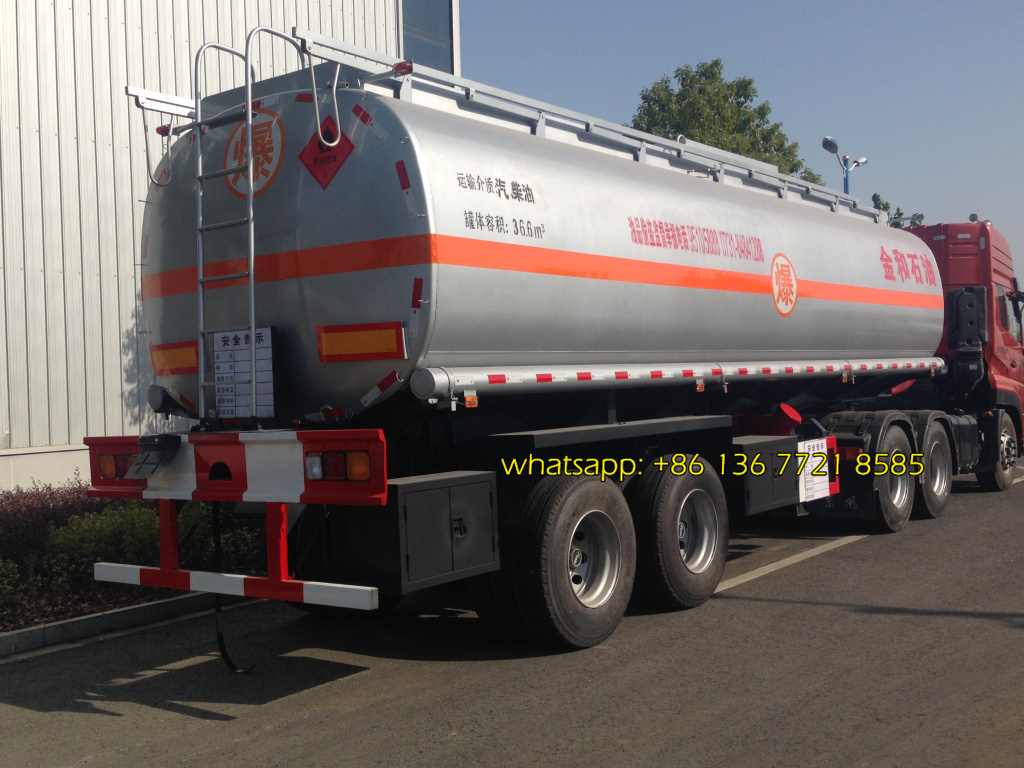

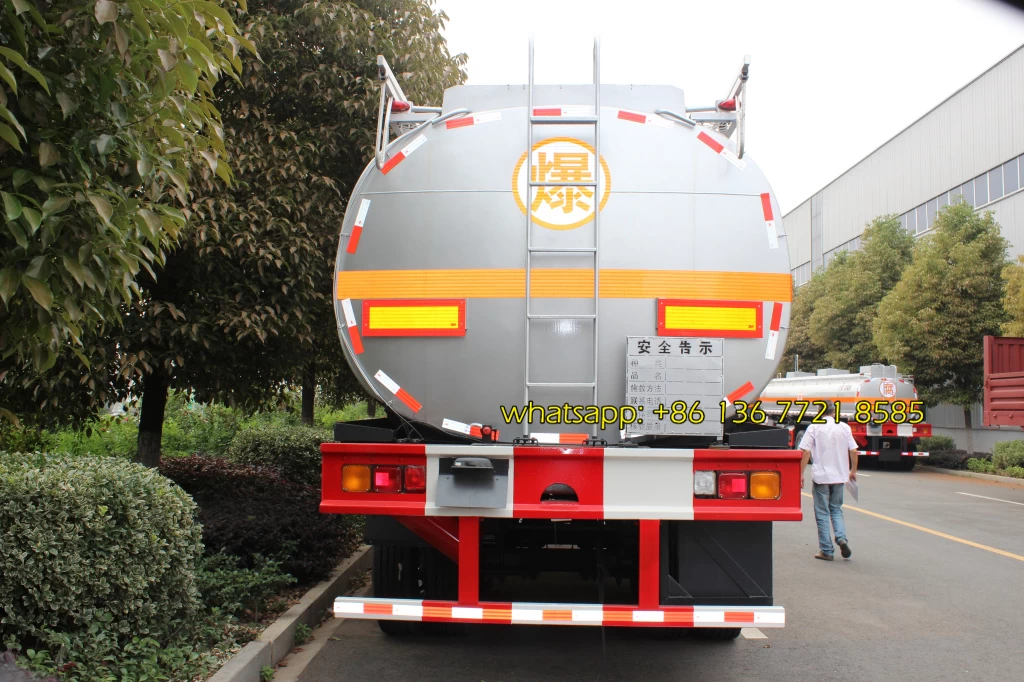

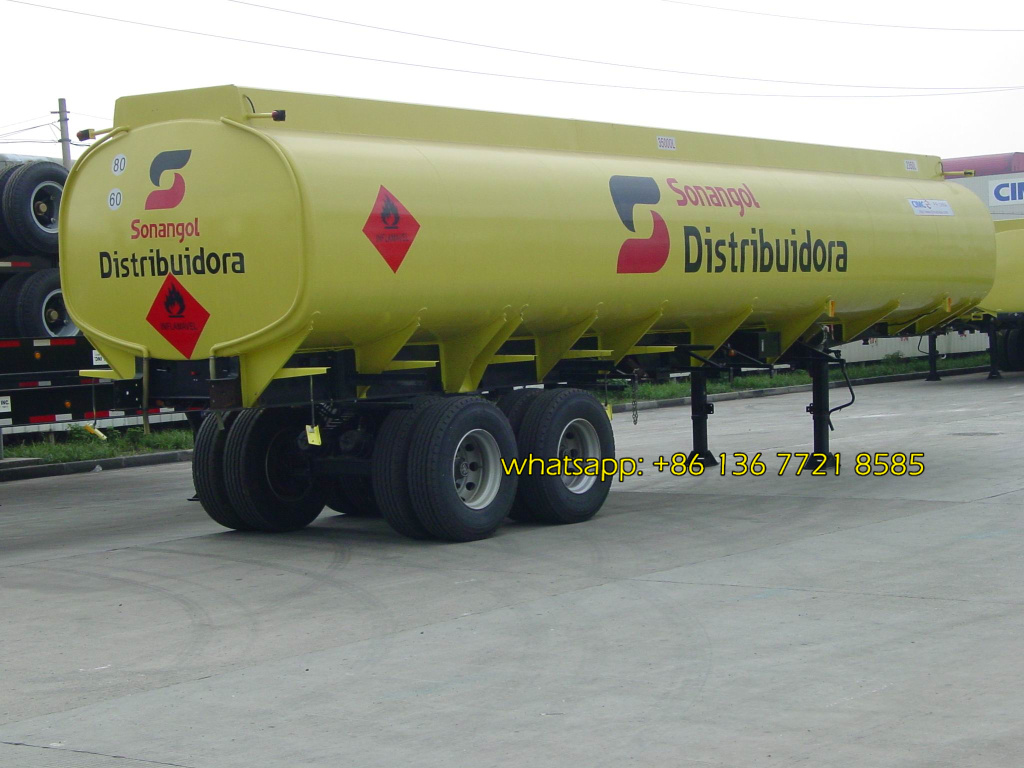

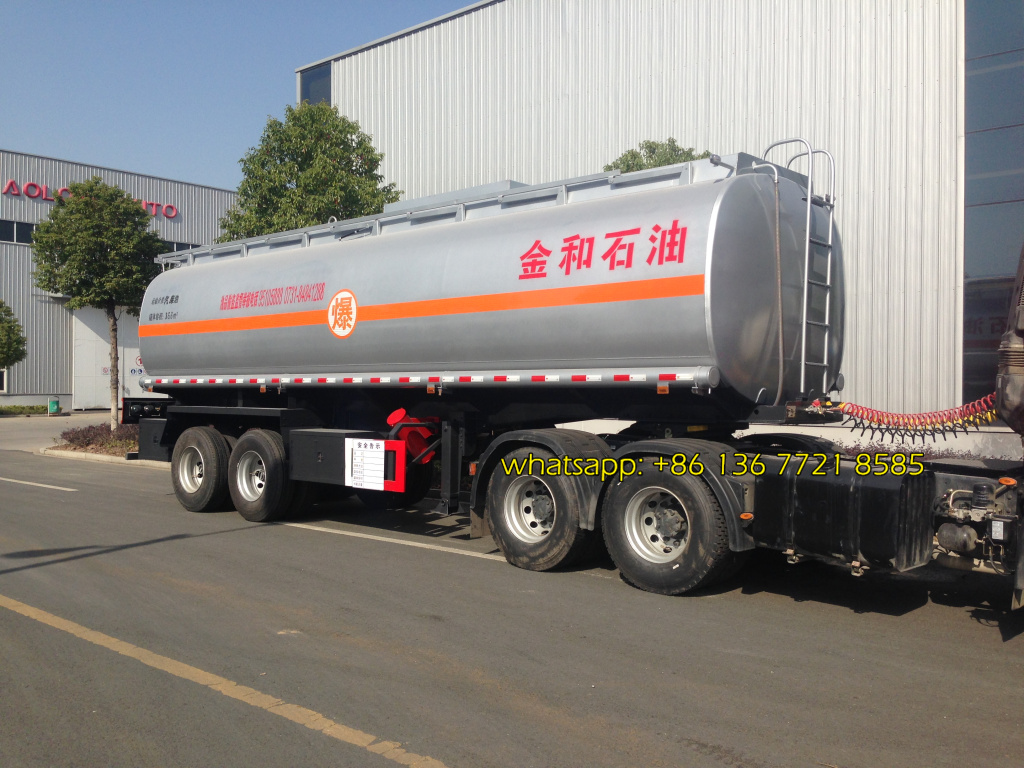

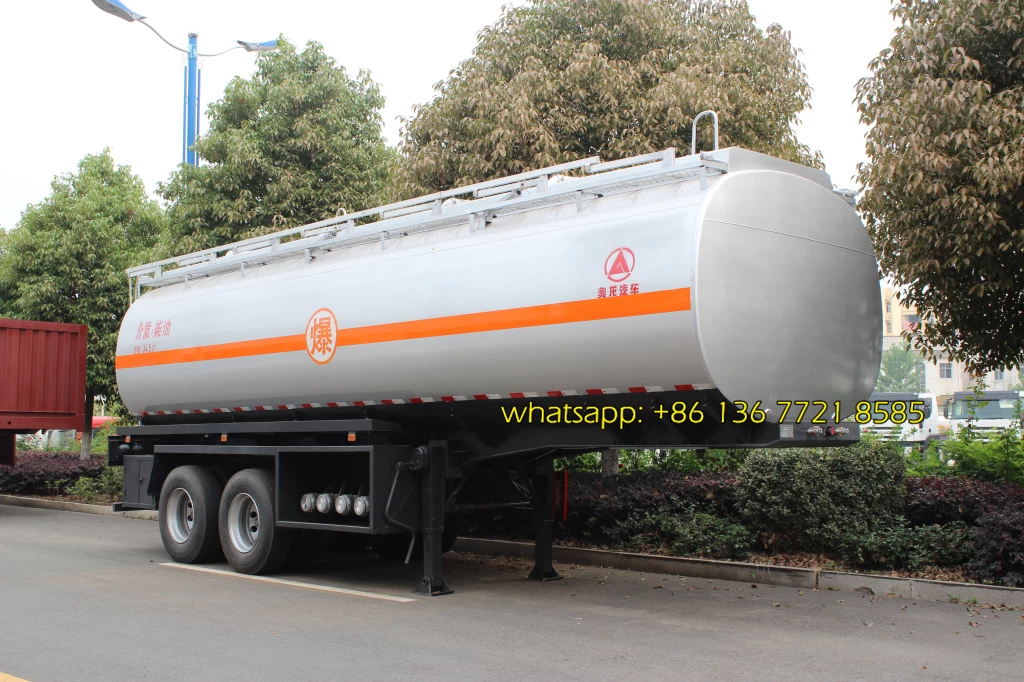

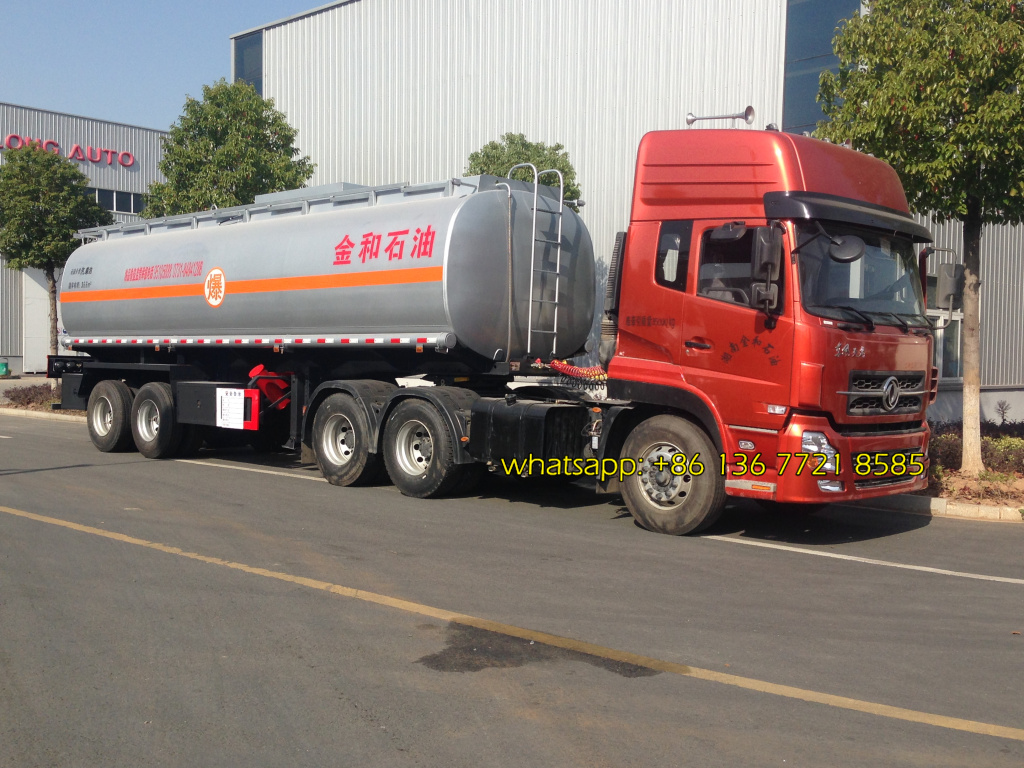

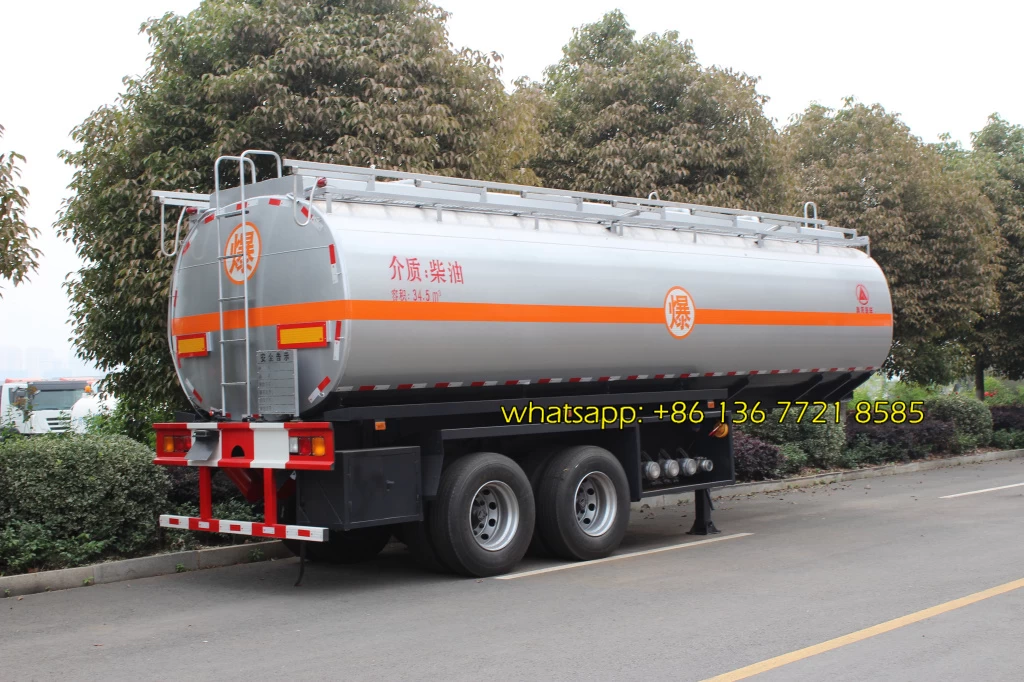

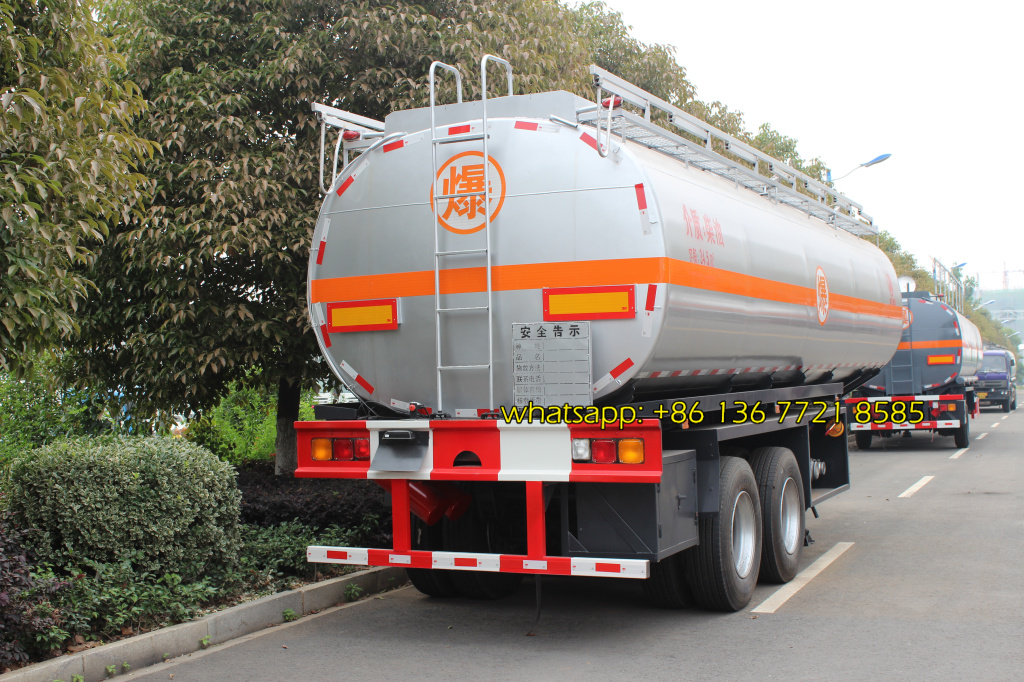

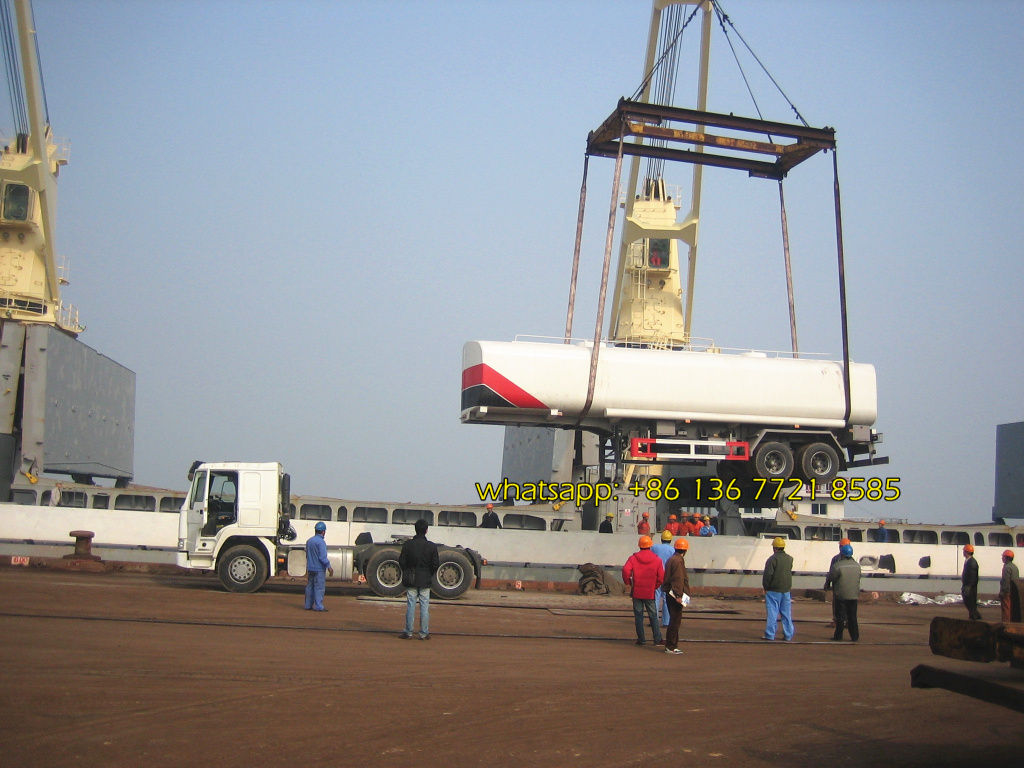

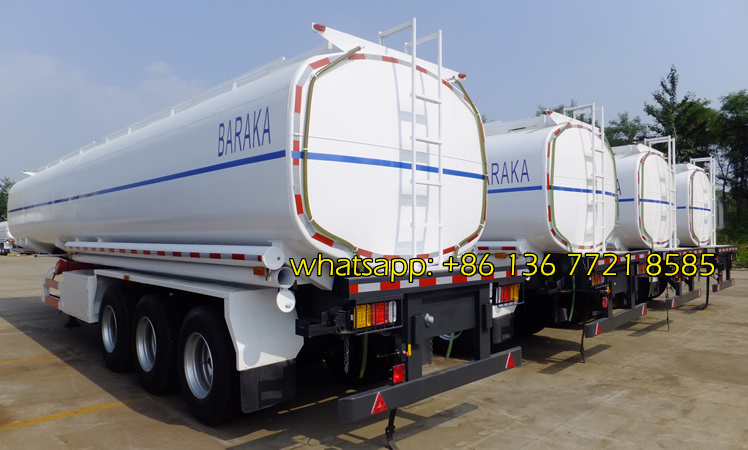

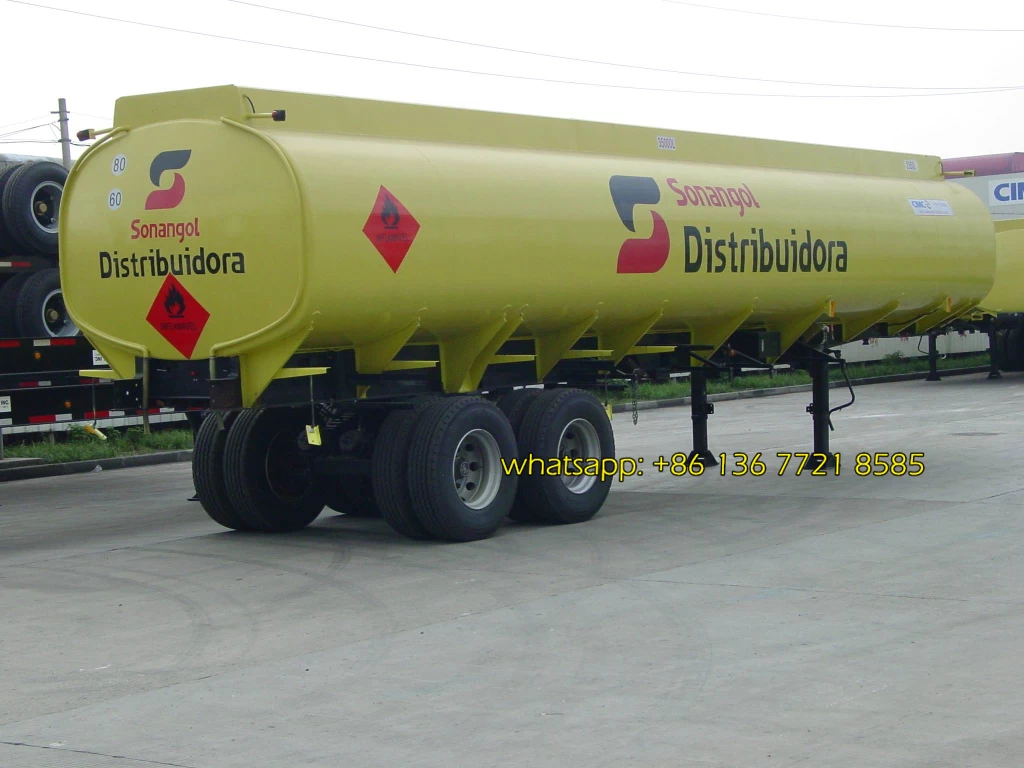

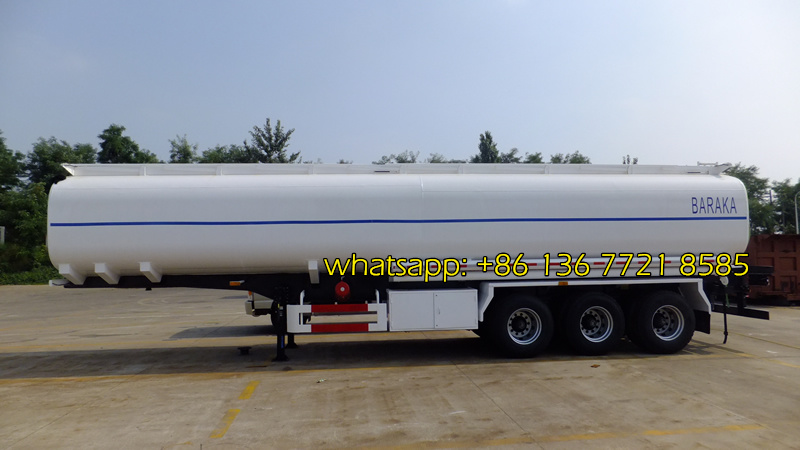

Customer build example and shiping:

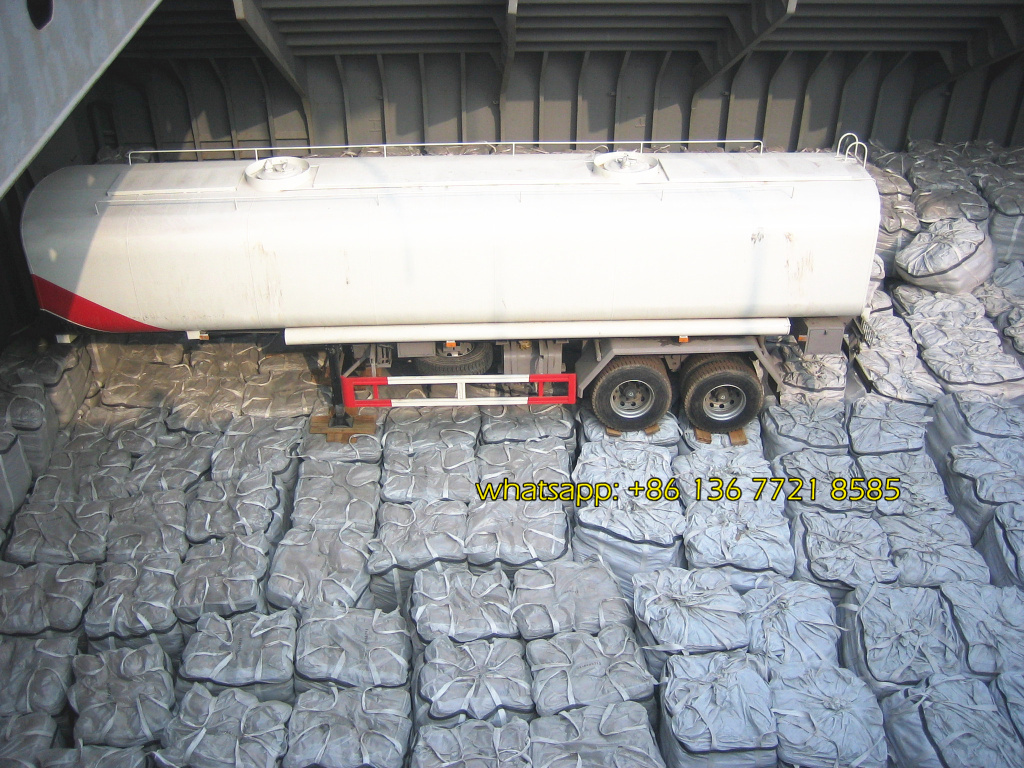

Carefully WAXED before shipping to Africa
