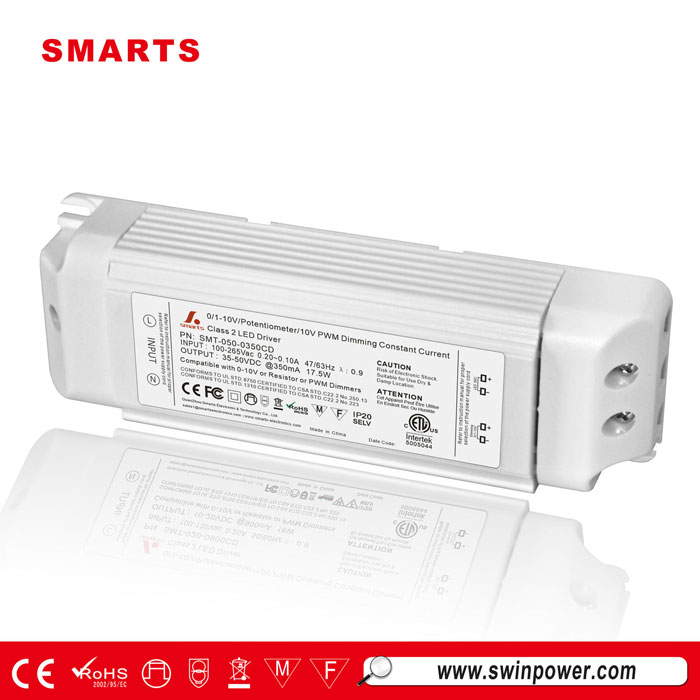

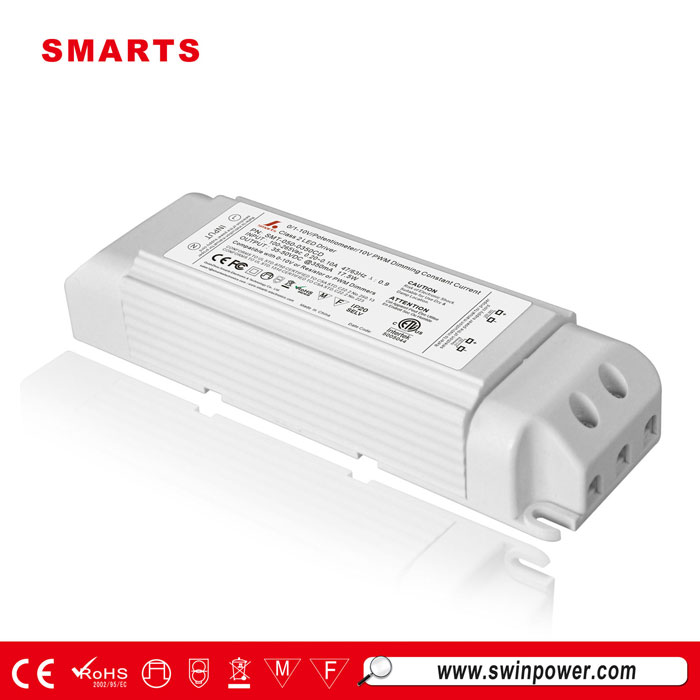

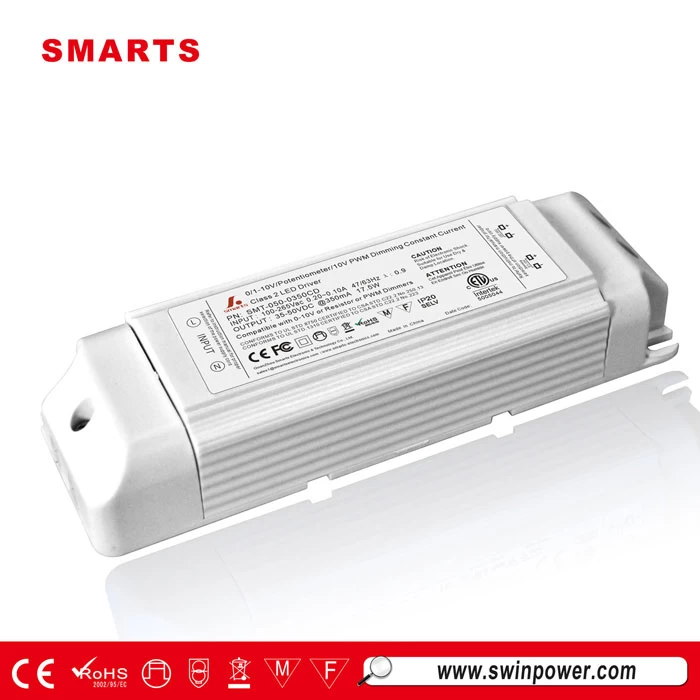

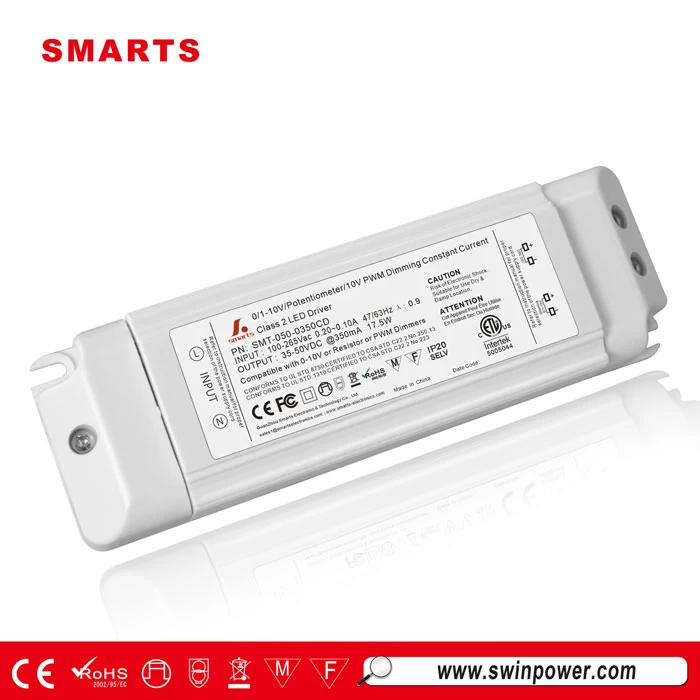

35-50vdc 350ma 0-10v ac dc power supply
Smarts have dimmable constant current power driver for led which are 0-10v/triac/dali dimmable. they are all meet ETL,CE,FCC,ROHS listed and 5 years warranty.
Feture
|
|
|
·Output constant current
·Range 100-265VAC
·Built-in PFC function, PF>0.9
·Efficiency 86%
·Protections:short circuit/over current/over voltage
·Cooling by free air convection
·IP20 design for indoor installation .
·Dimming function:0-10V/ 1-10V/ 10V PWM or potentiom
·Dimming range:0-100%
·Suitable for LED lighting and moving sign applications with dimming
·Compliance to worldwide safety regulations for lighting
·5 years warranty
|
|
Specification
|
Model
|
SMT-020-0900CD
|
SMT-025-0700CD
|
SMT-030-0500CD
|
SMT-050-0350CD
|
|
Output
|
DC Current
|
900mA
|
700mA
|
500mA
|
350mA
|
|
Current Accuracy
|
±3%
|
|
Voltage Range
|
12-20V
|
15-25V
|
15-30V
|
35-50V
|
|
Rated power
|
18W
|
17.5W
|
15W
|
17.5W
|
|
Input
|
Voltage Range
|
100~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
PF(Typ.)
|
PF>0.9
|
|
Full Load Efficiency(Typ)
|
>86%(110V)
>88%(220V)
|
>86%(110V)
>88%(220V)
|
>86%(110V)
>88%(220V)
|
>86%(110V)
>88%(220V)
|
|
AC Current (Typ.)
|
0.104A(110V)
0.106A(220V)
|
0.102A(110V)
0.103A(220V)
|
0.102A(110V)
0.103A(220V)
|
0.101A(110V)
0.103A(220V)
|
|
Leakage current
|
<0.72mA/110VAC / ﹤0.75mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Current
|
≦1.4*Iout
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+50℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13. IP20
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%Load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry
level
|
|
Others
|
Weight
|
0.2Kg
|
|
Size
|
140*45*27mm(L*W*H)
|
|
packing
|
320*280*215mm/50pcs /CTN 145*50*36mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
0-10V dimmable LED driver Mechanical Specification
Ø Input with Live Wire(L) Neutral Wire (N)
Ø Signal Dimming (0/1-10V)(DIM+), (DIM-)
Ø Output LED SEC (LED+),(LED-)
Dimming Operation
Ø Built-in 3 in 1 dimming function, IP20 rated .Output constant current level can be adjusted through output cable by connection a resistance or 0/1-10V DC or 10V PWM signal between DIM+ and DIM-
Ø Please DO NOT connect “DIM-“ to “LED-“
