35 CBM 3 axle fuel tanker semitrailer

This 3 axle fuel tanker semitrailer is for east Europe customer , The main frame of this oil tanker semitrailer is made of 16Mn high-tensile steel, we are professional 2 axle oil tanker semitrailer , 3 axle oil tanker semitrailer manufacturer in china


  • Payment termsT/T, L/C
  • Production time10 days

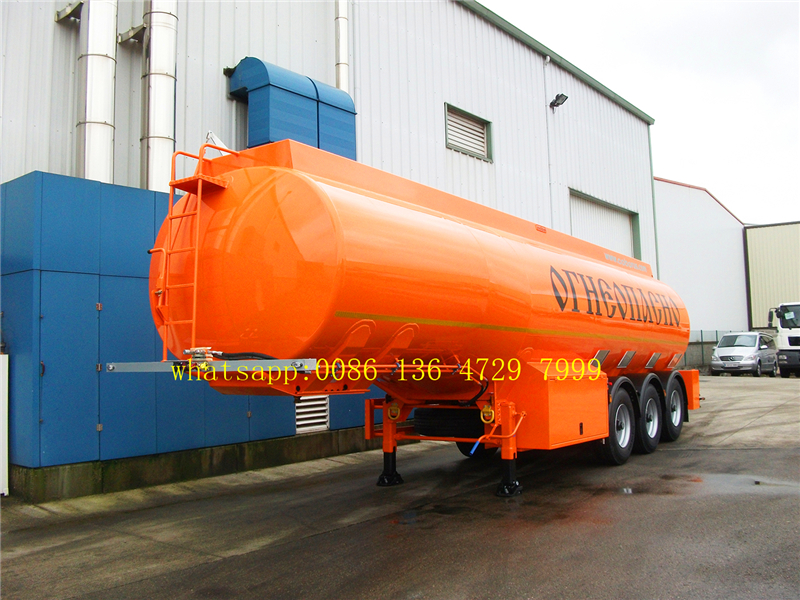

                                                              3 axle fuel tanker semitrailer

fuel tanker seimitrailer



 Applications:

   Fuel tanker semitrailer , also called as oil tanker semitrailer, china oil fuel semitrailer, china 3 axle oil semitrailer tanker.

** fuel tanker trailer Tank material could be carbon steel, stainless steel, alluminum……
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve……
** Tube or tubeless tyres, off-road single tyre for bad roads.



 Key Features:



---- 30 years on semitrailer manufacturing, germany benz technology assurance.

---- All genuine spare parts , 20,000 km maintenance

---- 12 months after sale service guarantee

---- Service for more than 200 horned customer , export more than 100 countries.

---- Patented design on semitrailer, reliable and



 Specifications:





35 CBM  Fuel Semitrailer Tank Body

Shape

Round or Square

Dimension

12000mm×2490mm×3990mm ( The exact size depends on the final design.)

Tare weight

About 8000kg-12800kg

Total Volume ( m3 )

35 m³

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

Manhole Cover

Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)

Bottom Valve

Aluminum API Pneumatic Bottom Valve

Discharging Valve

Diameter is 3 or 4 inch

Compartments

Optional

Discharging Pipe

4” rubber hose, 2 pcs , 6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear

JOST (D200T ) or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /air suspension

Leaf Spring

90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Accessories

One standard tool box

Shipping Terms

By bulk cargo ,RORO or 40HQ Containers

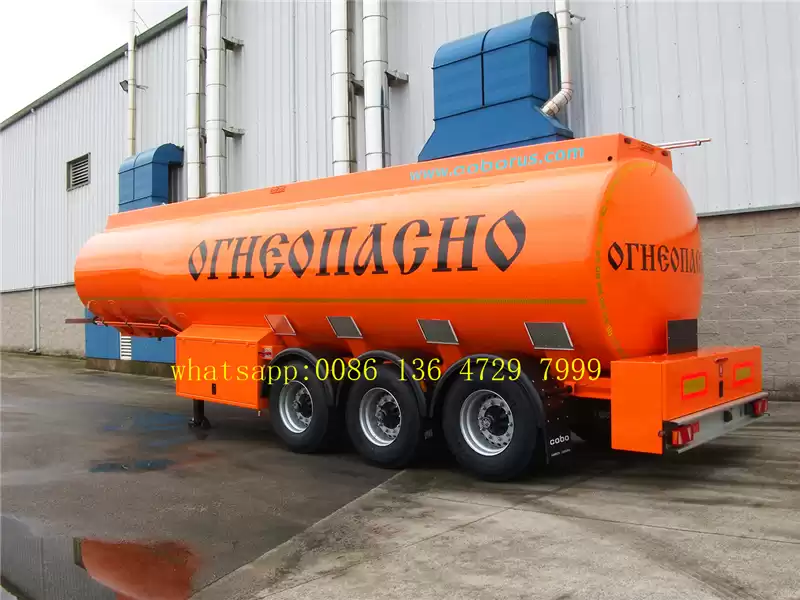

fuel tanker seimitrailer

china best fuel tanker semitrailer manufacturer, supply 2 axle fuel tanker semitrailer, 3 axles fuel tanker semitrailer.

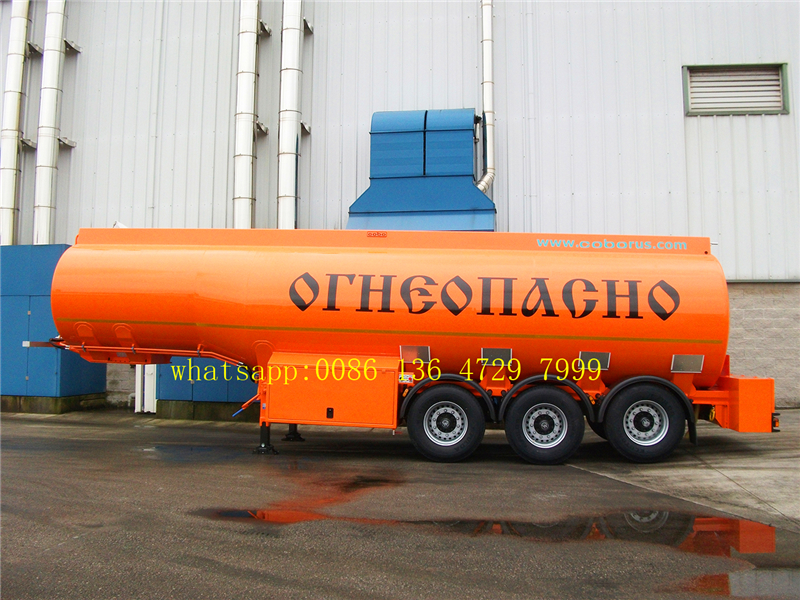

fuel tanker seimitrailer

we are professional fuel tanker semitrailer manufacturer
