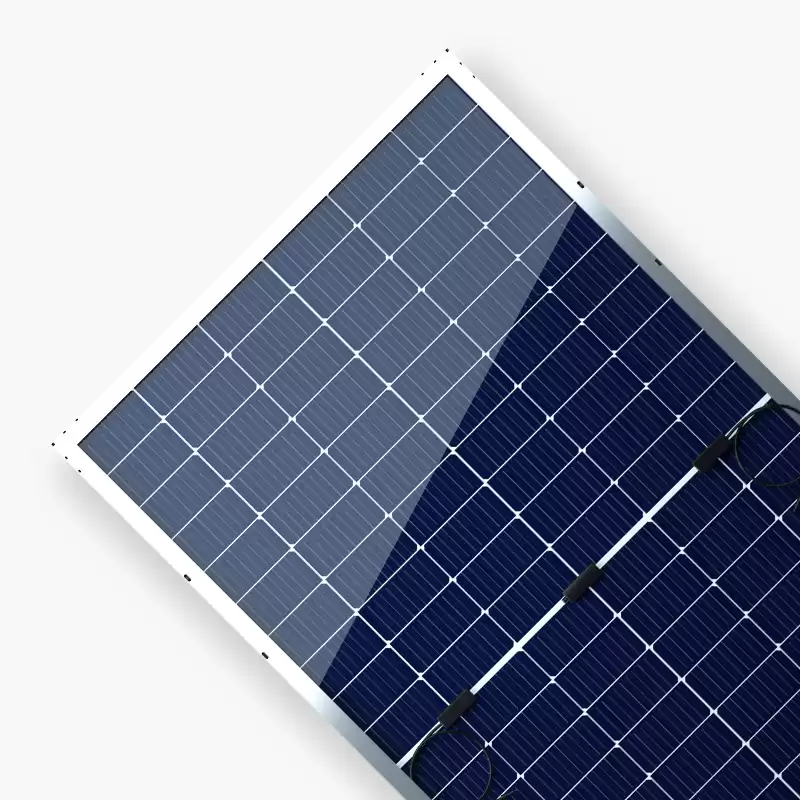

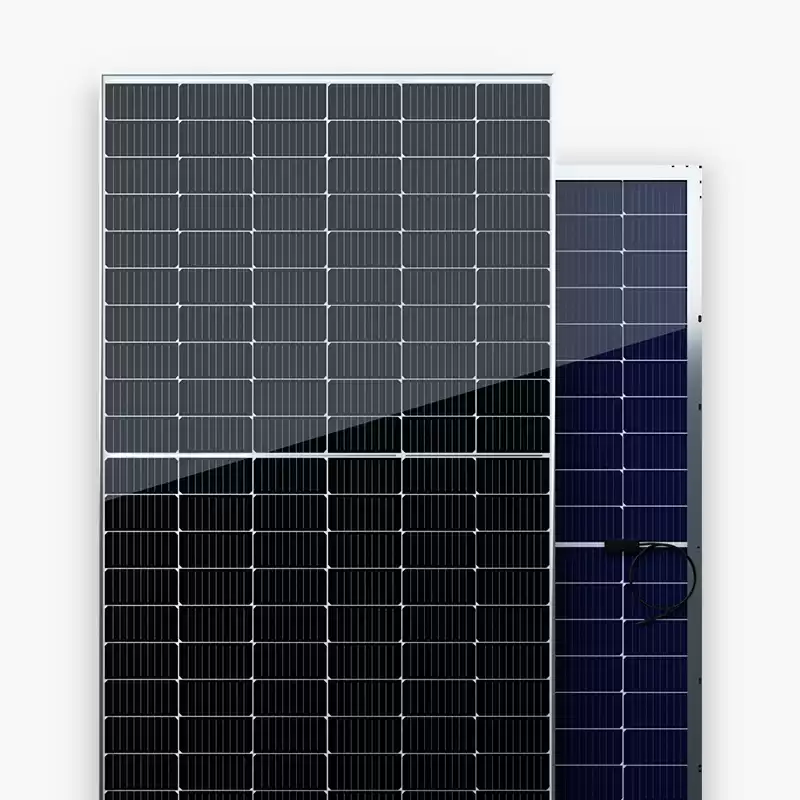

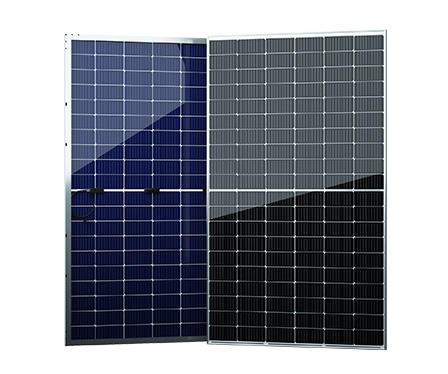

Bifacial Solar Panel
The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction. The reliability of module is also enhanced.Low power-temperature coefficient, low operating temperature, all these technologies lead to a high energy yield.
Multi-Bar Solar Panel
Multi Busbar have small working current, thereby the thermal loss is remarkably reduced. Operating temperature correspondingly decreases, and the reliability of module is improved as well as power gain.
Half Cut Technology
In field applications, small area shadings can cause the temperature of those parts extremely high. This phenomena is called hot spot. The long duration of hot spot could bring irreversible degradation of modules. Because the string current of half-cell modules is half of full-cel modules, the hot spot temperature can be obviously reduced.
BiMAX4 Solar Panel Certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
BiMAX4 Solar Panel Features:
-
Bifacial technology enables additional energy harvesting from rear side (up to 25%)
-
Glass/glass lamination ensures 30 year product lifetime, with annual power degradation < 0.45%,
-
1500V compatible to reduce BOS cost
-
Solid PID resistance ensured by solar cell process optimization and careful module BOM selection Reduced resistive loss with lower operating current
-
Higher energy yield with lower operating temperature
-
Reduced hot spot risk with optimized electrical design and lower operating current
