Product Name

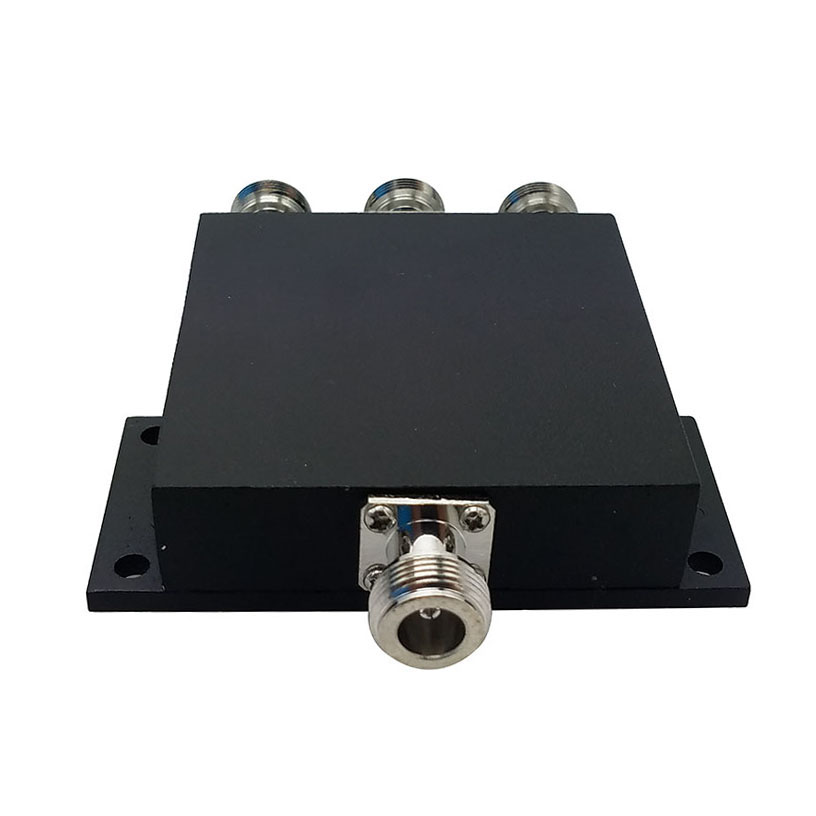

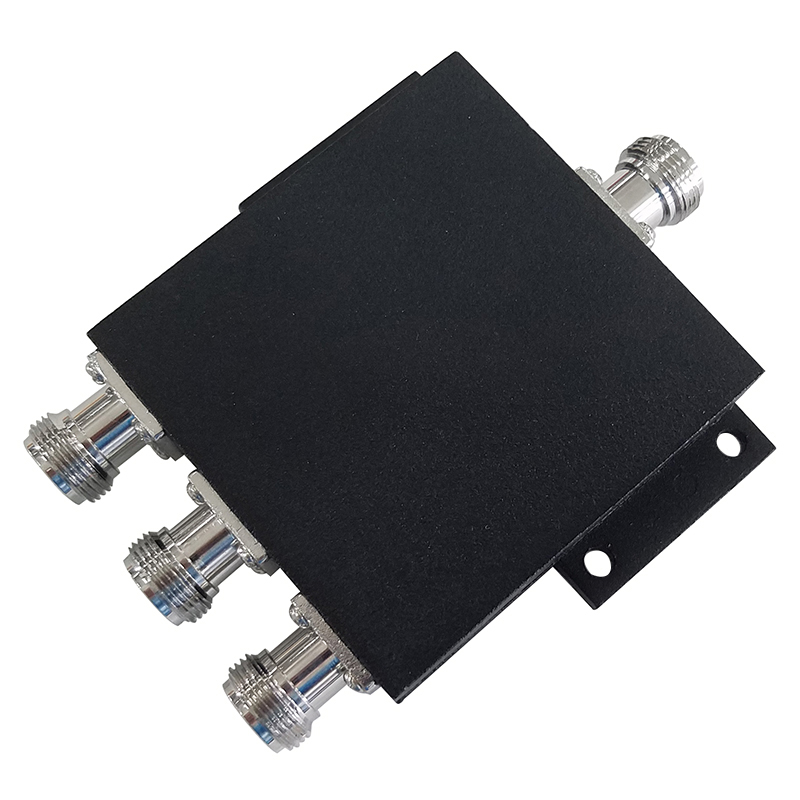

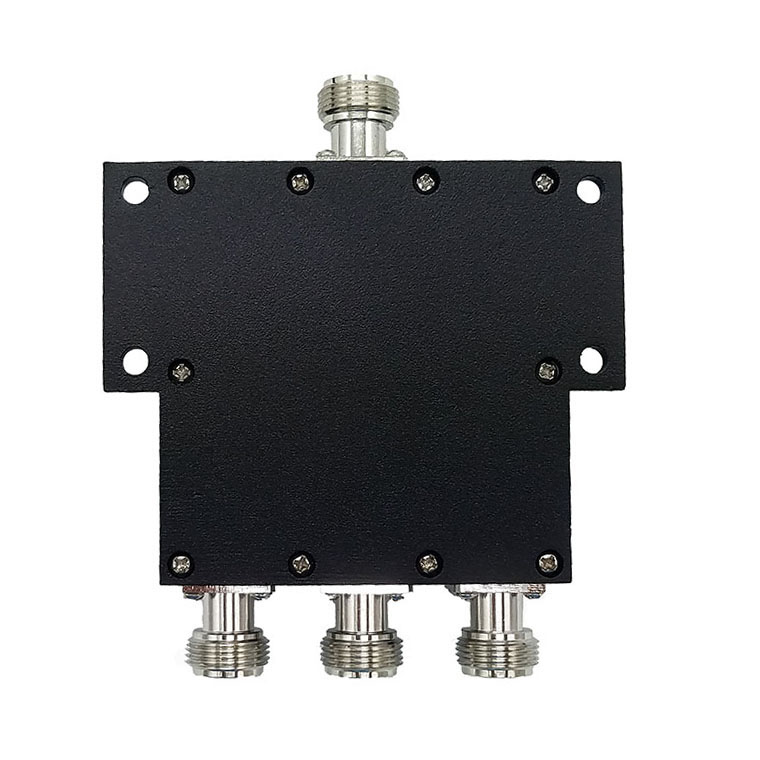

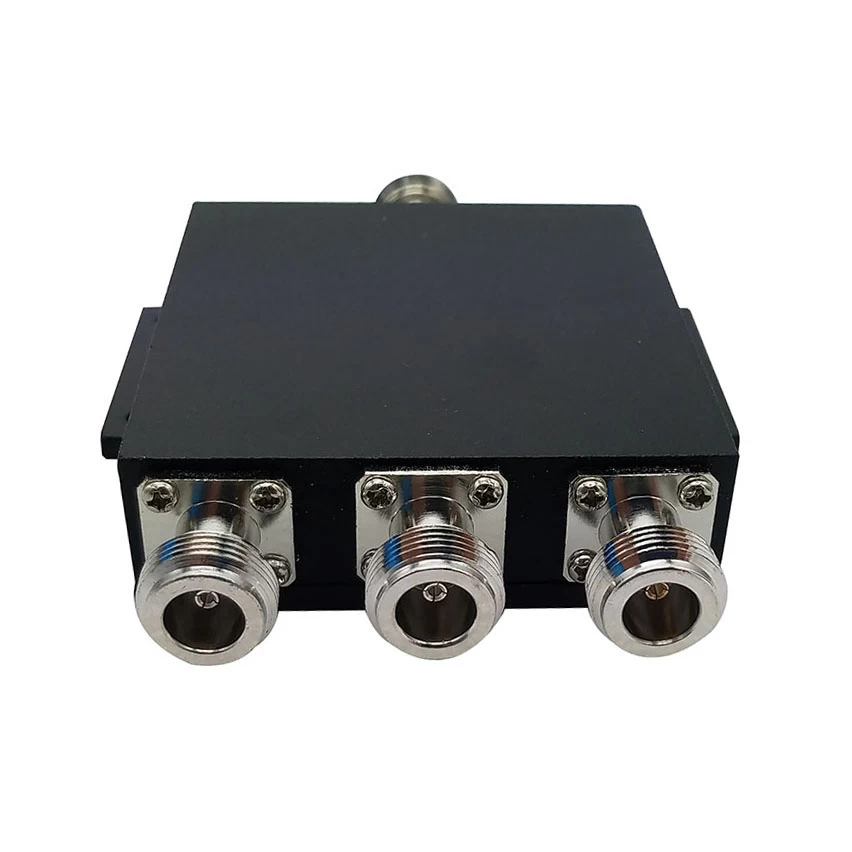

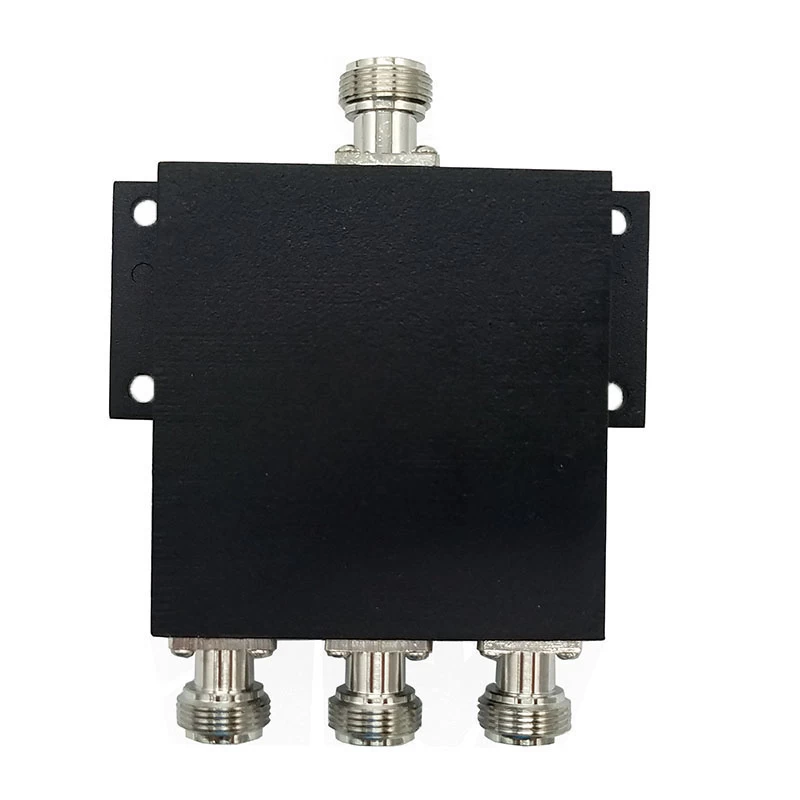

3Way Wilkinson/Microstrip Power Splitter/Divider with N-female
350-520MHz/400-470MHz UHF SPlitters are used for Walkie Talkie Communication System
Product Features
◆UHF band
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆ Widely used for In-building Solutions and Emergency Communication System.

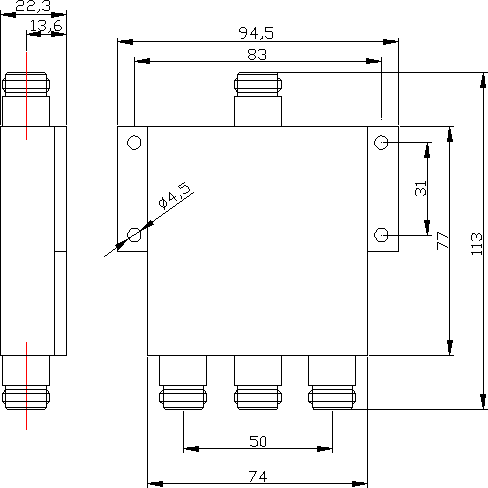

Technical &Mechanical Specifications
|
Model No.
|
MPD-UHF-02-NF
|
MPD-UHF-03-NF
|
MPD-UHF-04-NF
|
|
Freq(MHz)
|
350-520MHz
|
350-520MHz
|
350-520MHz
|
|
Output Port Number
|
2
|
3
|
4
|
|
Insertion Loss(dB)
|
3.5
|
5.5
|
6.5
|
|
Isolation(dB)
|
20 min
|
20 min
|
20min
|
|
VSWR
|
≤1.25
|
≤1.25
|
|
Total Input Power(W)
|
50
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+70
|
|
Application
|
Indoor
|
|
Weight(kg)
|
0.25
|
0.3
|
0.35
|
OUR SERVICES
1. Professional skills support for
3Way Wilkinson/Microstrip Power Splitter/Divider
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
