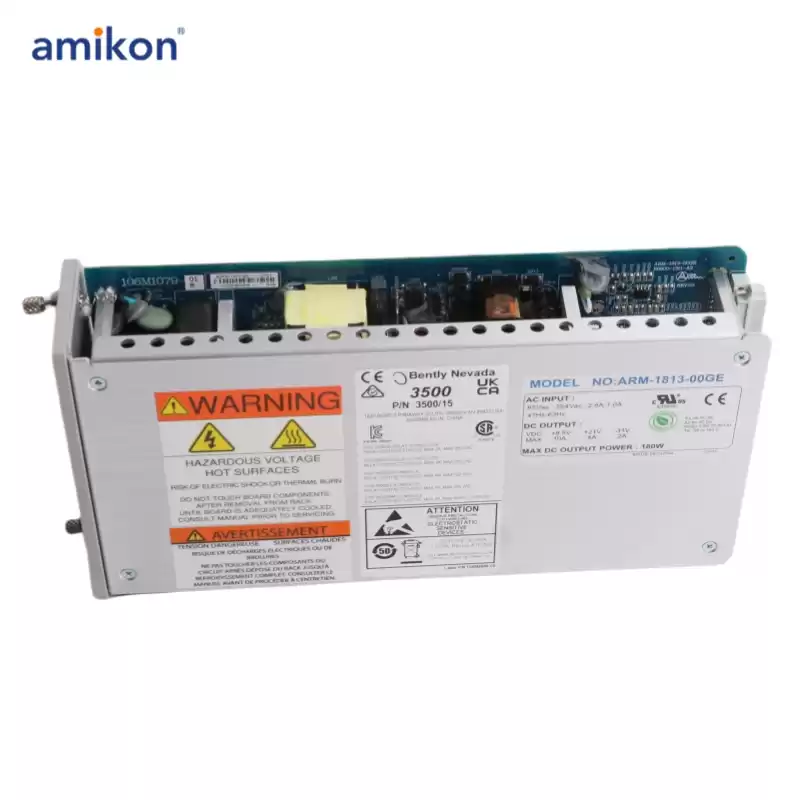

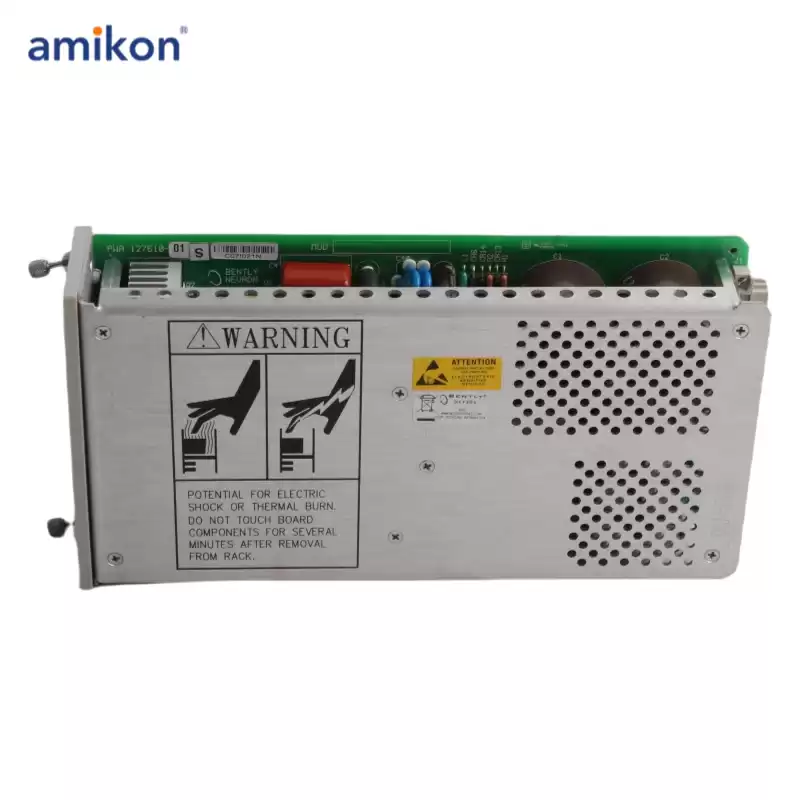

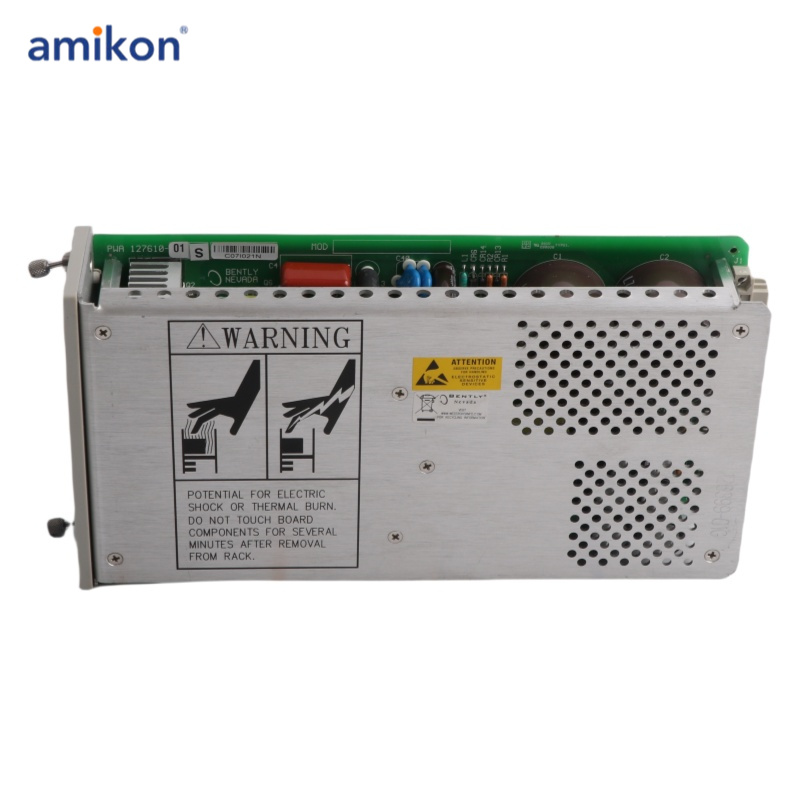

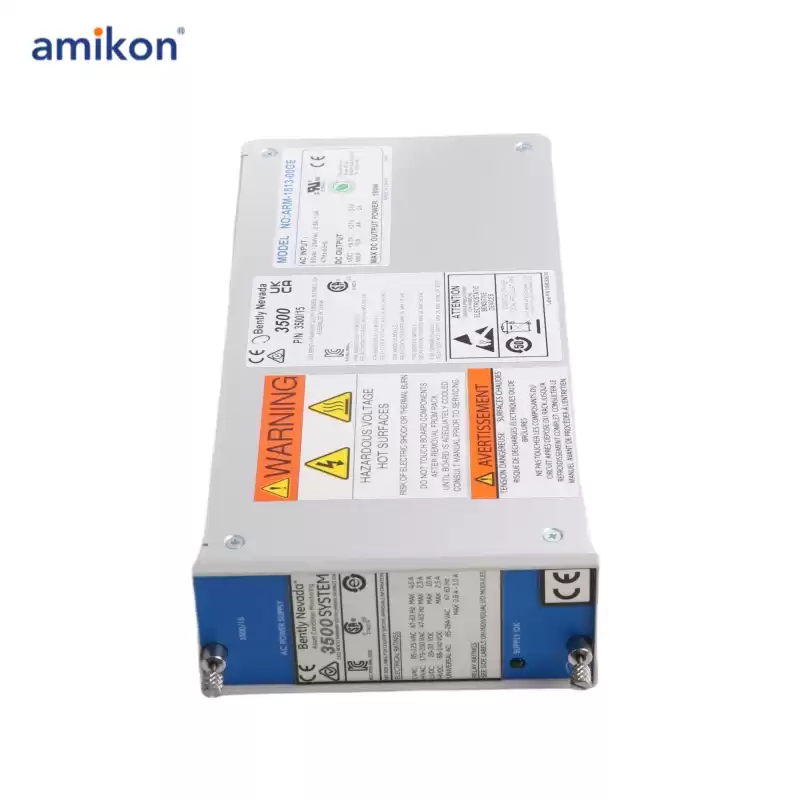

3500/15-00-07-07-00 Bently Nevada Power Supply Module

3500/15-00-07-07-00 Bently Nevada Power Supply Module

3500/15 is a High Voltage AC/DC Power Supply Module developed by Bently Nevada. The component is of half-height modules and must be installed in designated slots on the left side of the rack. The component functions as a Power Supply Module for the Bently Nevada Machinery Condition Monitoring system. The Legacy 3500 AC Power Supply, High Voltage AC PIM, and Low Voltage AC PIM are incompatible with the Universal AC Power Supply and PIM (Power Input Module). The Legacy 3500 High Voltage and Low Voltage DC Power Supplies and PIMs are incompatible with the Legacy 3500 High Voltage and Low Voltage DC Power Supplies and PIMs.

Input Specifications
Universal Voltage AC
Description - This option uses the universal AC Power Supply and universal AC Power Input Module (PIM).
Input Voltage - 110 to 220 Vac nominal
85 to 264 Vac RMS
120 to 373 Vac pk
The universal AC Power Supply and Power Input Module are not compatible with the legacy High Voltage AC or Low Voltage AC units.
High Voltage DC
Description - This option uses the High Voltage DC Power Supply and the High Voltage DC Power Input Module (PIM).
Input voltage - 88 to 140 Vdc
Low Voltage DC
Description - This option uses the Low Voltage DC Power Supply and the Low Voltage DC Power Supply Input Module (PIM).
Input voltage - 20 to 30 Vdc
Physical characteristics
Power Supply Module Dimensions: 120.7 mm x 50.8 mm x 251.5 mm (Height x width x depth)
Power Supply Module Weight: 1.39 kg
Power Input Modules Dimensions:120.7 mm x 25.4 mm x 114.3 mm (Height x width x depth)
Power Input ModulesWeight: 0.34 kg
