3500/33 | Bently Nevada | Channel Relay Module

3500 monitors ordered with the multiple approvals option (-02) are certified to Zone 2 standards (including ATEX and North American Zones).



Bently Nevada    3500/33   !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)

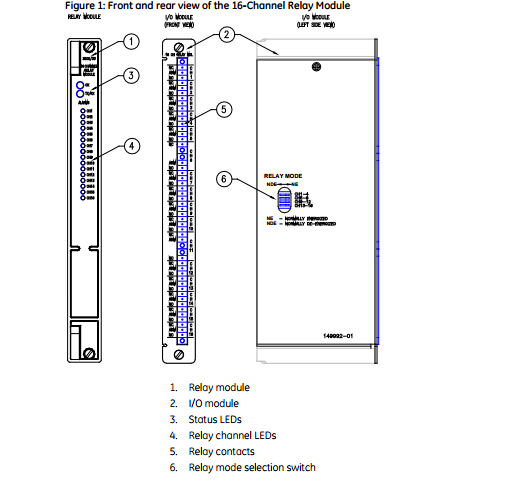

The 16-Channel Relay Module is a full-height module that provides 16 relay outputs. Any number of 16-Channel Relay Modules can be placed in any of the slots to the right of the Rack Interface Module. Each output of the 16-Channel Relay Module can be independently programmed to perform needed voting logic.



Each relay utilized on the 16-Channel Relay Module includes "Alarm Drive Logic"





Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. Users program this Alarm Drive using the 3500 Rack Configuration Software to meet the specific needs of the application.







3500/33
Power Consumption: 5.8 watts typical.
OK LED: Illuminated when module is
functioning properly
TX/RX LED: Transmit and Receive. Flashes to
indicate proper communications
between this module and other
modules within the rack.
CH ALARM LED: Illuminated to indicate that the
Relay Channel is in an alarm
state
Type: Single-pole, double-throw (SPDT) relays.
Environmental Sealing Epoxy-sealed.
Arc Suppressor 250 Vrms, installed as standard.
Contact Life 100,000 cycles @ 5 A, 24 Vdc or
240 Vac.








Bently Nevada   3500/33


3500/33 | Bently Nevada | Channel Relay Module






Email:sales3@amikon.cn





If the 3500/33 is part of a functional safety (SIL) system, the functional safety certificate requires the restricted voltage. Higher voltages are not allowed for functional safety (SIL) systems.
