3500/50M 286566-02 | Bently Nevada | Tachometer Module

The 3500/50M Tachometer Module is programmed using the 3500 Rack Configuration software



Bently Nevada    3500/50M 286566-02  !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)

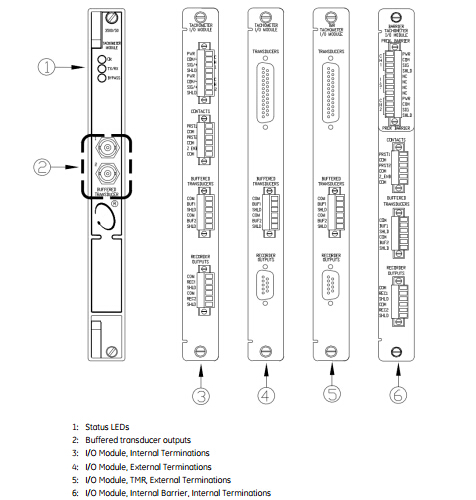

The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, orrotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.




The 3500/50M Tachometer Module is programmed using the 3500 Rack Configuration software. The following configuration options are available:



  • Speed Monitoring, Setpoint Alarming and Speed Band Alarming
  • Speed Monitoring, Setpoint Alarming and Zero Speed Notification
  • Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming
  • Speed Monitoring, Setpoint Alarming and Reverse Rotation Notification





The 3500/50M Tachometer Module can be configured to supply conditioned Keyphasor* signals to the backplane of the 3500 rack for use by other monitors. Therefore, you don't need a separate Keyphasor module in the rack.








Bently Nevada   3500/50M 286566-02


3500/50M 286566-02 | Bently Nevada | Tachometer Module






Email:sales3@amikon.cn






Each 3500/50M Tachometer Module
Signal accepts up to two transducer signals
from proximity probe transducers or
magnetic pickups.
+10.0 V to -24.0 V
Input signal range Signals exceeding this range are limited
internally by the module
20 k Ω (standard)
Input impedance 40 k Ω (TMR)
7.15 k Ω (Internal Barrier)
Power consumption  5.8 watts, typical
Accepts 1 to 2 proximity transducer
signals
Transducers Restrictions may apply to magnetic
pickups. See Warning on page 2
