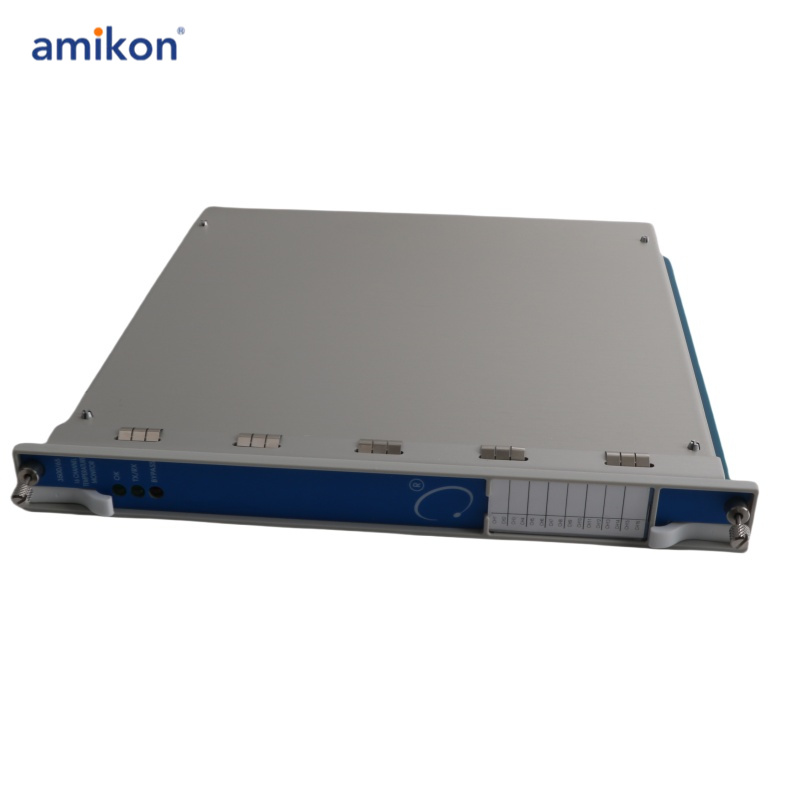

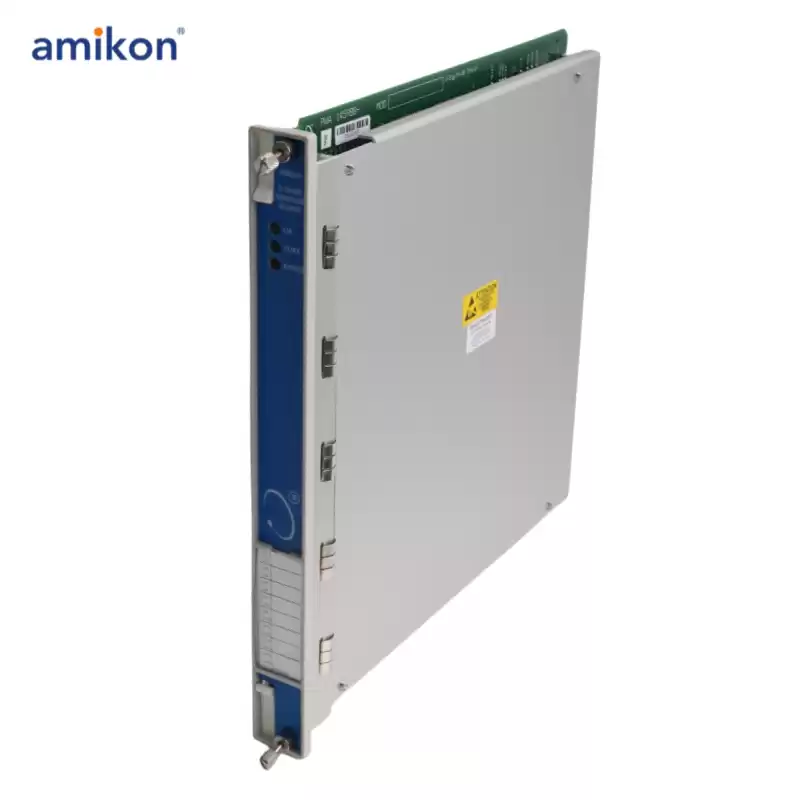

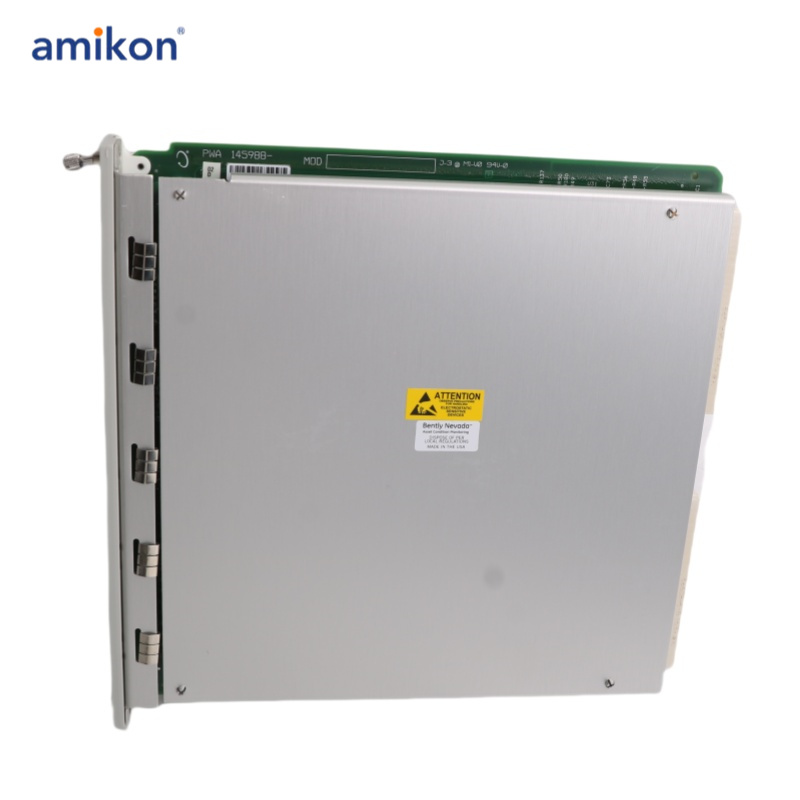

3500/65-01-02 Bently Nevada Channel Temperature Monitor

Manufacturer

Bently Nevada

Product type

Channel Temperature Monitor

Product No.

3500/65-01-02

Made in

U.S.A

Place of shipment

Xiamen

Tariff Code

8537101190

The 3500/65 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC)temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm
setpoints.

The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples,3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.

In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of
voting to ensure accurate operation and to avoid singlepoint failures.

Specifications
Inputs
Power:
Consumption 3 watts nominal
Signal:
Accepts from 1 to 16 RTD or isolated tip TC transducer
signals.
Input Impedance:
Greater than 1 MΩ for each lead input.
