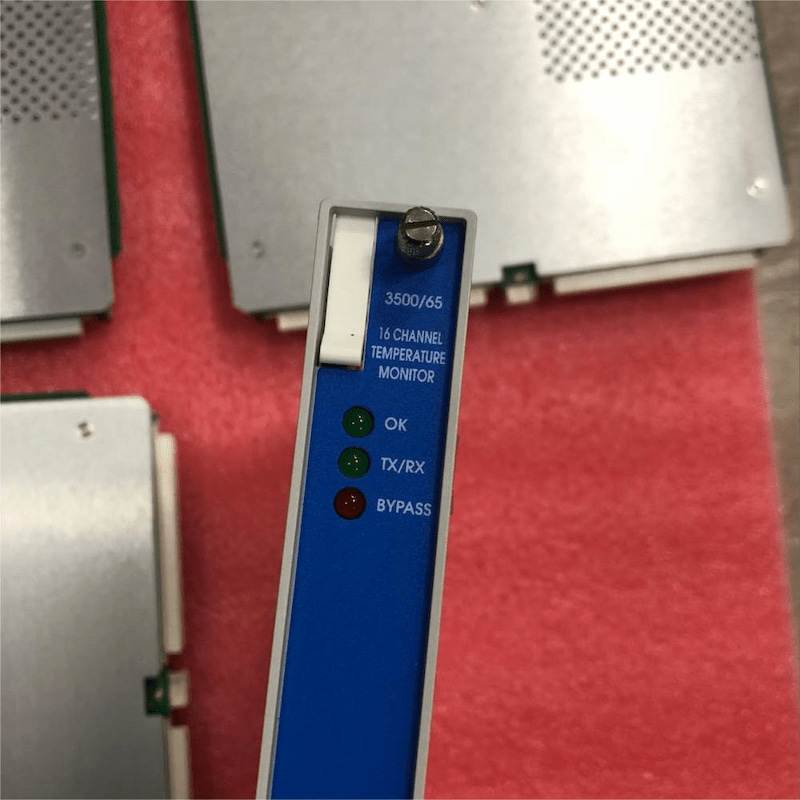

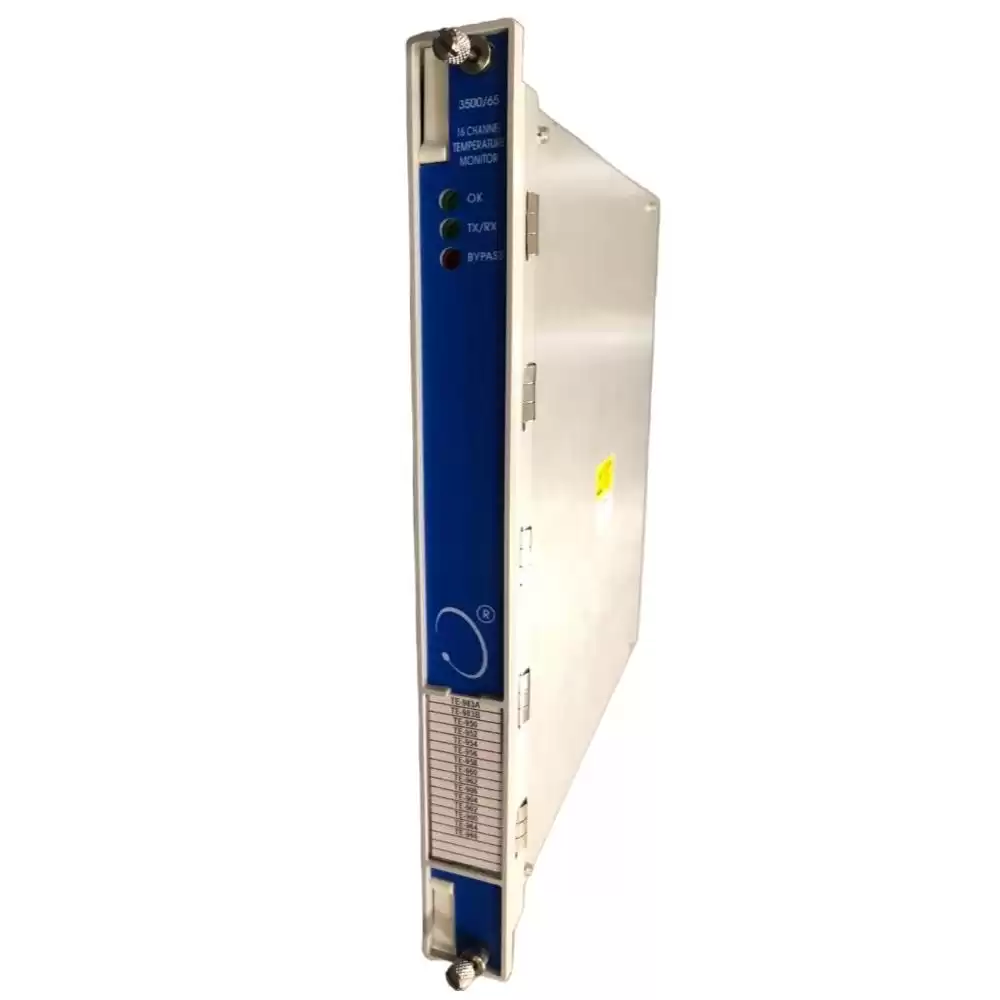

Bently Nevada 3500/65 145988-02 16 Channel Temperature Monitor Module
The 3500/65 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints.
The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of voting to ensure accurate operation and to avoid singlepoint failures.
Ordering Information
3500/65-AA-BB
A:I/O Module Type
01 RTD/Isolated Tip TC with Internal Terminations
02 RTD/Isolated Tip TC with External Terminations
Spares
145988-02 3500/65 Monitor
172103-01 3500/65 RTD/Isolated Tip TC I/O Module, Internal Terminations
173005 Connector Header, Internal Termination, 20-position, Black
172109-01 3500/65 RTD/ Isolated Tip TC I/O Module, External Terminations
172115-01 RTD/Isolated Tip TC External Termination Block (Euro Style Connectors) Specifications
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
