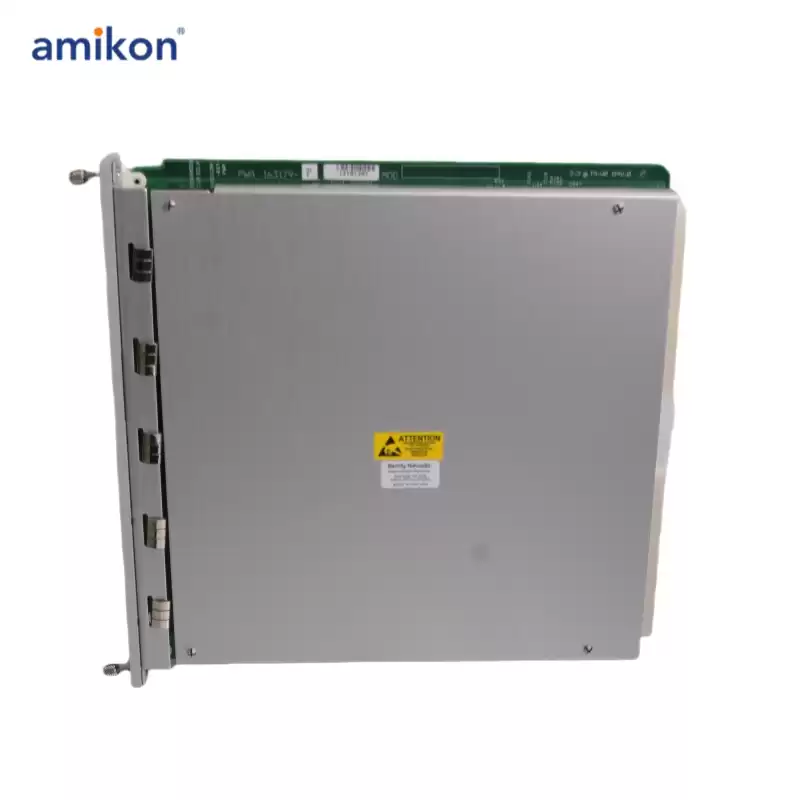

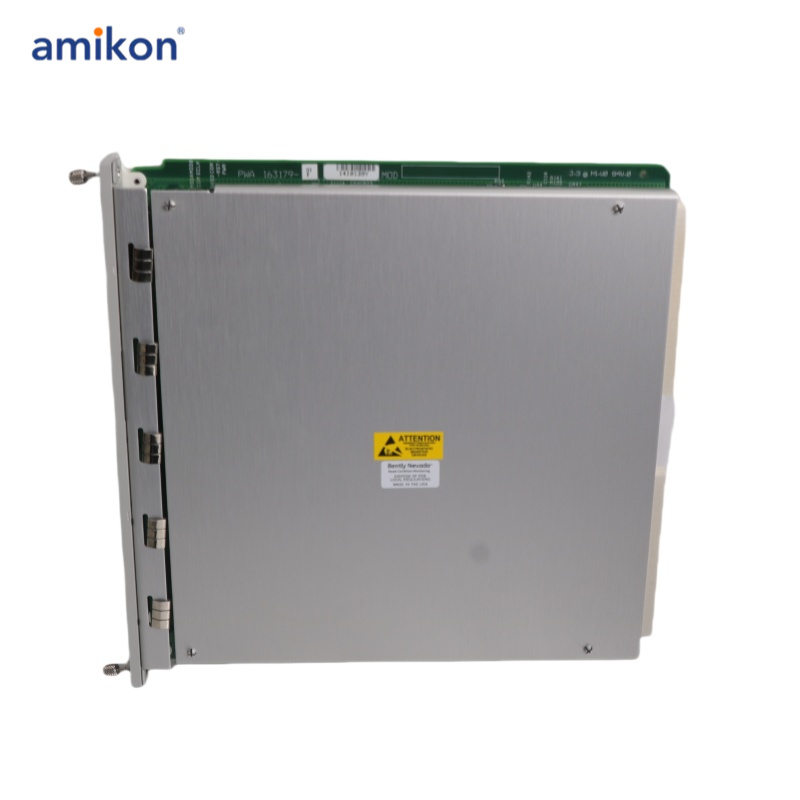

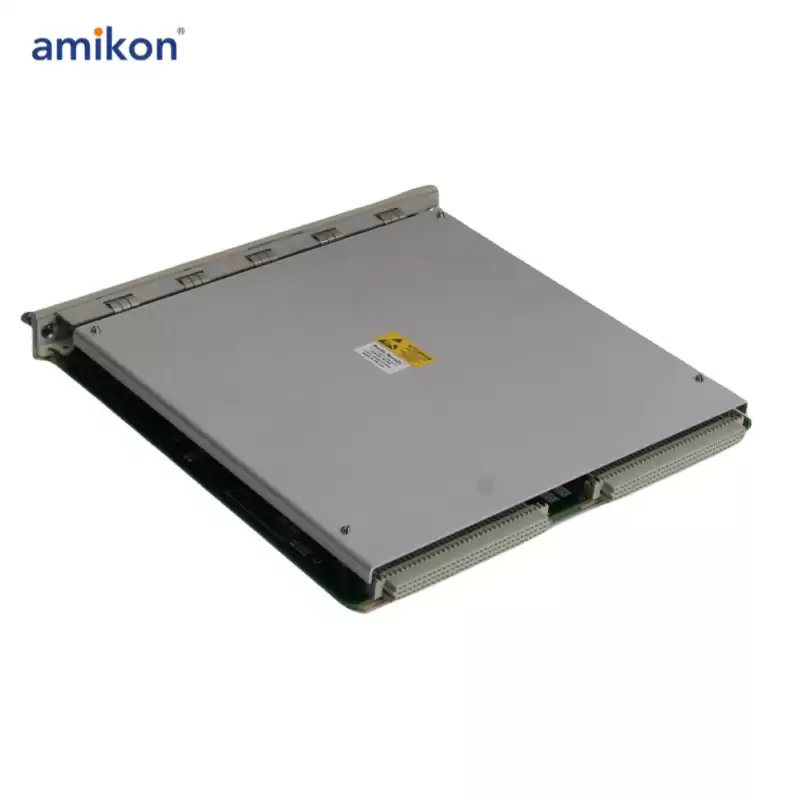

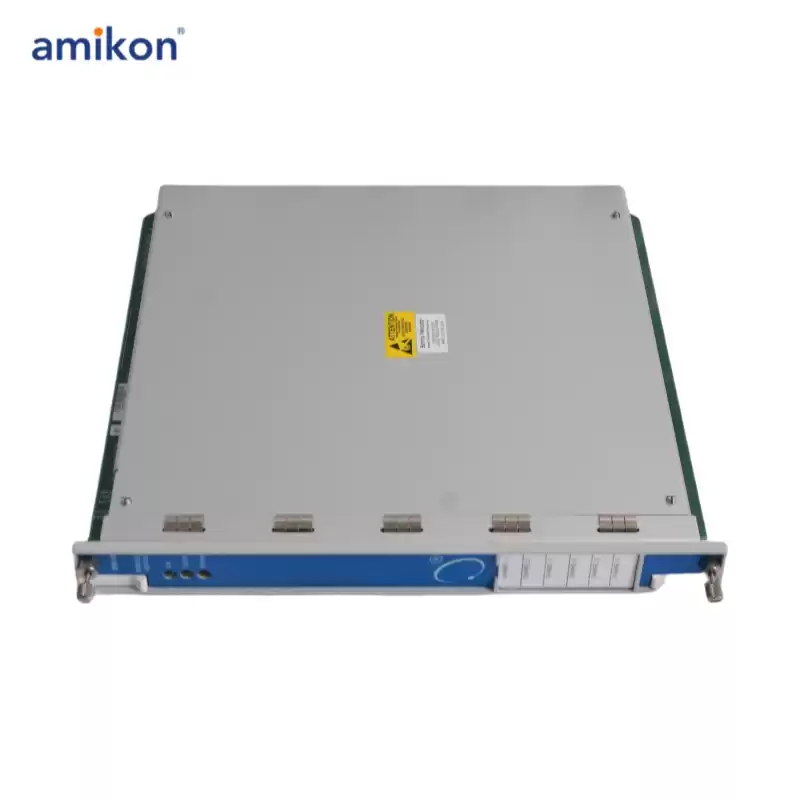

3500/91 Bently Nevada EGD Communication Gateway Module

3500/91 Bently Nevada EGD Communication Gateway Module

The 3500/91 EGD (Ethernet Global Data) Communication Gateway modules provide comprehensive communication capabilities of 3500 rack-monitored values and status. This Ethernet network path provides information with response times suitable for controller applications. Using the 3500/91 EGD Gateway provides for integration with EGD protocol compatible controllers (e.g.GE Mark* VIe controllers, etc).
Supported protocols include:
• EGD (version 2.01)
• Ethernet UDP/IP
The Ethernet standards supported by the 3500/91 I/O modules are IEEE802.3 for
10BASE-T and 100BASE-TX (twisted pair), and IEEE 802.3u for 100BASE-FX (fiber
optic).

Specifications
Inputs
Power
Consumption: 7.4 watts typical
Data Types:
Producer Exchanges
• Rack, Module, Channel and
Data value Status
• Data values (float)
• Setpoints (float)
Consumer Exchange
• Group Reset
• Group Trip Multiply
• Group Alarm Inhibit
• Group Special Alarm Inhibit
