3500/92 | Bently Nevada | Communication Gateway

3500/92  permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.



Bently Nevada    3500/92   !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)








The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.




Supported protocols include:





  • Modicon® Modbus® protocol (via serial communications)
  • Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)
  • Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

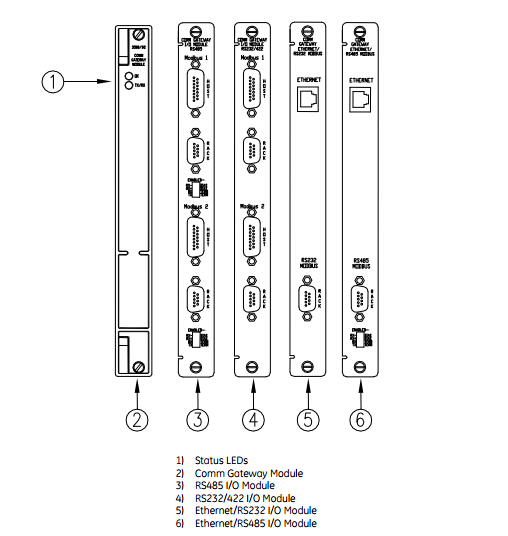

The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star configuration Ethernet networks.







3500/92
Power  5.0 watts typical with
Consumption ModbusRS232/ RS422 I/O Module
5.6 watts typical with Modbus
RS485 I/O Module
Data Types: Collects data from other modules
in the rack, such as current
proportional values with time
stamp, module statuses, and
current alarm statuses, via a high
speed internal network.
Exact data types returned depend
on module type and channel
configuration.
Update Time: The data collection
rate depends on rack
configuration but will not exceed
1 second for all modules in the
3500 rack.








Bently Nevada   3500/92


3500/92 | Bently Nevada | Communication Gateway






Email:sales3@amikon.cn





The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.
