3500/94 | Bently Nevada | VGA Display

Selecting the 3500/94 Display Router Box provides an additional viewing feature.







Bently Nevada    3500/94  !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)








The 3500/94 VGA Display uses a standard color VGA monitor with “Touch Screen” technology to display 3500 data. This product has two components, the 3500/94 VGA module and its I/O card, and secondly, the VGA display monitor. The display monitor, with standard cabling, can be mounted up to 8 m (25 ft) from the rack.





The 3500/94 displays all 3500 Machinery Protection System information, including:


• System Event List

• Alarm Event List

• All module and channel data

• 3300 style rack view (API-670)

• Current alarm data (quick view)

• Nine custom display options.





All are accessed through a Main Menu using a Touch Screen







Bently Nevada   3500/94


3500/94 | Bently Nevada | VGA Display






Email:sales3@amikon.cn

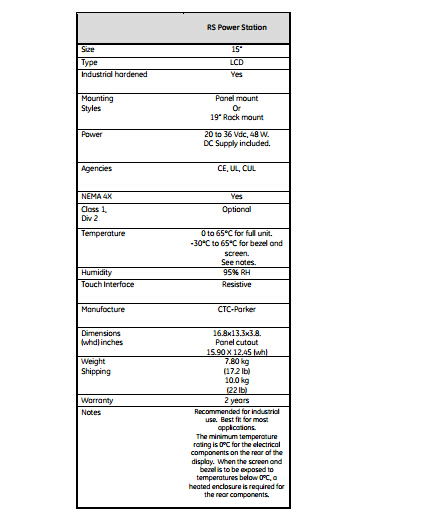

Bently Nevada, Inc. offers five approved display monitor types, which are the only types that will properly interface to the 3500/94 VGA modules. Each display is intended to meet different application requirements. It is important that you make the right selection for your application. For outdoor installations, all display types require a hood to block direct sunlight. Each display requires a separate power supply. As an option item, the KVM Extender may be selected for remote sites up to 305 m (1000 ft). While the KVM Extender will meet most viewing requirements, the extender will degrade picture image quality and may be affected by noisy environments. Therefore, users should avoid using the KVM Extender unless the standard 8 m (25 ft) cable length is not adequate.
