3500L mini water fire truck

isuzu Top Hot Selling Hot Sale Emergency Rescue Large Flow  Water Tank Fire Truck,Fire Fighting Water Truck ISUZU,Isuzu trucks with water mist fire fighting truck



2016 Brand New NPR NQR Fire Engine ISUZU with 3,000L capacity

2016 New NPR Fire rescue vehicles with 3000L capacity



Main specifications:

Chassis

ELF/700P Mid-duty chassis for Fire-fighting application

Model

PT5110GXF

Driving Type

4x2    (Left hand drive)

Wheelbase

3815 mm

Overall Dimension

7410×2290×3190 mm

Tank capacity

3000L water

Fire Pump

Rated low pressure:1.0MPa, Flow rate:30L/S. Rear-mounted,Water delivery time:≤35s

Fire Cannon

Rated pressure≤1.0MPa,Rated Flow rate:20L/s, Throw range≥50m, Rotation angle:360°,

Cab

Double cab with Four doors, 5 seats with safe belts.

Engine

Model:

4HK1-TCG40

Type:

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power:

139 KW (190HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

8.25-16

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h

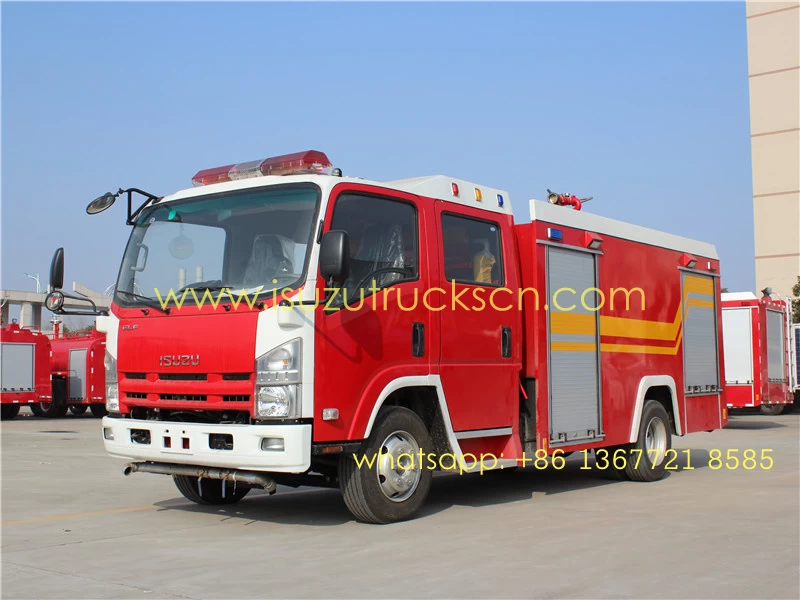

Detail pictures of NPR ELF Water Fire Engine Truck to Mongolia:

 NPR ELF Water Fire Engine Truck to Mongolia NPR ELF Water Fire Engine Truck to Mongolia
 Front left view
  Front right view
 NPR ELF Water Fire Engine Truck to Mongolia NPR ELF Water Fire Engine Truck to Mongolia
  Left side view

 Right side view

 NPR ELF Water Fire Engine Truck to Mongolia NPR ELF Water Fire Engine Truck to Mongolia
Rear left view
  Rear right view
 NPR ELF Water Fire Engine Truck to Mongolia NPR ELF Water Fire Engine Truck to Mongolia
 Front view     Rear view



NPR ELF Water Fire Engine Truck to Mongolia

Customer Special requirement for add water sprinkler system

NPR ELF Water Fire Engine Truck to Mongolia



NPR ELF Water Fire Engine Truck to Mongolia

Pump room

NPR ELF Water Fire Engine Truck to Mongolia

Pump room





NPR ELF Water Fire Engine Truck to Mongolia

Seat



NPR ELF Water Fire Engine Truck to Mongolia

Suction hose



NPR ELF Water Fire Engine Truck to Mongolia



NPR ELF Water Fire Engine Truck to Mongolia



NPR ELF Water Fire Engine Truck to Mongolia



NPR ELF Water Fire Engine Truck to Mongolia



Accessories List:

(With below equipment, you can put into fire-fighting immediately)
