Advantage：
●Wide range of AC input voltage: the range of AC input voltage is 90-280V. It can be
better compatible with generator working. It is rare to have wide range input voltage for
the power frequency inverter.
●Electricity and battery priority is optional: customer can choose Electricity or battery priority
according to their needs.
●Battery self-defined: customer can set the overcharge voltage and float voltage, and
over-discharge voltage.
●50/60HZ compatible
Date Sheet
|
Solar Inverter IVPL
|
|
Model
|
3548
|
|
|
3500VA
|
|
RatedOutputPower(W)
|
3500va/3000w
|
|
Norminal DC Input Voltage
|
48v
|
|
Charge & Line Mode Specification
|
|
Norminal Input Voltage
|
220Vac
|
|
Low Line Disconnect
|
90Vac±7Vac
|
|
Low Line Re-connect AC Input Range
|
100Vac±7Vac
|
|
High Line Disconnect
|
280Vac±7Vac
|
|
High Line Re-connect
|
270Vac±7Vac
|
|
Output Voltage Waveform
|
As same as input waveform
|
|
Efficiency(Line mode)
|
≥95%(Rated R load, and battery is full charged)
|
|
Transfer switch Rating
|
AC 40A
|
|
Transfer time(AC to DC)
|
15ms(typocal)
|
|
Transfer time(DC to AC)
|
15ms(typocal)
|
|
Pass Through Without Battery
|
Yes
|
|
Input Overload Current
|
AC 40A
|
|
Norminal Output Voltage
|
Dependent on battery type
|
|
Max Charge Voltage
|
DC 40A
|
|
Charge Current Regulation
|
Charge current adjustable:0A,10A,20A,30A,40A
|
|
Breaker Size
|
Dependent on battery type or Self-defined
|
|
Over Charge protection
|
Yes
|
|
Algorithm
|
AGM
|
|
|
Flood
|
|
|
Self
|
|
Inverter Mode Specification
|
|
Output Voltage Waveform
|
Pure Sine Wave
|
|
Power Factory
|
1
|
|
Nominal Output Voltage
|
220Vac±5%
|
|
Nominal Output Frequency(Hz)
|
50±0.3Hz/60±0.3Hz(adjustable)
|
|
Over-load Protection(SMPS)
|
60s@≥150% load; 120s@105%-150% load
|
|
Surge Rating
|
2*rated power for 5 seconds
|
|
Capable of starting electric
|
Yes
|
|
Output Short Circuit Protection
|
Yes
|
|
Output overlaod current
|
AC 30A
|
|
Nominal DC Input Voltage
|
24Vdc
|
|
Low Battery Alarm
|
11.5V/23V/46Vdc@load<50%;11V/22V/44Vdc@load>=50%
|
|
Low battery Recovery
|
11.75V/23.5V/47Vdc@load<50%;11.5V/23V/46Vdc@load>=50%
|
|
Low DC Input Shut-down
|
10.75V/21.5V/43Vdc@load<50%;10.5V/21V/42Vdc@load>=50%
|
|
High DC Input Alarm& Fault
|
15.75Vdc±0.4/31.50Vdc±0.4V/63Vdc±0.4V
|
|
High DC Input Recovery
|
15.5Vdc±0.4/31.0Vdc±0.4V/62Vdc±0.4V
|
|
Oprating Temperate
|
0℃ to 40℃
|
|
Range Storage temperate
|
-15℃-60℃
|
|
Dimension(mm)
|
570*315*300mm
|
Product Detail
Packaging

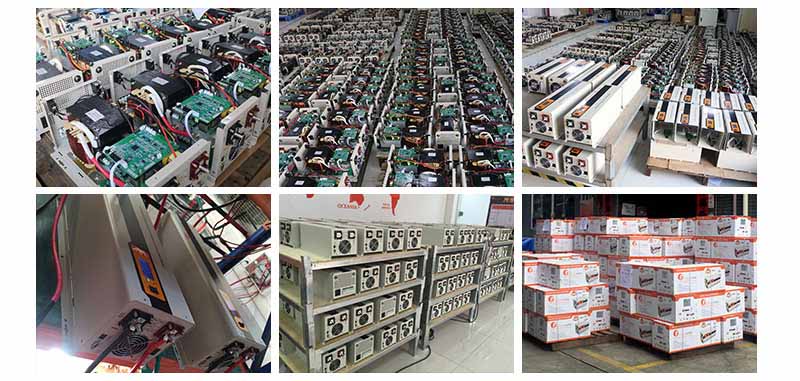

Production Line:
FQA
1. What kind of certification of this inverter you have?
We have many certification, IEC certification by Beide Compliance Loboratory, SONCAP by CIC,etc.
2. What is the warranty for the pure sine wave inverter?
For the inverter, we offer 1 year warranty.
3. What is MOQ for inverter?
MOQ is 1 PC or mixed.
4. What is the terms of payment?
T/T, L/C,western union, paypal or cash; 30% for deposit, the balance 70% before shipment.
