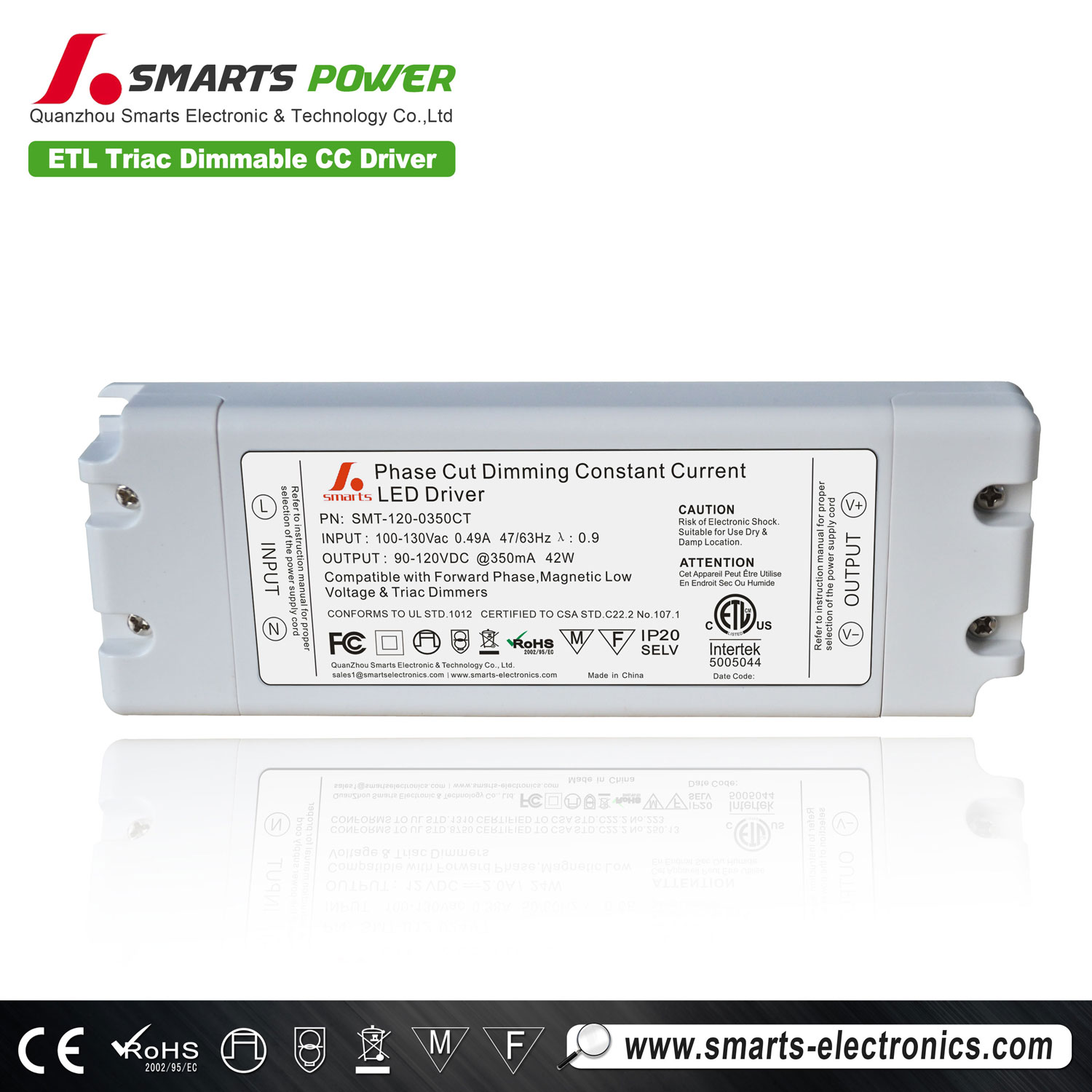

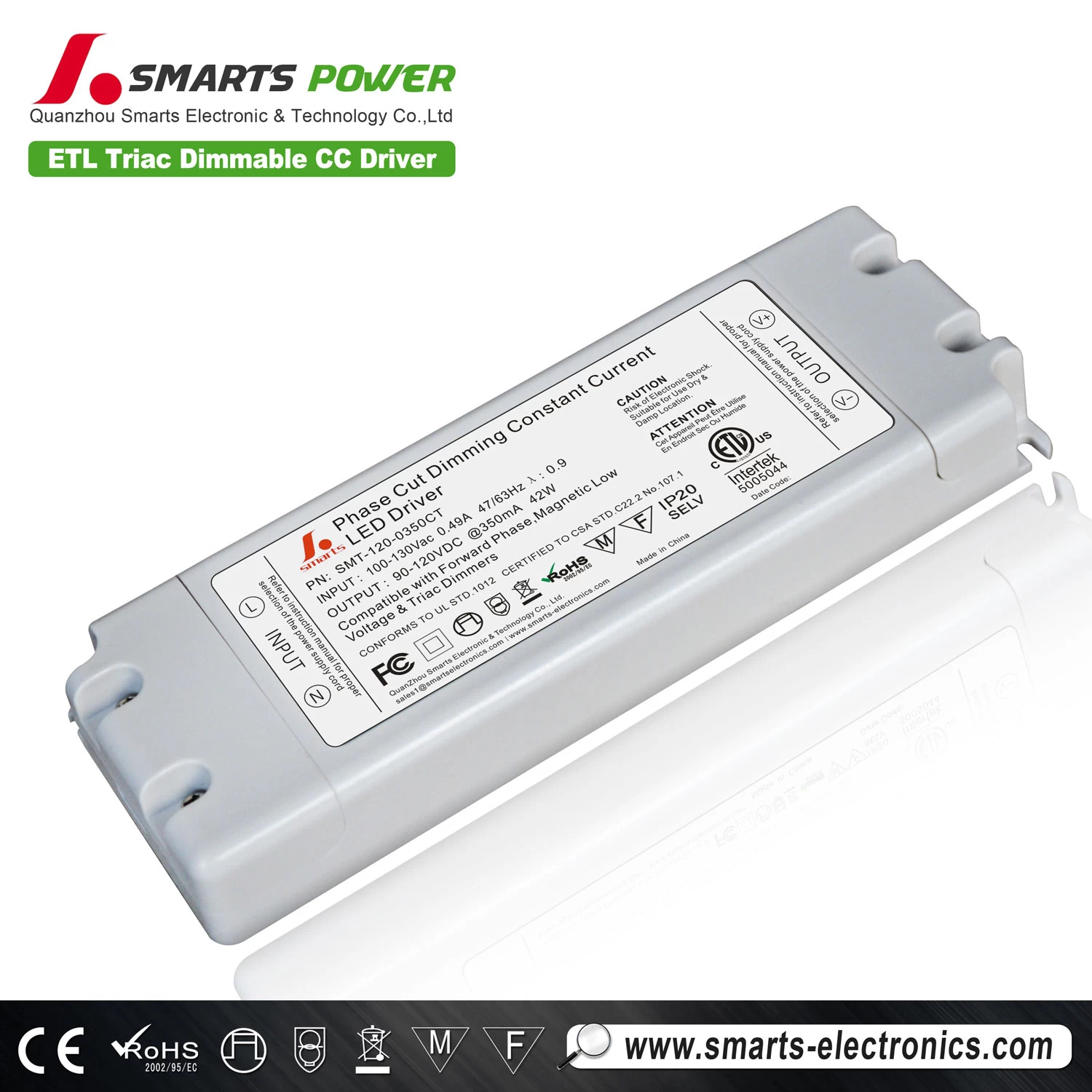

350mA 42w triac dimmable LED power supply
Specifications:
- Dimming mode: triac dimmable
- working mode:constant current type
- PF>0.93/110V ; PF>0.95/220V ; PF>0.94/250V
- Full Load Efficiency (Typ.): >85%
- AC Current(Typ.): 0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
- 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features:
- High efficiency,save energy ,protected environment
- Output constant current
- Input range :90-135VAC / 170-265VAC
- Built-in PFC function,PF >0.9
- Efficiency > 85%
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Meet to safety standard and EMC.
- 100% full load burn-in test.
- Brand electrotronic components.
- ROHS material.
Environment :
- Working Temperature : -25 ~ +50°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety :
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications:
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
