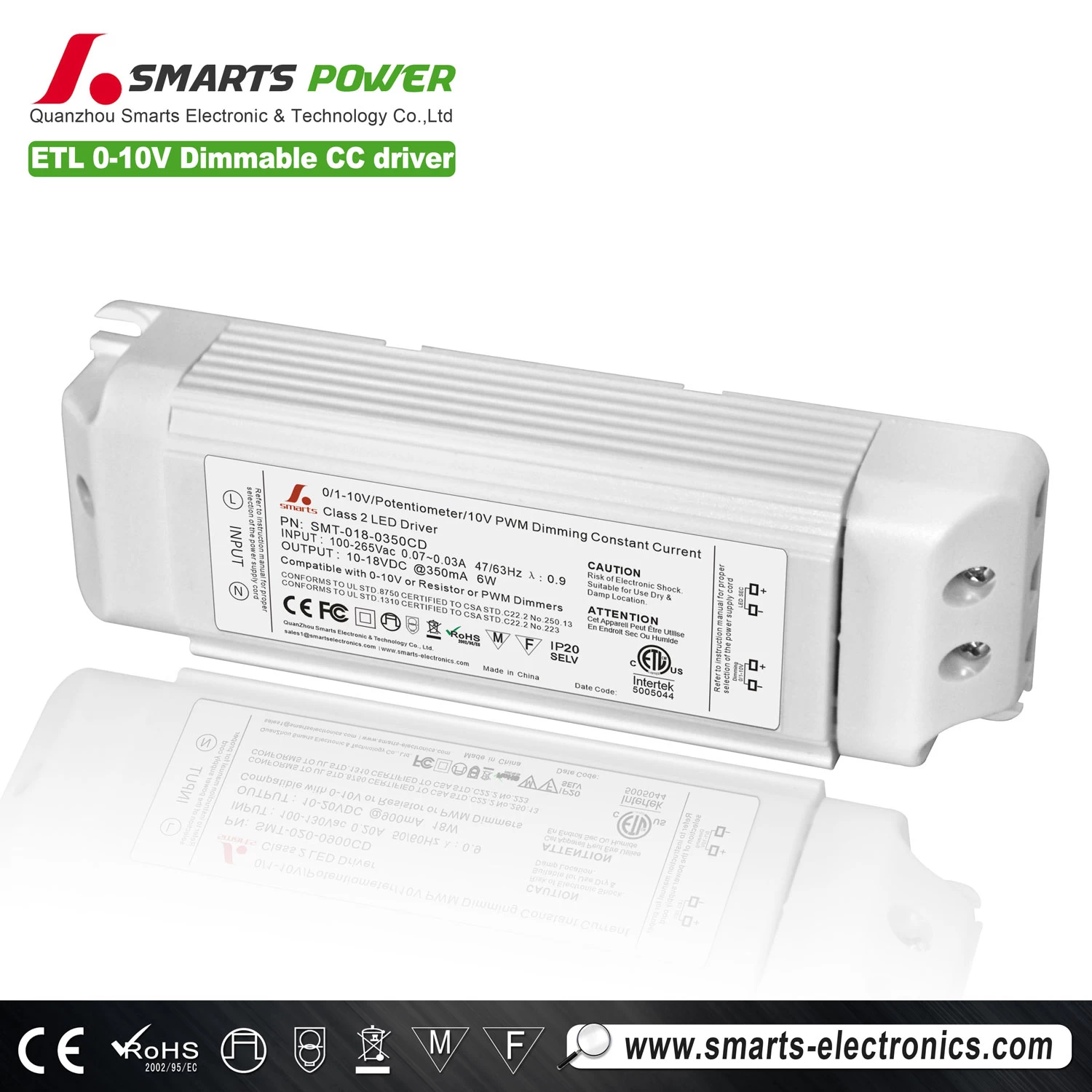

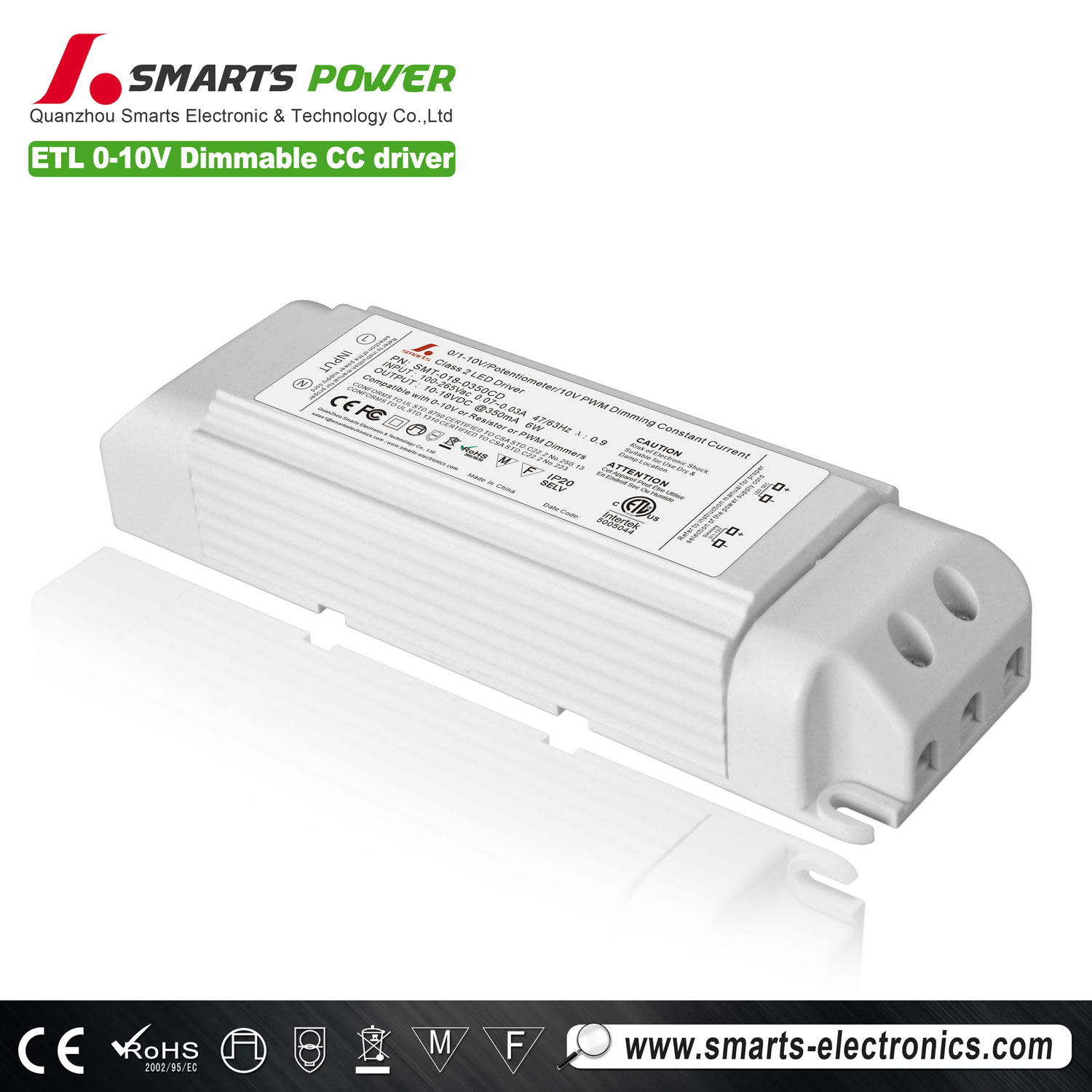

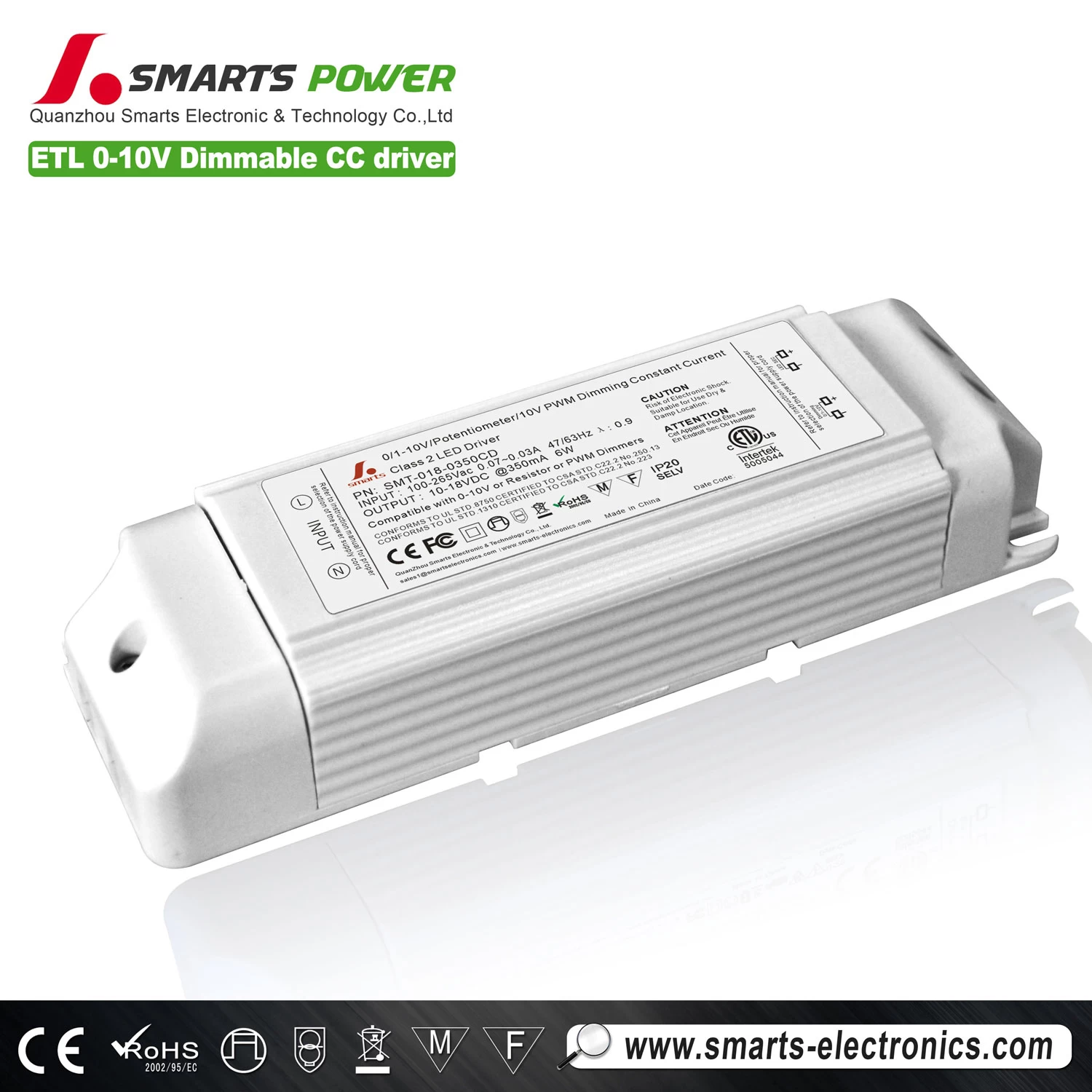

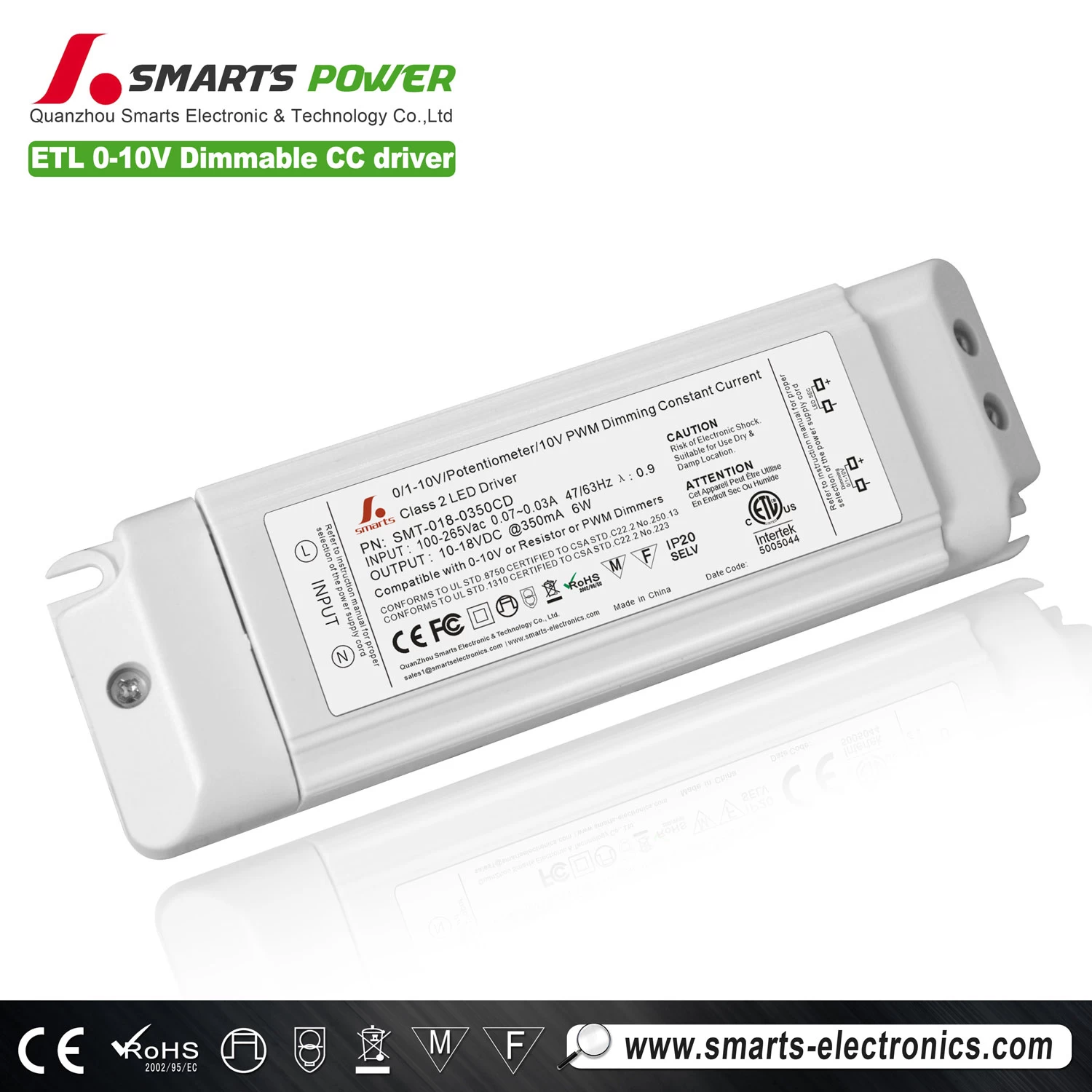

350mA 6W 0-10V/PWM dimmable Constant Current LED driver

350mA 6W 0-10V/PWM dimmable Constant Current LED driver

---

Input range :100-265VAC
Built-in PFC function
Efficiency > 84% / PF>0.9
Protections:Short circuit/over Voltage
Fully isolated plastic cover
Easy installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
3 years warranty

Short Circuit: Hiccup mode, recovers automatically after fault condition

Over voltage: <270VAC 0r =270VAC

Environment parameter:

Working temperature: -40~+60℃

Working humidity:20~90%RH,non-condensing

Storage TEM.,Humidity: -40~+80℃,10~95%RH

TEMP.coefficient: ±0.03%/℃(0~50℃)

Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes

Safety &EMC:

Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529

Withstand Voltage : I/P-O/P: 3000KVAC

Isolation Resistance : I/P-O/P:100M Ohms/500VDC

EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)

EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)

indoor LED illuminating lights, LED Neon

LED urban Decoration,LED Lighting Advertising

LED Display, Safety Protection Apparatus

Telecommunications, Networks

Vehicle Lights, Controller Panels

---
