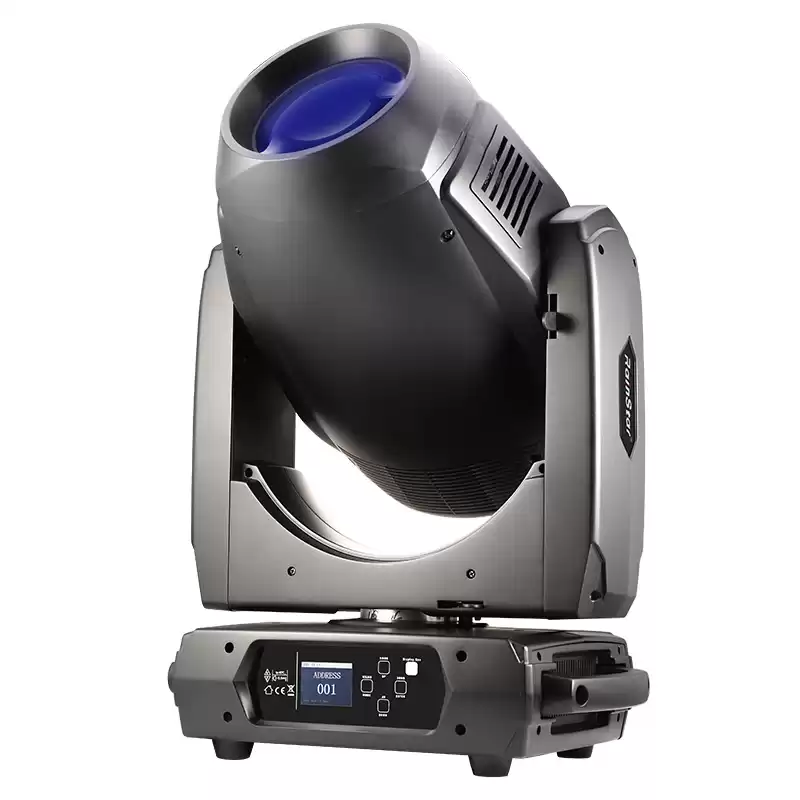

It is exquisite appearance design, using a single 350W white LED light source, white light color temperature 7000K, 5 ° ~ 35 ° linear zoom efficient output 3 in 1 moving head light, long life. CMY + color wheel, a variety of color mixing methods, powerful color mixing function, colorful and soft transition, CTO linear can accurately control the color temperature, a fixed picture disk and a two-way rotating plug-in pattern disk, which is convenient for customers to change the pattern. Adjustable speed 5 prism, adjustable atomization effect. 16bit dimming technology, smooth, smooth and accurate mechanical movement. In addition to DMX control, there is also powerful RDM control and ArtNet network control technology.
● Optics
. LED : 1x350W white light LED, 25,000lm
. Illumination at 5 meters can reach 92,000Lux @ 5 °
. Beam angle: 5-35 ° zoom
. Lens caliber: 150mm
. Life span : 50000H, low power consumption, energy saving and environmental protection
● Scanning
. Pan / tilt operation:
※ 16bit fine-tuning
※ Smooth and precise positioning
※ Pan: 540 ° or 640 °, tilt 270 °
※ Adjustable pan and tilt l speed
※ The scanning position can be memorized, and it will be reset automatically after no expected operation.
※ Pan and tilt with error correction function
● Colour
. CMY + CTO color mixing system
. One color plate, 8 fixed color plates + white light, half-color effect, color plates can be positioned arbitrarily, with two-way rotating rainbow
● Gobo
. One fixed gobo: 11 gobos + white circle, with gobo dithering function
. A rotating gobo: 7 plug-in gobos + white light, with gobo and pattern positioning
● Specification
. 2 DMX channel modes: 25CH / 31CH international standard DMX512 channels
. 3 control modes: DMX512, Artnet, master-slave
. Prism disc: 5 prisms rotating in both directions
. Focusing: electronic focusing, ultra smooth adjustment
. Dimming: 0-100% 16bit dimming
. Frose: 0-100% linear frose
. Zoom: 5-35 ° linear zoom
. Strobe effect :Puls Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Breakeffect, 5s…..1s、Strobe0-20Hz
. Dimming: 0-100% 16bit dimming, which can control the change of light and dark and close light
● Display
. 2.4-inch TFT color display
. High anti-interference four-button touch button
. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 800Hz / 1200/2000/3600 / 25000hz optional
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
● Other functions
. Setting and addressing: RDM
. ArtNet control: RJ45 input and output
. Fan cooling (fan changes speed with temperature change)
. LED temperature detection system to protect the life of light

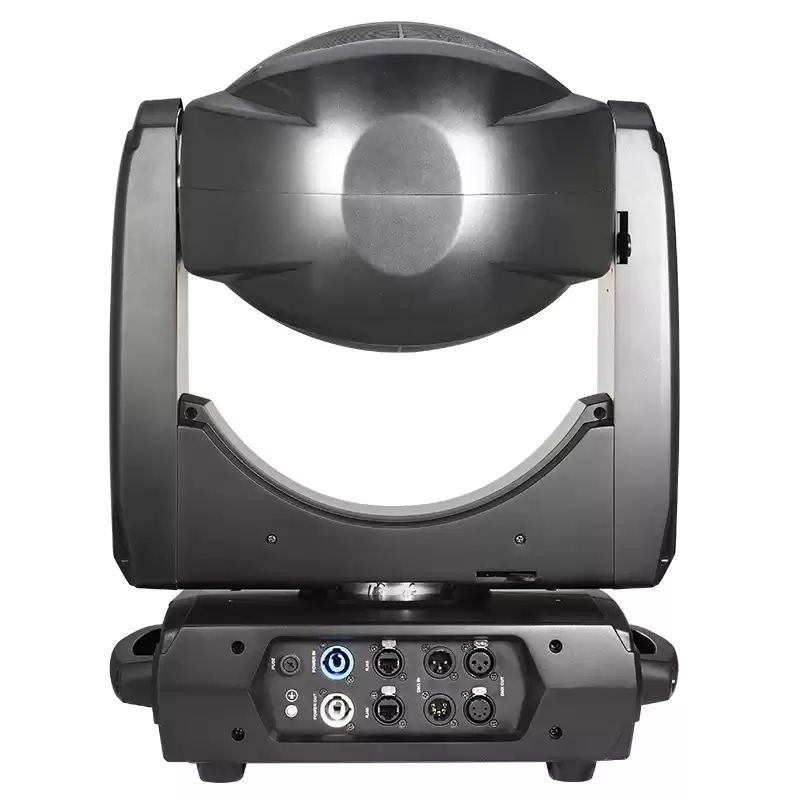

● Power / DMX connection
. Power connection: PowerCON power cable input and output
. DMX XLR socket ：3 Pin& 5 Pin XLR socket input and output
● Power
. AC100-240V 50 / 60HZ
. Power consumption : 480W
● Protection class
. Housing material: ABS plastic fireproof material
. Waterproof level: IP20
● Working environment
. Indoor working temperature: -20 ° C ～ + 40 ° C
● Size and weight
. Packing size: 550x390x785mm
. Net weight: 25.8KG
. Gross weight: 29.5KG
● Certification
. CE,ROHS
