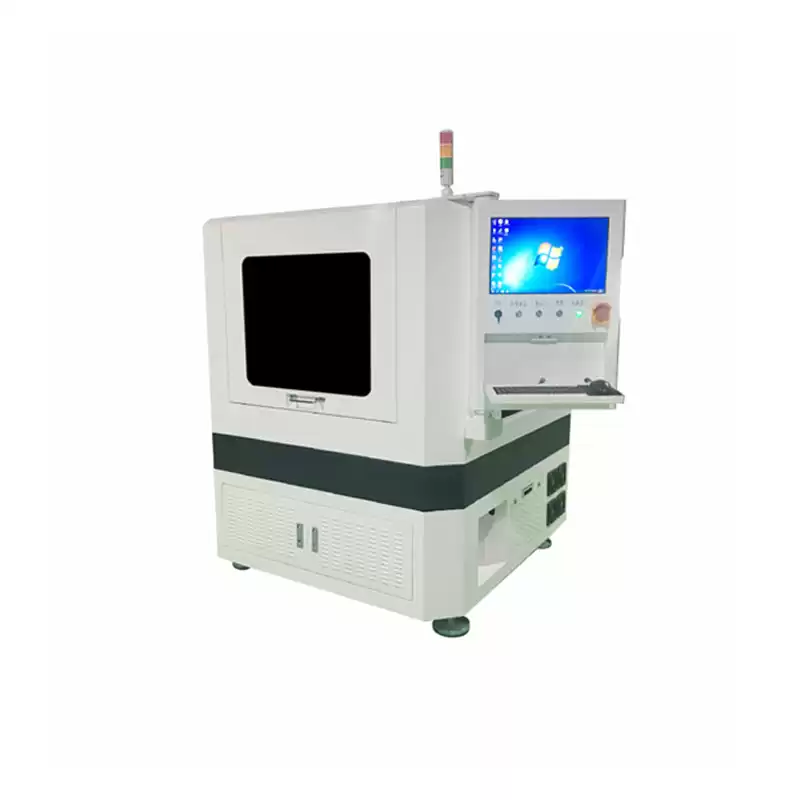

355nm Wavelength Optowave UV Laser PCB Cutting Machine
No mechanical dies or blades are needed for this laser PCB cutting machine, which is completely software-ontrolled.
Any shape path, including curves and sharp corners, can be completed with this laser PCB cutting machine, which also provides an unparalleled space advantage.
Neat and smooth edge, no burr or overflow.
Wide application range, including FPC
exterior cutting, profile cutting, drilling, opening window for covering, etc.
UV laser PCB cutting machine laser wavelength: 355nm
Rated power: 10W/12W/15W@30KHz
Galvanometer
working field Per One Process: 40 × 40mm
Power consumption for the hole machine: 2KW
Laser PCB Cutting Machine ;Features:
More quick and easy, shorten the delivery
time.
High quality, no distortion, surface
clean& uniformity.
Gathering the CNC tech, laser tech, software
tech…High accuracy, High speed.
Laser PCB Cutting Machine Specs:
|
Laser
|
Q-Switched
diode-pumped all solid-state UV laser
|
|
Laser
Wavelength
|
355nm
|
|
Laser Source
|
Optowave UV 10W/12W/15W@30KHz
|
|
Positioning
Precision of Worktable of Linear Motor
|
±2μm
|
|
Repetition
Precision of Worktable of Linear Motor
|
±1μm
|
|
Effective
Working Field
|
300mmX400mm(Customizable)
|
|
Laser Scanning Speed
|
2500mm/s (max)
|
|
Galvanometer Working Field Per One Process
|
40mmх40mm
|
Laser PCB Cutting Machine Application:
Lasers are more versatile than mechanical methods in terms of applications and materials. They are typically capable of cutting, drilling, ablating metal, and shaving a variety of PCB materials such as FR4, Rogers microwave substrates, polyimide, fired ceramic, LTCC, and more. The pcb laser cutter is a great tool for makers!
A new family of breakout systems offers an unprecedented combination of performance, reliability and economy. PCB cutting using our innovative laser technology. Precise and cost-effective with pcb laser depaneling.
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.

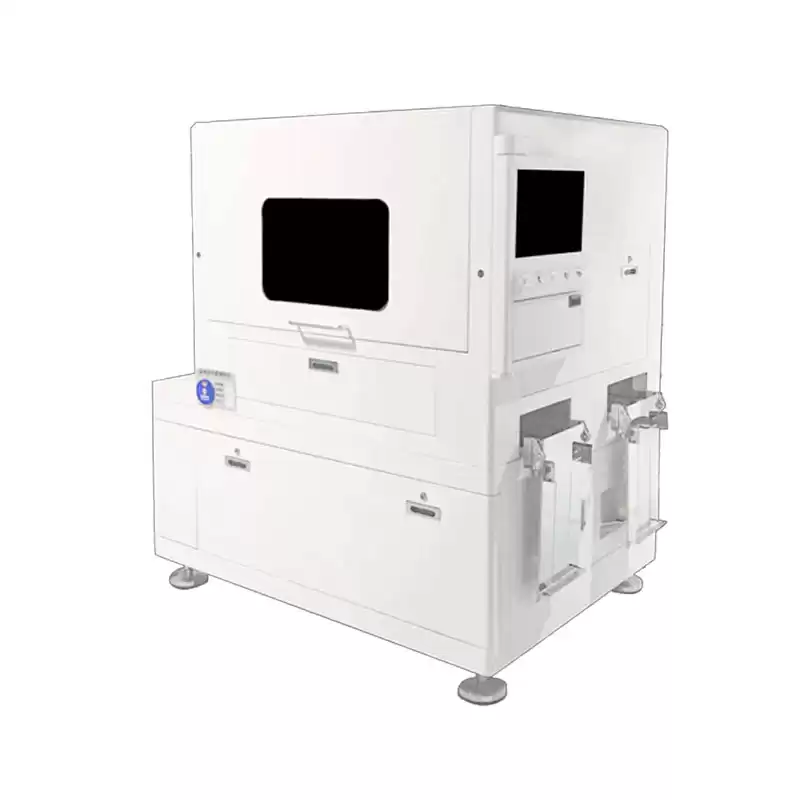

The overall design features of our UV Laser PCB Depaneling Machine
depend on customer requirements. Dedicated splitters designed for your
specific board layout with excellent performance for long-term
industrial use.
