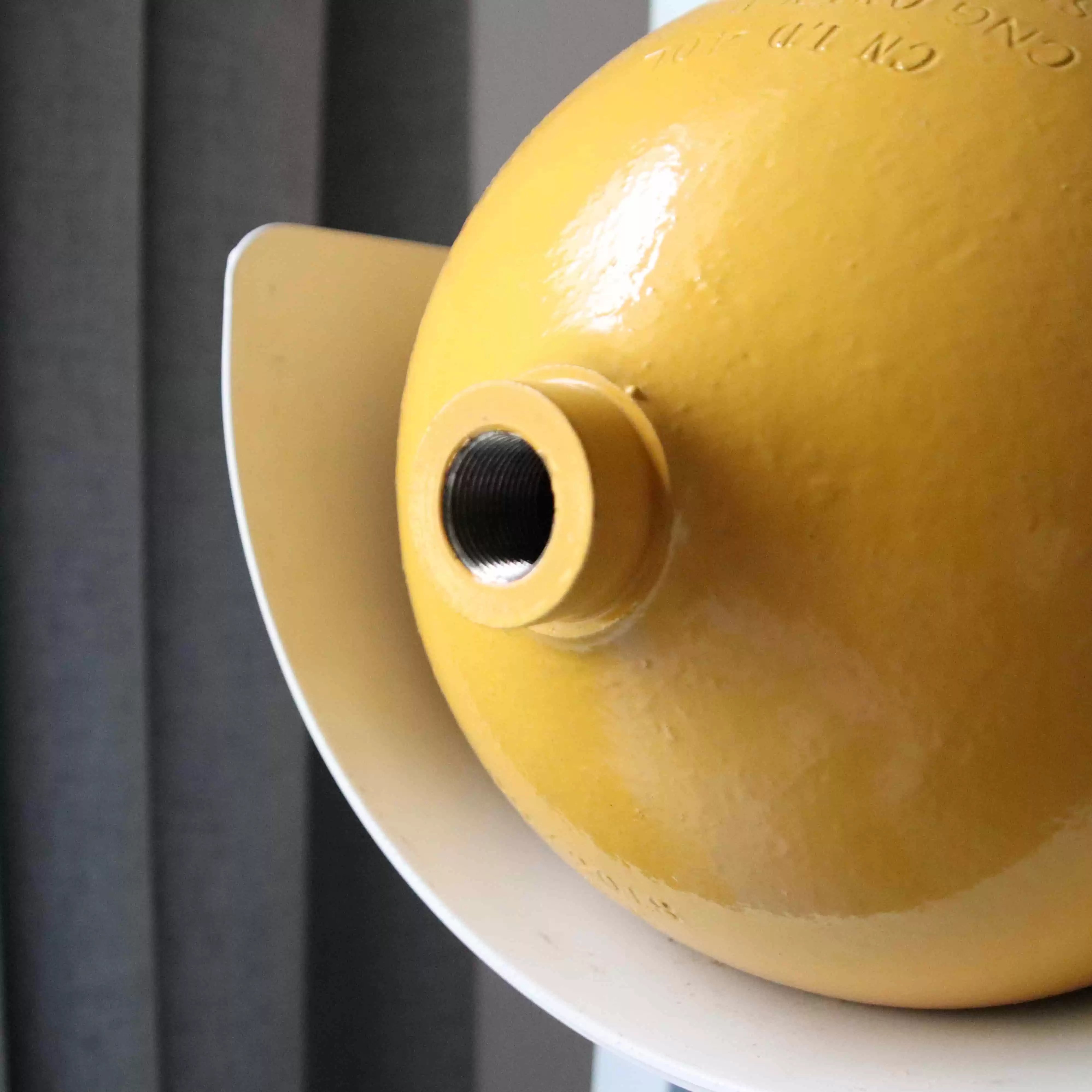

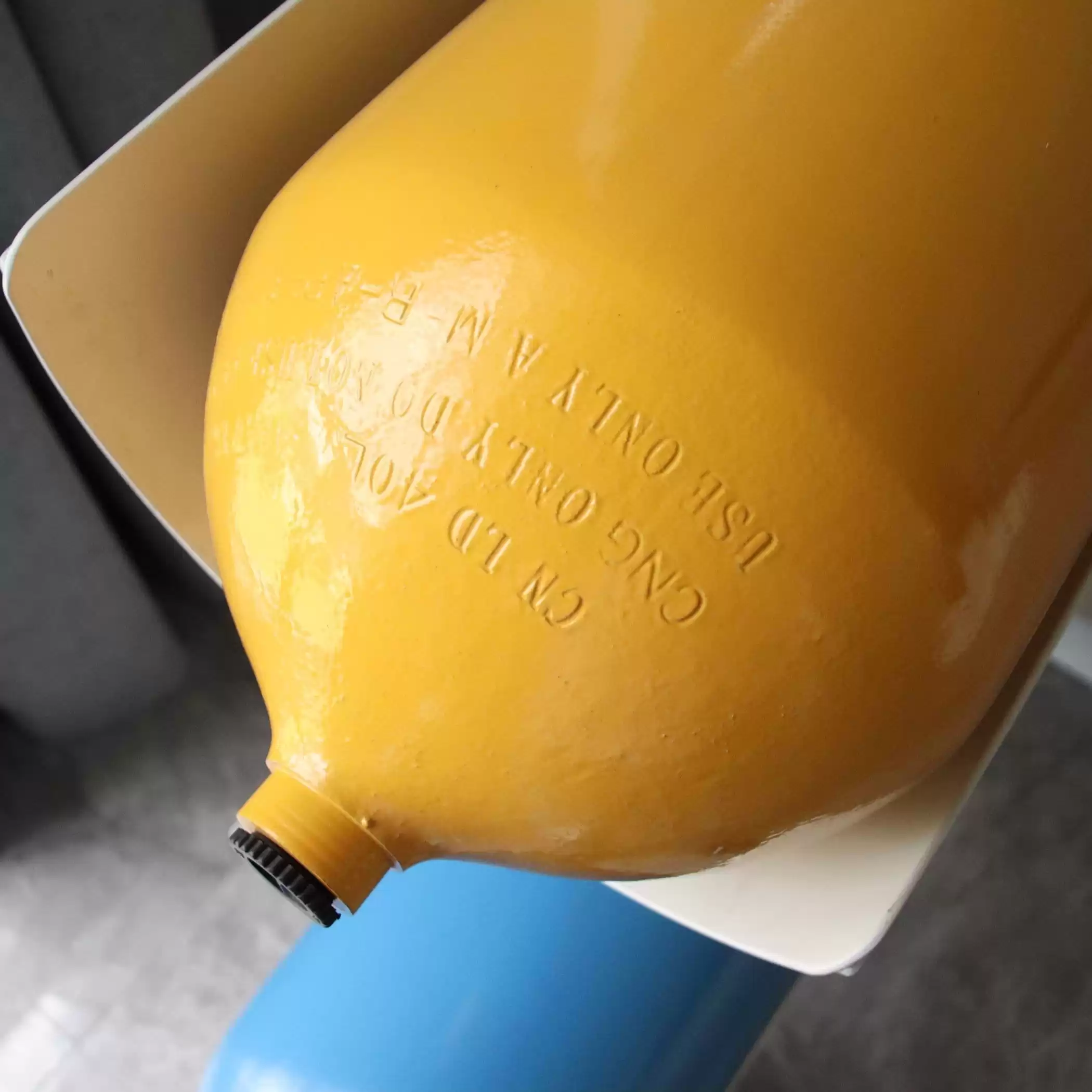

CNG TYPE 1 GAS CYLINDER

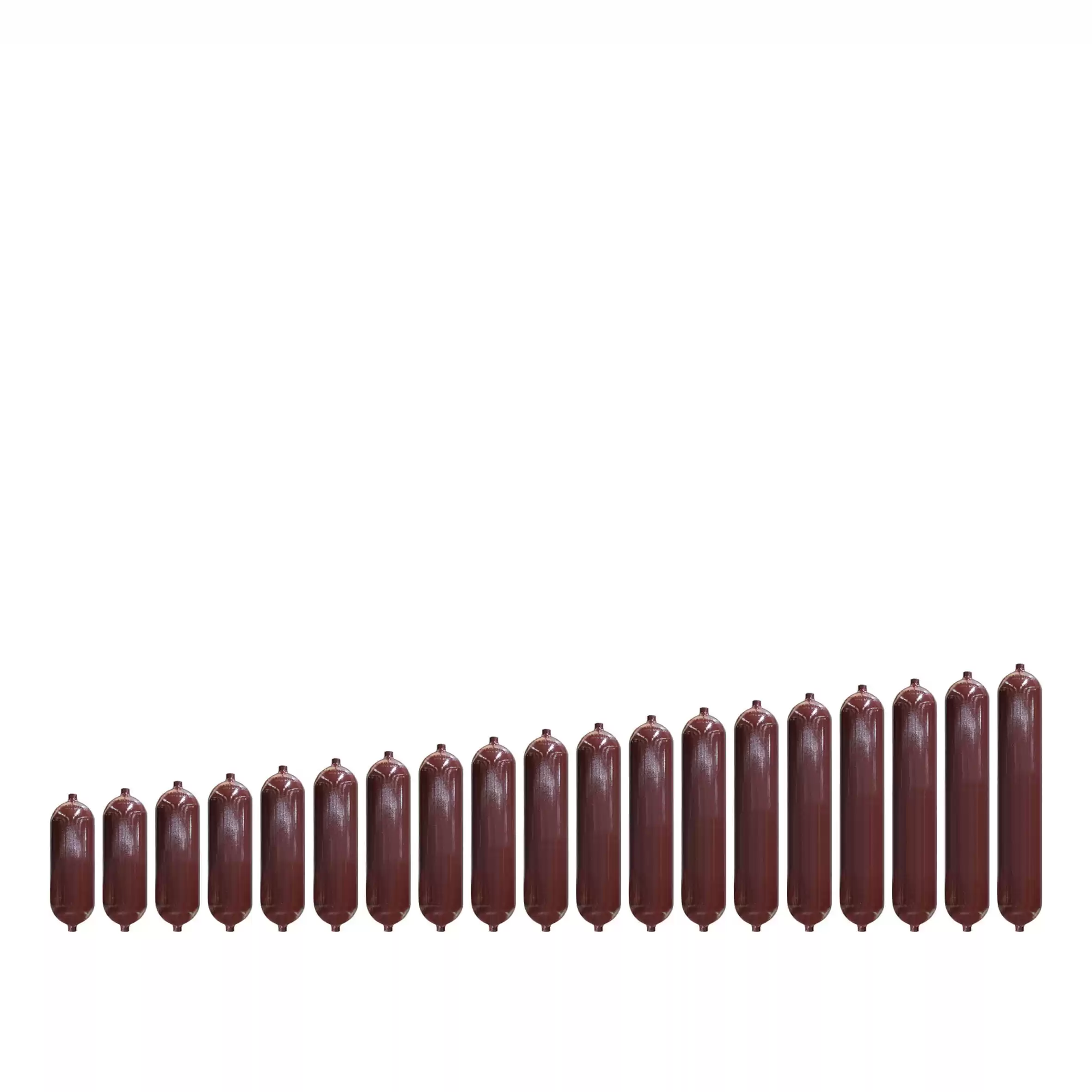

Compressed natural gas (CNG) cylinders are designed for the storage and transportation of natural gas and are commonly used in vehicles such as carsCNG cylinders are typically made of high-strength steel or materials and are specifically designed to withstand the high pressure of compressed natural gas. The cylinders can customized in terms of color and size, ranging from76L to 165L, and can also have custom logos and valves based on market demands. These steel cylinders comply with the ISO9809 standard and have a working pressure of 250 bar and a test pressure of 375 bar. The material used is 34CrMo4.
|
Implementation
standard
|
Norminal Working
Pressure(Bar)
|
Hyd.test Pressure(bar) |
Design Wall Thickness(mm) |
Material |
Bottom Shape |
Outer Diameter
(mm)
|
Water Capacity(l) |
Length
(mm)
|
Weight
(kg)
|
|
| ISO9809-1 |
250 |
375 |
9.6 |
34CrMo4 |
double mouth |
356 |
76 |
1068 |
96.5 |
| 80 |
1114 |
100.6 |
| 85 |
1170 |
105.7 |
| 90 |
1227 |
110.9 |
| 95 |
1284 |
116.1 |
| 100 |
1341 |
121.3 |
| 105 |
1398 |
126.5 |
| 110 |
1455 |
131.7 |
| 115 |
1512 |
136.8 |
| 120 |
1569 |
142 |
| 125 |
1625 |
147.1 |
| 130 |
1682 |
152.3 |
| 135 |
1739 |
157.5 |
| 140 |
1796 |
162.7 |
| 145 |
1853 |
167.9 |
| 150 |
1910 |
173 |
| 155 |
1967 |
178.2 |
| 160 |
2024 |
183.4 |
| 165 |
2080 |
188.5 |
Range of Application:

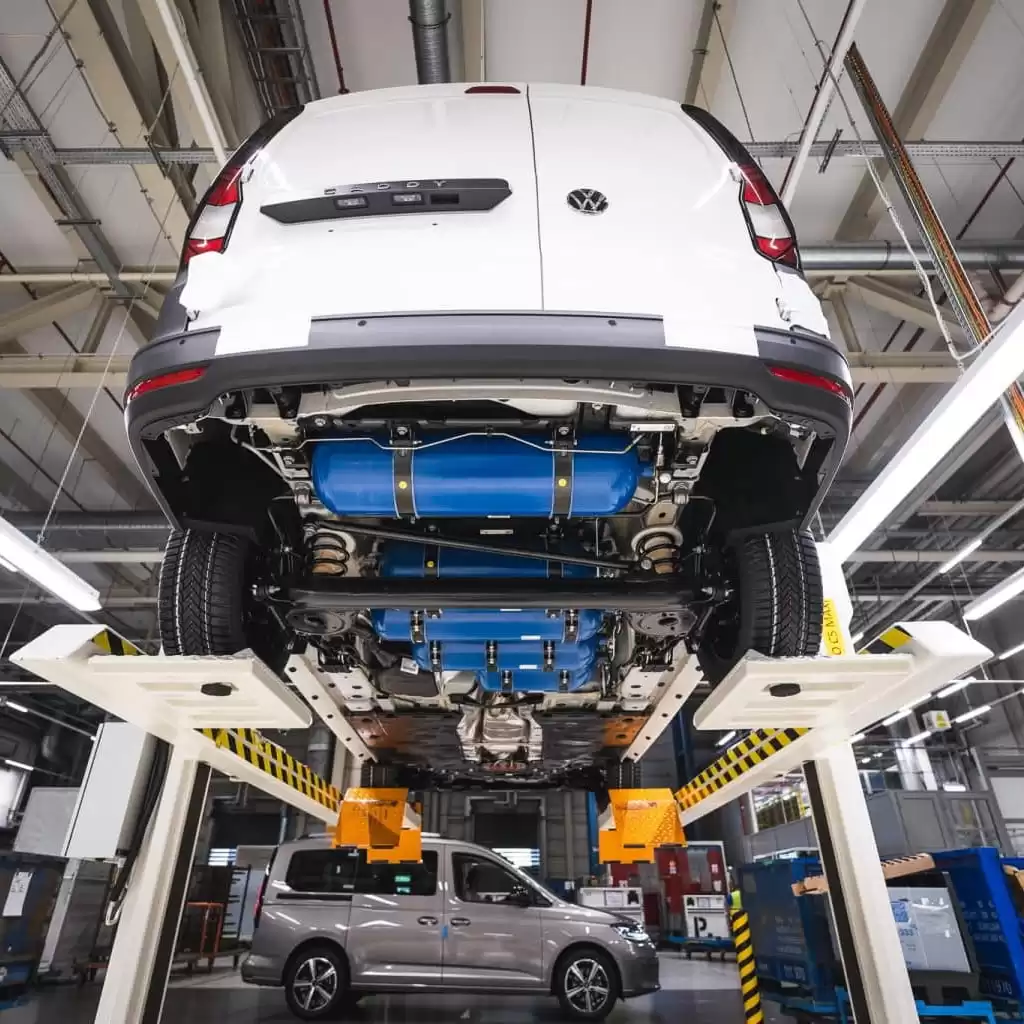

CNG cylinders can be used in a wide range of vehicles, including cars, buses and trucks, to store and transport natural gas as fuel. Using CNG as a fuel offers multiple benefits over conventional fossil fuels such as gasoline or diesel. CNG is a cleaner fuel that produces fewer harmful emissions, making it a more environmentally friendly option. And, CNG is generally more affordable when compared to gasoline or diesel, making it a cost-effective refueling option
.
Why Choose Us?
- Strong production capacity：With a self-built factory covering over 56,000 square meters and employing over 240 staff, the company has the capacity to produce 300,000
- Direct sales from the source factory：By eliminating foreign trade companies, purchasers can directly access the manufacturer for one-stop procurement
- 10 years of industry experience：The factory holds IATF 16949 and ISO 9001 quality management system certificates,
- Customization capability：Our products can be customized according to your preferences, including color, size, thread, and logo.
- At present, the company has 6 gas cylinder spinning production lines, 3 heat treatment and tempering lines, 2 automatic production lines for machine adding, spraying and winding, and 1 LPG composite gas cylinder production line
CNG Cylinder Product Inspection Display
Our factory through many cylinder testing, to ensure that the product is safe and reliable, so that you can rest assured to buy and use. Each test procedure is scientifically rigorous and should not be neglected. From materials to processes, CNG gas cylinders strive to combine excellent quality and safety, and each link shows exquisite technology and quality assurance.
Quality Control
Our products strictly follow the international standards, with ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates.
Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters. We currently have a workforce of 240 employees, including 50 senior technical and management personnel. Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
