35kV 200A Series Elbow Connector American Type Cable Accessories

The 35kV 200A cable accessories are high-quality, insulated, fully shielded and touch-safe components that meet IEEE386-2016 standards. Designed for seamless integration with 21.1/36.6kV XLPE cables, these accessories ensure safe and reliable connections in high-voltage systems. Ideal for ring main units, box transformers, and cable branch boxes, they offer excellent protection against moisture and environmental damage. The durable design ensures long-lasting performance, making them essential for outdoor electrical networks and medium-voltage power distribution.

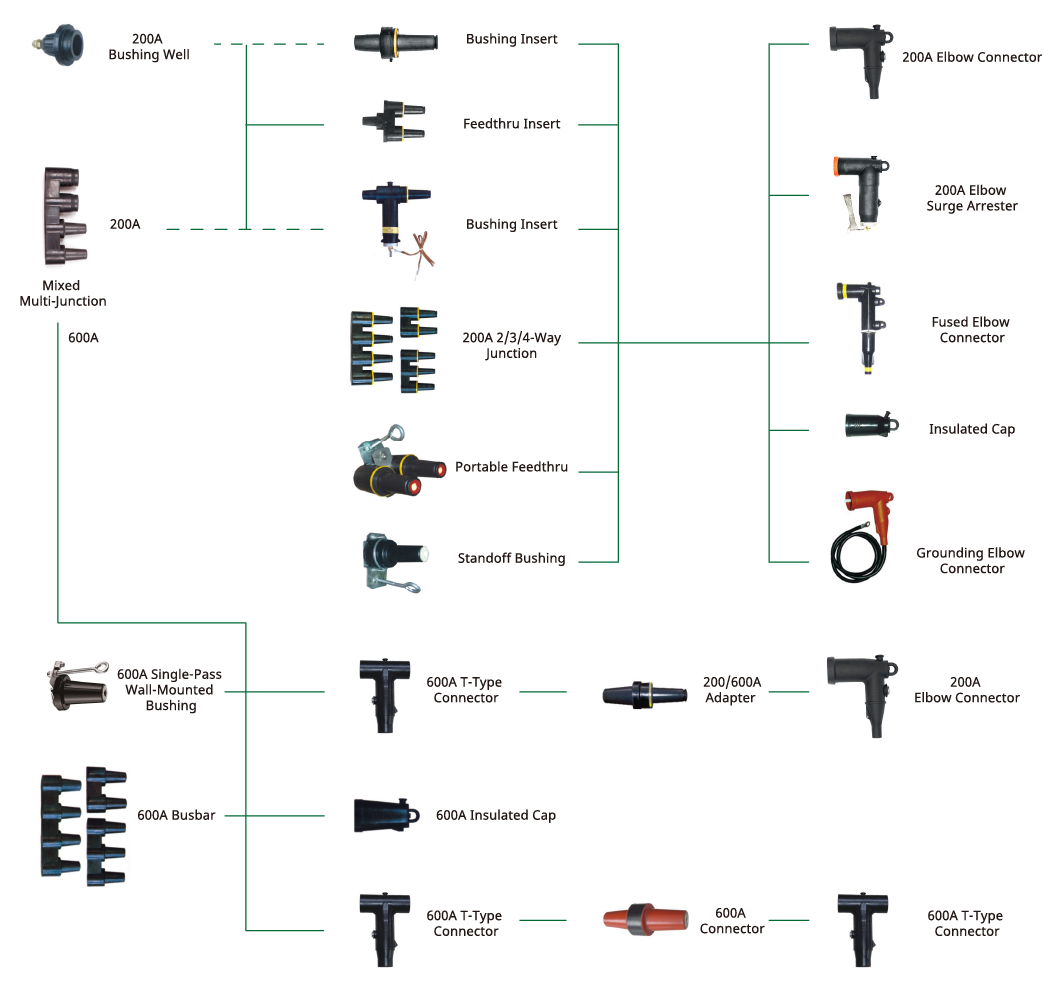

  • ANSI / IEEE Standard American Type Cable Accessories Overview

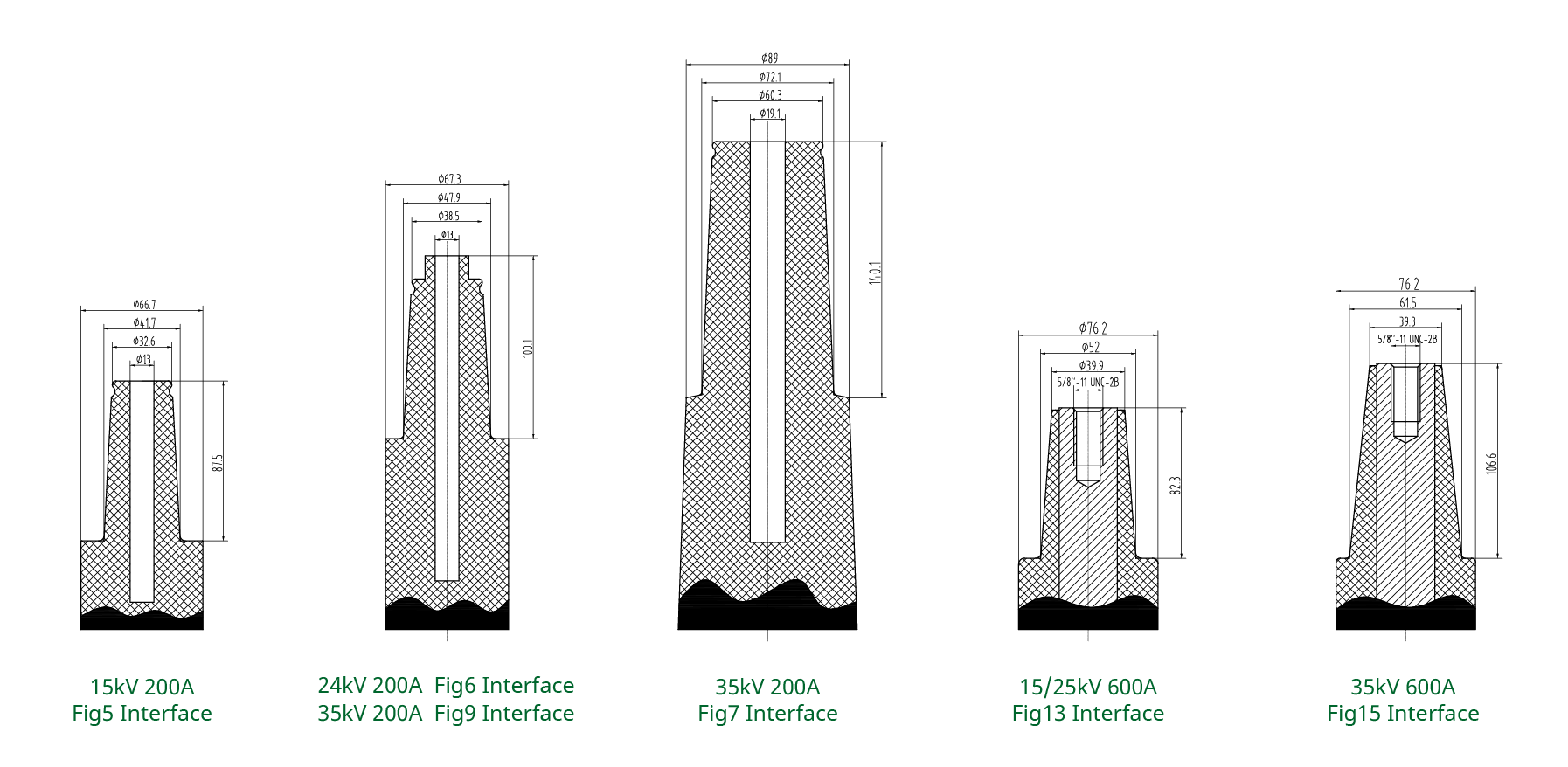

  • IEEE386-2016 American Type Separable Connector Interface















  • 35kV 200A Series Cable Accessories

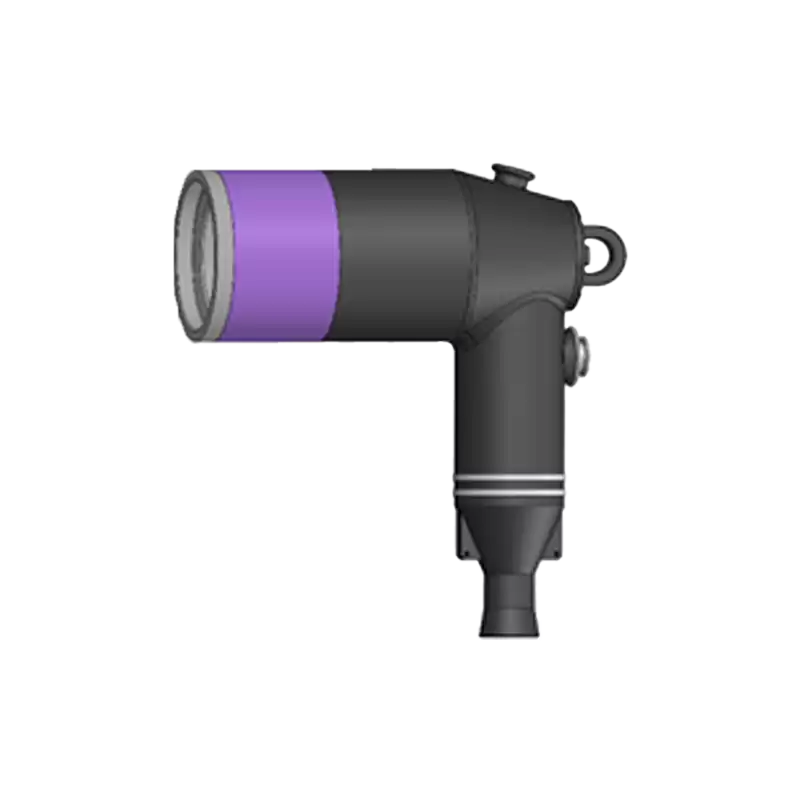

35kV 200A Elbow Cable Connector

  • Insulated, Shielded, and Touch-safe
  • Apply to 21.1/36.6kV XLPE Cables, with a Cable Cross-section of 25-120mm²
  • High-quality EPDM Insulation with Waterproof and Moisture-proof Protection
  • Interface Figure 9,  IEEE386-2016 Standard
  • Applications: Transformers, Cable Branches, Ring Main Units







  • Insulated, Shielded, and touchable
  • Apply to 21.1/36.6kV XLPE Cables, with a Cable Cross-section of 25-120mm²
  • High-quality EPDM Insulation with Waterproof and Moisture-proof Protection
  • Interface Figure 7, IEEE386-2016 Standard
  • Applications: Transformers, Cable Branches, Ring Main Units

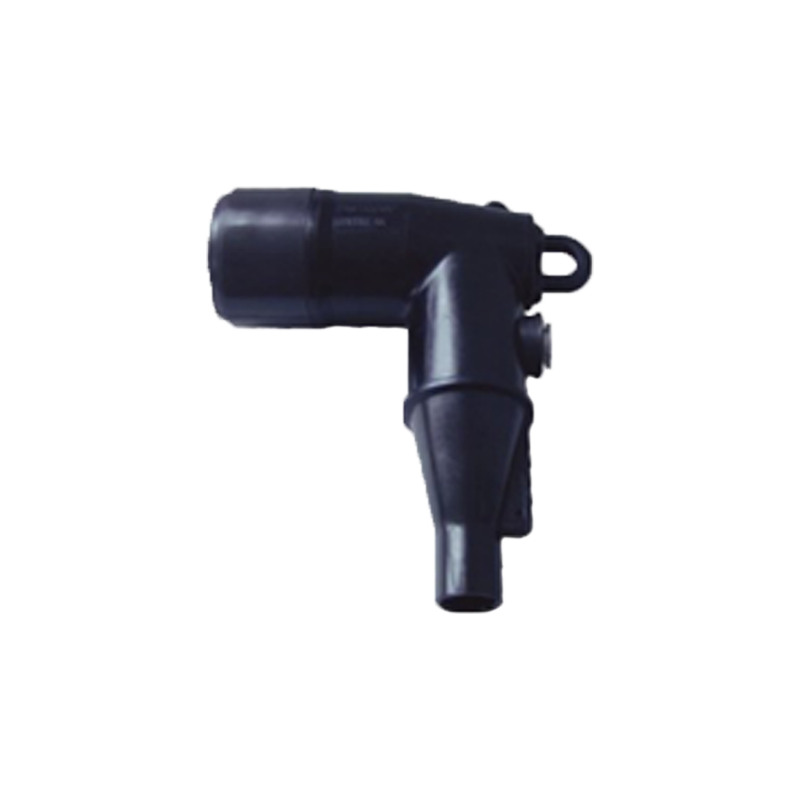

35kV 200A Elbow Cable Connector



















  • Specifications



200A American Type Loadbreak Connector


Rated Voltage 15kV 25kV 35kV
Rated Current 200A 200A 200A
Partial Discharge Q≦5pC@11kV Q≦5pC@19kV Q≦5pC@26kV
AC Withstand Voltage 34kV/1min 40kV/1min 50kV/1min
Lightning Impulse Withstand Voltage 95kV 125kV 150kV
Short Time Withstand Current 3.5kA3S 3.5kA3S 3.5kA3S
Rated Breaking Current 14.4kV200A10 times 26.3kV200A10times 36.6kV200A10times
Fault Making Current 0.17S10kA10times 0.17S10kA10times 0.17S10kA10times
Conductor Cross Section 25-120mm² 25-120mm² 25-120mm²
