35mm Diameter Twin Screw Plastic Extruder
Usage: This machine line is not only good at Lab. Testing (formula & technical processing), but also for small production or small order for multispecies or multicolor.
HS CODE: 8477.2010
The machine line could be used for filler, color master batch, engineering granules and other plastic granules making.
This SHJ-35 Twin Screw Plastic Polymer Extruder is for wild usage, not only for Laboratory using, but also for production. like to say to make master batch, if you have small each quantity but with various of the colors, this machine line is your good choice. After finish the small order ty multi colors, you're only using little of pure transparient granules for screw cleaning, so the material wasting is also little.
Reference output capacity: (estimate) is around 10-80kgs/h ( for CaCO3 Powder added filler making.)
Output capacity: this model is for Lab. testing ( checking the formula or technical processing is workable or need to be adjusted.) different carrier (material) and its' specific gravity(proportion) and flow ability(fluidity) will changes the output capacity.

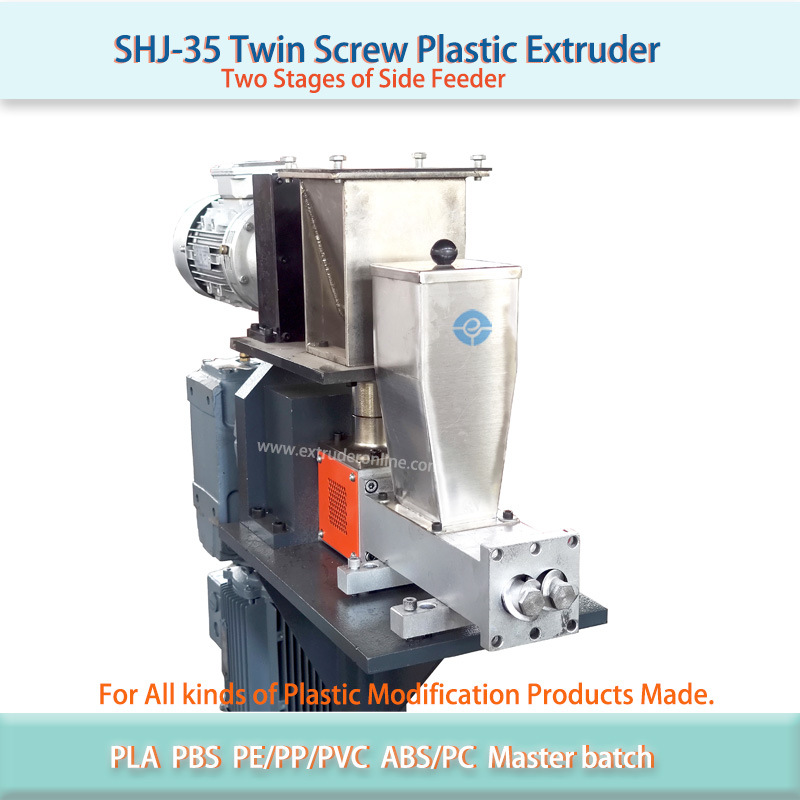

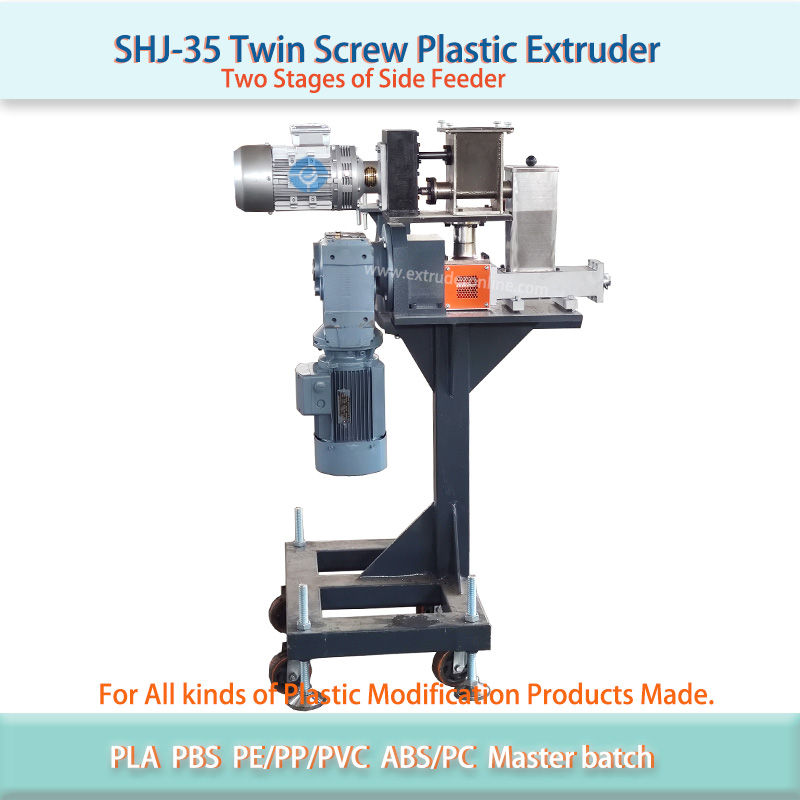

Sometimes, the customer will ask to equip a side feeder (single or two stages of side feeder) to add more axuliary raw material or agent, like to say CaCo3 powder, BaSO4 powder, short glass fibre and Etc..
Rough configuration for strand bathing water cooled pelletizing system:
Model: SHJ-35 (A/B/C/D/G)
L/D ratio：40：1
Screw Dia.: 35.5mm
Barrel hole Dia.: 36mm
Whole hardness: 62-64
Screw Speed: 400/500/600/900 rpm (optional)
Motor power: 18.5Kw/22kw/30kw/37KW(optional for different model, Wannan or Siemens-beide brand;

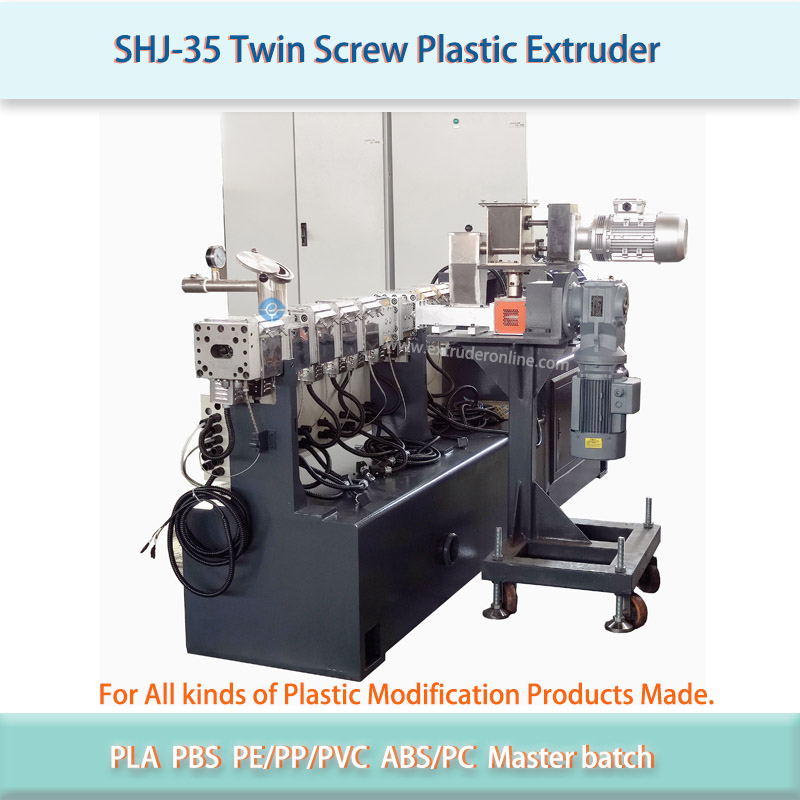

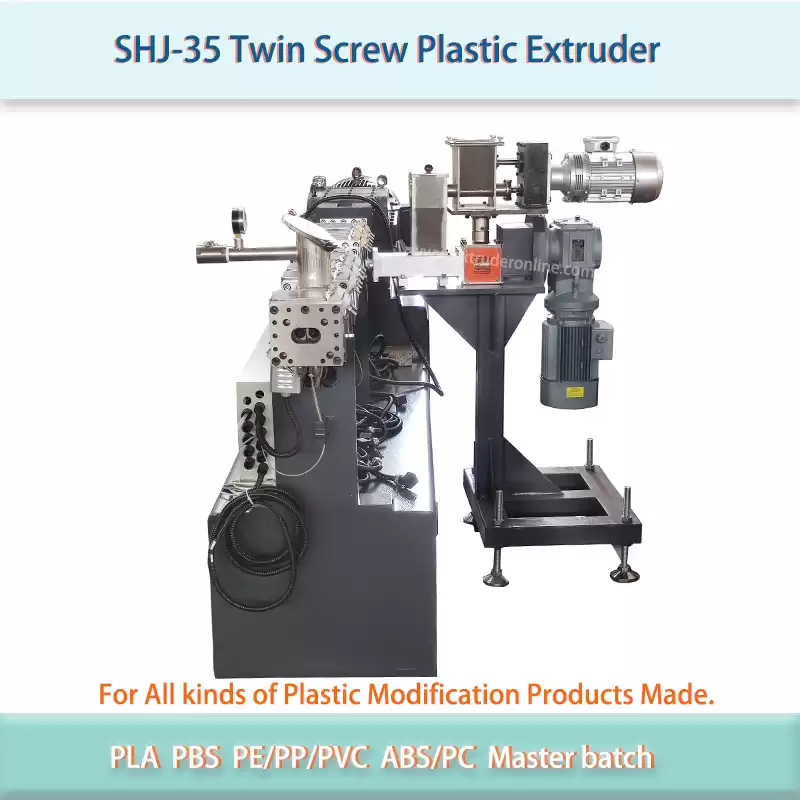

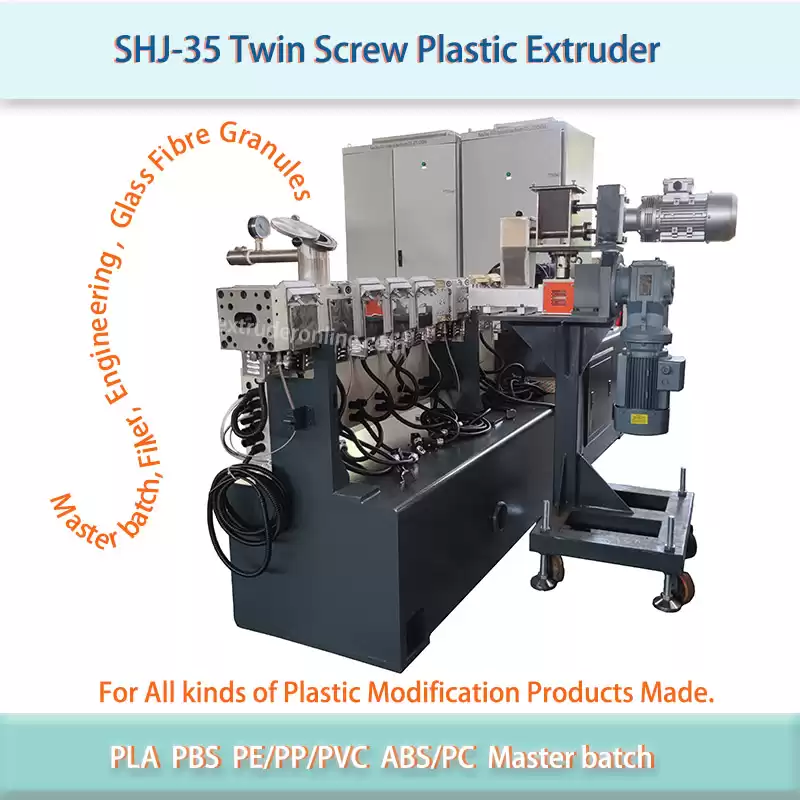

Machine line includs HOST, Power cabinet, water trough, air knife, pelletizer and some spare parts.
Origin：China.
Production Standard: Export Standard
Packing: Export standard packages
1) FCL: Metal frame on the bottom for transportation by lift when loading or unloading into/from the container to workshop; wrap film cover whole machine and parts; if it has meter or PLC outside, then will pack it carefully avoide crush.
2) LCL: Wooden case for package, but we will charge the packing cost to the clients.
Quality Guarantee: 1 year from B/L issued date, except quick-ware parts (like segments, heaters, shafts, sensor and Etc., we will list them on delivery packing list; We will collect the cost of the replace parts if the problem by man-made damage.
Installation and debugging charges: will be collected, please ask for the detailes by our clerks in overseas markets department.
Documents presentation： B/L, INVOICE, PACKINGLIST, C/O and Insurance policy (If CIF terms);
Our machine can process the following materials:
|
Process
|
Representative materials
|
|
Mixing nature-changing
|
PE,PP,PS+SBS,PA+EPDM,PP+NBR,
EVA +Silicon rubber, etc.
|
|
PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.
|
|
Filling nature-changing
|
PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder
ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.
|
|
PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder
|
|
Functional machine pellets
|
PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets
|
|
PE,PP,PS, etc+ starch: de-composing machine pellets
|
|
PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets
|
|
PE,EVA=ABS etc+ carbon black: black machine pellets
|
|
Colored machine pellets
|
PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary
|
|
Intensified glass fibers and carbon fibers
|
PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.
|
|
Various cables
|
HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,
PE peroxide silicon alkyl crossing cables: radialization crossing cables
|
|
Special materials
|
EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material
|
|
Reaction extruding
|
Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.
|
|
Exhausting and volatilization
|
Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene
|
|
Powder paint
|
Polyester, ring oxide, lactide, polyurethane, acrylate
|
We also present the following different kind of plastic extrusion lines, the detailed Technical Parameter is as follows:
|
Model
(A/B/C/D/G)
|
Screw Dia.
(mm)
|
Screw Rotary
Speed (rpm)
|
Motor Power
(kw)
|
L/D
|
Output Capacity
(kg/h)
|
|
SHJ-20
|
21.7
|
600
|
4
|
32-60
|
0.5-15
|
|
SHJ-35
|
35.6
|
500
|
11-15
|
32-60
|
15-40
|
|
SHJ-50
|
50.5
|
500
|
45/55/75
|
32-60
|
135-225
|
|
SHJ-65
|
62.4
|
500/600
|
55-75-90
|
32-60
|
25-375
|
|
SHJ-75
|
71.0
|
500-600
|
90/110/132
|
32-60
|
330-550
|
|
SHJ-95
|
93.0
|
400-500
|
250/315
|
32-60
|
750-1250
|
Both screws and barrels are designed according to the principle of building block type. Let the machine line has excellent dispersion, mixing and compounding performance, controllable material duration of staying time in the barrels. In the meantime, this design also has good exhaust release performance, excellent interchangeability, self-cleaning, flexible module combination and other characteristics, to achieve a wide range of muti-function, multi-purpose and specific requirements of the specific unity。
New Mixing & Extrusion Elements (segments)
The SHJ series extruders have newly developed screw elements (segments) for good distributive and dispersive mixing and extrusion process. The special screw elements will be greatly conductive to the even shearing stress, even axial elongation rate, and low temperature distribution. All these factors will determinately lead to the final material or products’ quality.
The SHJ series extruders have unique features with a balanced shaft drive mechanism, a solution offering decisive advantages over the conventional gearing chain with a simple split of the driving torque. In the new solution the torque for the second screw is split again in half to drive two auxiliary shafts at levels above and below the second screw shank. Consequently the balanced gearing shafts have to bear the 25% torque of the overall. The extreme load ability connected with this type of gearing chain enable to work with the kind of torques required to achieve high output rates at lower screw speeds that will be decisive to the final performance of the mixing polymer.
Field of application:
SHJ series co-rotating twin screw extruders are mainly applied in polymer processing. To meet the increasingly demand from new materials and process, our company has been providing more new technologies and products accordingly.
Filling modification Cables & Wires
Powder-coating Blending
Degassing Reinforcing modification
Master-batch preparation Reactive Extrusion
Other Applications
