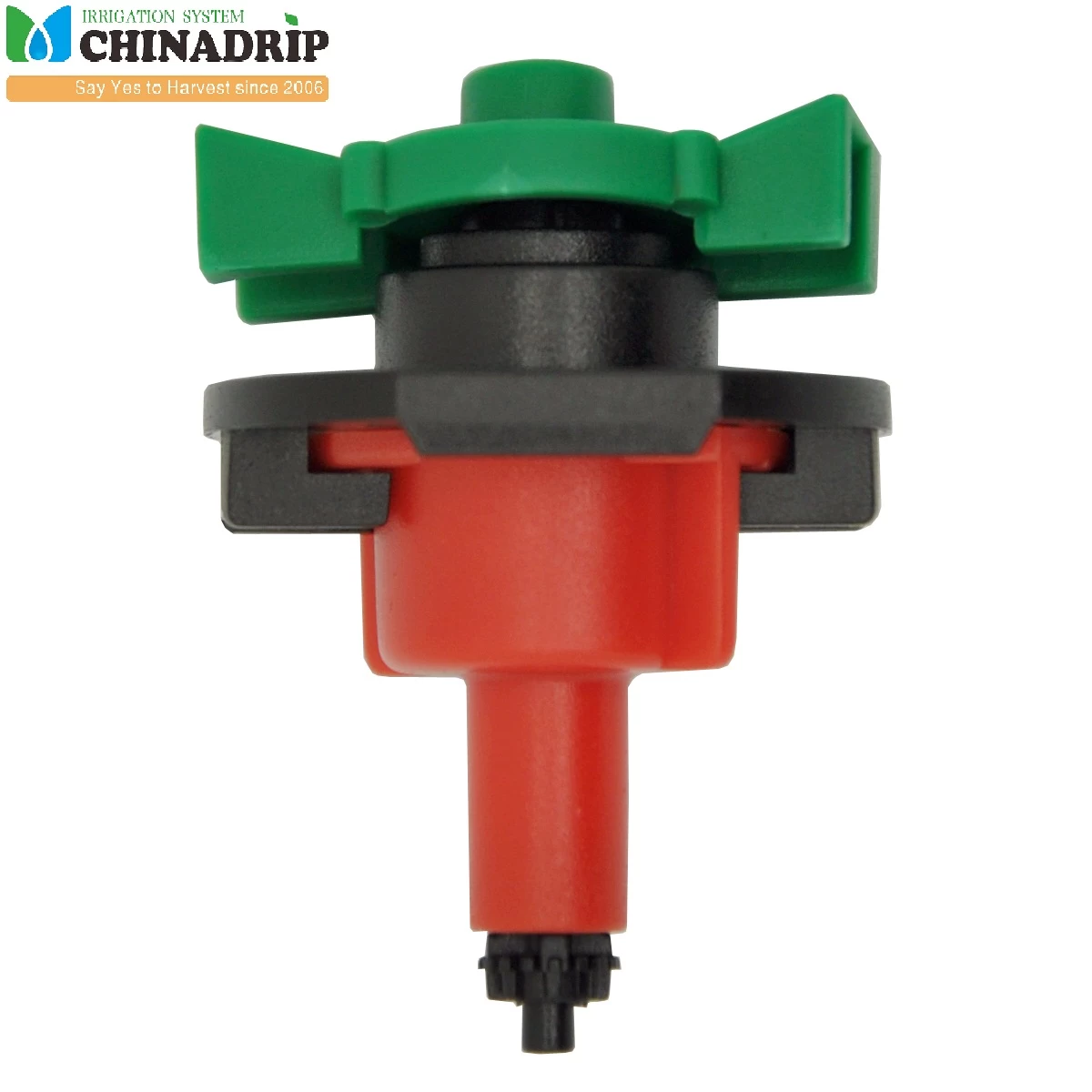

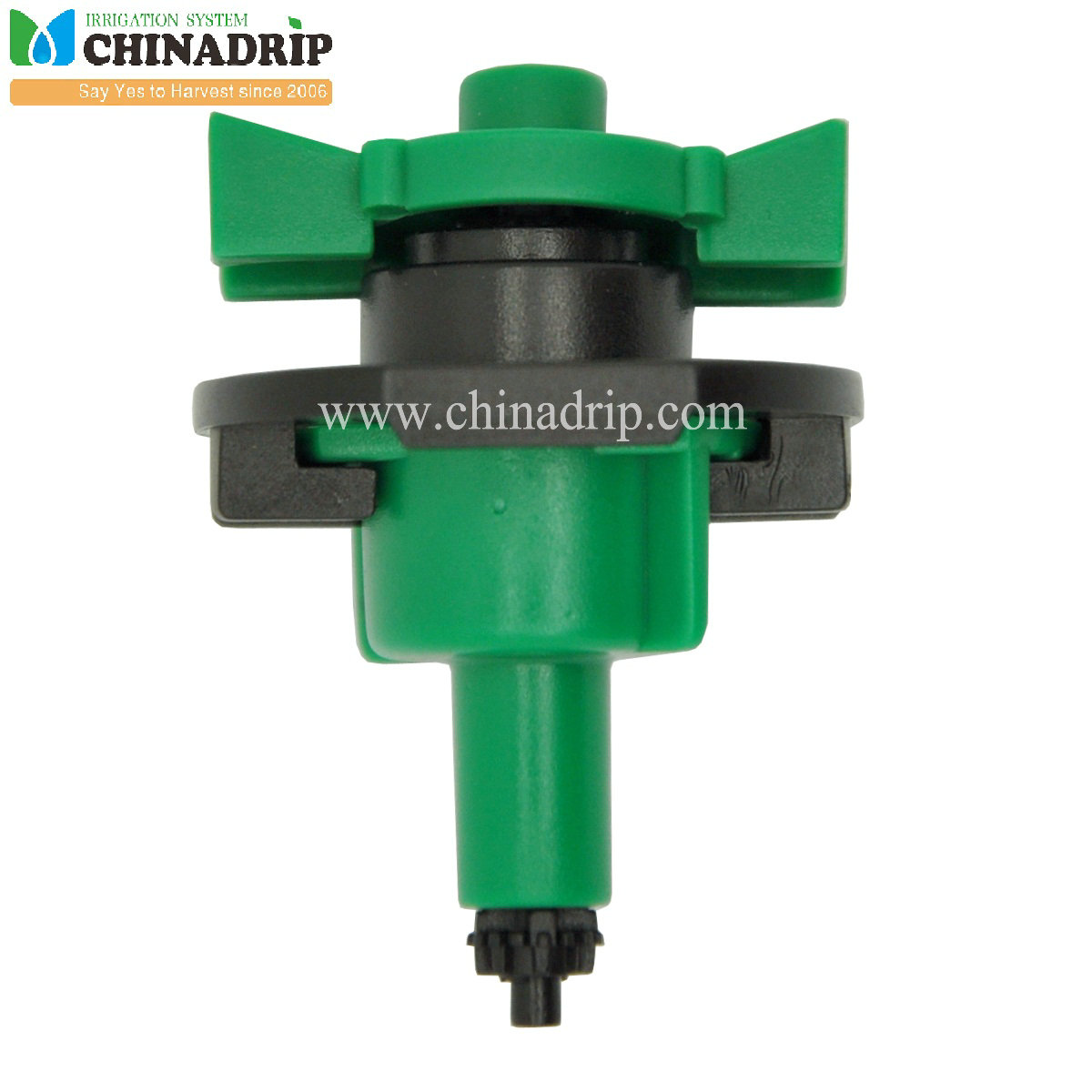

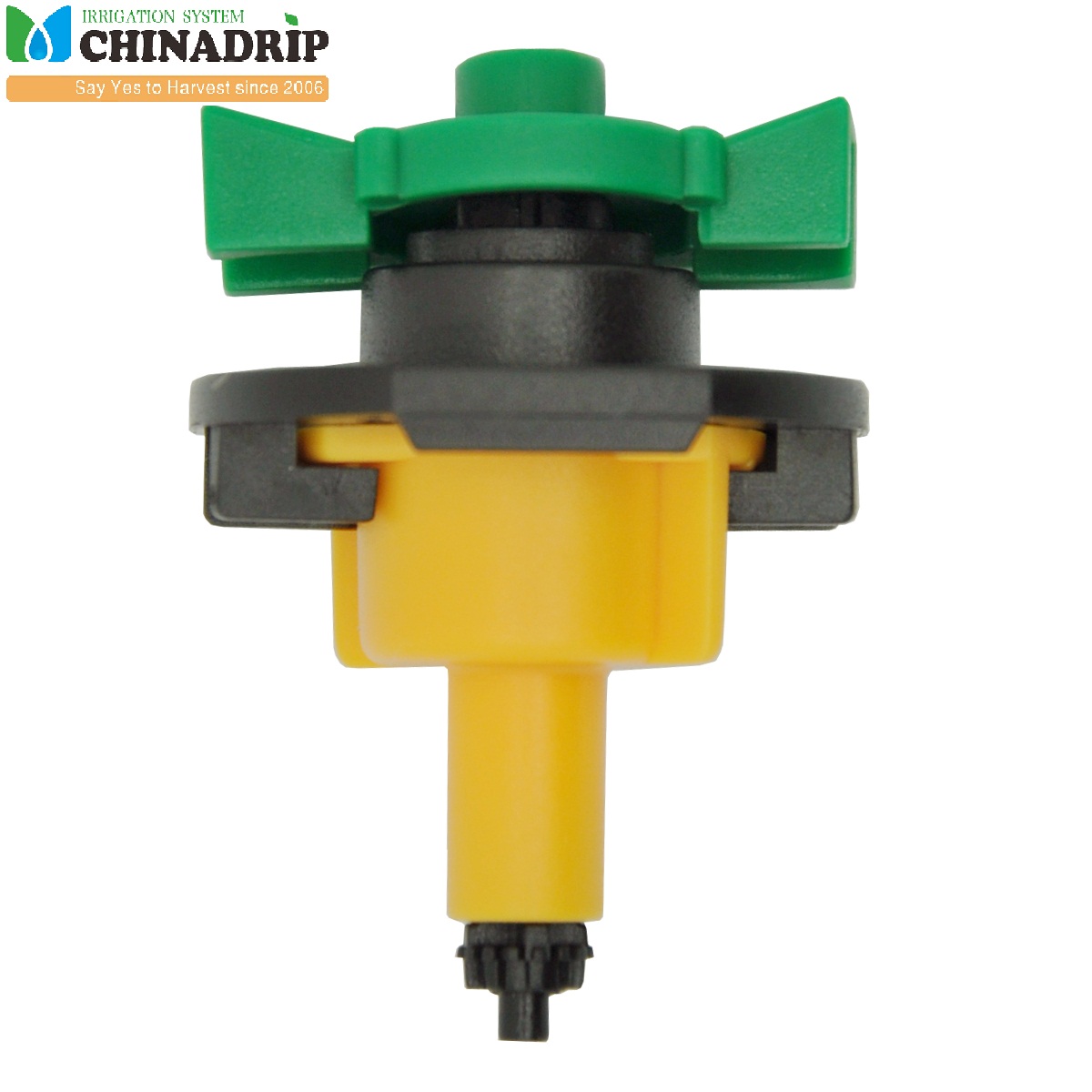

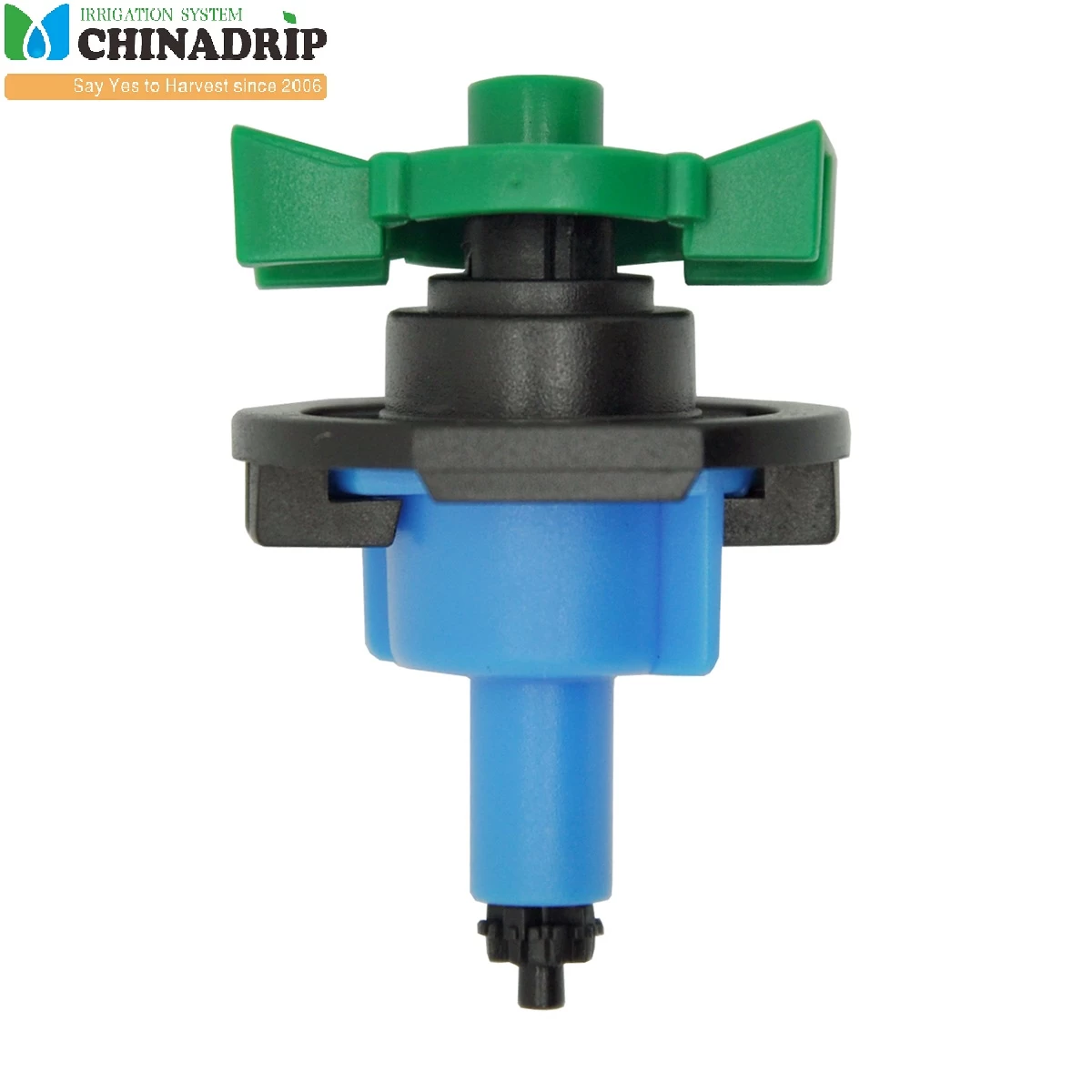

360º No Bridge Mini Sprinklers (Up-right Type)
These Bridge Mini Sprinklers are the most advanced with unique mechanism, special construction
without a bridge for even distribution and excellent performance even in
difficult conditions.
Advantage
* Unique with strong
propulsion-Smooth operation even in bad conditions.
* Firm construction without a
bridge-Uniform water distribution.
* Anti-insect design, Swivel
seals the nozzle once the water is shut off.
* Integral nozzle filter,
Protects the nozzle from debris in the water.
* Special engineering raw
materials for long life and durability.
* Large drops for added wind
resistance.

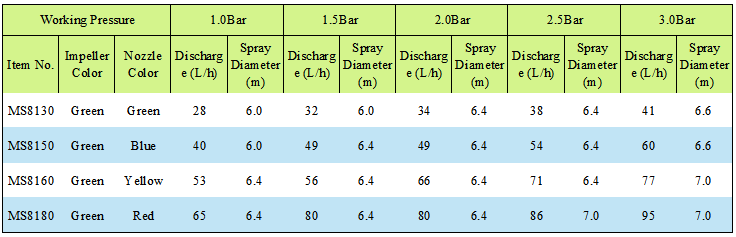

Technical Data
* Wide range of nozzles to
meet all applications
* Wetting diameter:5.5-9.0m
(18-30 Ft)
* 34L/h, 49L/h, 66L/h and
80L/h @ 2bar
* Recommended Filtration:
* Up-right type and upside
down position to meet different requirement.
* 100 mesh for flow rates up
to 50L/h.
* 80 mesh for flow rates up
to 70L/h.
* Working pressure maximum
range: 1.0-3.0 bar (14.5-43.5psi). 80 mesh for flow rates up to 70L/h.
* Optimal working pressure
range: 1.0-2.0 bar(14.5-32psi).
