BMW 3 & 5 series 360 Degree Bird View Video Interface Surround View System Build in Four Channel DVR
(Above video is shared by one of our dealers, it is taken on a F10 car, 3 series is same just the left and right and side camera shape is different)
Compatible Car Model List:
BMW 5 series F10 / F11
520i / 523i / 525i / 528i / 530i / 535i
BMW 3 Series F30 F31 F32 F33 F34
C 316i / 318i / 320i / 325i / 328i / 335i
Product Features:
-
OEM fitting and design
-
Switch to different modes via original iDrive button.
-
Build in car video interface with HD digital signal and non-traditional CVVS signal
-
Build in accurate dynamic parking guide line, assist your parking via Dynamic Parking Assistance System moving parking line according movement of steering wheel
-
Keep original Radar function
-
Build in 4 channel DVR function
-
Hang reverse, automatic switch to 360° surround view display.
-
Dedicated front / back / side camera for BMW
-
Supply power to connect 4 cameras.
-
100% PLUG & PLAY no wire cutting required.
-
Not affect original video and audio inputs.
-
The videos of 4 cameras will be stored in the the U disk.
-
one key callibration
BMW 3 & 5 series 360 Degree Bird View Video Interface Surround View System Function Description:
|
Item Number
|
Build in Functions
|
Optional Functions
(Add other module / accessories)
|
Compatible Car Model
|
CVS-1380
|
360 Degree Panoramic View (video interface + 4pcs cameras for front, side and back), 4 channel video recording (DVR), accurate IPAS dynamic parking grideline
|
N / A
|
BMW 5 series F10 / F11
BMW 3 Series F30 F31 F32 F33 F34
|

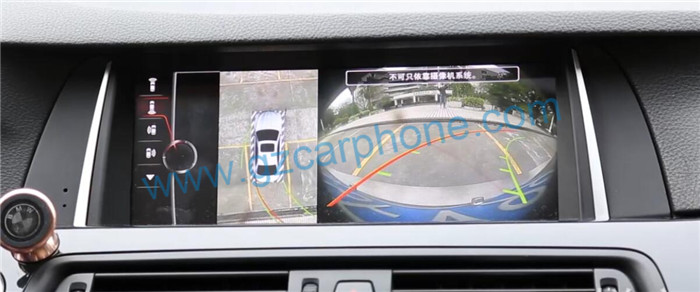

360 degree bird view angle with dynamic parking guide line
The surround bird view angle and dynamic parking guide line will help driver see the obstacles clearly and park cars more easily. Also has radar information displaying when the car is closing to obstacles

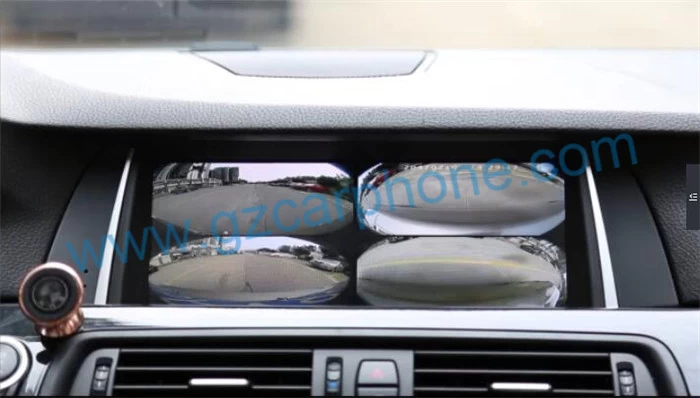

4 Channels DVR function, support to see each side(front, back, left and right) camera separately
It can be control by BMW iDrive control button to check different view angle. User can check the front, sides, back view situation separately.

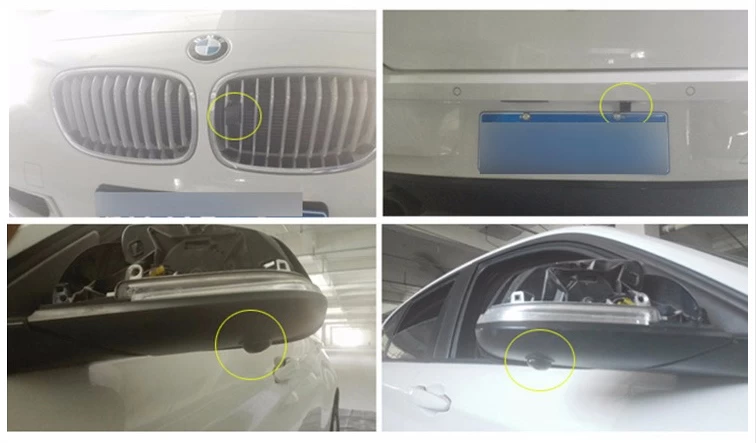

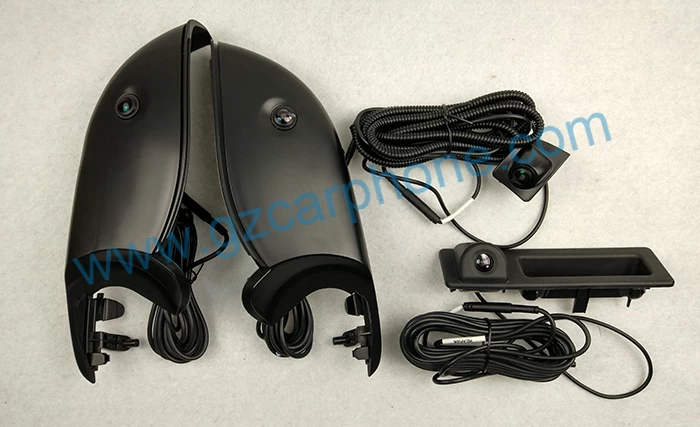

Dedicated HD cameras for BMW ( BMW 5 Series F10 for reference)

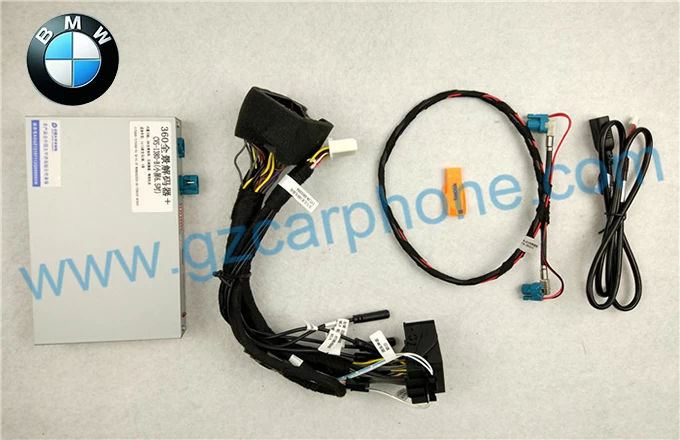

BMW 360 degree surround view car video interface picture
