36000 L double tire fuel tank truck trailer
Applications:
36000 L double tire fuel tank truck trailer, also called 36 cbm double tire oil tanker truck, 36 cbm capacity oil tanker semitrailer, china 36 cbm oil fuel semitrailer. As premium china fuel tanker semitrailer manufacturer, we aim at supply kinds of double tire fuel tanker semitrailer, singe tire fuel tanker semitrailer for customer.
** 30 years experiences on manufacturing fuel tanker semitrailer and competitive price.
** Customized fuel tanker semitrailer on customer's requirement.
** Strict quality assurance on oil tanker semitrailer production.
** 12 months guarantee for all fuel tanker semitrailer
** SGS, CONTECNA, BV inspection for all our fuel tanker semitrailer
** 12 months spare parts free of charge , for all the petrol tanker semitrailer.
Key Features:
---- 30 years on semitrailer manufacturing, germany benz technology assurance.
---- All genuine spare parts , 20,000 km maintenance
---- 12 months after sale service guarantee
---- Service for more than 100 countries.
---- Patented design on semitrailer, reliable and
Specifications:
Specifications:
| Fuel tank trailer specification |
| Tank Body |
| Dimension |
12000mm*2490mm*3990mm or customized |
| Volume(m3) |
25m³- 70 m³ |
| Tare weight |
About 6-12 ton |
| Tanker Body thickness |
5mm /Q345B carbon steel /aluminum |
| End Plate thickness |
6mm /Q345B carbon steel /aluminum/stainless steel |
| Manhole Cover |
Carbon steel Aluminum alloy API manhole cover, 500mm |
| Bottom Valve |
Aluminum API Pneumatic Bottom Valve |
| Discharging Valve |
Diameter is 3 or 4 inch |
| Discharging Pipe |
4” rubber hose, 2 pcs, 6m/each |
| Compartments |
Optional |
| Chassis |
| Main Beams |
Q345B carbon steel or T700 high-intensive steel,
I Beam height 500mm
Upper plate 14mm, lower is 16mm, middle is 8mm
|
| Axle |
4 axles, 13T and 16T brake pad |
| Landing Gear |
Standard 28T double speed, JOST(D200T) or Chinese brand |
| King Pin |
5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand |
| Suspension |
Mechanical suspension or Air suspension Thicken |
| Leaf Spring |
90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System |
6 air chamber, 3 axles synchronization WABCO brand |
| Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire |
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional |
| ABS |
Optional |
| Accessories |
One standard tool box |
| Voltage |
24V |
We are premium Professional carbon steel tanker semitrailer manufacturer in china, can produce kinds of 2 axles, 3 axles, 4 axles fuel tanker semitrailer for foreign customer.

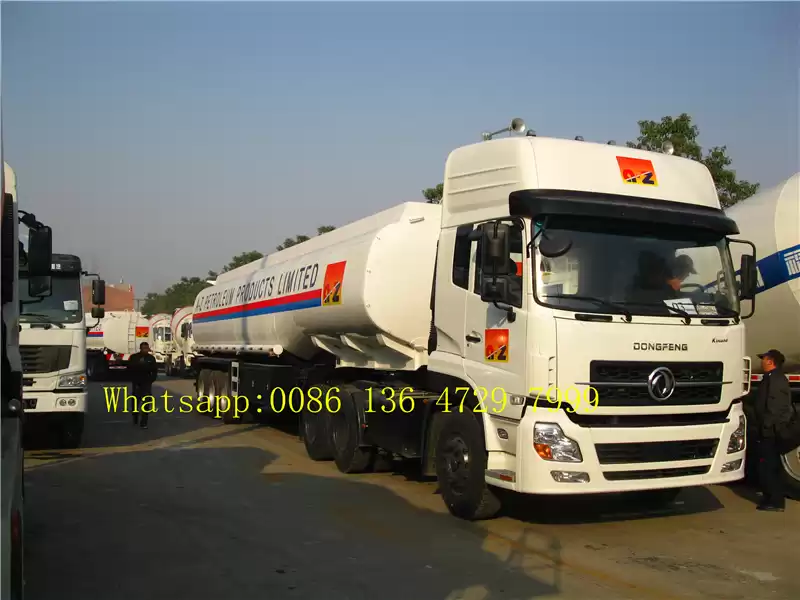

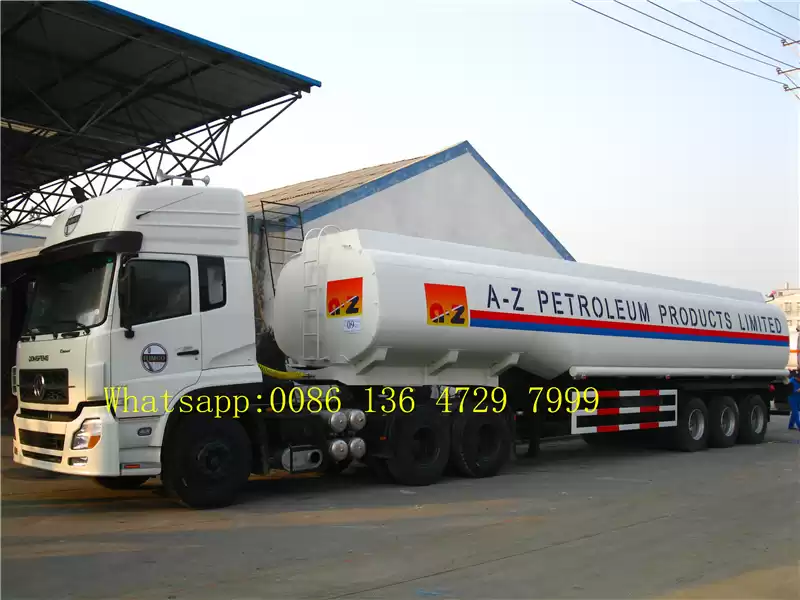

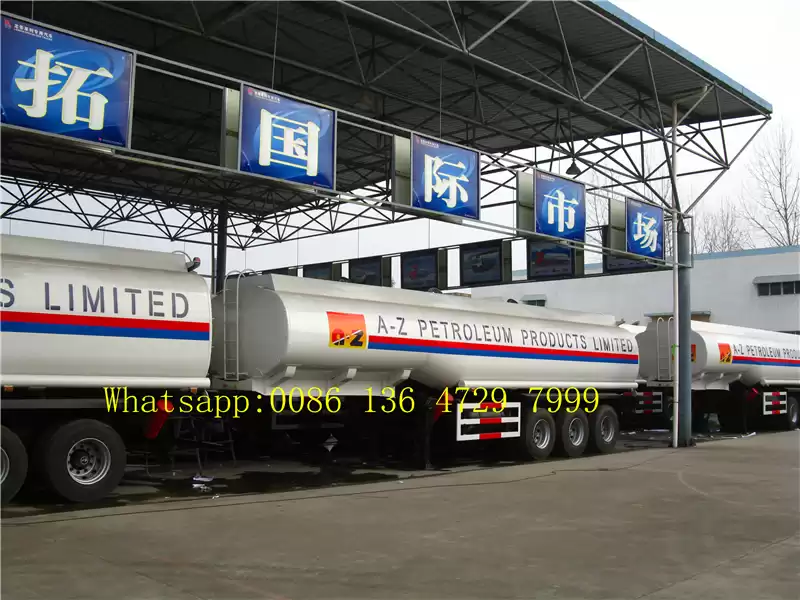

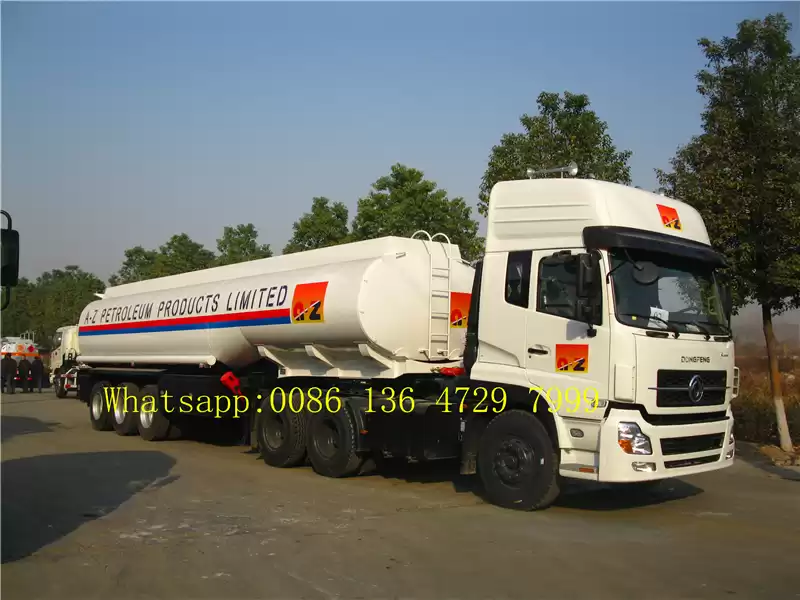

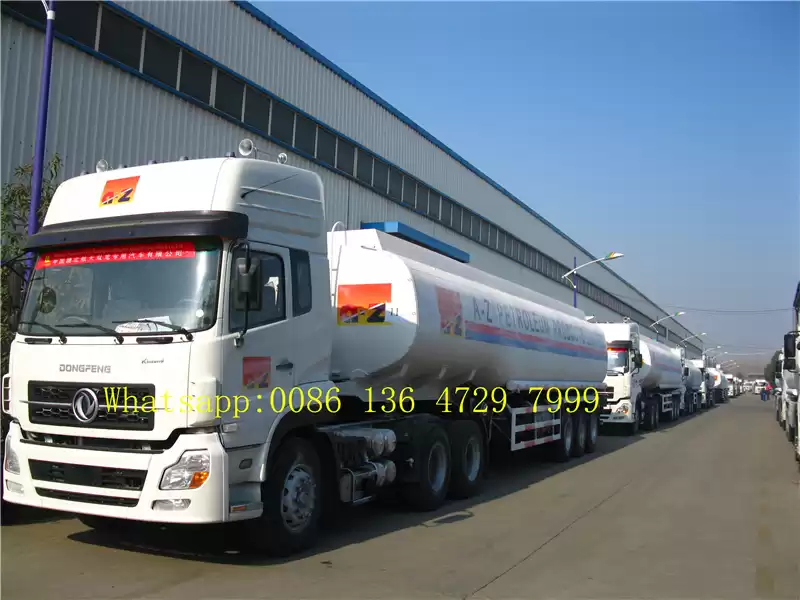

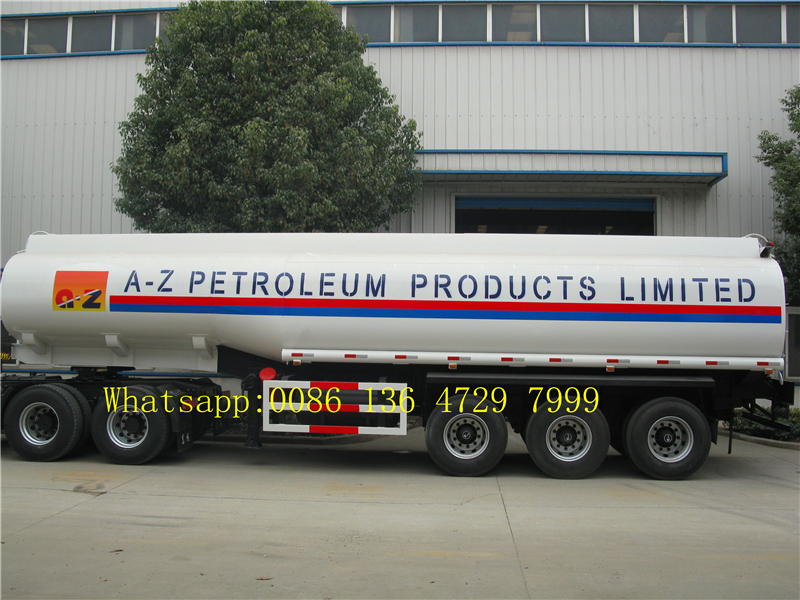

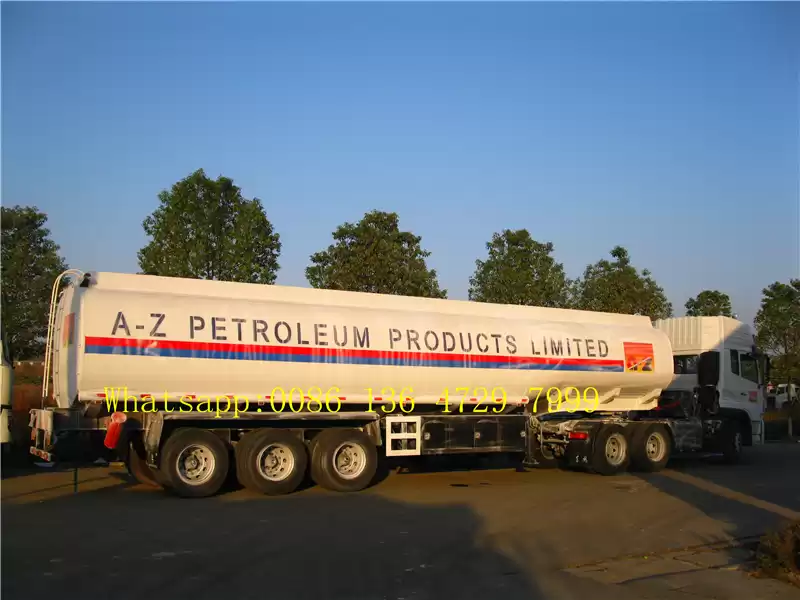

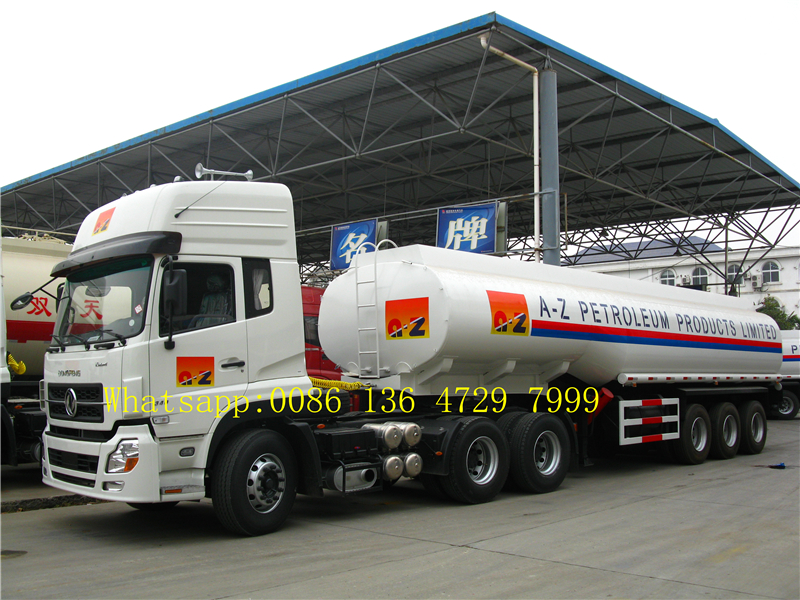

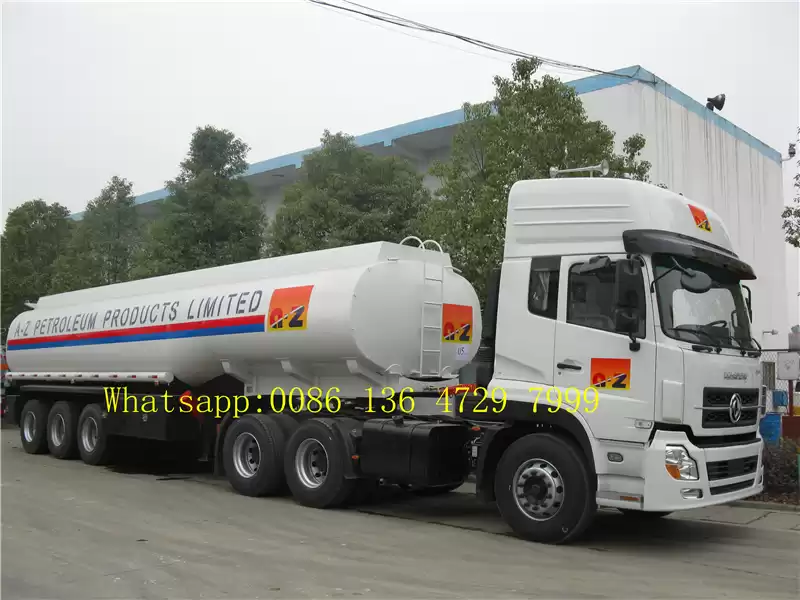

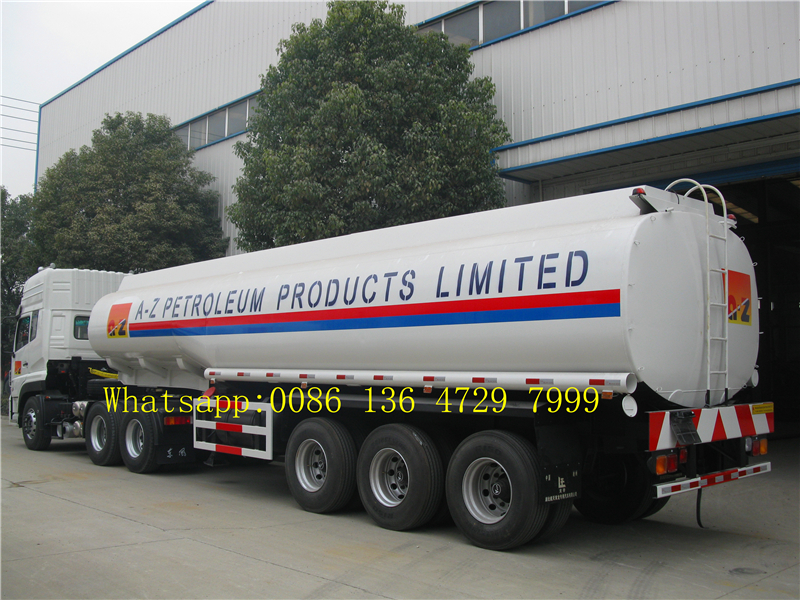

36000 Liters Petrol Tanker Trailers for africa cusomter using.
