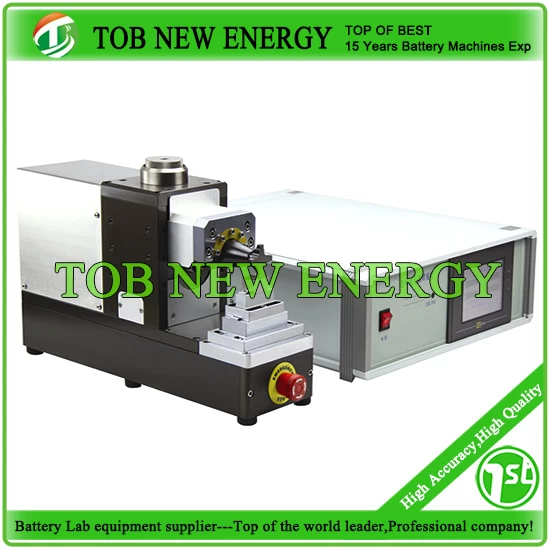

3600W Ultrasonic metal welding machine
SPECIFICATIONS
Device description:
1.Has a generator with frequency automatic tracking technology, high quality transducers, highly wear~resistant welding head.
2.Equipment is number position model, pressure, amplitude, welding time etc.parameters use all~digital set and regulation;
3.The use of energy, time, highly welding control mode;
4.Welding energy real time data acquisition, digital display, builtin electronic scale, highly accurate measurement of welding height.
5.All these operations are done on the touch screen.
6. Equipment operation accurate, stable and process control is very simple.
Device parameters and configuration:
|
Weight
|
45KG
|
|
Case size
|
480x600x180mm
|
|

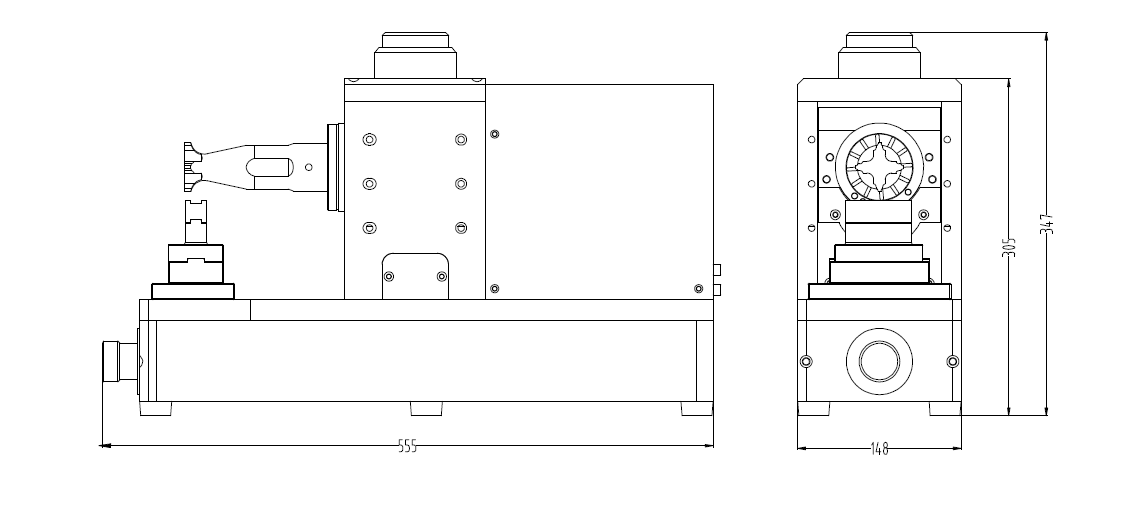

Rack Dimensions
|
150x560x350mm
|
|
Power
|
220 V (single-phase)
|
|
Air supply requirements
|
≧ 5 .0kgf / cm²
|
|
Operating frequency
|
20KHZ (automatic tracking, without
adjustment)
|
|
Nominal power
|
3600W (actual power capacity
4.5KW);
maximum pressure: 3000N
|
|
Other: 1,5.7 inch touch screen all digital control (including energy, altitude,time of three control
modes; pneumatic NC;100 kinds of parameters are stored call is very convenient.);
2,Multiple protection functions (over current, frequency protection),boot automatic
detection; 3,Digital stepless amplitude modulation (20~40μm half wave amplitude is continuously
adjustable to adapt to a variety of materials and specifications).
|

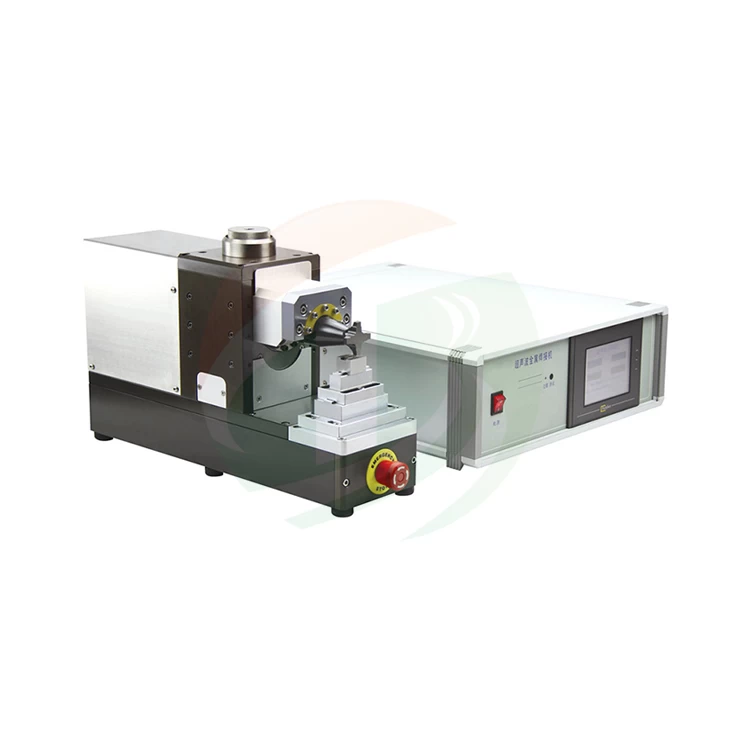

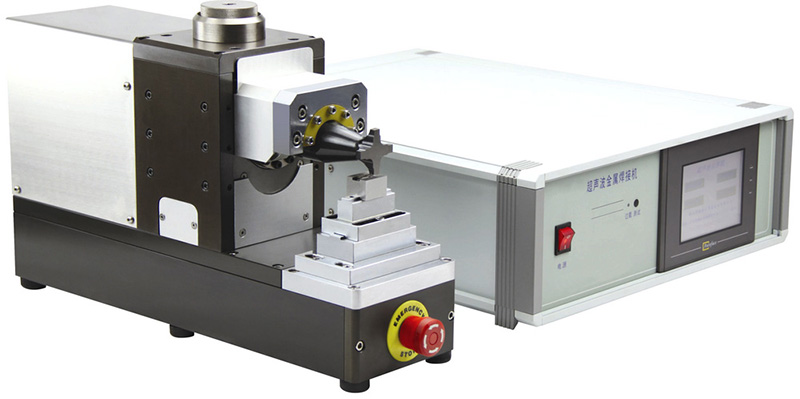

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
|
