360V 384V 540V 100A Solar charge controller cabinet

The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging. Charging process has been optimized for long battery life and improved system performance. Meanwhile, the comprehensive self-diagnostics and electronic protection functions can prevent damage from installation or system faults.



360V 384V 540V 100A Solar charge controller cabinet

2_01

Description of solar charge controller


Features of solar  charge controller

  • 1.) Accomodate 2 strings input of solar module arrays

    2.) IGBT module structure designed

    3.) LCD equipped to show parameters of system running status

    4.) High efficiency with by PWM charge mode

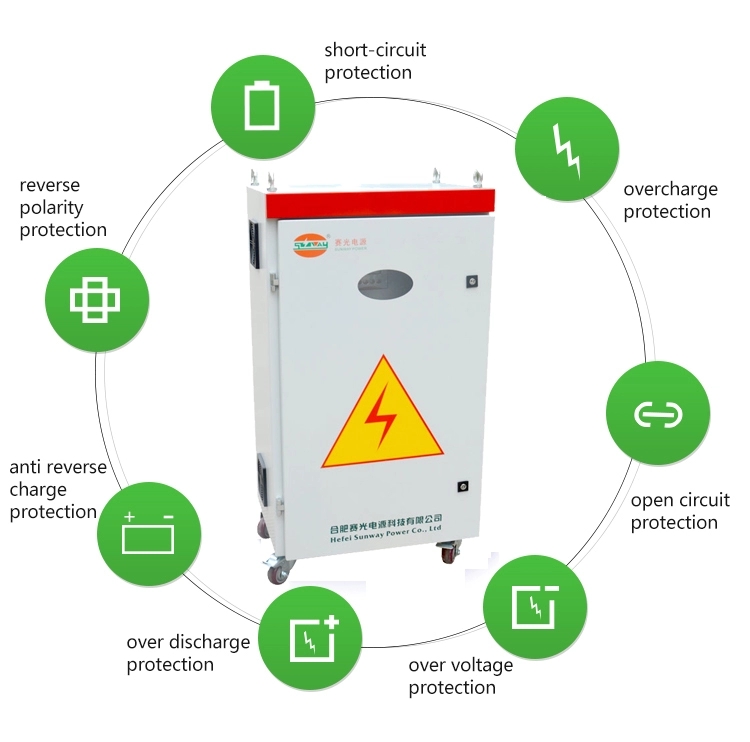

    5.) Multi protections as anti-reverse connection, no charging reversely on night. And over-charge, limited charging current &voltage protections for battery

    6.) With system abnormal status alarm function

    7.) Users can to modify the system parameters by setting keys

    8.) Equipped with RS485 data communication function (optional)

    9.) TTL Control Signal is offered, suitable for solar-genset hybrid system(optional)

    10.) Be able to offer DC power supply (optional)

    11.) Day and night double processing mode


Technical Data of solar charge controller




Model

SSCP-240V

SSCP-360V

SSCP-384V

SSCP-484V

SSCP-540V

PV modules Vmp [V]

300-360

450-540

480-576

605-726

675-810

Module arrays input [array]

2 (standard)  3/4(optional)

Rated charging current [A]

o85     o100   o125   o150   o175    o200

Rated battery bank voltage [V]

o240   o360   o384  o484    o540

Performance

Consumption at standby [mA]

<40

Consumption at night [mA]

<20

Topology

Transformerless

Operating Temperature Range

-25℃ to +60℃ (45℃ to 60℃ with de-rating)

Cooling Method

Convection with double cooling fans

Ambient Humidity

0%~98% Non-condensing

Altitude [m]

Up to 2000 (without power de-rating)

General Data

Terminal

Universal KE series

LCD Display

LCD (16X2characters,green backlight)

Display Language

English

Data communication

RS485

Ingress Protection Class

IP20 (indoor)

Noise [dBA]

<30

Dimensions (W*D*H) [mm]

620 *480 *1200

Net weight [kg]

70

Standard Warranty [year]

3 (standard) / 5(optional)




















Product details of solar charge controller



Topology of solar charge controller


Assemly of  solar charge controller


Project case of MPPT solar charge controller

solar charge controller

Payment of solar charge controller

Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
