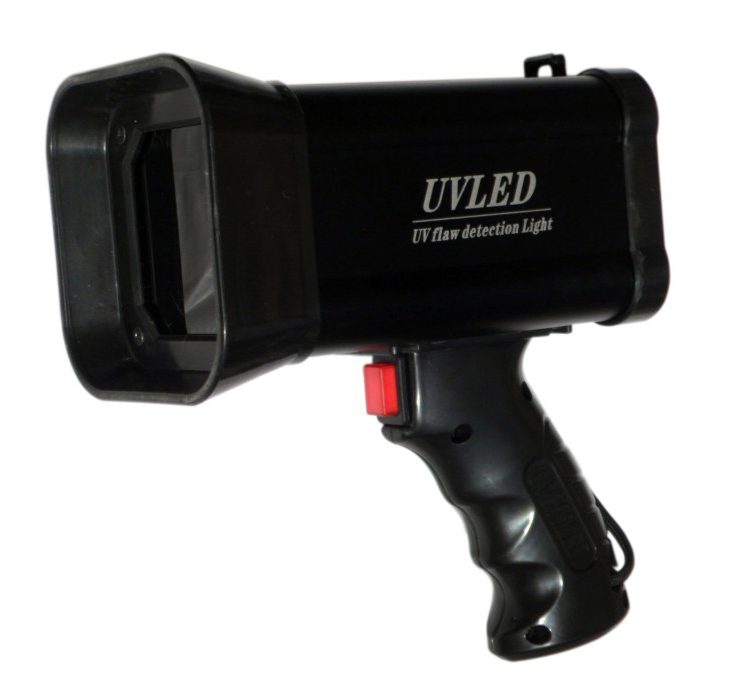

UV LED 365-SJ4028-6k Large Focal Length UV Black Light Torch is using original imported NICHIA UV LED light source, usually used for fluorescent inspection.
Parameters of Large Focal Length UV Black Light :
|
Item
|
Parameters / Method
|
|
Type
|
Hand-held
|
|
UV-FLUX
RT 25℃, calibration at 380mm
|
6000 μW / cm2
|
|
The white light levels
|
≤20 Lux
|
|
Calibration at 380mm cover area
|
Diameter 300mm
|
|
FLUX Error
|
0 - 40 ℃ ±10%
|
|
Light distribution characteristics
|
Center for light distribution
|
|
Power supply
|
AC 100 - 240V 50 / 60 Hz
|
|
Power
|
UV LED - 12VA
|
|
Wavelength
|
RT 25℃, 365nm ± 3nm (UVA)
|
|
Outside dimension
|
160mm(W)*75mm(D)*170mm(H)
|
|
Weight
|
750g
|
|
Battery capacity
|
6800mA/H 126V
|
|
Charging time
|
3-4 H
|
|
Battery life (cumulative time)
|
UV LED 5 - 6 H
|

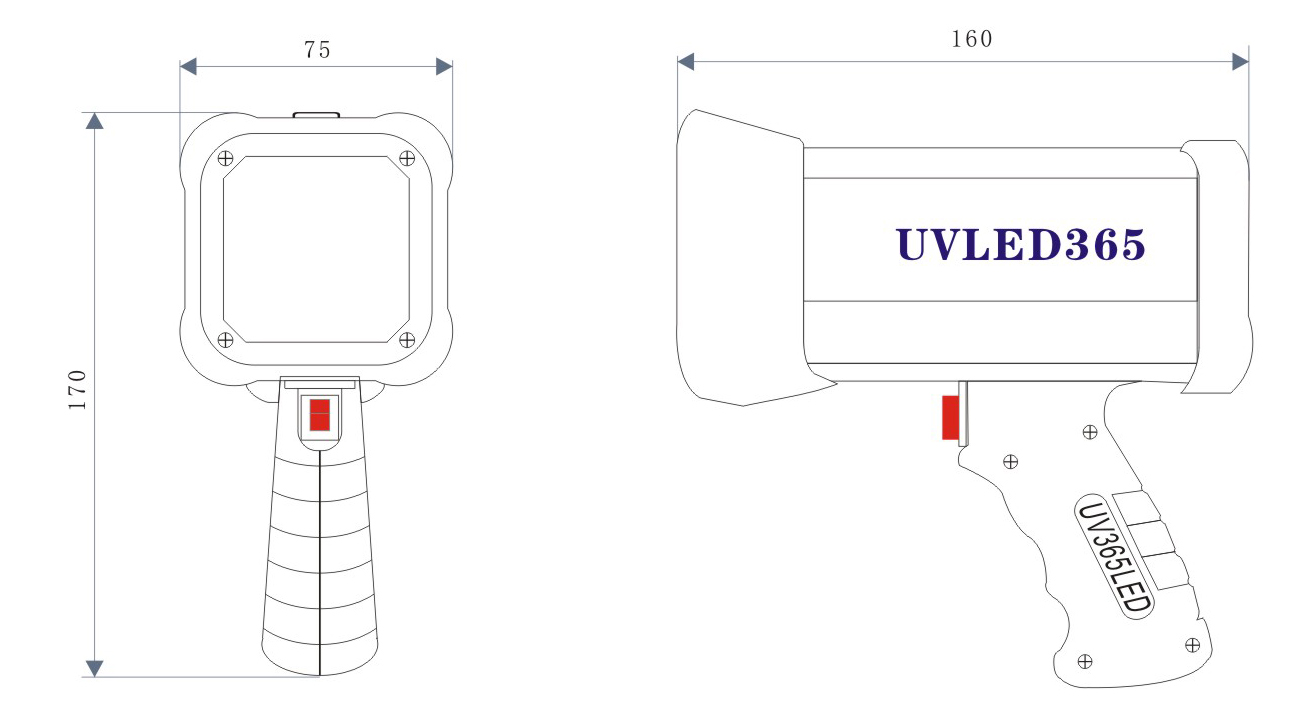

Outside Dimension of Hand-held Bright Light Flashlight : (unit : mm)
Characteristics of Leduvcuring Ultraviolet Black Light :
1.Original imported NICHIA UV LED light source
2.Zero UV-B
3.5-6 hours battery life
4.The battery uses 6800mA large capacity lithium battery.
5.Including battery, total weight is 750g
6.Continuous working surface temperature rise <8K (8℃)
7.With color filter glass, with color filter function
8.White light content below 20 LUX

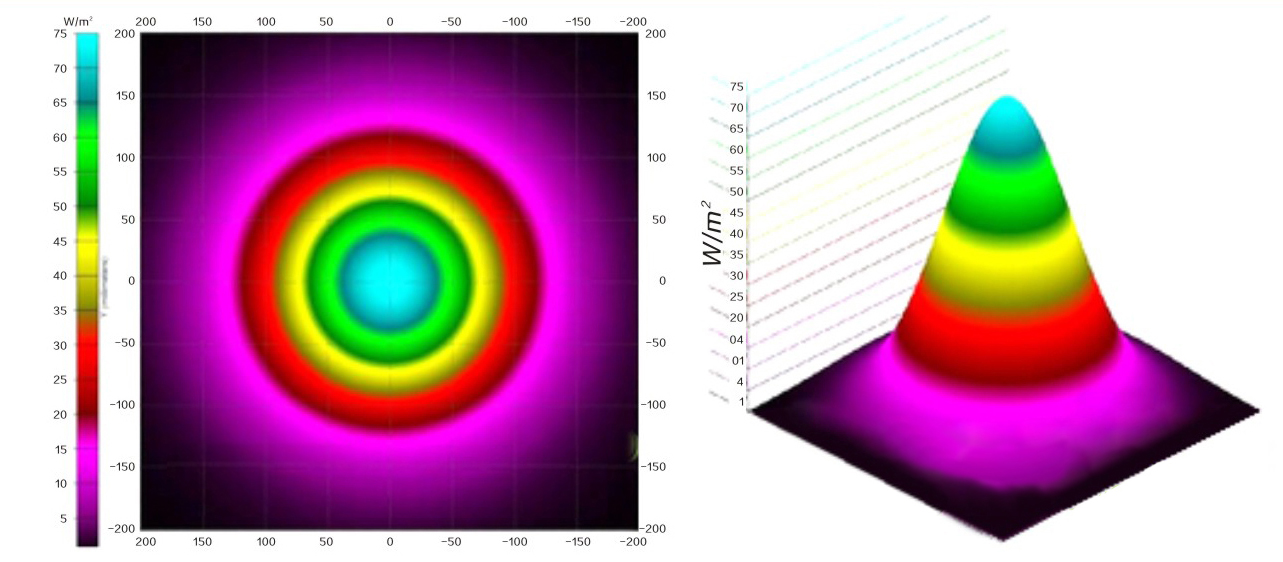

UV Irradiance Intensity Profile (381mm) of Large Area Irradiation UV Black Light Torch :
