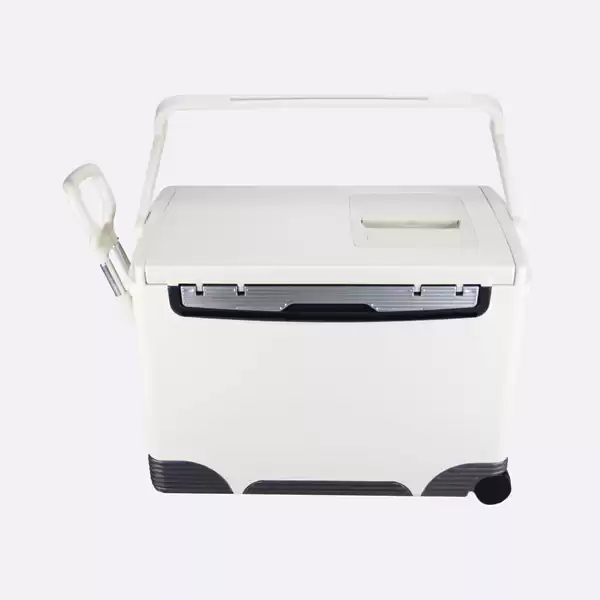

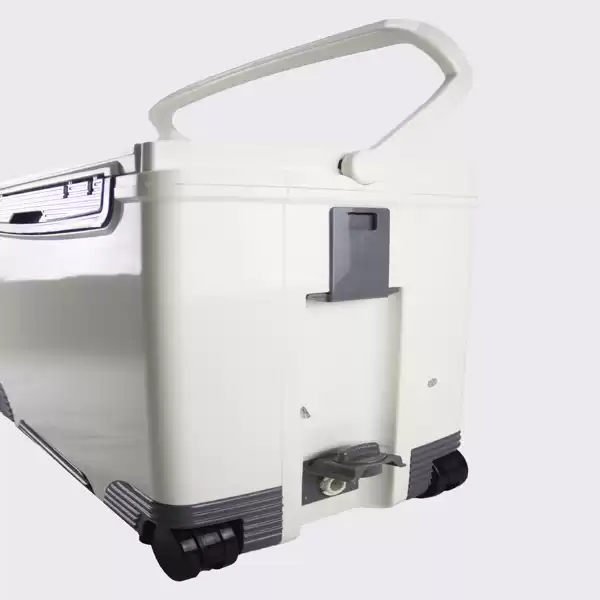

36L vaccine cold chain box with trolly
Thermally insulated boxes are required to store temperature sensitive items such as medicine, vaccine, blood, body cells etc. mainly for transportation. The temperature of the stored items has to be maintained within certain temperature range for time periods lasting up to couple of days and in such cases cold chain boxes are used.
|
Category
|
Medical cooler box
|
|
Main Material
|
PP,Insulation: Polyurethane foam
|
|
Application
|
Medical, vaccine, blood storage and transport
|
|
Dimension
|
Outer Dimension:57*33*40cm
Inner Dimension: 45.5*25*32cm
|
|
Capacity
|
36L
|
|
Cold source
|
Ice Pack: Or 16pcs of 16.5*9.5*3cm ice brick
Or as your requirement
|
|
Cold life
|
>48 hours at 2°C to 8°Cin an ambient temperature of 30°C
|

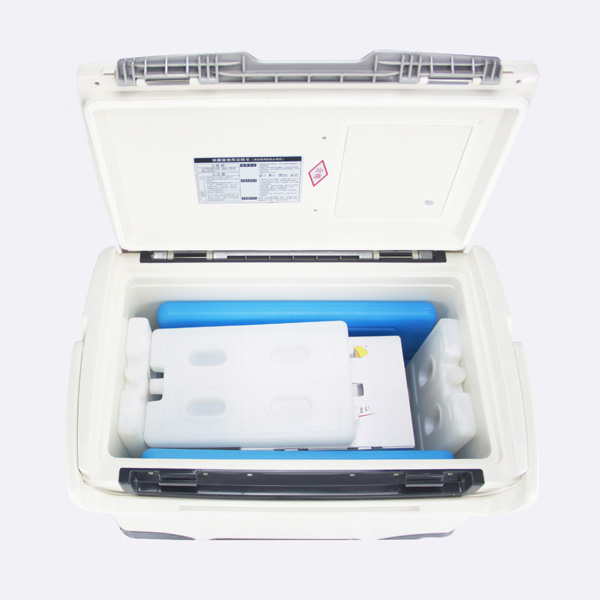

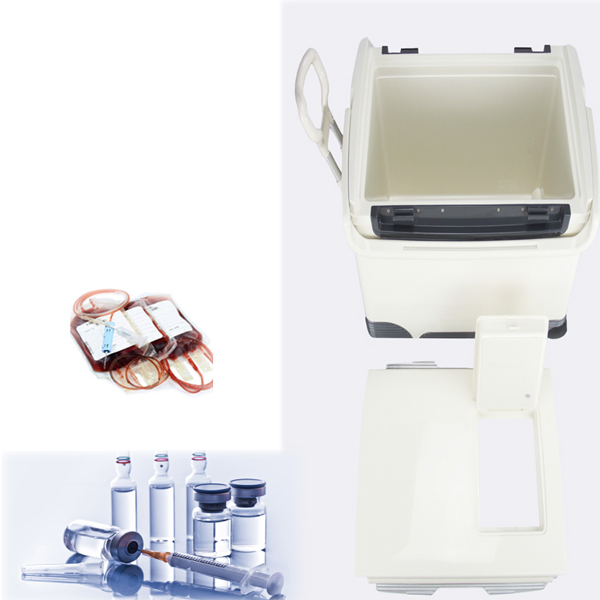

1.1 Constrution of Cold Chain Box for Blood Sample Transportion and Carriers
1.2 Test data of 36L Cold Chain Box
1.3 How to Use the Cold Chain Box
1.4 More Series of Cold Chain Box
|
Model No.
|
Container Capacity
|
Usable
Cold Space Capacity
|
Internal Size
|
External Size
|
|
HTLL-1080
|
8L
|
3.5L
|
28.7*15.7*16.2cm
|
34*21*24cm
|
|
HTLL-0611
|
11L
|
8L
|
34.5* 20.5*24cm
|
42*28*32cm
|
|
HTLL-1012
|
12L
|
7.2L
|
34*19*20cm
|
40*25*26cm
|
|
HTLL-0914
|
14L
|
7.4L
|
33.5*17*25cm
|
42*25.50*32cm
|
|
HTLL-1018
|
18L
|
9.4L
|
36*21*24cm
|
43*28*32cm
|
|
HTLL-1228
|
28L
|
16L
|
43.5*24.5*27cm
|
52*32*34.5cm
|
|
HTLL-1636
|
36L
|
24L
|
46.50*25*32.8 cm
|
57*33.50*40.5cm
|
|
HTLL-2038
|
38L
|
24L
|
45*28.5*21cm
|
53*35*35cm
|
|
HTLL-3048
|
48L
|
31.5L
|
59.5*25*31cm
|
68*34*37.5cm
|
|
HTLL-3268
|
68L
|
33.7L
|
68*23*32cm
|
73*38*42cm
|
