6KW Electric Forklifts Intelligent Charger
1.Product Introduction:
In terms of the environment, the FST-6K Charger thrives in conditions free from direct sunlight, dust, corrosive gases, flammable substances, oil residues, mold, steam, and water droplets. What's more, it remains unaffected by quick temperature fluctuations, preventing any undesirable condensation.
Whether it's chilly -40℃ or sweltering 50℃, the FST-6K Charger effortlessly delivers full power output. Even at higher temperatures up to 75℃, it maintains its unwavering performance through reduced output levels.
2.Technical Parameters：
Rated Input Voltage Range
|
85-265VAC
|
Rated input frequency
|
50/60Hz
|
Input power
|
≤6.5KVA
|
Maximum input current
|
≤35A |
Maximum conversion efficiency
|
≥93%
|
| Rated output current |
128A |
| Rated output voltage |
36V |
| Rated output power |
3KW@110VAC
6KW@220VAC
|
Output and input plug specifications.
|
Customized according to customer requirements
|
| Communication |
CAN BUS |
| Auxiliary power output voltage |
12V
|
| Auxiliary power output current |
3A |
| Cooling method |
Forced air cooling |
| Operating temperature |
Full power output at -40°C to 50°C
Derating output from 50°C to 75°C
|
Relative humidity
|
10%-90% non-condensing
|
| Protection level |
IP 20 |
Noise
|
≤55dB
|
Altitude
|
Below 2000m
|
Weight
|
6kg (for reference only, please refer to actual measurement)
|

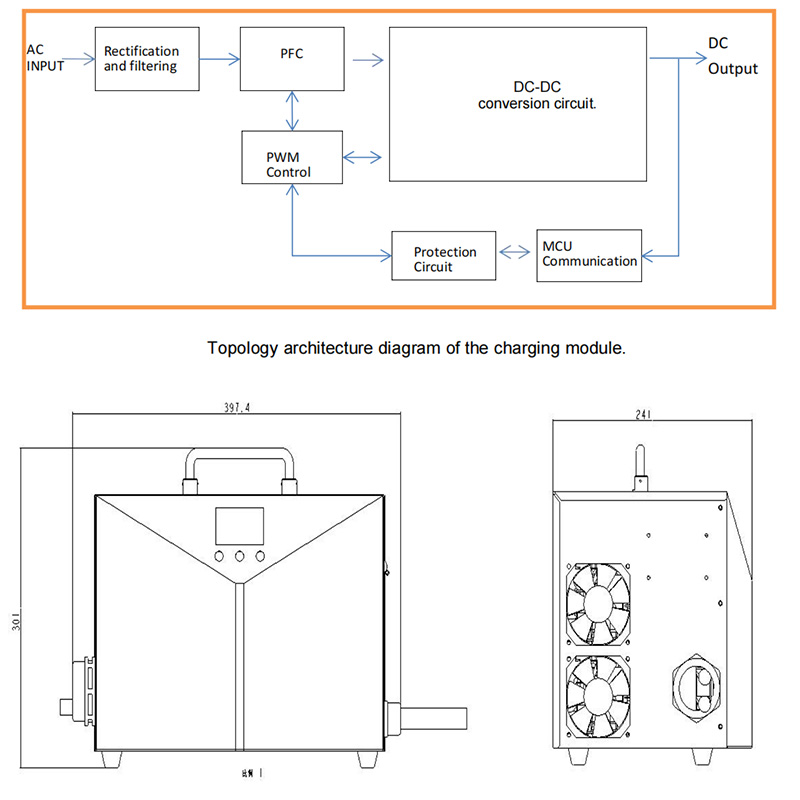

3.Picture Introduction:
