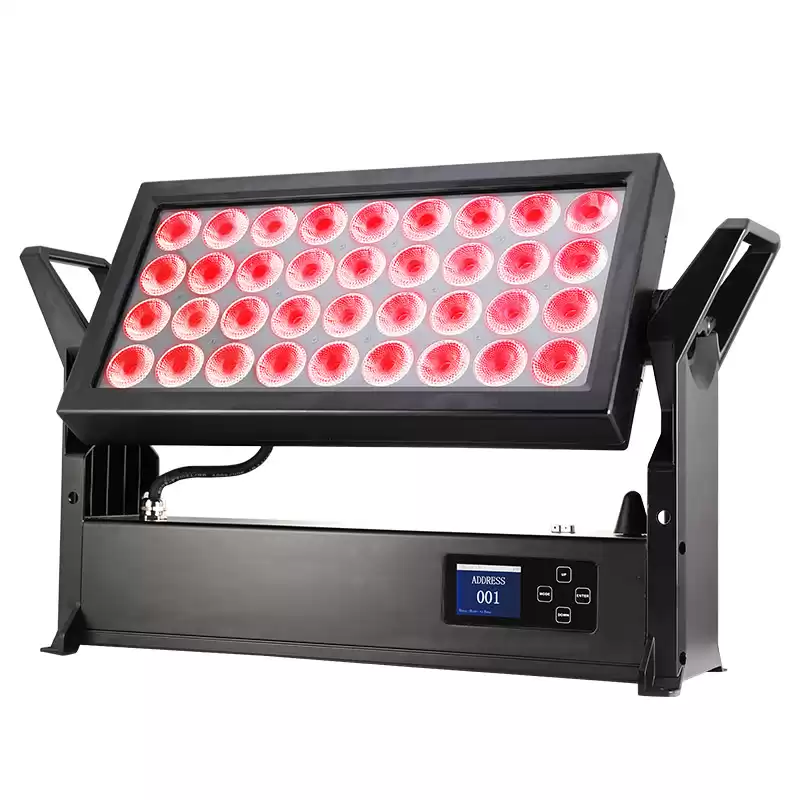

It is all aluminum alloy waterproof structure, stylish, generous, easy to install. Using 36*12W RGBAC + Lime LEDs as the light source, the light output angle is 10 ° (optional 25 ° 45 °), the reasonable LED layout makes the projected light spot more uniform, the color mixing is more pure, and the projection distance is more It can be widely used in projection lighting, stage, theater, etc. In addition to DMX control, there is also a powerful RDM control.
● Optics
. LED : 36x12W RGBAC + Lime LED, uniform and delicate color mixing effect
. Lens: 43mm PMMA lens with high brightness
. Beam angle: 25 ° (optional 10 °, 45 °)
. Life span: 50000H, low power consumption, energy saving and environmental protection
● Colour

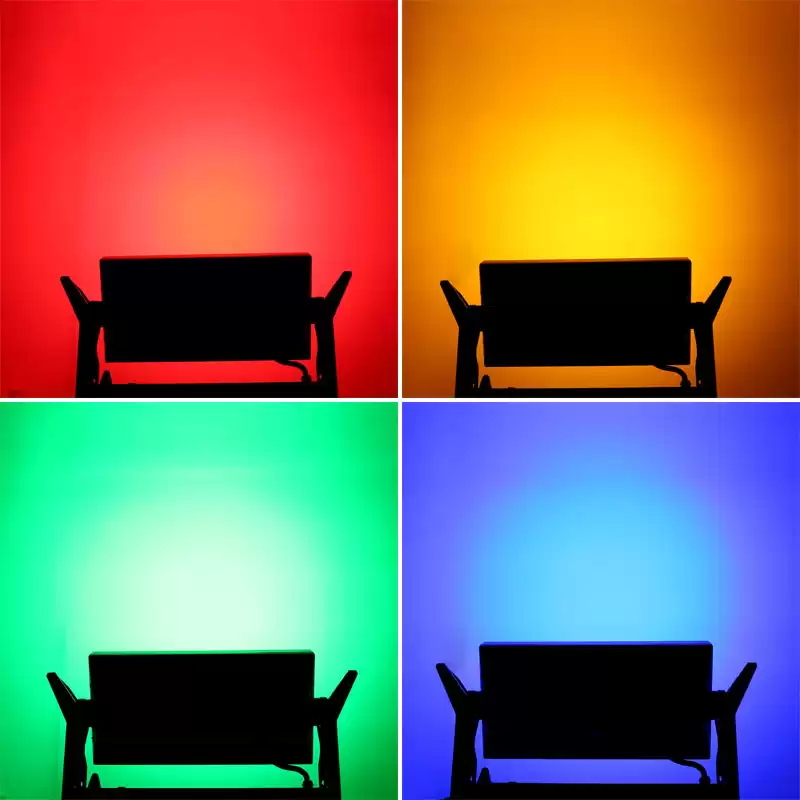

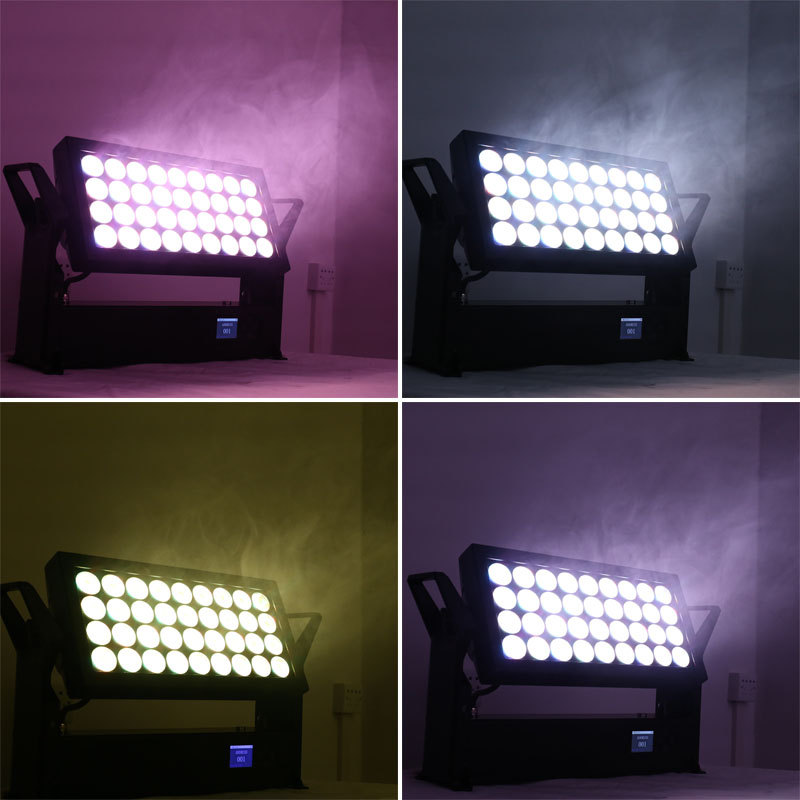

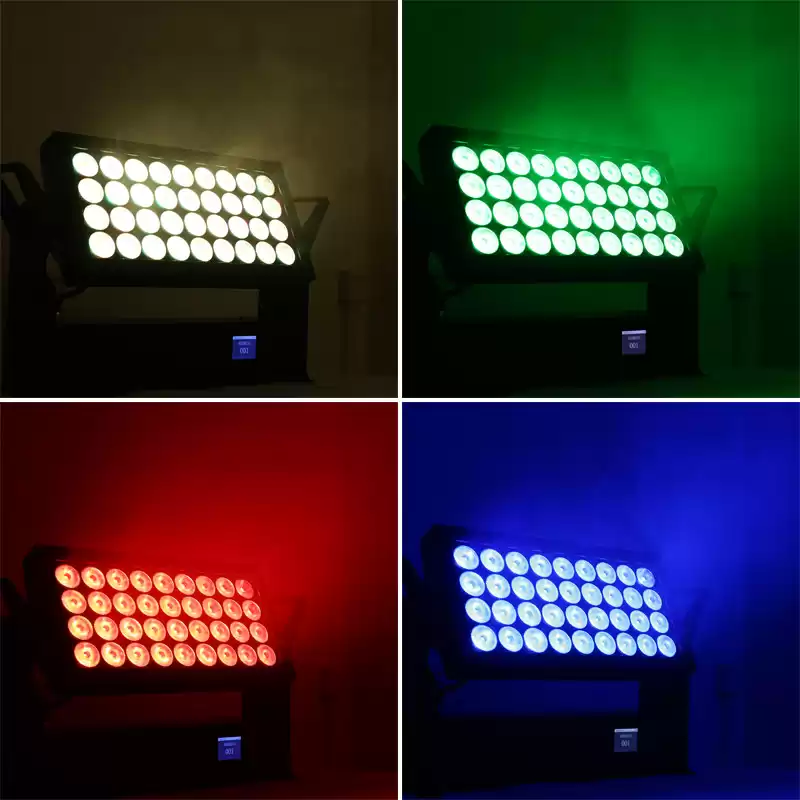

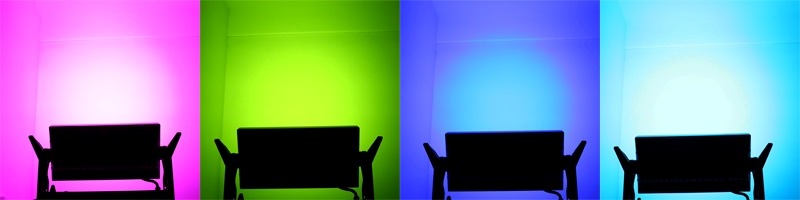

. Uniform RGBACL color mixing system
. Color temperature: 3200-10000K
. Explicit indication: CRI≥90
. White balance can be adjusted manually
. Static color setting
● Specification
. 5 DMX channel modes: 2CH / 6CH_1 / 6CH_2 / 8CH / 12CH international standard DMX512 channels
. 3 control modes: DMX512, wireless DMX, master-slave
. 2.4G wireless DMX
. Light spot angle: 25 ° (optional 10 °, 45 °)
. DMX function: dimming, strobe, RGBACL, macro color, color jump, color gradation, rainbow, auto running program selection, auto running speed, dimming curve selection, function setting
. Stand-alone mode: color jump, color gradient, auto-run, slave, macro color, static color setting, rainbow, auto-run program selection
. Strobe effect: Strobe effect :Puls Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Breakeffect, 5s…..1s、Strobe0-20Hz
. Dimming: 0-100% 16bit dimming, which can control the light and dark changes of 6 colors and light off at the same time
. Dimmer mode: 2 kinds.(LED and Halogen)
● Display
. 2.4-inch TFT color display
. High anti-interference four-button touch button
. Key lock can be set to prevent misoperation
. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
● Software
. Software update :Update via DMX link
. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
. LED refresh frequency: 800Hz / 1200/2000/3600 / 25000hz optional
. 4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、Sqaure Dimmer、S-Curve Dimmer
● Other functions
. Setting and addressing: RDM
. LED temperature detection system to protect the life of lamp beads
. Fan cooling (fan changes speed with temperature change)
. Fan mode: automatic and high-speed mode switching

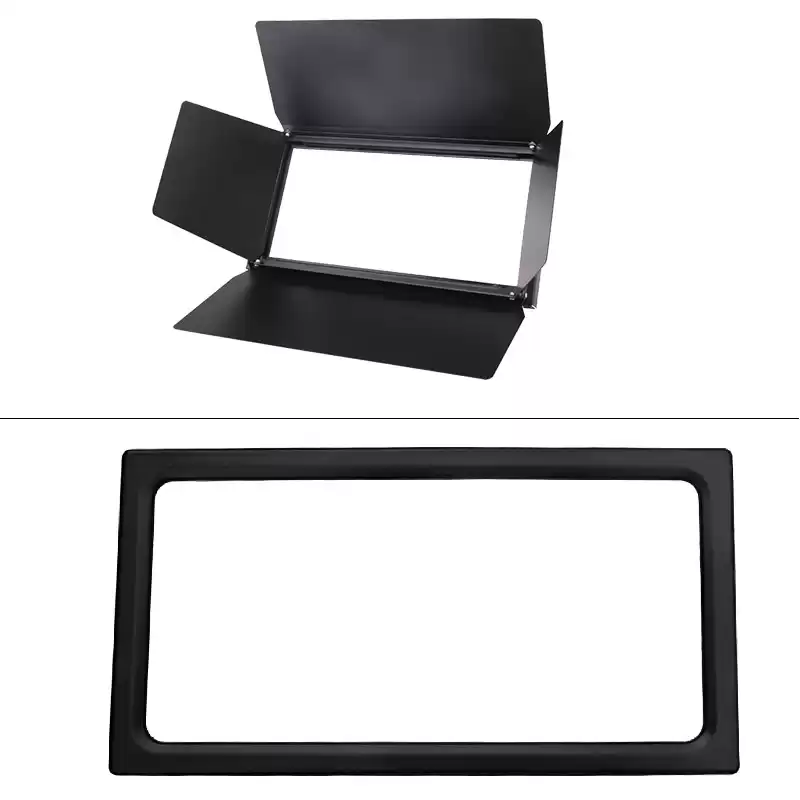

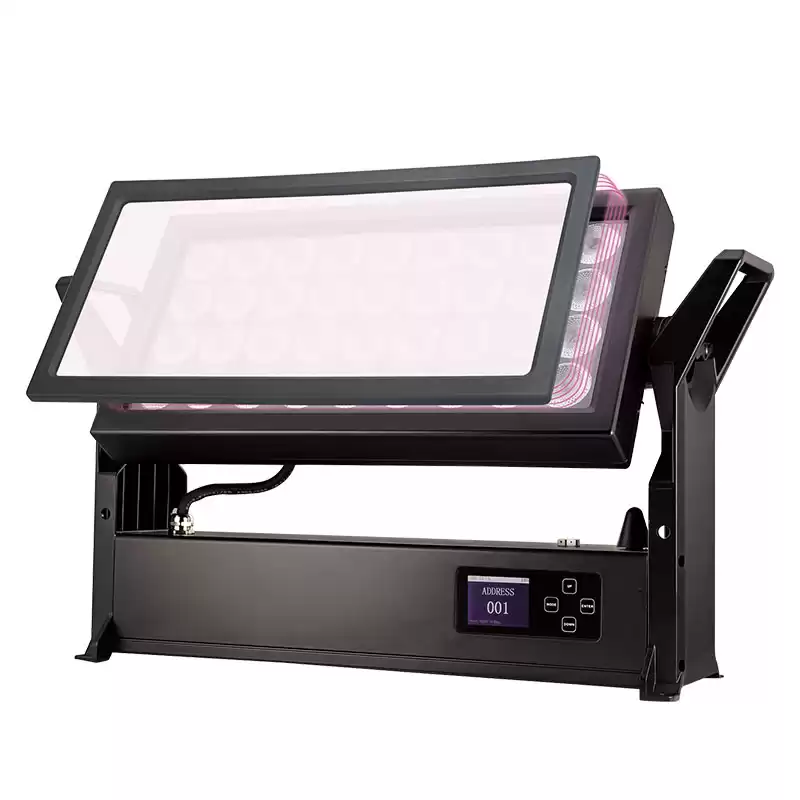

. A diffuser plate can be added on the surface of the lamp to change the angle. The diffuser plate is attracted by magnets.
● Power / DMX connection
. Power connection: Waterproof power socket Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)
. DMX input: Waterproof DMX card dragon seat 3-pin Seetronic J3F2C-W
. DMX output: Waterproof DMX card dragon seat 3-pin Seetronic K3F2C-W
● Power
. AC100-240V 50 / 60HZ
. Power consumption: 380W
● Protection class
. Housing material: die-cast aluminum
. Waterproof level: IP65
● Working environment
. Indoor working temperature: -20 ° C～+ 40 ° C
● Size and weight
. Packing size: 660 * 280 * 455mm
. Net weight: 15KG
. Gross weight: 17.2KG
● Certificate:
. CE, ROHS
