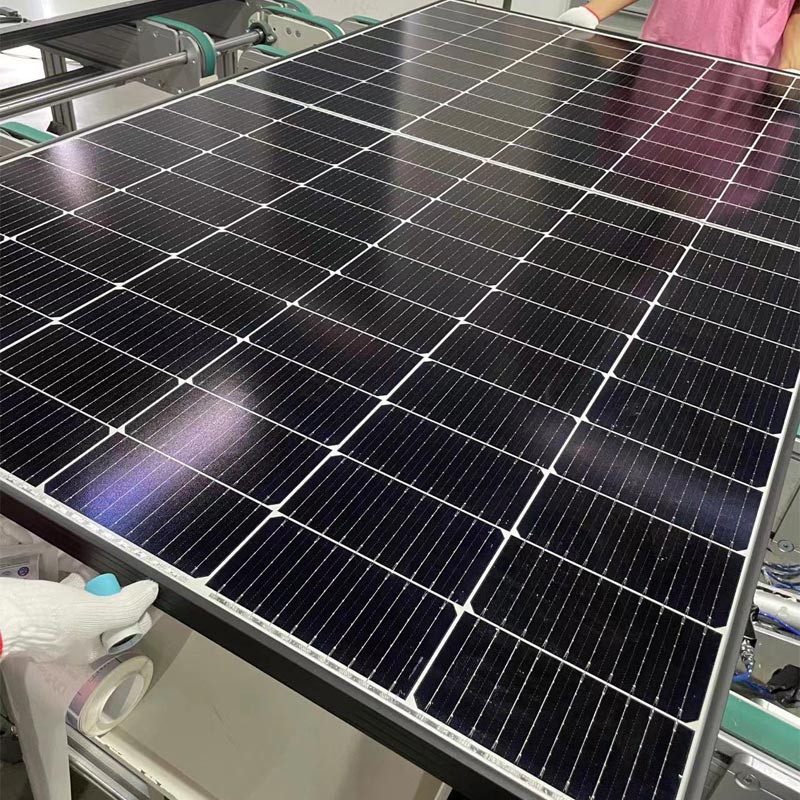

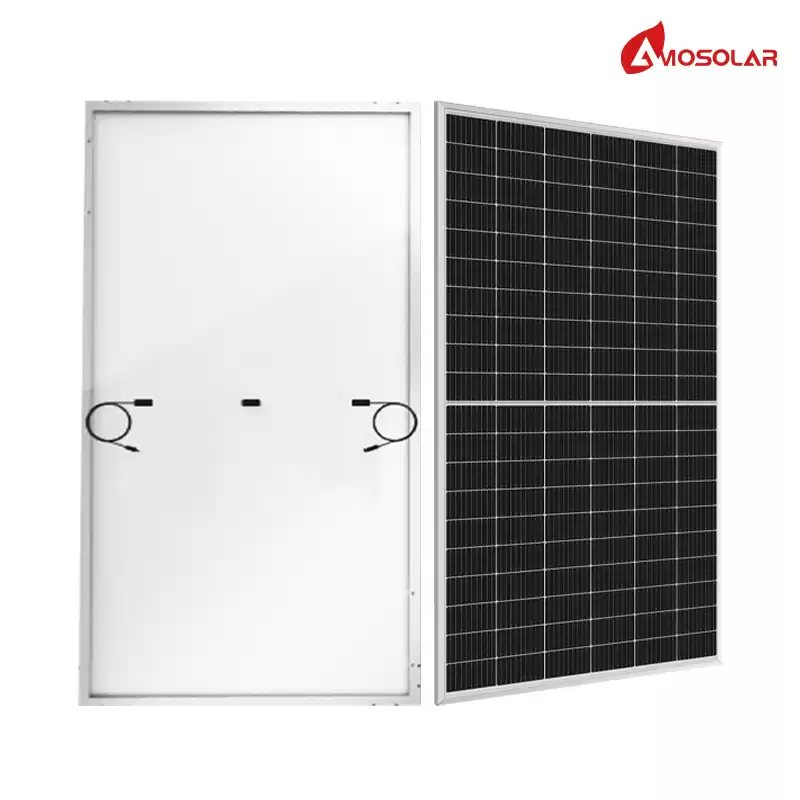

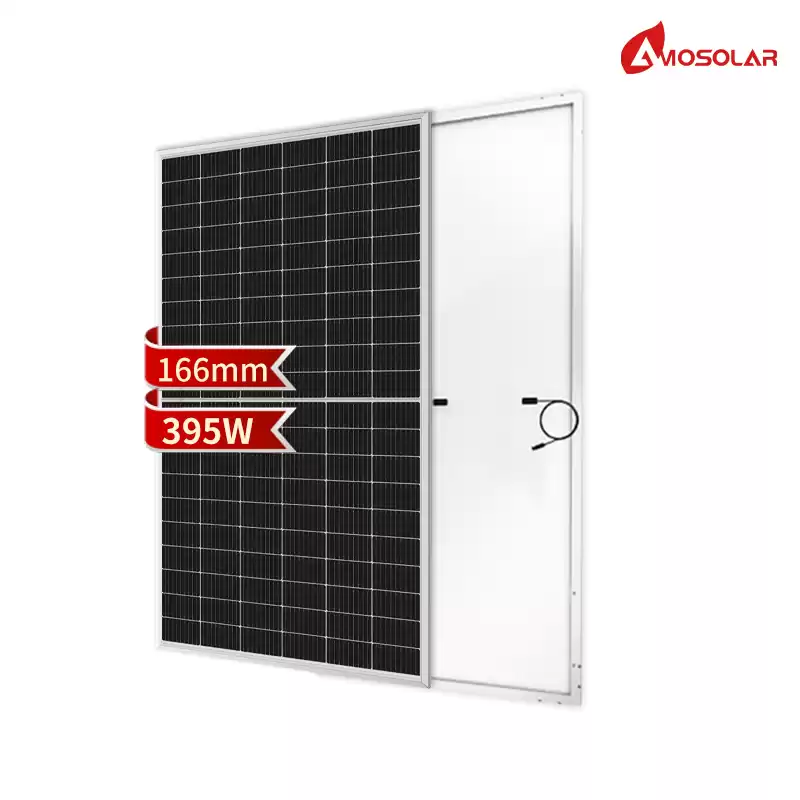

370W-395W Half Cut Mono PV Panel Chinese Factory : With multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance.

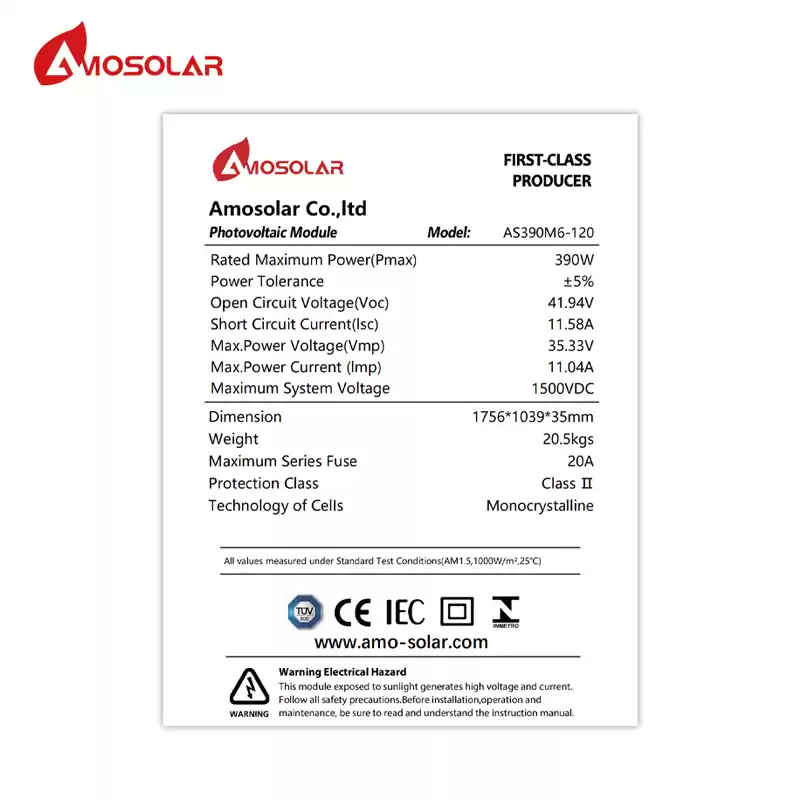

Electrical Performance Parameters (STC Test)
Model
|
AS370M6-120
|
AS375M6-120
|
AS380M6-120
|
AS385M6-120
|
AS390M6-120
|
AS395M6-120
|
|
Rated Maximum Power at STC
|
370W
|
375W
|
380W
|
385W
|
390W
|
395W
|
|
Open Circuit Voltage (Voc)
|
41.30
|
41.45
|
41.62
|
41.78
|
41.94
|
42.10
|
|
Maximum Power Voltage (Vmp)
|
34.23
|
34.50
|
34.77
|
35.04
|
35.33
|
35.62
|
|
Short Circuit Current (Isc)
|
11.35
|
11.41
|
11.47
|
11.53
|
11.58
|
11.63
|
|
Maximum Power Current (Imp)
|
10.81
|
10.87
|
10.93
|
10.99
|
11.04
|
11.09
|
|
PV Module Efficiency (%)
|
20.28
|
20.55
|
20.83
|
21.10
|
21.38
|
21.65
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|
Mechanical Parameters
Layout : 120( 6 × 20 ）
Junction Box : Split junction box, IP67, 3 diodes
Weight: 20.5KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)
PV Size: 1756×1039×35mm

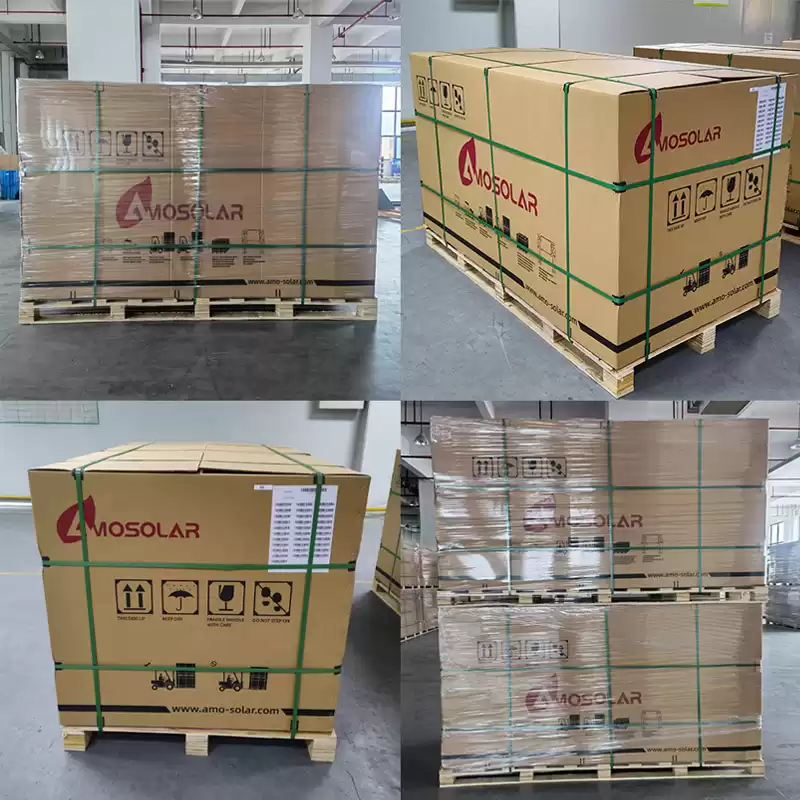

Packaging: 31 pcs / pallet
858 pcs / 40HQ container
